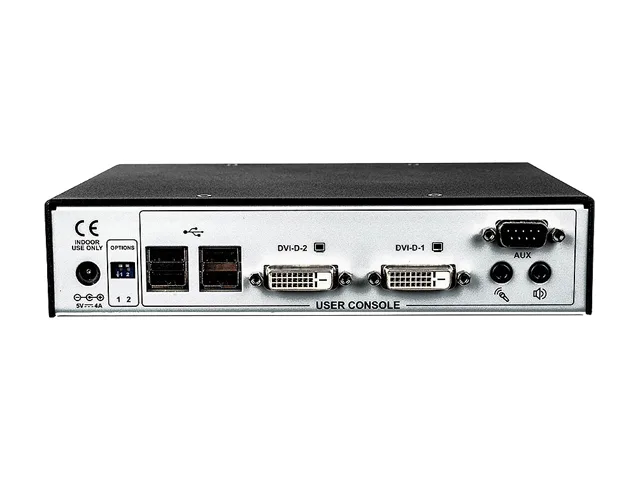

Silver desktop KVM receiver with dual DVI-D ports and four USB ports

Vertiv

Vertiv HMX5200R-001 Dual-Head DVI-D KVM Switch 1920x1200

SKU CH-7M1V-8M5NA MPN HMX5200R-001

Dual-head DVI-D KVM receiver extends 1920x1200 video and digital audio up to 328.08 ft over IP with four USB ports

  • TypeConsumer Electronics
  • Monitor Connections2 x DVI-D
  • Video Resolution1920x1200
  • FeaturesEliminates Distance Limitations within the LAN - Allows comp

Style Dual Receiver

Struck-through versions exist but are not stocked here.

  • Dual-head DVI-D delivers 1920x1200 resolution for intensive graphics
  • LAN-based KVM extends access up to 328.08 ft across the network
  • Sub-second switching provides instant control of remote target computers
  • Four USB ports support keyboard, mouse and other peripherals
  • Compact 1.76" desktop form factor fits rack or shelf deployments

Dual-Head DVI-D KVM Receiver for IP-Based Access

The Vertiv HMX5200R-001 is a dual-head DVI-D KVM receiver that extends keyboard, video, mouse and USB signals over a standard IP network. It supports a maximum video resolution of 1920x1200 per head and provides two DVI-D ports, two RJ-45 network ports and four USB ports for peripheral connectivity. The unit operates on 5 V DC input and is designed for desktop or rack-mounted installation in professional environments.

Suited for Remote Server Management

This receiver suits administrators who need to place workstations up to 328.08 ft from target computers while maintaining full DVI-D video, digital audio and USB control. It enables centralised, temperature-controlled equipment rooms with less than a second switching between sources. Buyers who require native HDMI or DisplayPort inputs, more than two video heads, or fibre-channel extension should evaluate alternative solutions.

Dual DVI-D Output at 1920x1200 Resolution

The defining specification is the dual DVI-D output driven at 1920x1200 resolution, which determines whether the receiver matches your monitor and cabling infrastructure. With two DVI ports and support for WUXGA graphics mode, it connects directly to compatible displays without active adapters. Verify that your source systems and cabling support this interface and resolution before deployment.

Highlights

  • Dual-head DVI-D delivers 1920x1200 resolution for intensive graphics
  • LAN-based KVM extends access up to 328.08 ft across the network
  • Sub-second switching provides instant control of remote target computers
  • Four USB ports support keyboard, mouse and other peripherals
  • Compact 1.76" desktop form factor fits rack or shelf deployments

Specifications

BrandAvocent
ModelHMX5200R-001
TypeConsumer Electronics
Monitor Connections2 x DVI-D
Video Resolution1920x1200
FeaturesEliminates Distance Limitations within the LAN - Allows computers and users to be located anywhere on the network
High-Quality DVI Video and Digital Audio - For intensive graphic and audio applications
Centralized Management - Via a single console, including access, desktop pooling and reporting
Centralized, User-Rights Management - HMX system allows user administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT
Greater Security - 128bit AES encryption for secure access
No Dedicated Cabling - Removes the need for dedicated cabling between user and compu
Shipping weight1.81 kg
Package size287 × 241 × 146 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables and transmitters do I need to connect this receiver to a target computer?

You need two DVI-D cables for the dual monitors, a Cat5e or better Ethernet cable up to 328.08 ft to link the receiver to an HMX transmitter, and a 5 V DC power supply for the receiver itself.

Will my existing 1920 x 1200 DVI monitors work without scaling or quality loss?

Yes, the receiver supports a maximum resolution of 1920 x 1200 over each DVI-D port, matching your monitors' native WUXGA resolution pixel-for-pixel.

How can I verify the unit is operating correctly after installation?

Confirm both DVI monitors display 1920 x 1200, USB keyboard and mouse respond instantly, digital audio plays through the connected speakers, and the front-panel link LEDs show an active connection to the transmitter.
