Two red cylindrical glass glaze film resistors with metal leads

Unique-Bargains

Unique-Bargains 5W 100M Ohm Glass Glaze Film Resistor 2 Pcs

SKU CH-Y9FY-YYVRG

A 5 W, 100 MΩ glass-glaze film resistor pair rated for high-voltage impulse circuits and arc-furnace damping

  • Featuresideal accessory;widely used;pulse modulators;impulse circuit
  • High 5W power rating for demanding circuits
  • Precise 100M Ohm resistance with ±5% tolerance
  • Glass glaze film handles impulse and high-voltage use

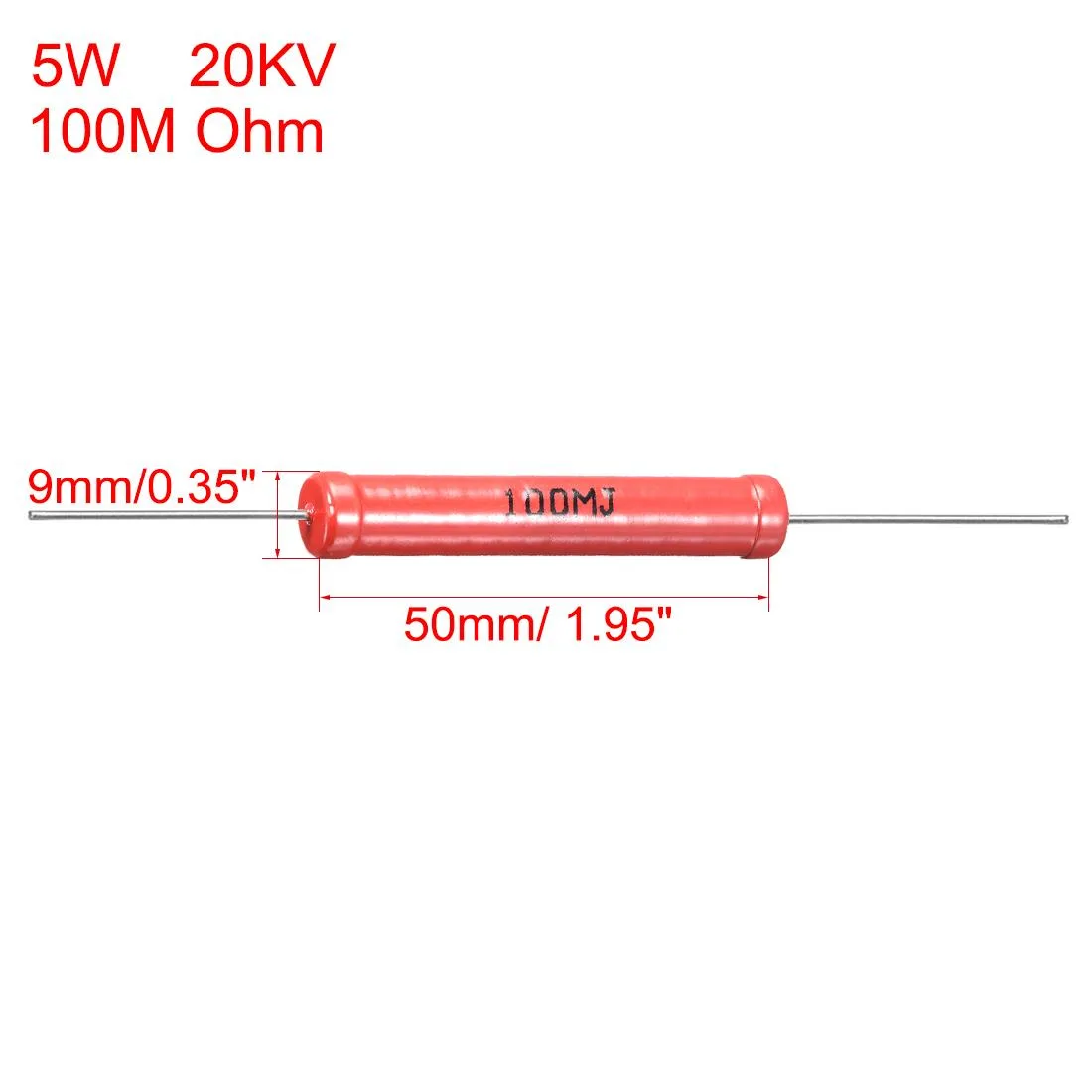

  • Compact 50 x 9mm body fits tight board layouts
  • Pack of two resistors supports prototype and repair work

5W 100M Ohm Glass Glaze Film Resistors

This pack contains two 5W glass glaze film resistors rated at 100M ohm with a ±5% tolerance. They are built for AC, DC and impulse circuits as well as high-voltage apparatus. The body measures 50 x 9mm and the pins are 30 x 1mm. The components are supplied new and ready for installation.

Suits high-voltage impulse and damping circuits

Engineers working on impulse voltage generators, arc furnace damping, capacitor crowbar circuits or EMI and lightning suppression will find these parts suitable. They also serve pulse modulators and high-voltage snubber circuits. Builders needing a different resistance value, tolerance or power rating should select another component.

5W power rating at 100M ohm

The 5W power rating at 100M ohm is the key specification that determines whether this resistor fits the circuit design. Verify that the required dissipation and resistance match these figures before purchase. The glass glaze construction supports the stated high-voltage applications.

Highlights

  • High 5W power rating for demanding circuits
  • Precise 100M Ohm resistance with ±5% tolerance
  • Glass glaze film handles impulse and high-voltage use
  • Compact 50 x 9mm body fits tight board layouts
  • Pack of two resistors supports prototype and repair work

Specifications

BrandUnique Bargains
Featuresideal accessory;widely used;pulse modulators;impulse circuit;high-voltage apparatus

Questions about this item

What does the 100M Ohm resistance value limit in a circuit?

The 100M Ohm resistance restricts current flow to very low levels, making it suitable for high-voltage impulse circuits, pulse modulators and EMI or lightning suppression where minimal leakage is required.

What hole spacing and diameter does the 30mm by 1mm pin size require on a PCB?

The 30mm lead length and 1mm pin diameter need through-holes spaced 30mm apart with a 1mm drill size; the 50mm by 9mm body must clear adjacent components.

How should the glass glaze film resistor be soldered without cracking the seal?

Bend each lead at least 5mm from the body using needle-nose pliers to avoid stressing the glass seal, insert into the 1mm holes and solder quickly with a temperature-controlled iron.
