Two red cylindrical glass glaze film resistors with metal leads

Unique-Bargains

Unique-Bargains 5W 50M Ohm Glass Glaze Film Resistor 2 Pcs

SKU CH-X56C-82TDF

Two 5 W, 50 MΩ glass-glaze film resistors rated for high-voltage impulse circuits and Arc-furnace damping

  • Featuresideal accessory;widely used;pulse modulators;impulse circuit
  • 5 W power rating handles demanding high-voltage circuits
  • 50 MΩ resistance value suits impulse and pulse applications
  • Glass glaze film construction withstands arc environments
  • 2-piece pack provides a spare for critical builds
  • ±5 % tolerance ensures predictable circuit performance

High-Voltage Glass Glaze Resistor

This 50M ohm glass glaze film resistor handles a 5W power rating for AC, DC and impulse circuits. It suits high-voltage apparatus such as impulse voltage generators and arc furnace damping. The pair provides two identical components for research or suppression tasks.

Through-Hole Pin and Body Dimensions

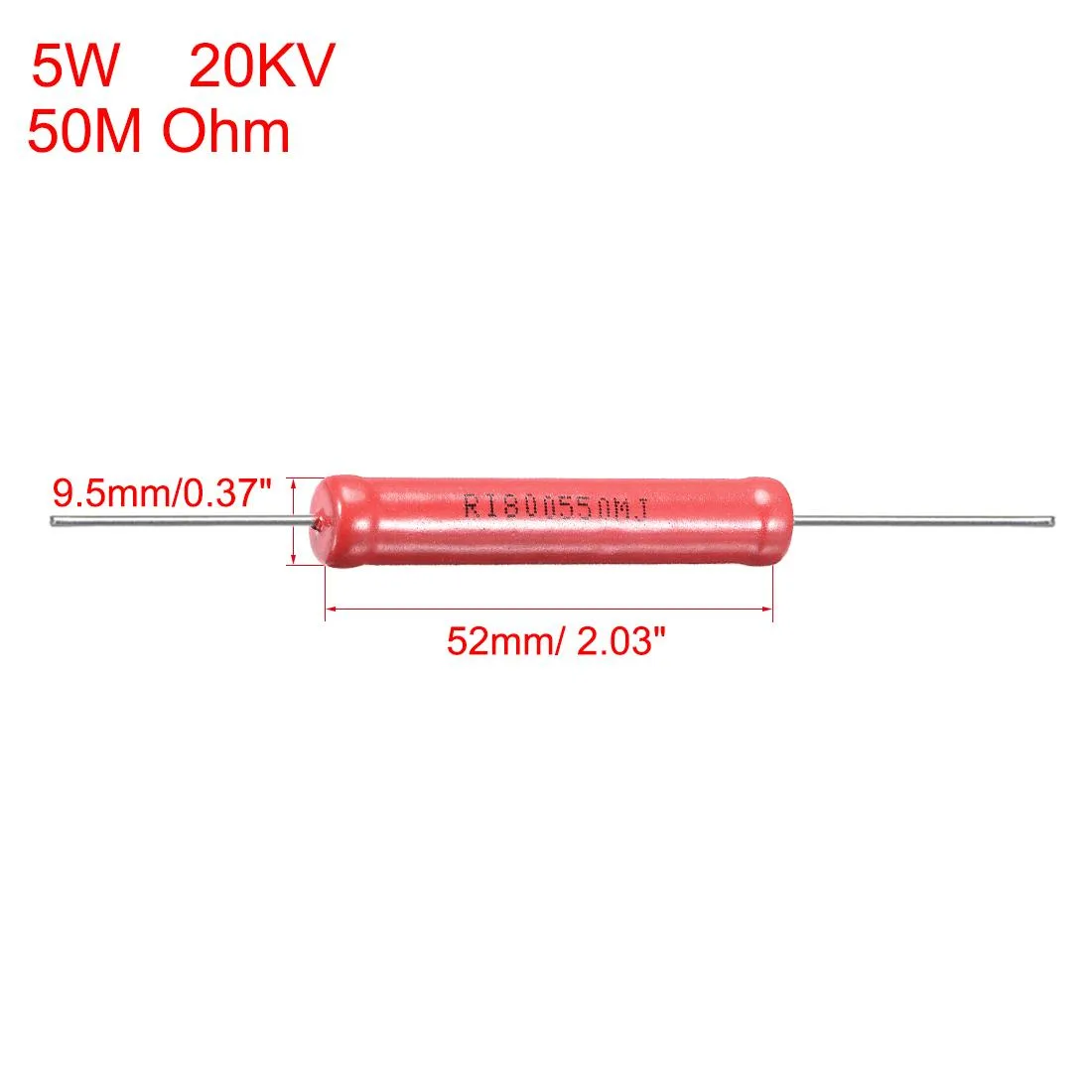

The axial leads measure 30 x 1mm while the ceramic body is 52 x 9.5mm, fixing the board spacing and hole size you must accommodate. These physical limits decide whether the part fits your layout without modification.

50M Ohm Resistance Value

The single specification that selects this part is the 50M ohm nominal resistance with a +/-5% tolerance. If your design calls for a different value or tighter tolerance, this component will not meet the requirement.

Highlights

  • 5 W power rating handles demanding high-voltage circuits
  • 50 MΩ resistance value suits impulse and pulse applications
  • Glass glaze film construction withstands arc environments
  • 2-piece pack provides a spare for critical builds
  • ±5 % tolerance ensures predictable circuit performance

Specifications

BrandUnique Bargains
Featuresideal accessory;widely used;pulse modulators;impulse circuit;high-voltage apparatus

Questions about this item

What resistance value and power rating does this glass glaze film resistor provide?

Each resistor is rated at 50M Ohm with a 5W power rating and a ±5% tolerance.

How does the 5W rating perform in a high-voltage impulse circuit?

The 5W glass glaze construction handles pulse modulators, capacitor crowbar circuits and lightning suppression without overheating.

What lead spacing and body size should I plan for on the PCB?

Pins measure 30 x 1 mm and the body is 52 x 9.5 mm, so allow at least 52 mm length and 9.5 mm diameter clearance.
