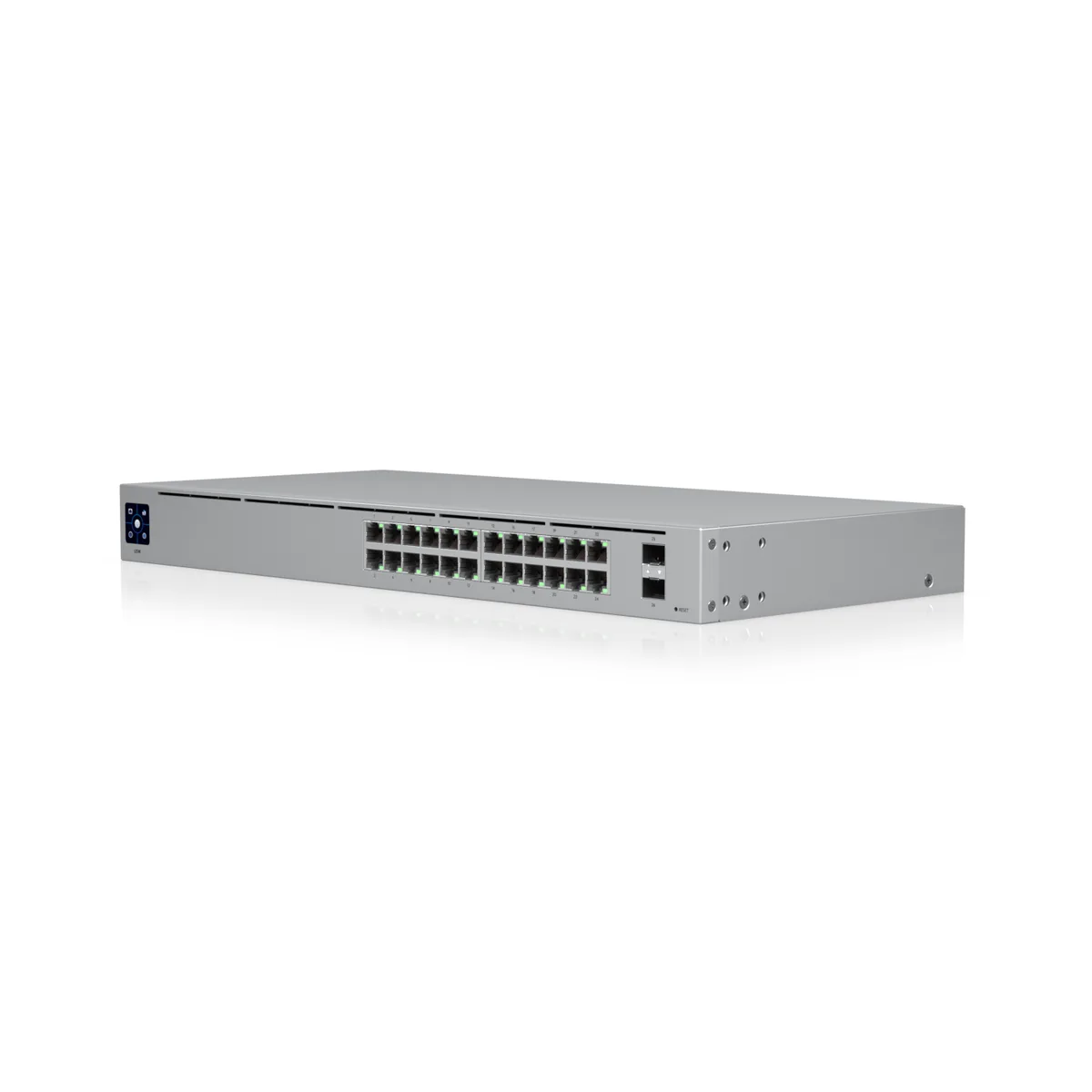

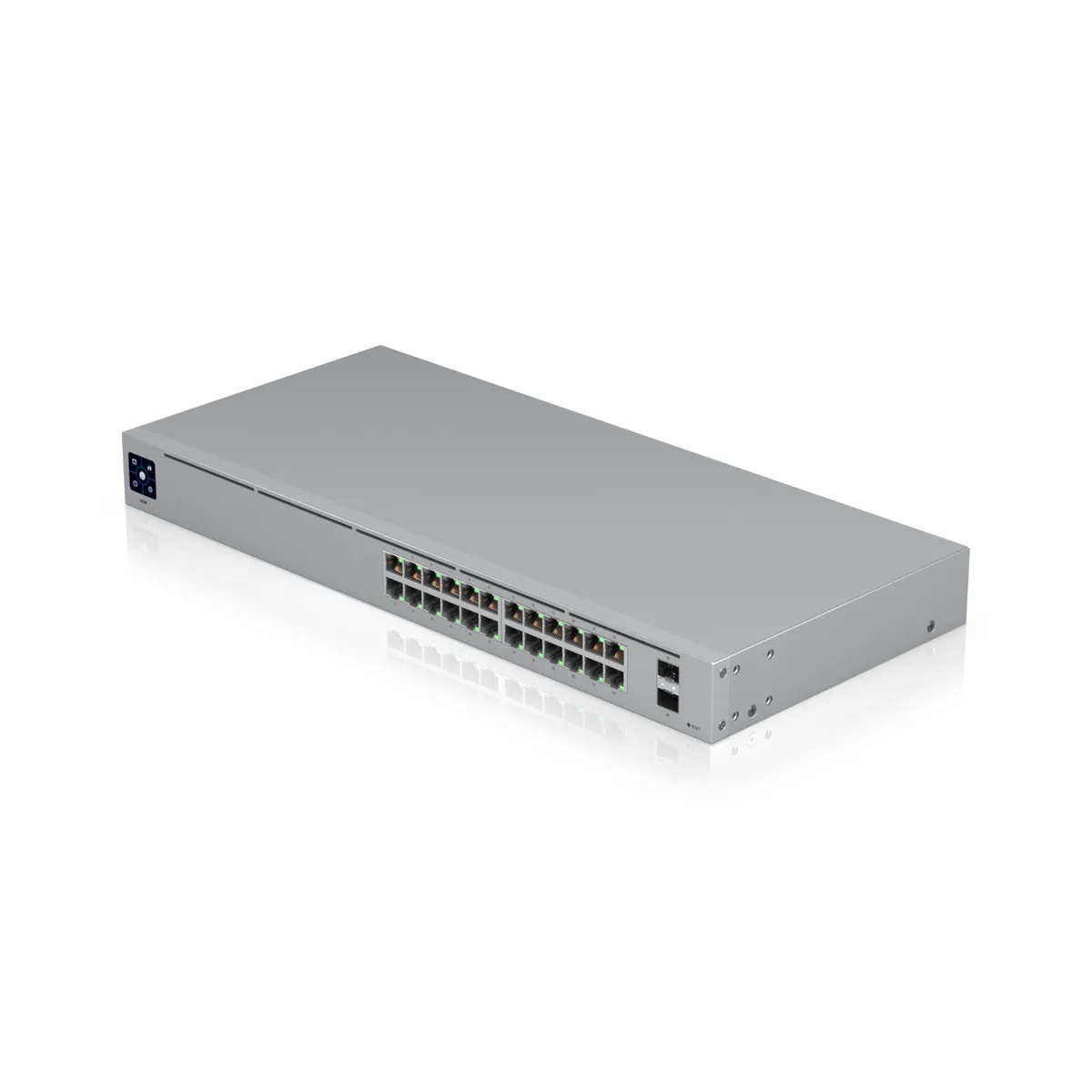

White metal 1U rackmount switch with 24 RJ45 ports and two SFP cages

Ubiquiti Networks

Ubiquiti Networks USW-24 Standard 24 network switch

SKU CH-ZSHE-BMV9H MPN USW-24

A 24-port Layer 2 managed switch with 24 GbE RJ45 ports, two 1G SFP uplinks and silent fanless cooling

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports24 x RJ45 + 2 x SFP
  • Primary Port SpeedTotal non-blocking throughput 26 Gbps Switching capacity 52
  • Primary Port Type(24) GbE RJ45 ports (2) 1G SFP ports
  • PoENo

Model Standard 24

  • Silent operation with fanless cooling design
  • 24 GbE RJ45 ports for wired connectivity
  • 2 SFP ports enable fibre uplinks
  • 52 Gbps switching capacity handles heavy traffic
  • Rackmount 1U form factor fits standard cabinets

24-Port Layer 2 Switch for Silent Deployments

The USW-24 provides 24 Gigabit RJ45 ports and two 1G SFP uplinks in a fanless, rackmount chassis. It delivers 26 Gbps non-blocking throughput with a 52 Gbps switching capacity for small to medium networks that need managed Layer 2 features without acoustic noise.

Sustained Load Behaviour with Fanless Cooling

Without fans, the switch relies on passive convection to dissipate up to 25W of power consumption across its operating range of -5 to 45°C. The 36W internal supply handles continuous 1Gbps line-rate traffic on all ports while maintaining silent operation in noise-sensitive environments.

Practical Limits of 1G SFP Uplinks

The two 1G SFP ports constrain uplink aggregation to 2 Gbps total, which can become a bottleneck when multiple 24-port access switches feed a single aggregation layer. Networks requiring 10G uplinks or PoE power for connected devices must select a different model.

Highlights

  • Silent operation with fanless cooling design
  • 24 GbE RJ45 ports for wired connectivity
  • 2 SFP ports enable fibre uplinks
  • 52 Gbps switching capacity handles heavy traffic
  • Rackmount 1U form factor fits standard cabinets

Specifications

BrandUbiquiti Networks
SeriesNetwork Switch
ModelStandard 24
Part NumberUSW-24
FormatRackmount
Network Management TypeManaged
Primary Ports24 x RJ45 + 2 x SFP
Primary Port SpeedTotal non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Primary Port Type(24) GbE RJ45 ports
(2) 1G SFP ports
PoENo
Layer2
Layer 2 FeaturesIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
LEDsSystem Status
Ethernet Speed/link/activity
SFP Link/activity
PowerPower method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 36W
Supported voltage range 100—240V AC
Max. power consumption 25W
Dimensions442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
WeightWithout mounting brackets: 2.7 kg (6 lb)
With mounting brackets: 2.8 kg (6.2 lb)
Temperature-5 to 45° C (23 to 113° F)
Humidity10 to 90% noncondensing
Shipping weight3.58 kg
Package size559 × 302 × 127 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and noise does the fanless USW-24 produce when running 24/7?

The switch uses a fanless design for silent operation and has a maximum power draw of 25W, so heat output stays low even under continuous load.

What cabling or modules do I need to use the two SFP ports on this switch?

You will need compatible 1G SFP transceivers and the matching fibre or copper patch cables for the link distance you require.

Can I connect the USW-24 to my existing 10/100 Mbps devices without configuration issues?

Yes, the 24 RJ45 ports auto-negotiate down to 10/100 Mbps, so legacy devices work immediately on this Layer 2 switch.
