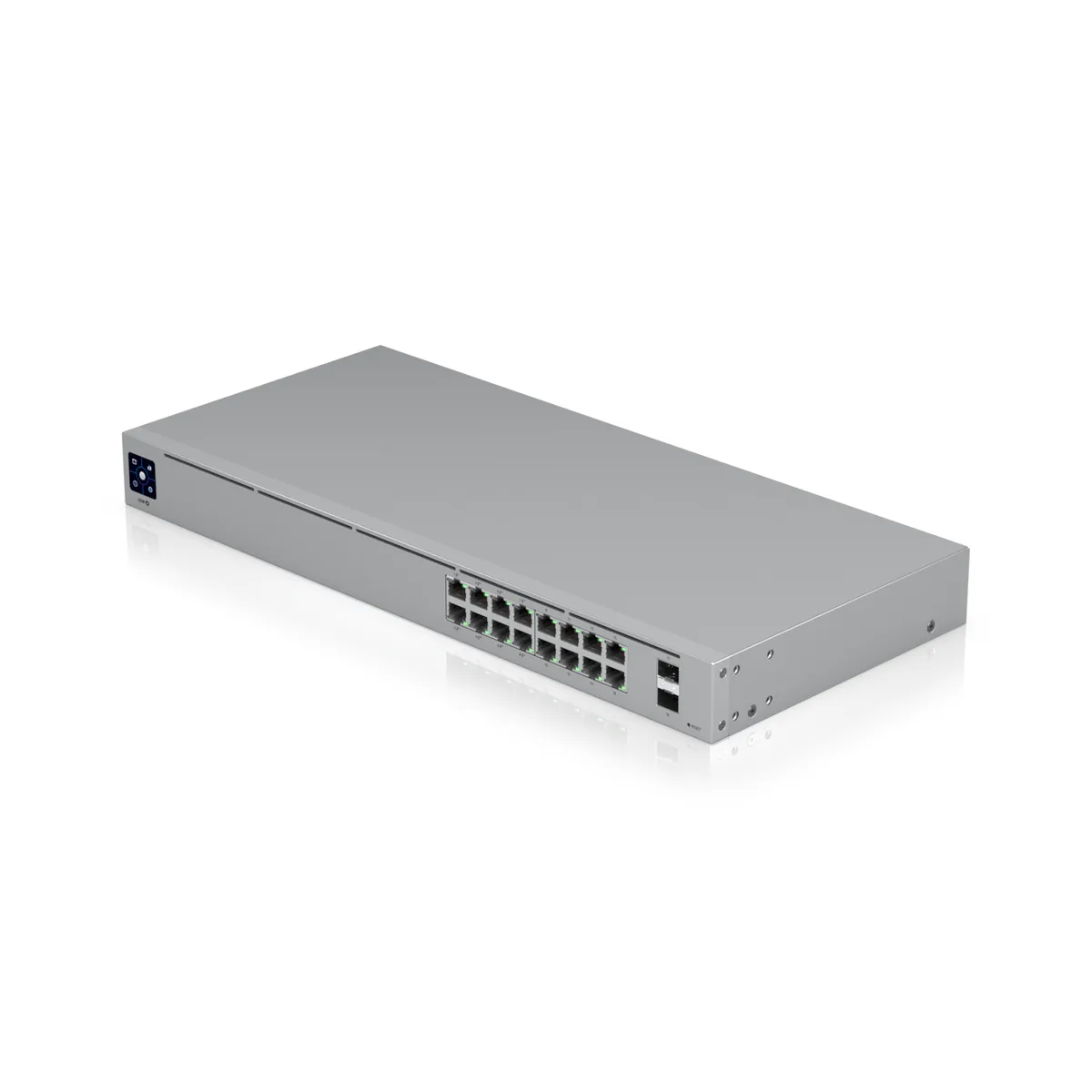

White metal rackmount switch, sixteen RJ45 ports, two SFP ports, status LEDs, fanless design

Ubiquiti Networks

Ubiquiti Networks USW-16-POE (42W) 16-port network switch

SKU CH-4XP9-V35B2 MPN USW-16-POE (42W)

A fanless, rack-mountable Layer 2 switch with 16 Gigabit RJ45 ports, 2 SFP uplinks, 8 PoE+ ports and a 42 W power budget

  • FormatRackmount
  • Network Management TypeManaged
  • Primary Ports16 x RJ45 + 2 x SFP
  • Primary Port SpeedTotal non-blocking throughput 18 Gbps Switching capacity 36
  • Primary Port Type(16) GbE RJ45 ports (2) 1G SFP ports
  • Management InterfaceEthernet In-Band

Model Standard 16 PoE

  • Silent operation from fanless cooling design
  • 16 Gigabit RJ45 ports for wired connectivity
  • 8 PoE+ ports deliver 42 W total power budget
  • 2 SFP uplinks extend network reach
  • Layer 2 management with VLAN and IGMP snooping

16-Port Managed PoE Switch

The Ubiquiti Networks USW-16-POE is a rackmount Layer 2 switch with sixteen Gigabit RJ45 ports and two 1G SFP uplinks. Eight ports provide PoE+ power with a total budget of 42 W. A fanless design ensures silent operation for office or quiet environments.

Suits Small PoE Deployments, Not High-Power Needs

This switch fits networks powering access points or cameras that stay within the 42 W budget. Builders needing more PoE ports or a larger power reserve for devices drawing higher wattage should consider a model with a bigger budget.

42 W Total PoE Budget Decides Fit

The single specification that determines suitability is the 42 W PoE power budget. If the combined draw of all powered devices exceeds this figure, the switch cannot support the deployment.

Highlights

  • Silent operation from fanless cooling design
  • 16 Gigabit RJ45 ports for wired connectivity
  • 8 PoE+ ports deliver 42 W total power budget
  • 2 SFP uplinks extend network reach
  • Layer 2 management with VLAN and IGMP snooping

Specifications

BrandUbiquiti Networks
SeriesNetwork Switch
ModelUSW-16-POE
Part NumberUSW-16-POE
FormatRackmount
Network Management TypeManaged
Primary Ports16 x RJ45 + 2 x SFP
Primary Port SpeedTotal non-blocking throughput 18 Gbps
Switching capacity 36 Gbps
Forwarding rate 26.78 Mpps
Primary Port Type(16) GbE RJ45 ports
(2) 1G SFP ports
Management InterfaceEthernet In-Band
VLAN SupportYes
Jumbo FramesYes
PoEYes
Layer2
Layer 2 FeaturesIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
LEDsSystem:
Status
Ethernet:
PoE
Speed/link/activity
SFP:
Link/activity
ButtonFactory reset
PoE Ports(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
PoE Power Budget42W
PowerUniversal input, 100—240V AC, 50/60 Hz
Dimensions442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
WeightWithout mounting brackets: 2.8 kg (6.2 lb)
With mounting brackets: 2.9 kg (6.4 lb)
CertificationCE, FCC, IC
System RequirementUniFi Network Version 7.2.94 and later
Temperature-5 to 40° C (23 to 104° F)
Humidity10 to 90% noncondensing
Shipping weight3.72 kg
Package size521 × 311 × 124 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 16-port or 24-port model for a small office needing PoE+ on up to 10 devices?

The USW-16-POE provides eight PoE+ ports with a 42 W budget, while the 24-port model offers 16 PoE+ ports and 95 W; pick the 24-port if you need more powered ports or higher total power.

What does the 18 Gbps non-blocking throughput mean when the switch is fully populated?

It means all 16 RJ45 ports and both SFP uplinks can run at 1 Gbps simultaneously without internal congestion, giving 18 Gbps of aggregate wire-speed switching.

The SFP ports are 1 Gbps — does that cap uplink speed in a 10 Gbps backbone?

Yes, the two SFP ports operate at 1 Gbps, so uplinks are limited to 1 Gbps each; they cannot negotiate 10 Gbps links.
