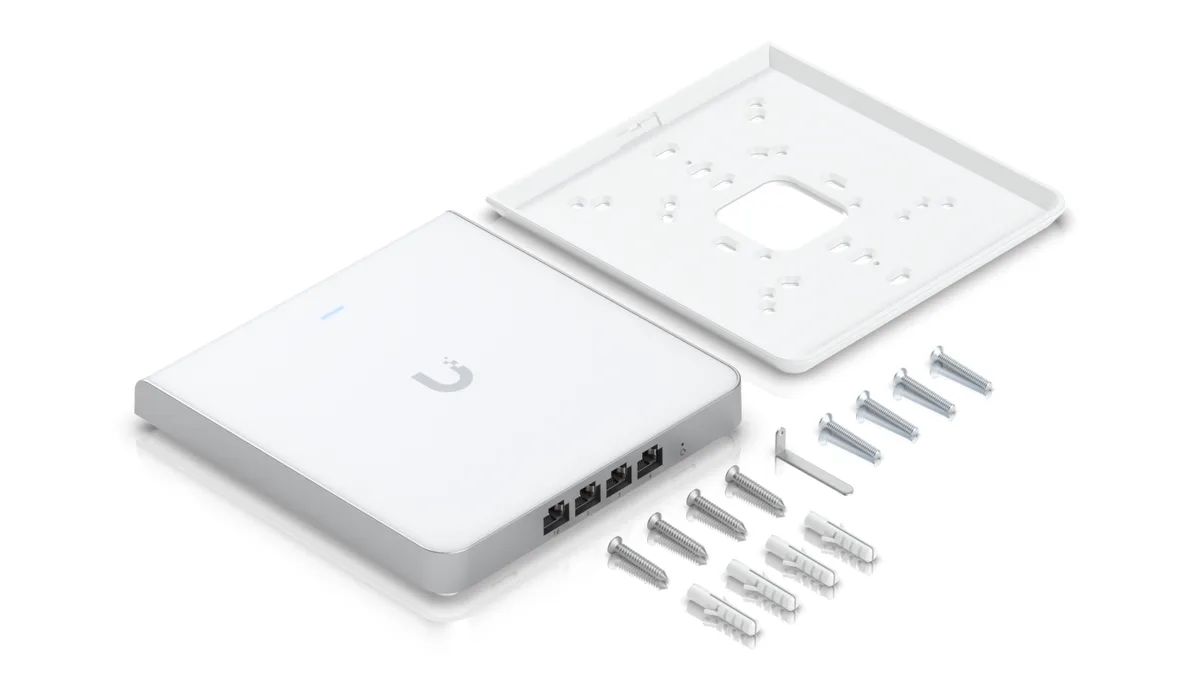

White square in-wall access point with four Ethernet ports and a matte finish

Ubiquiti Networks

Ubiquiti Networks U6ENTERPRISEIWC Wi-Fi 6E In-Wall Access Point

SKU CH-2FR4-FREYM MPN U6ENTERPRISEIWC

A wall-mounted tri-band Wi-Fi 6E access point with six spatial streams, four gigabit Ethernet ports, PoE+ input and output, covering up to 115 m² for 300+ devices

  • # of Users600+
  • Standards802.11a/b/g/n/ac/ax (WiFi 6/6E)
  • WiFi GenerationWi-Fi 6E
  • Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
  • SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  • Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 6

Options U6 Enterprise In-Wall

  • Supports 600+ users with Wi-Fi 6E tri-band performance
  • Six spatial streams deliver high-density throughput in busy rooms
  • 115 m coverage radius ensures reliable signal across large spaces
  • Four GbE ports plus one PoE output simplify device wiring
  • PoE+ input powers the unit without a separate adapter

In-Wall Wi-Fi 6E Access Point

The Ubiquiti Networks U6ENTERPRISEIWC is a tri-band wireless access point designed for single-room coverage in hospitality and enterprise settings. It supports Wi-Fi 6E across 2.4 GHz, 5 GHz and 6 GHz bands with six spatial streams and MU-MIMO capability. The unit integrates a four-port Gigabit switch and handles over 300 connected devices across up to 115 square metres of indoor space.

Installation and Common Issues

The access point mounts in a standard in-wall junction box and receives power and data through a single 2.5 GbE PoE+ uplink port. Four downstream Gigabit ports provide wired connectivity for local devices, and one of those ports can deliver PoE output to a downstream device. Installers must ensure the upstream switch supplies PoE+ power; a passive PoE injector or insufficient power budget will prevent the unit from starting.

Pre-Order Compatibility Check

Verify that your network infrastructure includes a PoE+ compliant switch or injector capable of delivering the required power class. Confirm the mounting location has a suitable in-wall box with Ethernet cabling terminated to the uplink port. The operating temperature range spans -30 °C to 60 °C, so ensure the installation environment stays within those limits.

Highlights

  • Supports 600+ users with Wi-Fi 6E tri-band performance
  • Six spatial streams deliver high-density throughput in busy rooms
  • 115 m coverage radius ensures reliable signal across large spaces
  • Four GbE ports plus one PoE output simplify device wiring
  • PoE+ input powers the unit without a separate adapter

Specifications

BrandUbiquiti Networks
SeriesWIFI Access points
ModelU6 Enterprise In-Wall
Part NumberU6-Enterprise-IW
# of Users600+
Standards802.11a/b/g/n/ac/ax (WiFi 6/6E)
WiFi GenerationWi-Fi 6E
Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
802.11ac 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
Antenna2.4 GHz 2 x 2 (DL/UL MU-MIMO)
5 GHz 4 x 4 (DL/UL MU-MIMO)
6 GHz 4 x 4 (DL/UL MU-MIMO)
Transmitted Power2.4 GHz 22 dBm
5 GHz 26 dBm
6 GHz 26 dBm
Mounting LocationIndoor
Operating RangeIndoor: Up to 115m, Outdoor: Up to 115m
Interface(1) Data in: 1/2.5 GbE RJ45 port
(4) Data out: GbE RJ45 ports
LAN Ports(1) Data in: 1/2.5 GbE RJ45 port
(4) Data out: GbE RJ45 ports
Power Supply(1) PoE+ input
(1) PoE output
Temperature-30 to 60° C (-22 to 140° F)
Humidity5 to 95% noncondensing
Dimensions159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
Weight884 g (1.9 lb)
FeaturesBSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 600+
Zero-wait DFS Yes*
*Supported with upcoming firmware versions.
Shipping weight1.13 kg
Package size193 × 191 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the U6 Enterprise In-Wall is delivering Wi-Fi 6E performance after installation?

Check the UniFi controller dashboard to verify clients are connected on the 6 GHz band using 4x4 MU-MIMO spatial streams and that throughput reaches the 3.4 Gbps PHY rate listed for 802.11ax.

What comes in the box with the U6 Enterprise In-Wall and what must I purchase separately?

The access point includes a mounting bracket for in-wall installation; a PoE+ injector or PoE+ switch is required separately to power the unit and enable the downstream PoE output port.

Should I choose this tri-band model over a dual-band version for a hotel room deployment?

This model adds a dedicated 6 GHz radio with 4x4 MU-MIMO alongside 2.4 GHz 2x2 and 5 GHz 4x4 radios, providing three separate bands to handle 300+ concurrent devices across 115 m² coverage.
