Ubiquiti Networks
Ubiquiti Networks U6-LR-US WiFi 6 long-range access point
Ceiling-mounted WiFi 6 access point with 8 spatial streams covering 185 m² for 350+ concurrent devices
- Standards802.11a/b/g/n/ac/ax (WiFi 6)
- Wireless Data Rates802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5,
- SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3
- Antenna2.4 GHz 4 x 4 (SU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO)
- Transmitted Power2.4 GHz 26 dBm 5 GHz 26 dBm
- Interface(1) GbE RJ45 port
Options U6 Long-Range
- U6 Enterprise
- U6 Enterprise In-Wall
- U6 Pro
- U6 Long-Range
- U6+
- U6 Mesh
- U6 Mesh Pro
- U6 In-Wall
- Extended coverage up to 185 m² with long-range antenna design
- 350+ concurrent clients supported for high-density environments
- Eight spatial streams across dual-band radios deliver high throughput
- Powered via PoE+ for flexible ceiling mounting without local power
- Single GbE uplink provides wired backbone connectivity
Extended-range ceiling AP
The Ubiquiti Networks U6-LR-US is a WiFi 6 long-range access point designed for ceiling mounting in commercial spaces. It delivers 8 spatial streams across two radios and supports up to 350 plus concurrent clients. Power is supplied through PoE+ from a UniFi switch or the optional 48 V adapter. The unit operates in temperatures from minus 30 to 60 degrees C.
Suits large open areas, not dense multi-floor
This access point suits offices, warehouses or retail floors that need a single device to cover 185 square metres with extended signal range. It is less suited for environments that require dense multi-floor penetration or installations without PoE infrastructure. Buyers who need more than one GbE uplink should look at a different model.
Single GbE uplink limits wired backhaul
The only wired interface is one GbE RJ45 port, so the AP cannot aggregate multiple wired links or serve as a switch for other devices. If your design needs more than one Ethernet connection per access point, this unit will not meet that requirement.
Highlights
- Extended coverage up to 185 m² with long-range antenna design
- 350+ concurrent clients supported for high-density environments
- Eight spatial streams across dual-band radios deliver high throughput
- Powered via PoE+ for flexible ceiling mounting without local power
- Single GbE uplink provides wired backbone connectivity
Specifications
| Brand | Ubiquiti Networks |
|---|---|
| Series | WIFI Access points |
| Model | U6-LR |
| Standards | 802.11a/b/g/n/ac/ax (WiFi 6) |
| Wireless Data Rates | 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160) 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 160) |
| Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 |
| Antenna | 2.4 GHz 4 x 4 (SU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) |
| Transmitted Power | 2.4 GHz 26 dBm 5 GHz 26 dBm |
| Interface | (1) GbE RJ45 port |
| LAN Ports | (1) GbE RJ45 port |
| Power Supply | UniFi PoE switch 48V, 0.5A PoE adapter (Not included) |
| Temperature | -30 to 60° C (-22 to 140° F) |
| Humidity | 5 to 95% noncondensing |
| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 800 g (1.8 lb) With mount: 930 g (2.1 lb) |
| Features | BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 350+ |
| Shipping weight | 1.68 kg |
| Package size | 257 × 257 × 83 mm |
Other versions of this model
5 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Ubiquiti Networks
Ubiquiti Networks U6-IW Wi-Fi 6 in-wall access point
- 300+
- 802.11a/b/g/n/ac/ax…
$148.99
0.00177177BTC
In stock
Ubiquiti Networks
Ubiquiti Networks U6-Mesh WiFi 6 access point
- 300+
- 802.11a/b/g/n/ac/ax…
$152.99
0.00181934BTC
In stock
Ubiquiti Networks
Ubiquiti Networks U6-MESH-PRO-US WiFi 6 access point
- 250+
- 802.11a/b/g/n/ac
$175.99
0.00209285BTC
In stockQuestions about this item
How do I mount and power the U6-LR, and what step do people miss?

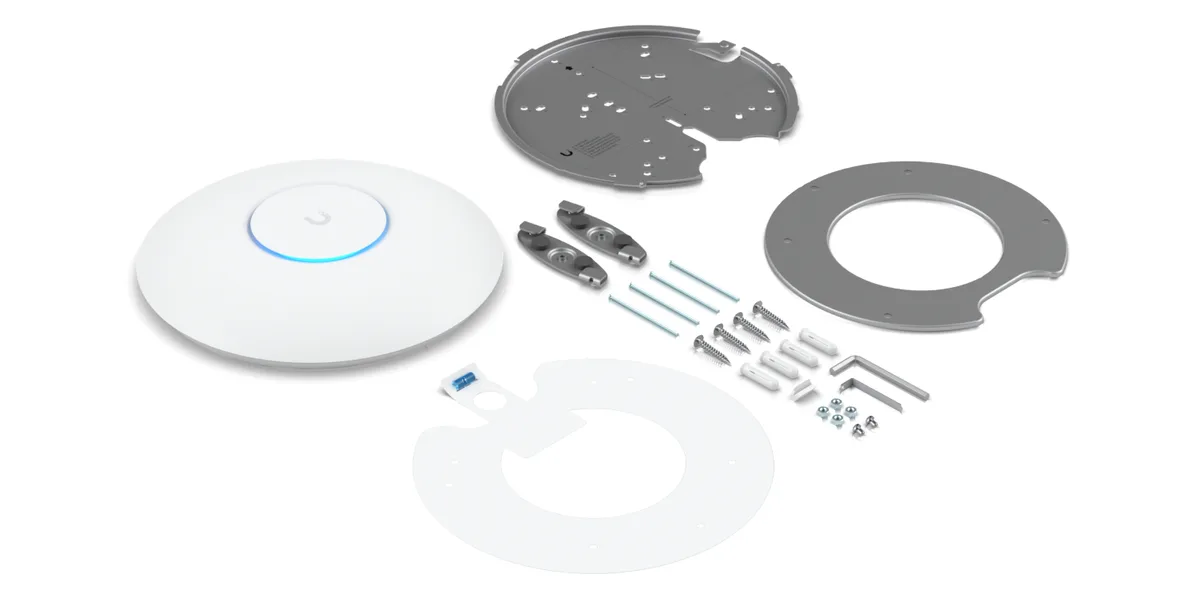

Mount the 220 mm diameter unit to a ceiling using the included hardware, then connect the single GbE RJ45 port to a UniFi PoE switch or the 48 V 0.5 A PoE adapter; the step often missed is that the PoE adapter is not included in the box.
What maintenance or replacement will the U6-LR need later?
The access point has no user-serviceable parts and no consumable components; if the PoE injector or switch port fails, replace that power source, otherwise the unit runs maintenance-free within its -30 to 60 °C operating range.
What limit appears first when the U6-LR runs at full load for hours?
The single GbE uplink caps total throughput at 1 Gbps, so sustained 5 GHz traffic at the 1.7 Gbps PHY rate will hit the Ethernet bottleneck before the radio or the 350+ client capacity becomes a constraint.
