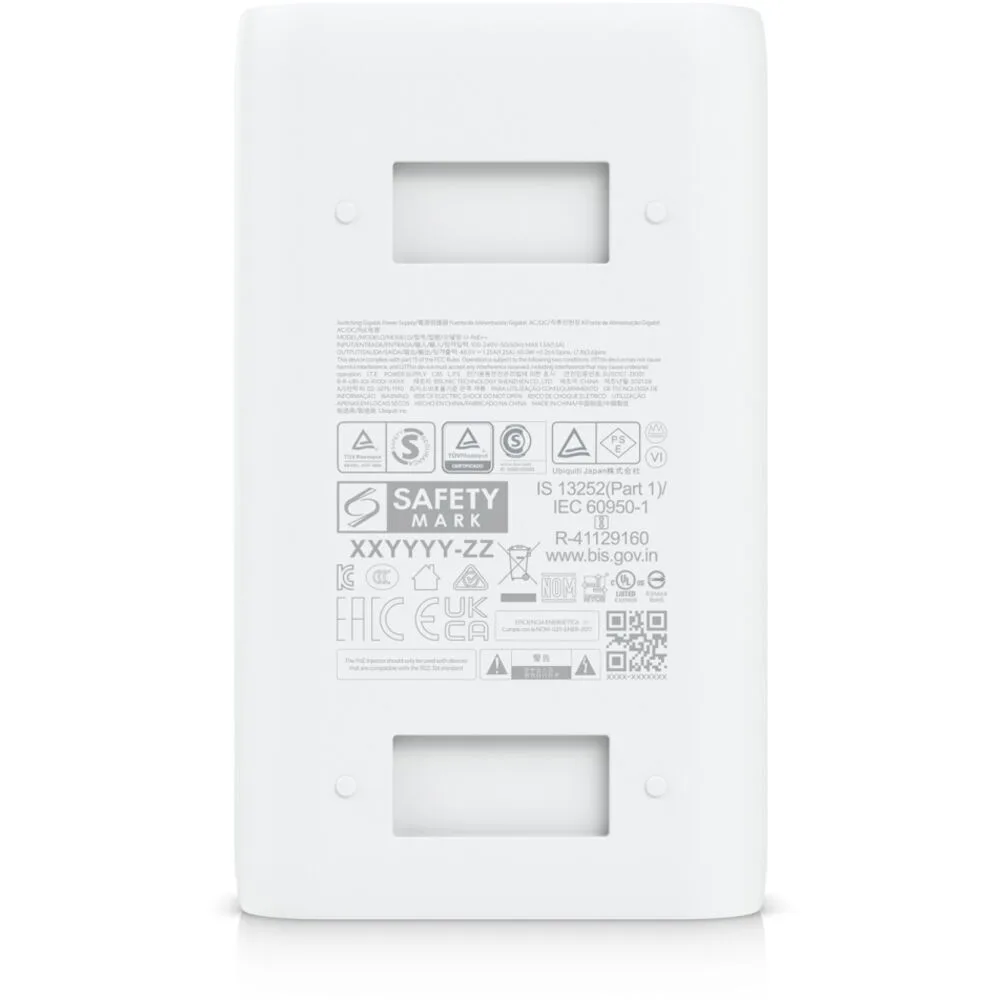

White rectangular PoE adapter with IEC C6 inlet and shielded RJ45 port

Ubiquiti Networks

Ubiquiti Networks U-PoE++ 60W PoE Adapter

SKU CH-HVX1-RCB2A

A 60 W PoE++ adapter delivering 48 V DC at 1.25 A over a Gigabit LAN port with surge protection

  • TypePoE Adapter
  • ColorWhite
  • FeaturesDimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") Weight: 210

Option U-POE++ (60W)

  • Powers UniFi PoE++ devices up to 60W
  • Gigabit LAN port carries data and power together
  • Universal 100—240V AC input works worldwide
  • Compact 106 x 63 x 34 mm design fits tight spaces
  • Surge protection clamps at 11V data and 60V power

What this adapter does

The Ubiquiti U-PoE++ adapter delivers up to 60 W of Power over Ethernet to compatible UniFi devices. It accepts a universal 100—240 V AC supply and provides a single Gigabit LAN port with 4-pair powering on pins 1, 2, 4, 5 and 3, 6, 7, 8. The unit measures 106 x 63 x 34 mm and weighs 210 g.

Who this suits

Installers powering UVC-G4-PTZ, UA-G2-SK-Pro, UA-Hub-Door, UA-G2-SK, U6, Enterprise-IW, UC-Display or UA-SK-Elevator units will find the rated 48 V DC at 1.25 A output a direct match. Builders who need multi-port PoE distribution or higher per-port wattage should look at a managed PoE switch instead.

Sustained-load behaviour

The adapter runs at 85 % efficiency with a switching frequency of 65 kHz. Line regulation stays within 1 % and load regulation within 3 %, while output ripple is limited to 1 % maximum. Surge protection clamps at 11 V on data lines and 60 V on power lines, rated for 1500 A peak discharge on power and 36 A on data.

Highlights

  • Powers UniFi PoE++ devices up to 60W
  • Gigabit LAN port carries data and power together
  • Universal 100—240V AC input works worldwide
  • Compact 106 x 63 x 34 mm design fits tight spaces
  • Surge protection clamps at 11V data and 60V power

Specifications

BrandUBiQuiTi
ModelU-PoE++
Part NumberU-PoE++
TypePoE Adapter
ColorWhite
FeaturesDimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight: 210 g (7.4 oz)
Output voltage: 48V DC @ 1.25A
Gigabit LAN port
Rated voltage: 100—240V AC @ 50/60Hz
Input current:
1.3A @ 120V AC
0.75A @ 230V AC
Inrush current:
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency: 85+%
Output ripple: 1% max.
Switching frequency 65 kHz
Line regulation = 1%
Load regulation = 3%
4-pair powering Pins: 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge dischar
Shipping weight0.39 kg
Package size180 × 112 × 51 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What UniFi device must I already own for the U-PoE++ adapter to power it?

Compatible devices include the UVC-G4-PTZ, UA-G2-SK-Pro, UA-Hub-Door, UA-G2-SK, U6, Enterprise-IW, UC-Display and UA-SK-Elevator.

Will the Gigabit LAN port on this adapter limit the speed of my older 100 Mbps network switch?

The adapter provides a Gigabit LAN port; it will operate at the speed of the connected switch, so a 100 Mbps link will run at 100 Mbps.

How can I verify the adapter is delivering the correct 48V DC output after installation?

The adapter supplies 48V DC at 1.25A across all four pairs on pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-); a multimeter on those pins will confirm the voltage.
