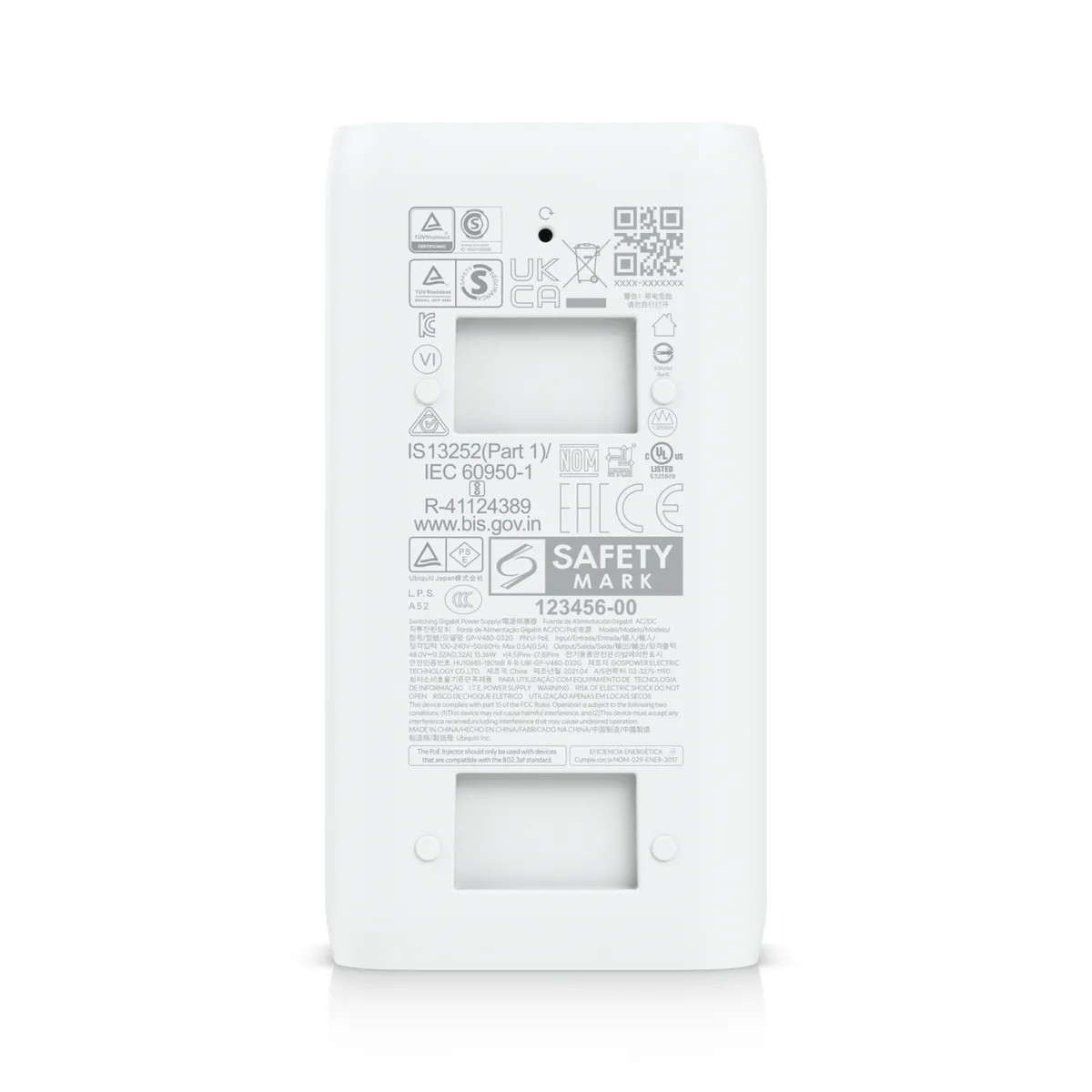

White rectangular PoE adapter, 86 by 46 by 33 mm, with RJ45 port, AC cable and status LED

Ubiquiti Networks

Ubiquiti Networks U-PoE 15W PoE Adapter

SKU CH-83GP-JP58T

Delivers 15W PoE at 48V with surge, peak-pulse and overcurrent protection, a Gigabit LAN port and LED status indicator for compatible UniFi access points and cameras

  • TypePoE Adapter
  • ColorWhite
  • SpecificationsDimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3") Weight: 100 g

Option U-POE (15W)

  • Delivers up to 15W of PoE power for compatible devices
  • Surge, peak pulse, and overcurrent protection safeguards connected equipment
  • Gigabit LAN port enables high-speed wired data transmission
  • Compact 86 x 46 x 33 mm form factor fits tight installations
  • LED indicator provides instant visual status monitoring

15 W PoE adapter for UniFi devices

This Ubiquiti Networks adapter supplies up to 15 W of Power over Ethernet from a 100–240 V AC source. It provides a single Gigabit LAN port and a PoE output rated at 48 V DC and 0.32 A. Surge, peak-pulse and over-current protection are built in, and an LED shows the link status. The white enclosure measures 86 × 46 × 33 mm and weighs 100 g.

Suits installers powering compatible UniFi cameras

The adapter works with the models listed by the manufacturer, including several U6 and UVC series units. It is not for installers who need higher PoE wattage than 15 W, for deployments that require a 24 V PoE output, or for situations where a multi-port PoE switch is required. Buyers without a grounded AC outlet cannot use the included earth-grounded cable.

15 W maximum PoE output

The single figure that decides fit is the 15 W PoE budget delivered at 48 V DC and 0.32 A. If the target device draws more than this, or requires a different PoE voltage, the adapter will not power it.

Highlights

  • Delivers up to 15W of PoE power for compatible devices
  • Surge, peak pulse, and overcurrent protection safeguards connected equipment
  • Gigabit LAN port enables high-speed wired data transmission
  • Compact 86 x 46 x 33 mm form factor fits tight installations
  • LED indicator provides instant visual status monitoring

Specifications

BrandUBiQuiTi
ModelU-POE
TypePoE Adapter
ColorWhite
SpecificationsDimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
Weight: 100 g (3.5 oz)
Output voltage: 48V DC @ 0.32A
Gigabit LAN port
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 500mA max.
Inrush current: <100A peak at 25°C
Efficiency: 84.25+%
Output ripple: 200mV p-p
Switching frequency: 65 kHz
Line regulation = 3%
Load regulation = 5%
2-pair powering Pins: 4, 5 (+) and 7, 8 (-)
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 µs) power
Peak pulse current: 36A
Shipping weight0.45 kg
Package size175 × 97 × 28 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the U-PoE adapter and do I need to buy a wall-mount bracket separately?

The box includes the PoE adapter, an AC cable with earth ground and an RJ45 data input; the wall-mount bracket is optional and sold separately.

Should I choose the 15 W or 24 V version for a U6-Lite access point?

The U6-Lite is listed as compatible with this 15 W model, so select the U-PoE 15 W adapter for that device.

What does the 15 W rating mean when the adapter is powering a UVC-G5-Dome camera?

It delivers up to 15 W at 48 V DC 0.32 A through the Gigabit LAN port, with surge, peak-pulse and overcurrent protection active.
