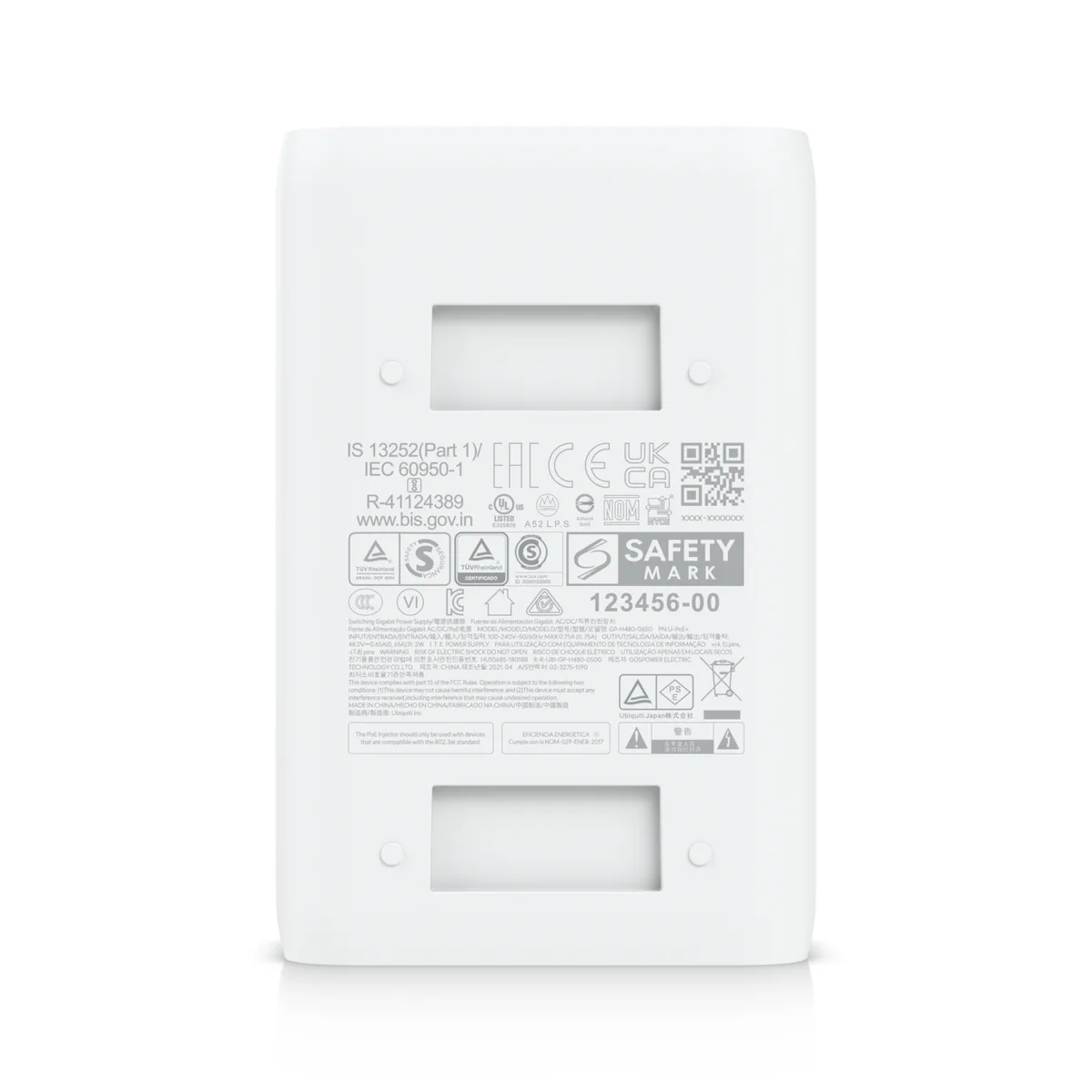

White compact PoE+ adapter with RJ45 and IEC-320 C6 ports

Ubiquiti Networks

Ubiquiti Networks U-PoE+ 30W PoE+ Adapter

SKU CH-SXXQ-TH0VA

Delivers up to 30W PoE+ power with surge and overcurrent protection for compatible Ubiquiti devices

  • TypePoE Adapter
  • ColorWhite
  • FeaturesDimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") Weight: 156 g

Option U-POE+ (30W)

  • Delivers up to 30W PoE+ for compatible UniFi devices
  • Surge, peak-pulse and overcurrent protection safeguards connected equipment
  • Gigabit LAN port maintains full network throughput
  • 87% efficiency reduces energy waste and heat
  • Compact 93 x 62 x 35 mm design fits tight installations

Product Summary

The Ubiquiti Networks U-PoE+ is a 30 W Power over Ethernet injector designed to power compatible access points, cameras and touch displays from a standard AC outlet. It accepts 100–240 V input and supplies 48 V DC at 0.65 A through a shielded RJ45 port while passing Gigabit data.

Ideal Installations

This adapter suits network installers who need to add PoE+ to an existing non-PoE switch for supported Ubiquiti devices such as the U6-LR, UVC-G5-PTZ or UTP-TouchMax. It is not intended for equipment requiring higher power budgets, passive 24 V PoE, or multi-port injection from a single unit.

Critical Specification

The injector delivers 30 W over pin pairs 4, 5 (+) and 7, 8 (-) with 87 % efficiency, surge protection rated at 1500 A (8/20 µs) on the power lines and a clamping voltage of 60 V for the power path, ensuring safe operation for the listed compatible hardware.

Highlights

  • Delivers up to 30W PoE+ for compatible UniFi devices
  • Surge, peak-pulse and overcurrent protection safeguards connected equipment
  • Gigabit LAN port maintains full network throughput
  • 87% efficiency reduces energy waste and heat
  • Compact 93 x 62 x 35 mm design fits tight installations

Specifications

BrandUBiQuiTi
ModelPoE+ Adapter
Part NumberU-PoE+
TypePoE Adapter
ColorWhite
FeaturesDimensions: 93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight: 156 g (5.5 oz)
Output voltage: 48V DC @ 0.65A
Gigabit LAN port
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 0.75A max.
Inrush current: <100A peak at 26°C
Efficiency: 87%
Output ripple: 1% max.
Switching frequency: 70 kHz max.
Line regulation = 3%
Load regulation = 5%
2-pair powering Pins: 4, 5 (+) and 7, 8 (-)
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 µs) power
Peak pulse current: 36A (
Shipping weight0.27 kg
Package size229 × 152 × 51 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I verify the U-PoE+ adapter is delivering power correctly after installation?

The LED indicator on the unit provides status monitoring; a lit LED confirms the adapter is supplying 48V DC at up to 0.65A to the connected device.

What cables and accessories are included with the U-PoE+ and what must I source separately?

The box contains the adapter with an IEC-320 C6 AC connector and an RJ45 shielded socket for data in; you must supply the AC mains lead and the Ethernet cable to your PoE device.

Which Ubiquiti devices are confirmed compatible with this 30W PoE+ adapter?

The manufacturer lists compatibility with U6-LR, UVC-G5-PTZ, U6-IW, UVC-AI-DSLR, UVC-AI-Pro, UDB-Pro, UTP-G3-Touch-Wall, UTP-TouchMax and UA-Ultra.
