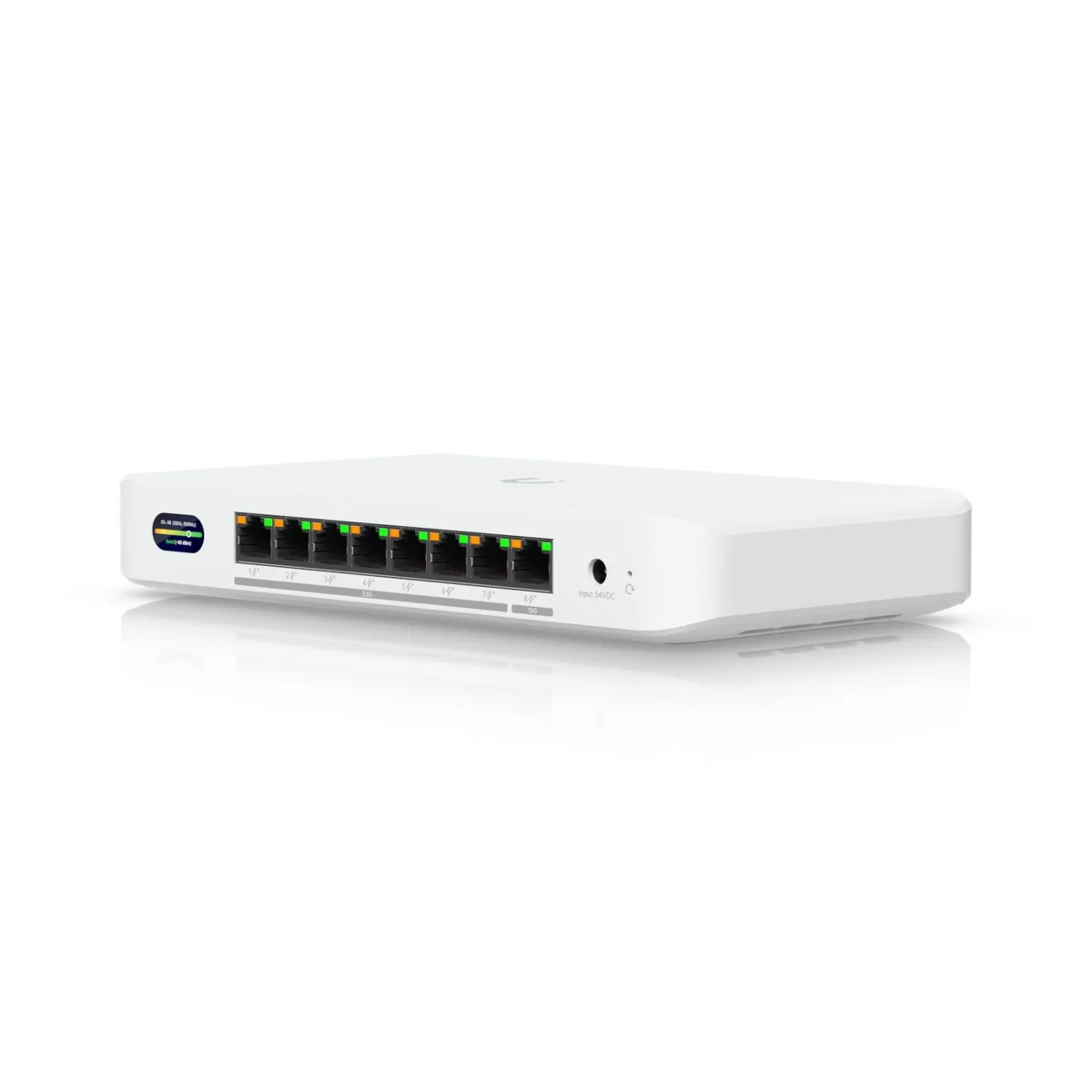

White desktop network switch with eight RJ45 ports and compact low-profile design

Ubiquiti Networks

Ubiquiti Device Bridge Switch White UDB-SWITCH-US network switch

SKU CH-P1Q8-SCFSW

A desktop PoE+ switch with one 10 GbE and seven 2.5 GbE ports plus integrated WiFi 7 bridging

  • FormatDesktop
  • Primary Ports8 x RJ45
  • Primary Port Type(1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
  • Management InterfaceEthernet WiFi
  • SecurityWireless Security: WPA3 SAE (Always On)
  • PoEYes
  • High-speed wired uplinks via one 10 GbE and seven 2.5 GbE RJ45 ports
  • Powers eight PoE+ devices with up to 30 W per port and 185 W total budget
  • Integrated WiFi 7 bridge delivers 5.8 Gbps on 6 GHz and 4.3 Gbps on 5 GHz for wireless backhaul
  • Compact desktop form factor at 212.9 x 113 x 32.5 mm weighs only 548 g
  • Always-on WPA3 SAE encryption secures every wireless connection without extra configuration

Compact PoE+ switch with 10 GbE uplink

The Ubiquiti Device Bridge Switch is a desktop unit that combines eight RJ45 ports with an integrated WiFi 7 radio for wireless uplink. One port runs at 10 GbE and seven ports run at 2.5 GbE, all supporting PoE+ at up to 30 W each. The WiFi 7 bridge operates on 6 GHz and 5 GHz bands with 2x2 MIMO, providing a high-capacity wireless link to a UniFi WiFi network.

Check your PoE budget

Total PoE power depends on the AC adapter: a 60 W input yields 35 W for PoE devices, while a 210 W input provides 185 W. Ensure the adapter you plan to use can cover the combined draw of all connected devices. The switch measures 212.9 x 113 x 32.5 mm and weighs 548 g, or 563 g with the mount, so verify desk or shelf space and that the desktop form factor suits your installation.

Ideal for small offices adding PoE devices

This switch suits deployments that need a compact PoE+ solution and can use WiFi 7 as the backhaul to a UniFi infrastructure. It is not for buyers who require a wired-only aggregation switch with higher port counts or SFP+ uplinks. It is also not for installations that cannot supply a 210 W adapter when the full 185 W PoE budget is needed.

Highlights

  • High-speed wired uplinks via one 10 GbE and seven 2.5 GbE RJ45 ports
  • Powers eight PoE+ devices with up to 30 W per port and 185 W total budget
  • Integrated WiFi 7 bridge delivers 5.8 Gbps on 6 GHz and 4.3 Gbps on 5 GHz for wireless backhaul
  • Compact desktop form factor at 212.9 x 113 x 32.5 mm weighs only 548 g
  • Always-on WPA3 SAE encryption secures every wireless connection without extra configuration

Specifications

BrandUbiquiti
ModelDevice Bridge Switch
Part NumberUDB-SWITCH-US
FormatDesktop
Primary Ports8 x RJ45
Primary Port Type(1) 10 GbE RJ45 port
(7) 2.5 GbE RJ45 ports
Management InterfaceEthernet
WiFi
SecurityWireless Security:
WPA3 SAE (Always On)
PoEYes
PoE Ports8 x PoE+
PoE Power BudgetMax. PoE Wattage per Port: 30W
Total PoE Availability
60W AC adapter input: 35W
210W AC adapter input: 185W
Dimensions212.9 x 113 x 32.5 mm
(8.4 x 4.4 x 1.3")
WeightDevice: 548 g (1.21 lb)
With mount: 563 g (1.24 lb)
FeaturesPERFORMANCE
MIMO
6 GHz: 2 x 2
5 GHz: 2 x 2
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
Antenna Gain
6 GHz: 8 dBi
5 GHz: 8 dBi
Max. TX Power
6 GHz: 23 dBm
5 GHz: 26 dBm
Max. Conducted TX Power: 26 dBm (Combined)
Supported Data Rates
802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320), 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps
Shipping weight2.27 kg
Package size305 × 305 × 203 mm

Questions about this item

What comes in the box with the UDB-SWITCH-US and what must I buy separately?

The switch includes a mounting bracket; a 60 W or 210 W AC adapter is required for power and PoE budget but is sold separately.

Which PoE power adapter should I choose for the 10 GbE and 2.5 GbE ports?

A 60 W adapter provides 35 W total PoE; a 210 W adapter provides 185 W total PoE across all eight PoE+ ports.

What does the 5.8 Gbps WiFi 7 figure mean when the switch is mounted in a rack?

That is the maximum 6 GHz PHY rate (BW320, 2×2 MIMO); real throughput will be lower due to overhead, client capability and RF environment.
