Silver 4U rackmount chassis with ten front 2.5-inch hot-swap drive bays

TYAN

TYAN B7100F48BV10HR-N 4U rackmount barebone server, dual Xeon, 12 DIMM slots, 10×2.5" hot-swap bays

SKU CH-JNTG-V6CGA MPN B7100F48BV10HR-N

4U rackmount barebone holds dual Xeon processors, twelve DDR4 DIMM slots, ten hot-swap 2.5-inch bays and seven PCIe slots

  • Form Factor4U Rackmount
  • WorkloadAI/ML/HPC
  • CPU TypeIntel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable
  • Memory Type SupportedDDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666
  • PCI Express(3) PCIe Gen.3 x8 slots (FH/FL) / (4) PCIe Gen.3 x16 slots (
  • Number of LAN(2) GbE ports (1 port shared with IPMI)
  • Dual 2nd Gen Xeon sockets scale AI and HPC workloads
  • 12 DIMM slots support up to 1.5TB DDR4-2667 memory capacity
  • Seven PCIe Gen.3 slots — four x16 and three x8 — enable four GPU cards
  • Ten 2.5" hot-swap SATA bays provide front and rear storage density
  • 1+1 redundant 1600W power supply with AST2500 BMC and Redfish management

4U dual-socket Xeon barebones server

The TYAN B7100F48BV10HR-N is a 4U rackmount barebones chassis designed for dual Intel Xeon Scalable processors. It provides twelve DDR4 DIMM slots supporting up to 1.5 TB of memory and ten 2.5-inch hot-swap drive bays for high-density storage. Seven full-height PCIe slots and a redundant 1,600 W power supply complete the platform for compute-intensive workloads.

Suits AI, HPC and video-capture deployments

This server targets operators building GPU-accelerated clusters for machine learning, high-performance computing or large-scale video ingest. It is not for teams needing more than four double-width accelerator cards. It is not for sites limited to 3U or smaller rack spaces. It is not for buyers who require more than twelve memory channels per node.

Ten 2.5-inch hot-swap SATA bays

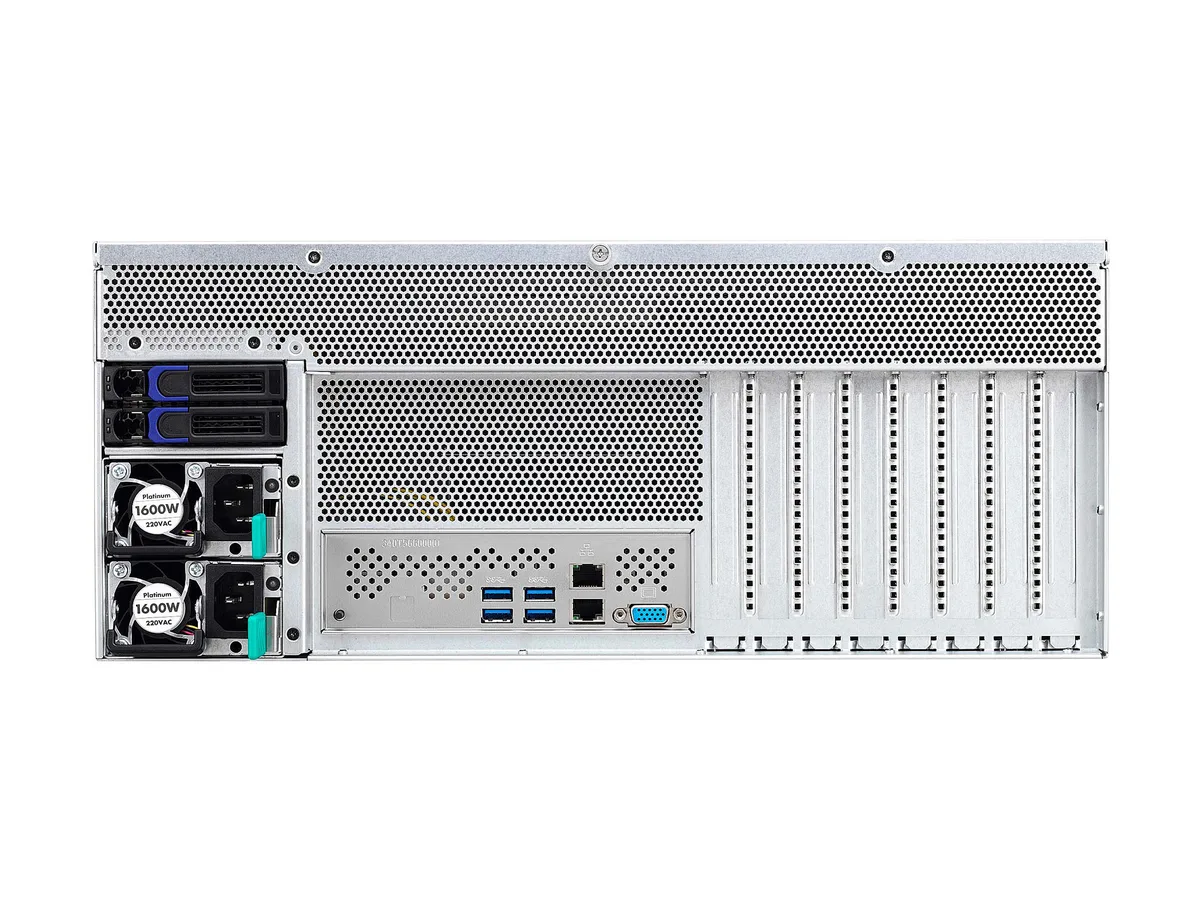

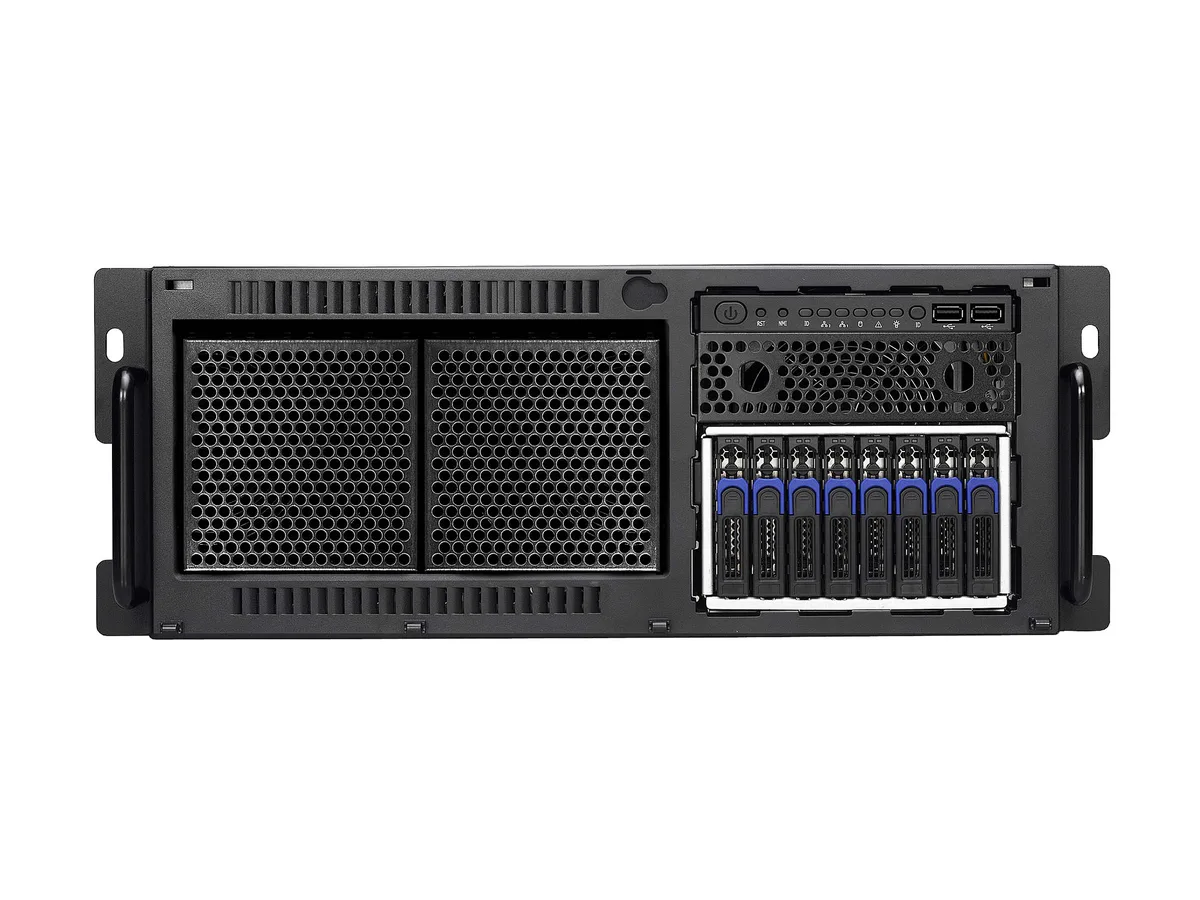

The chassis offers eight front-access and two rear-access 2.5-inch SATA 6 Gb/s hot-swap bays, giving a total of ten drive slots without opening the enclosure. This bay count and the SATA interface are the primary storage constraints; any requirement for additional bays or a different drive protocol means this platform will not fit.

Highlights

  • Dual 2nd Gen Xeon sockets scale AI and HPC workloads
  • 12 DIMM slots support up to 1.5TB DDR4-2667 memory capacity
  • Seven PCIe Gen.3 slots — four x16 and three x8 — enable four GPU cards
  • Ten 2.5" hot-swap SATA bays provide front and rear storage density
  • 1+1 redundant 1600W power supply with AST2500 BMC and Redfish management

Specifications

BrandTYAN
ModelB7100F48BV10HR-N
Form Factor4U Rackmount
WorkloadAI/ML/HPC
CPU TypeIntel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Memory Type SupportedDDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666
PCI Express(3) PCIe Gen.3 x8 slots (FH/FL) / (4) PCIe Gen.3 x16 slots (FH/FL)
Number of LAN(2) GbE ports (1 port shared with IPMI)
Front USB(2) USB 3.0 ports
Rear USB(4) USB3.0 ports (@ rear)
RJ45(2) GbE ports (1 port shared with IPMI)
Dimensions6.90" x 16.80" x 27.50"
Weight75.00 lbs.
Shipping weight40.82 kg
Package size762 × 508 × 254 mm

Questions about this item

Should I pick the 10-bay 2.5-inch configuration or a different capacity for this B7100F48BV10HR-N?

This model provides ten 2.5-inch hot-swap bays — eight SATA 6G front bays and two SATA 6G rear bays — so the capacity is fixed at ten drives.

What does the 1.5 TB DDR4-2667 figure mean once the server is assembled?

The twelve DDR4 DIMM slots support RDIMM, RDIMM 3DS, LRDIMM and LRDIMM 3DS modules at 2666 or 2933 MT/s, reaching 1.5 TB total when fully populated with compatible sticks.

Which PCIe generation caps the x16 and x8 slots on this platform?

All seven expansion slots run at PCIe Gen.3 speeds — four full-height full-length x16 slots and three full-height full-length x8 slots.
