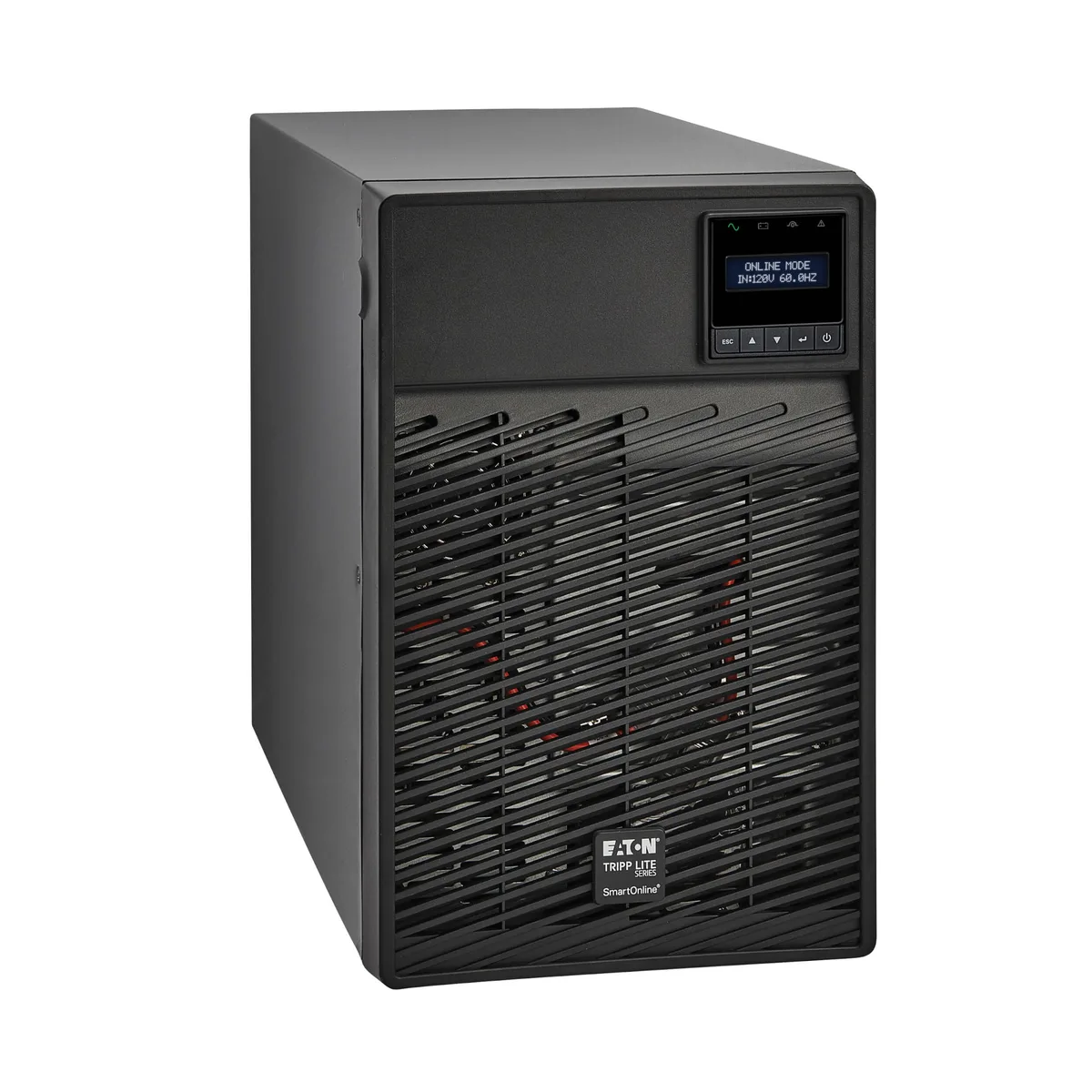

Black rectangular tower UPS with front LCD screen and six rear outlets

Tripp Lite

Tripp Lite SU700XLCD 700VA 630W Double-Conversion UPS

SKU CH-4335-QEVZP MPN SU700XLCD

Double-conversion UPS supplies 700 VA / 630 W of continuous 120 V power with six NEMA 5-15R outlets, user-replaceable VRLA batteries giving 5.9 minutes at full load, and USB, RS-232.

  • International Version120V
  • Input ConnectionNEMA 5-15P
  • VA Rating700VA
  • Watts630W
  • Output Voltage120V
  • Output Frequency50 / 60 Hz
  • Double-conversion topology isolates equipment from power anomalies
  • 700VA 630W rating supports critical loads during outages
  • 9 minutes runtime at full load protects data
  • Optional network card slot enables 24/7 remote monitoring
  • Six NEMA 5-15R outlets distribute protected power

Double-Conversion Topology

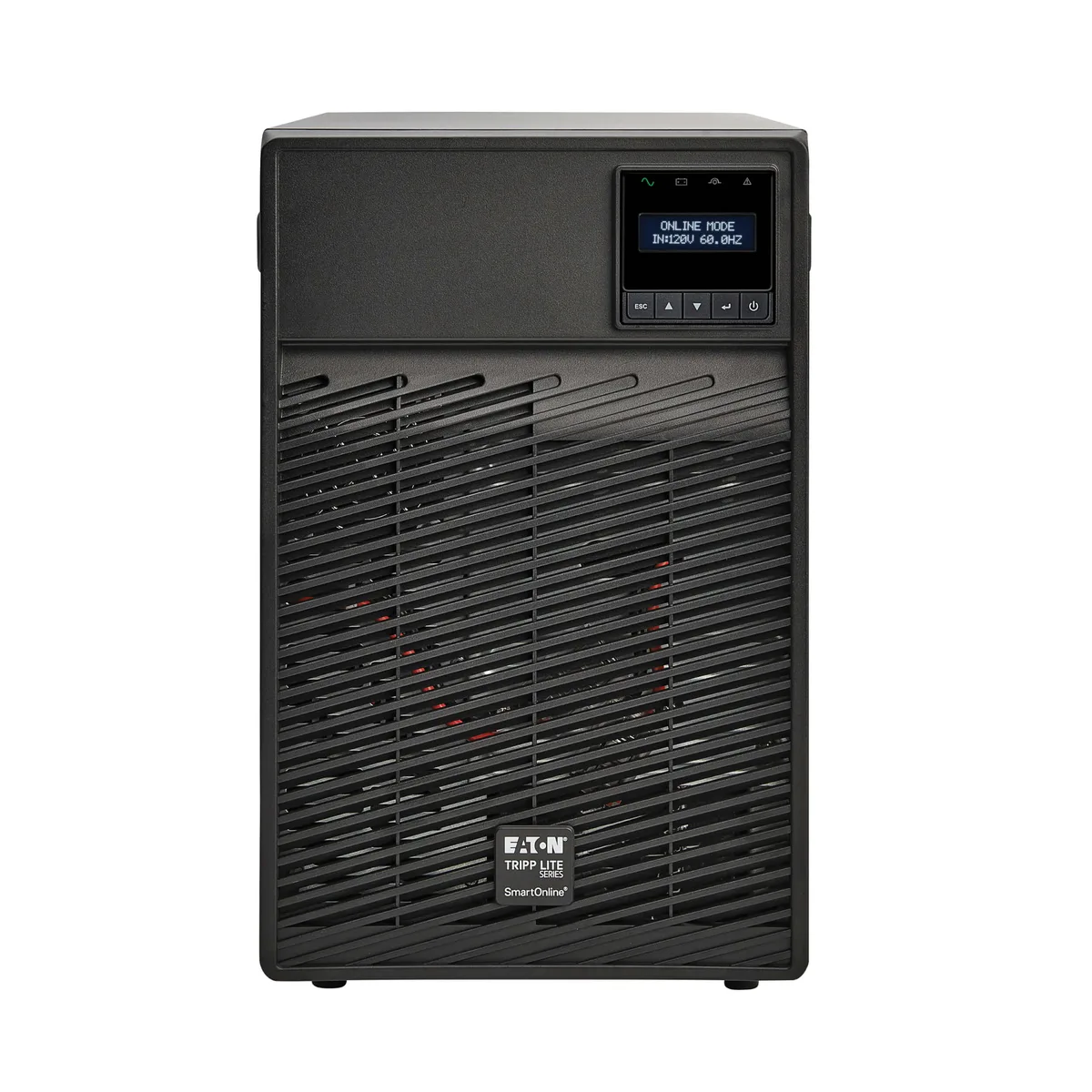

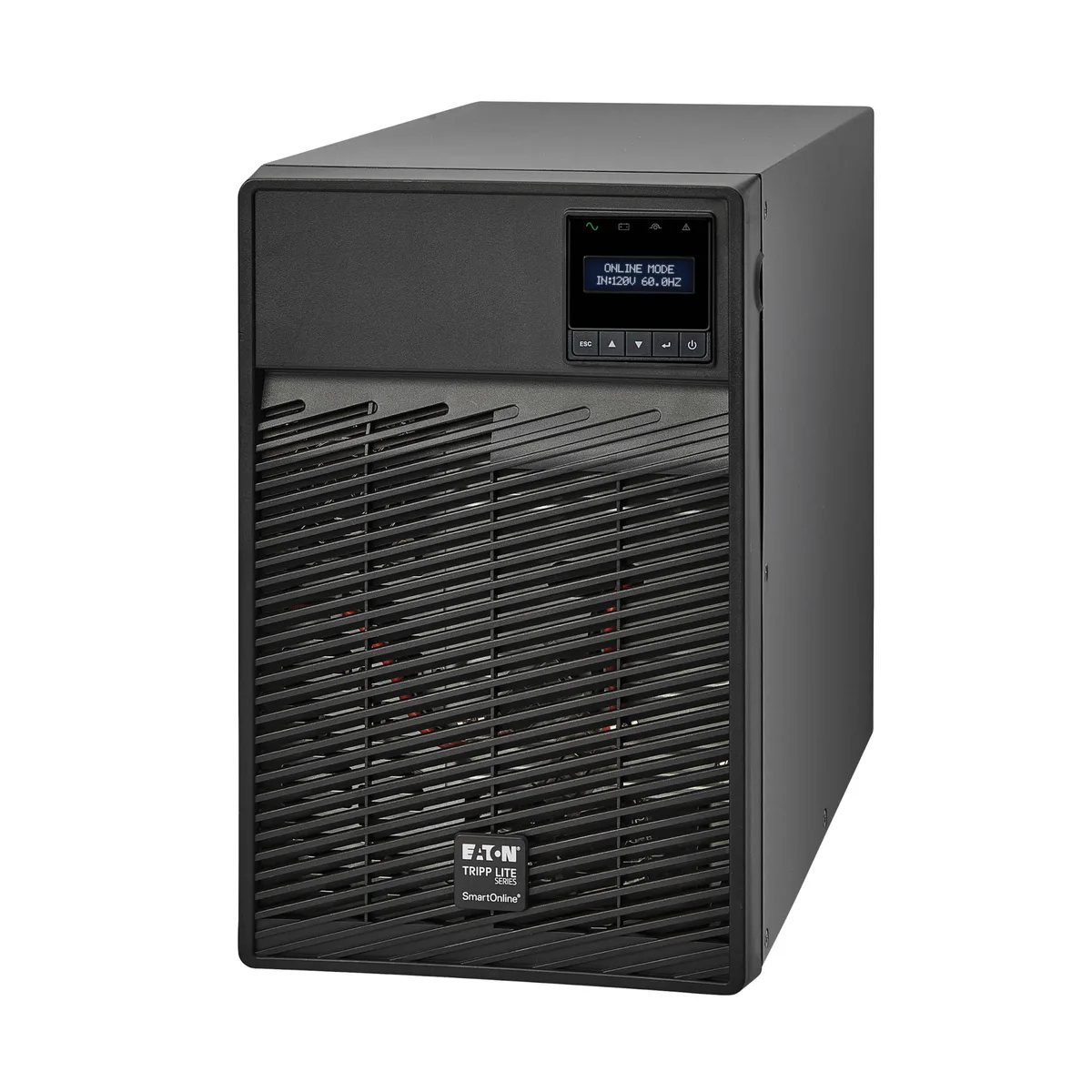

The Tripp Lite SU700XLCD is a 700VA double-conversion UPS that delivers 630W of continuous 120V output. It suits workstations, network gear and point-of-sale systems that require pure sine-wave power without transfer delay. Six NEMA 5-15R outlets provide protected connections for critical loads.

Input and Runtime Limits

The unit accepts 120V input through a NEMA 5-15P plug and operates at 50 or 60Hz. Battery runtime is 5.9 minutes at the full 630W load and 16.9 minutes at a 315W half load. Surge energy rating is 190 joules. Operating temperature range is 32 to 104°F.

Tower or Rack Form Factor

The chassis can sit as a tower or be rack-mounted, offering deployment flexibility. User-replaceable VRLA batteries simplify long-term maintenance. Communications include USB, RS-232, contact closure and an SNMP card slot for remote management. An audible alarm signals startup, power failure, low battery, overload and fault conditions. Automatically restarts when utility power returns.

Highlights

  • Double-conversion topology isolates equipment from power anomalies
  • 700VA 630W rating supports critical loads during outages
  • 9 minutes runtime at full load protects data
  • Optional network card slot enables 24/7 remote monitoring
  • Six NEMA 5-15R outlets distribute protected power

Specifications

BrandTRIPP LITE
SeriesSmartOnline
ModelSU700XLCD
International Version120V
Input ConnectionNEMA 5-15P
VA Rating700VA
Watts630W
Output Voltage120V
Output Frequency50 / 60 Hz
Outlets6
Outlet Type(6) NEMA 5-15R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load: 5.9 min. (630W)
Half Load: 16.9 min. (315W)
Battery ReplaceableUser replaceable batteries
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

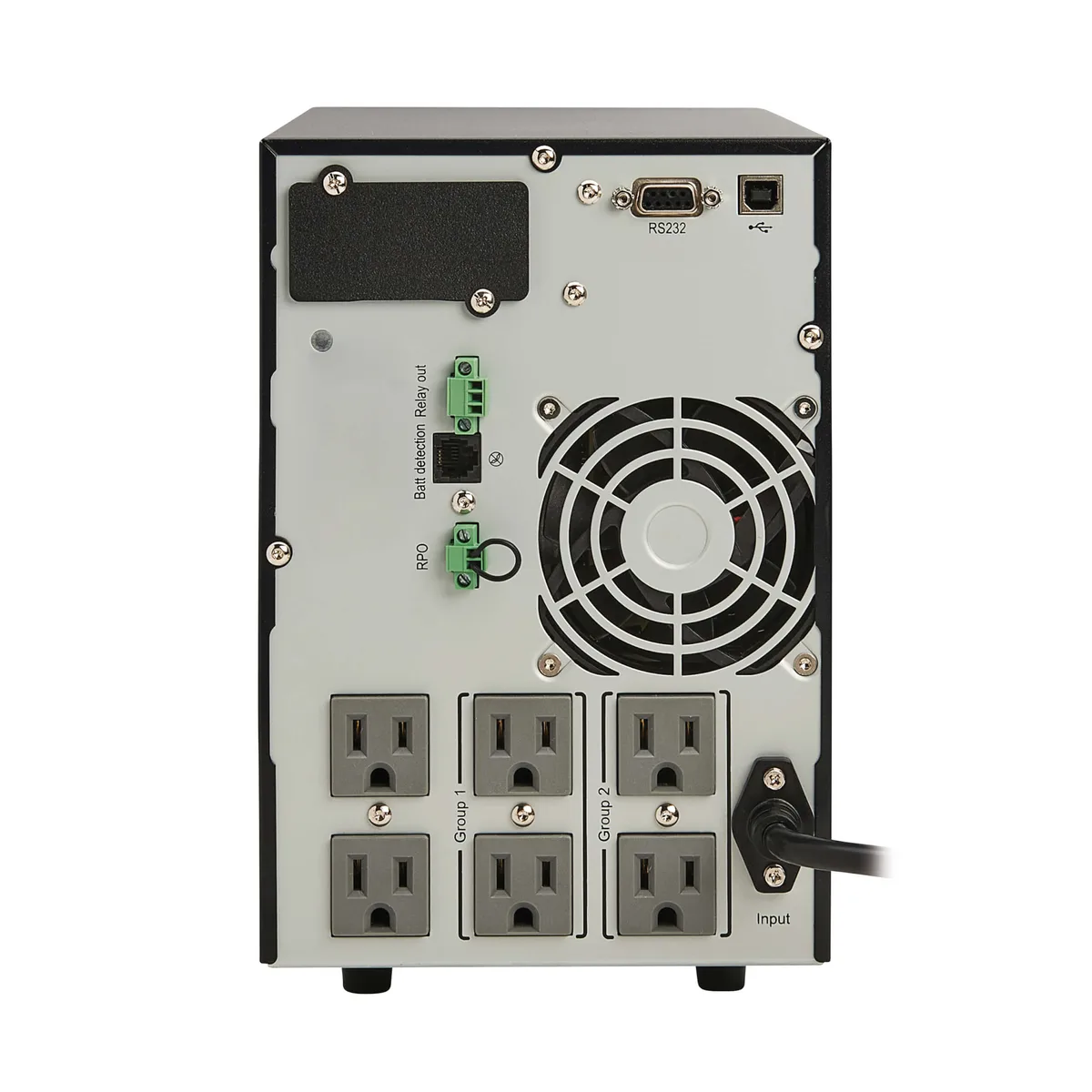

Interface Port(1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB
RackmountableYes
Surge Energy Rating190 Joules
TemperatureOperating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: With battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Humidity0-96% non-condensing
Dimensions9.93" x 6.30" x 13.94"
Weight25.36 lbs.

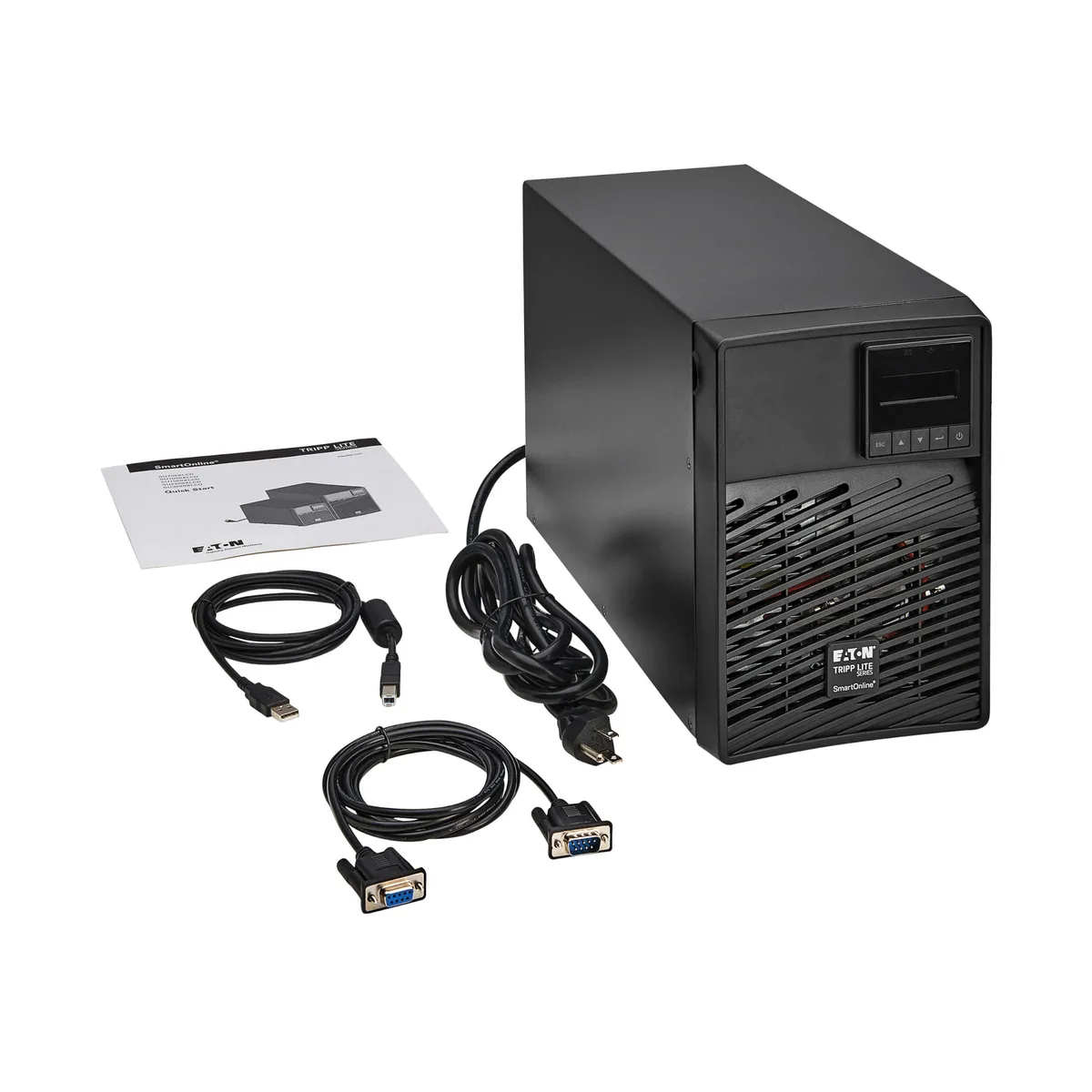

Package Contents700VA 630W 120V Double-Conversion UPS
USB cable
DB9 cable
Quick Start Guide
Shipping weight16.33 kg
Package size565 × 381 × 375 mm

Questions about this item

Should I pick the 700VA model or step up to a higher VA unit?

The SU700XLCD delivers 700VA and 630W from six NEMA 5-15R outlets. Choose it if your connected load stays below 630W; otherwise select a unit with a higher watt rating.

What does the 630W rating mean for my actual equipment?

At full 630W load the battery runs for 5.9 minutes; at half load (315W) you get 16.9 minutes. Size your gear so the total draw fits within 630W for the runtime you need.

Which management interface does the DB9 port use and what does it limit?

The DB9 is an RS-232 serial port for local monitoring and shutdown scripts; it does not carry network traffic. For remote access add the optional SNMP/Web card in the dedicated slot.
