Black 6U wall-mount server rack with ventilated locking front door and removable side panels, fully assembled

Tripp Lite

Tripp Lite SRW6U 6U 19" wall-mount server rack 140 lb load

SKU CH-9KTD-6EP7A MPN SRW6U

A 6U wall-mount cabinet holds 19 inch rack gear up to 16.5 inches deep and supports 140 lb

  • TypeWall Mount Cabinet
  • Rack Units6U
  • ColorBlack
  • Features6U with adjustable front vertical rackmount rails Locking, r
  • Unit Dimension14.5" x 23.5" x 17.5"

Rack Units 6U

  • Holds 19-inch gear up to 16.5 in. deep with 6U adjustable rails
  • Supports 140 lb of equipment on sturdy wall bracket
  • Vented door, sides, top and bottom for flow-through cooling
  • Locking reversible front door and removable side panels secure hardware
  • Fully assembled cabinet measuring 14.5 x 23.5 x 17.5 in. for quick install

Compact wall-mount rack for small IT deployments

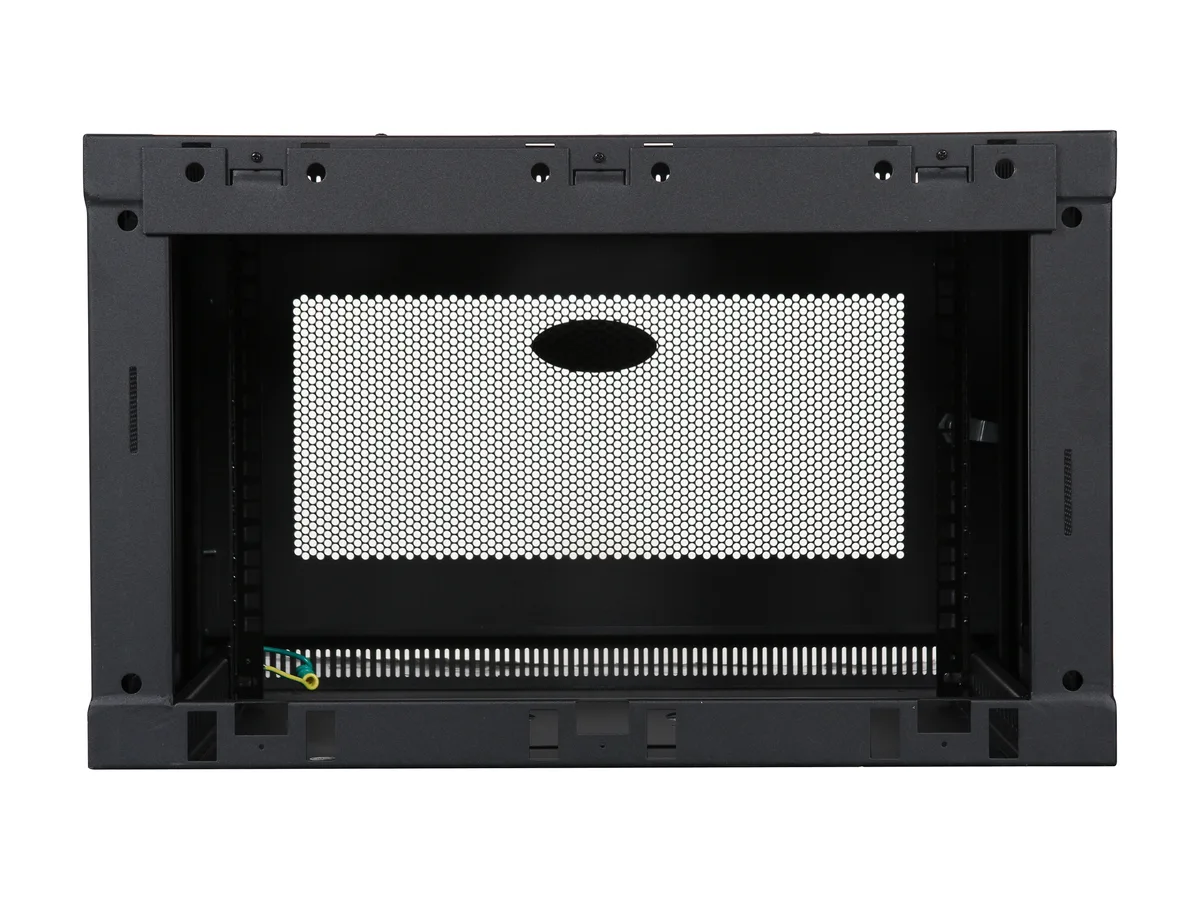

The Tripp Lite SRW6U is a 6U, 19-inch wall-mount cabinet that holds standard rackmount gear in tight spaces. It ships fully assembled so installers can hang it and load equipment without building a frame first.

Holds 140 lb of gear up to 16.5 in deep

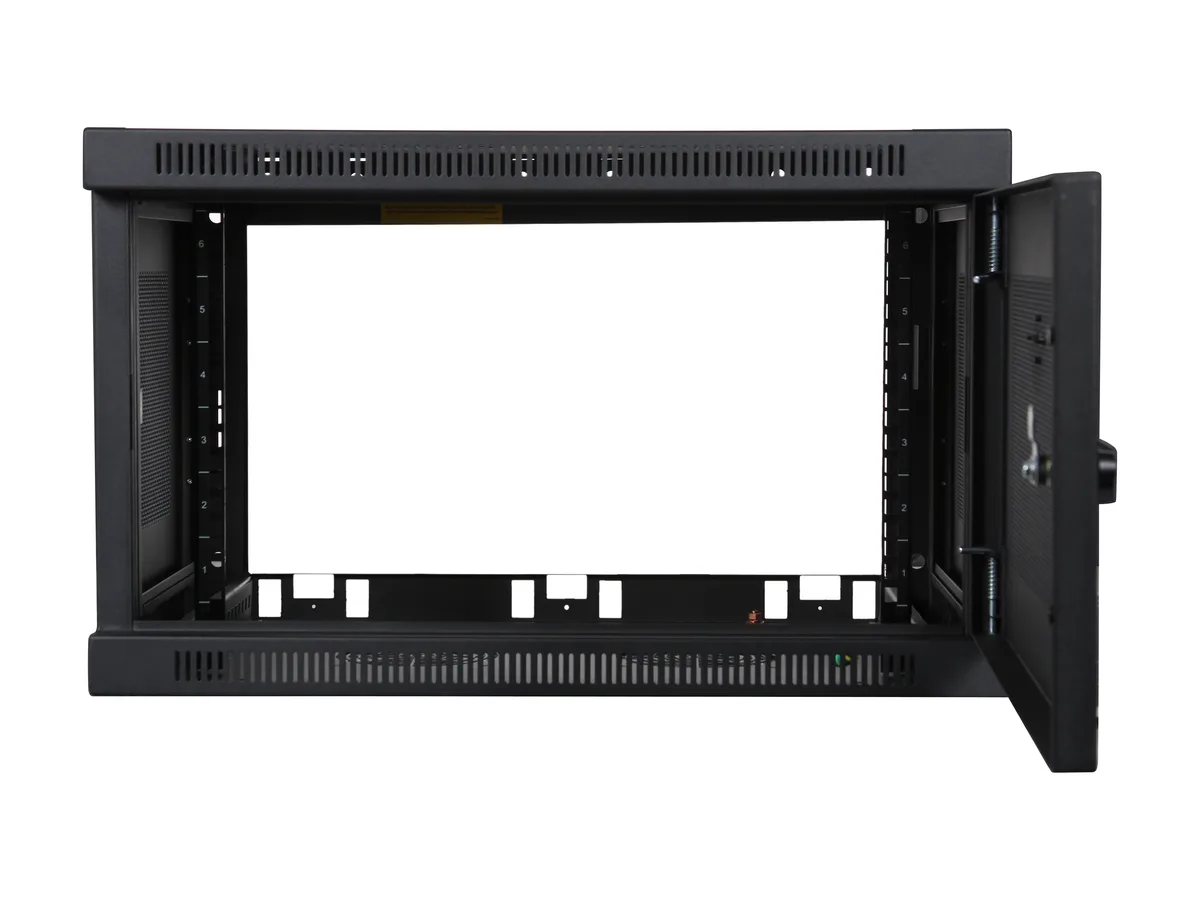

Adjustable front rails accept up to 6U of equipment with a maximum depth of 16.5 inches and a tested load limit of 140 lb. The 200 lb structural rating provides margin for heavier static loads, but the usable capacity stops at the lower figure.

Locking steel body with flow-through vents

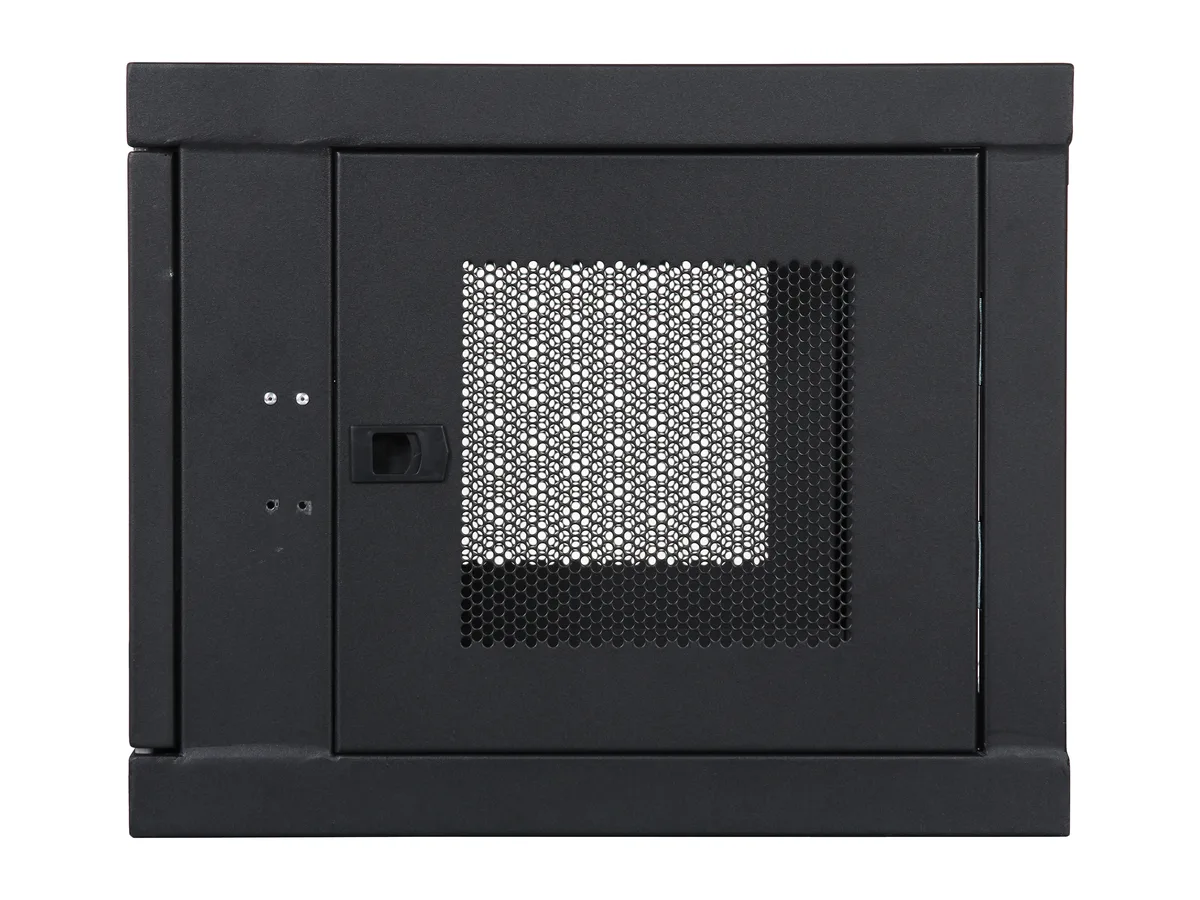

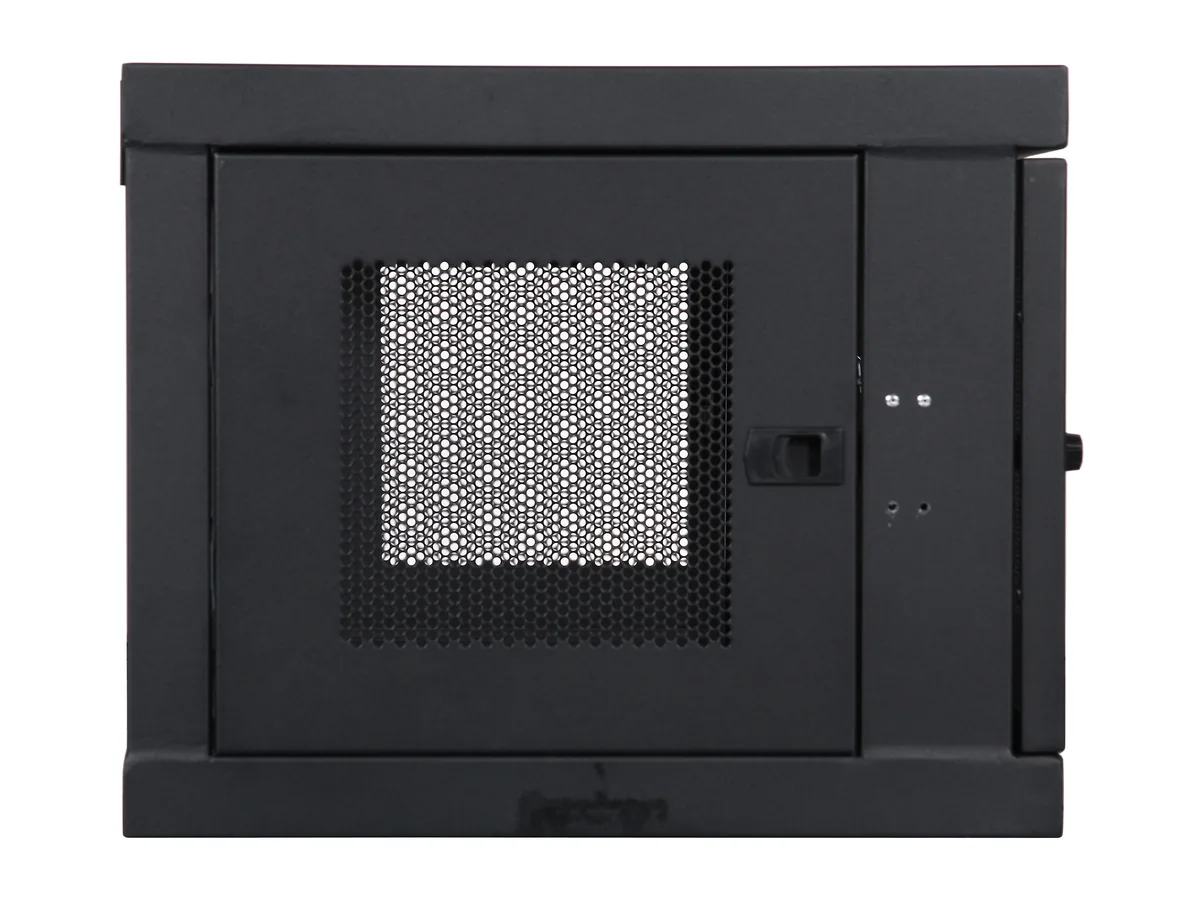

Vented sides, front door, top and bottom create passive airflow across the installed hardware. A reversible locking front door and removable locking side panels give secure access from either side, while the sturdy wall bracket keeps the 14.5 by 23.5 by 17.5 inch enclosure firmly mounted.

Highlights

  • Holds 19-inch gear up to 16.5 in. deep with 6U adjustable rails
  • Supports 140 lb of equipment on sturdy wall bracket
  • Vented door, sides, top and bottom for flow-through cooling
  • Locking reversible front door and removable side panels secure hardware
  • Fully assembled cabinet measuring 14.5 x 23.5 x 17.5 in. for quick install

Specifications

BrandTripp Lite
ModelSRW6U
TypeWall Mount Cabinet
Rack Units6U
ColorBlack
Features6U with adjustable front vertical rackmount rails
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Unit Dimension14.5" x 23.5" x 17.5"
Shipping weight15.38 kg
Package size660 × 533 × 432 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the adjustable front rails and 16.5 in. depth fit my existing 19 in. patch panel and short-depth switch?

Yes. The rails accept standard 19 in. rackmount gear and the cabinet secures equipment up to 16.5 in. deep, so a patch panel and typical short-depth switch will mount without issue.

How can I confirm the flow-through ventilation is keeping my gear cool once the door and side panels are locked?

The front door and side panels are vented at sides, front, top and bottom; after powering on, check that exhaust air exits the top and rear vents and that equipment temperatures stay within their normal operating range.

Does the box include the wall-mount bracket and all mounting hardware, or do I need to buy lag bolts and a caster kit separately?

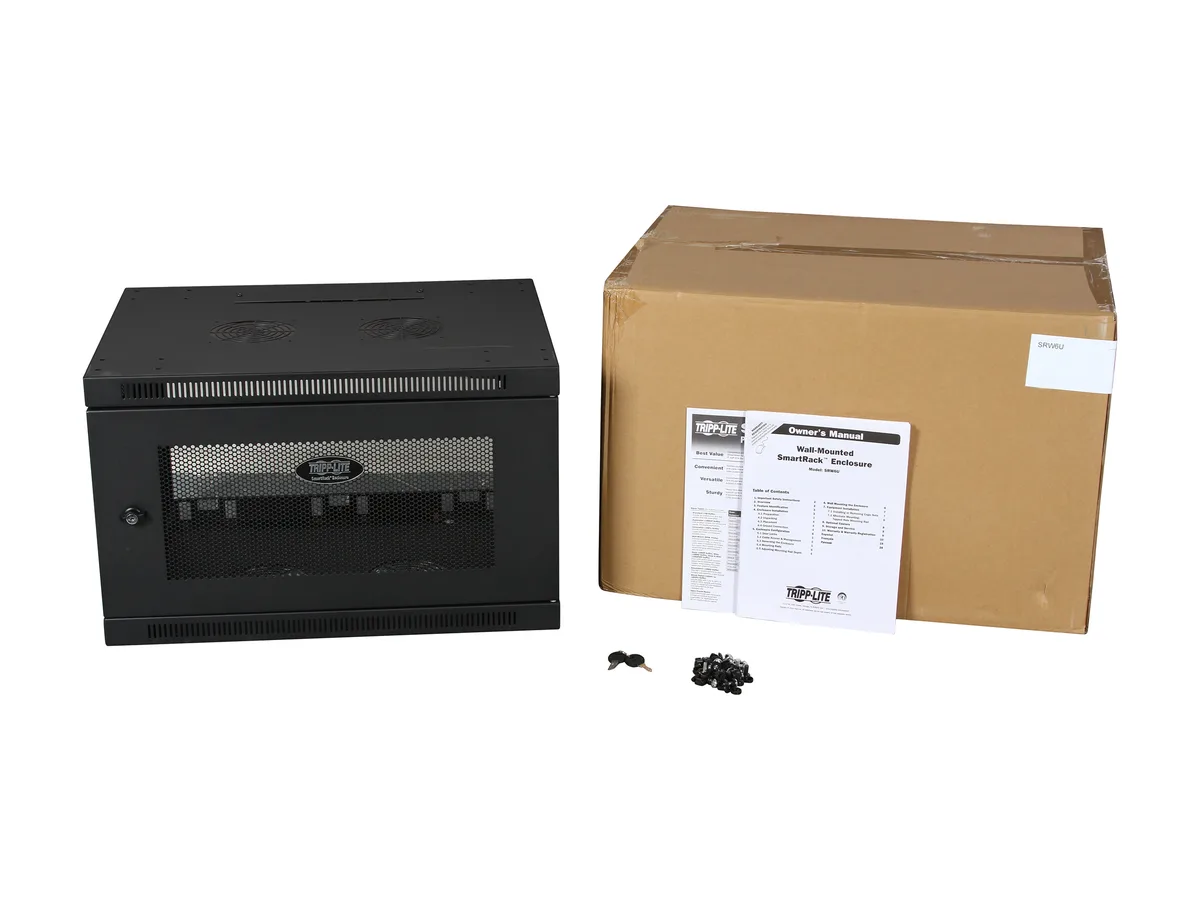

The cabinet ships fully assembled with the sturdy wall-mount bracket included; lag bolts for your wall type are not supplied, and the SRCASTER rolling kit is an optional accessory sold separately.
