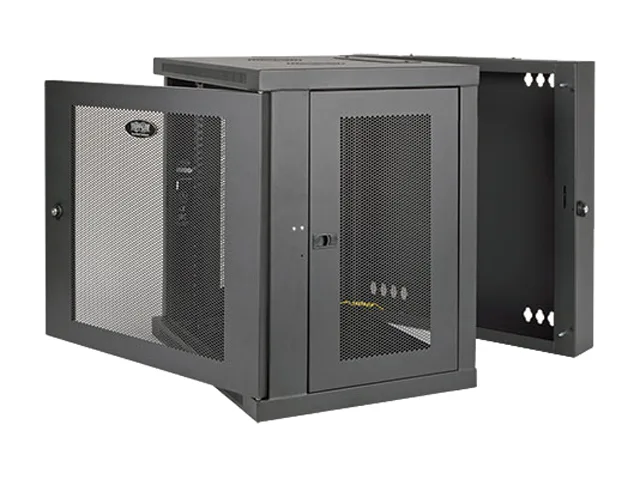

Black steel 12U wall-mount rack cabinet with hinged back and locking front door

Tripp Lite

Tripp Lite SRW12US 12U Wall-Mount Server Rack 20.5in Deep

SKU CH-KBS6-EWEV8 MPN SRW12US

A 12U wall-mount cabinet that swings away for rear access and holds 19-inch rack gear up to 20.5 inches deep with a 200 lb load rating

  • TypeWall Mount Cabinet
  • Rack Units12U
  • ColorBlack
  • Features12U with adjustable front and rear vertical rackmount rails
  • Unit Dimension25.0" x 23.63" x 21.6"

Rack Units 12U

  • Holds 12U of 19 in. gear up to 20.5 in. deep
  • Supports 200 lbs of equipment weight safely
  • Hinged cabinet swings away for rear access
  • Locking steel cabinet vented on all sides
  • Ships fully assembled for immediate installation

12U Wall-Mount Server Cabinet

The Tripp Lite SRW12US is a 12U wall-mount rack enclosure designed to secure 19-inch rack equipment up to 20.5 inches deep. It features a steel construction with a black finish and includes adjustable front and rear vertical rackmount rails. The cabinet arrives fully assembled for immediate installation.

Installers needing rear access without full

The hinged cabinet swings away from the wall bracket to provide easy access to equipment rear panels, and the swing direction is reversible to suit the room layout. A locking, reversible front door and locking removable side panels secure the installed hardware. Ventilation at the sides, front, top and bottom supports passive airflow. This unit is not suited for installers who need deeper equipment bays beyond the 20.5-inch limit or a higher load rating than 200 lbs.

20.5-inch maximum equipment depth

The usable depth of 20.5 inches is the critical measurement that determines whether your servers, switches or patch panels will fit inside the cabinet. Verify the depth of every device you plan to mount against this figure before purchase. The overall unit depth is 21.6 inches, so allow additional wall clearance for cabling and the hinge mechanism.

Highlights

  • Holds 12U of 19 in. gear up to 20.5 in. deep
  • Supports 200 lbs of equipment weight safely
  • Hinged cabinet swings away for rear access
  • Locking steel cabinet vented on all sides
  • Ships fully assembled for immediate installation

Specifications

BrandTripp Lite
ModelSRW12US
TypeWall Mount Cabinet
Rack Units12U
ColorBlack
Features12U with adjustable front and rear vertical rackmount rails
Hinged cabinet swings away from wall bracket for easy equipment access (swing direction is reversible)
Locking, reversible front door and locking, removable side panels
Fully assembled for quick installation
Unit Dimension25.0" x 23.63" x 21.6"
Shipping weight29.03 kg
Package size711 × 660 × 617 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick a deeper or shallower rack for my 20.5in equipment?

The SRW12US accepts 19in rack gear up to 20.5in deep, so it matches that depth exactly.

What does the 200 lb load rating mean once the cabinet is on the wall?

It is the maximum combined weight of all installed equipment the hinged enclosure can safely support.

Does the 19in rack standard limit the width of devices I can mount?

Yes, the rails follow the 19in EIA spacing, so only equipment built to that width will fit.
