Black 1U horizontal rack PDU with ten C13 outlets and two C14 inlets, LED status indicators, and mounting brackets

Tripp Lite

Tripp Lite PDUMH15HVAT PDU 10 C13 2 C14 1U TAA

SKU CH-DMY1-GTX1A MPN PDUMH15HVAT

A metered automatic-transfer-switch PDU with 10 C13 outlets and dual C14 inlets for 200–240 V, 10 A, 2.4 kW redundant power in a 1U horizontal rack mount

  • TypeSwitched, Metered
  • Rack Size1U
  • StyleHorizontal
  • Front Panel LEDs8 LEDs display power on-off status for each C13 output recep
  • CertificationsTested to UL 60950-1 (USA, Canada), CE (EU), NOM (Mexico), G
  • ROHSRoHS Complaint
  • Automatic transfer switching protects equipment during power source changes
  • Local metering shows real-time load on 10 C13 outlets
  • TAA compliance meets government procurement requirements
  • Dual C14 inlets enable redundant power input connections
  • 1U horizontal design fits standard rack installations

1U Metered ATS PDU for 200–240 V Racks

The Tripp Lite PDUMH15HVAT is a single-phase Automatic Transfer Switch and metered power distribution unit that fits a 1U horizontal rack slot. It accepts two IEC-320 C14 inlets and provides ten locking C13 outlets for servers and network gear. TAA compliance makes it suitable for government procurement.

Check dual C14 sources and 10 A load limit

Verify that your facility can supply two independent 200–240 V feeds, each terminated with a C14 plug, and that the combined draw of connected equipment stays within the 10 A maximum input current. The unit ships with two 3.6 m C13-to-C14 cords and both horizontal and vertical mounting brackets for flexible installation.

Locking outlets and front-panel status LEDs

Ten C13 receptacles accept C14 plug-lock inserts to prevent accidental disconnection during vibration or cable management. Eight front-panel LEDs show per-outlet power state while two additional LEDs confirm primary and secondary input presence. Certifications include UL 60950-1, CE, NOM, GOST, FCC Class A and EN standards.

Highlights

  • Automatic transfer switching protects equipment during power source changes
  • Local metering shows real-time load on 10 C13 outlets
  • TAA compliance meets government procurement requirements
  • Dual C14 inlets enable redundant power input connections
  • 1U horizontal design fits standard rack installations

Specifications

BrandTripp Lite
ModelPDUMH15HVAT
TypeSwitched, Metered
Rack Size1U
StyleHorizontal
Front Panel LEDs8 LEDs display power on-off status for each C13 output receptacle, plus 2 additional LEDs to indicate input power status for primary and secondary inputs
CertificationsTested to UL 60950-1 (USA, Canada), CE (EU), NOM (Mexico), GOST (Russia), EN55032:2015 and EN62040-2:2006, FCC Class A (Emissions), TAA Compliant
ROHSRoHS Complaint

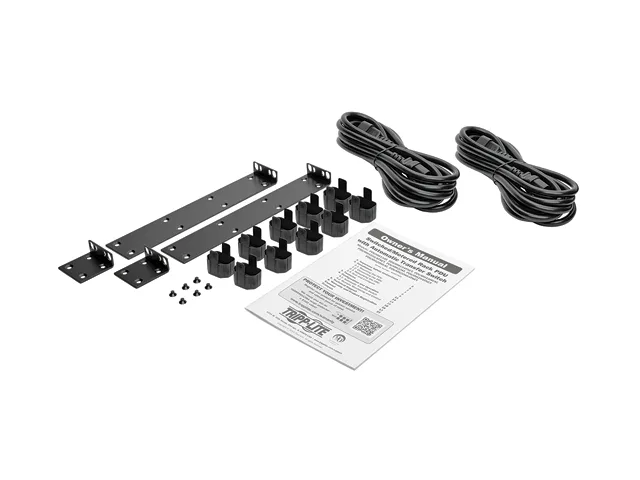

Package IncludesPDUMH15HVAT TAA-Compliant 2–2.4kW Single-Phase ATS / Metered PDU
10 x C14 plug lock inserts
2 x C13 to C14 power cords, 3.6 m (11.8 Feet)
2 x Mounting brackets, horizontal
2 x Mounting brackets, vertical
6 x Screws
Owner’s manual
Input Voltage200; 208; 220; 230; 240
Maximum Input Current10A
Input Connector(s)IEC-320 C14
Cord Length12 ft
Output Voltage200; 208; 220; 230; 240V
Output Frequency50/60Hz
Output Watts (VA)2.4k Watts (240V), 2.3k Watts (230V), 2.2k Watts (220V), 2.08k Watts (208V), 2.0k Watts (200V) / 10A total capacity
Output Connector(s)10 x C13
Operating Elevation0 - 10000 Feet
Storage Temperature-15 - 50 Celcius degree
Storage Relative Humidity5 - 95%
FeaturesPrimary and Secondary Inputs for Power Redundancy
?Enables redundant power for network devices with non-redundant power supply configurations
?Dual 3.6 m input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources
10 x C13 outlets
Automatic Transfer Switching
Dynamic solid-state(TRIAC) automatic transfer switching
Switches to secondary power source if primary source fails or becomes unstable
2 - 5 ms transfer time ensures uninterrupted operation of connected equipment
Built-in processor monitors both sources and prevents switching if second
Dimensions1.71" x 17.33" x 14.45"
Weight10.32 lbs.
Shipping weight7.06 kg
Package size580 × 515 × 110 mm

Questions about this item

What comes in the box and do I need to buy any cables or brackets separately?

The package includes the PDU, ten C14 plug lock inserts, two 3.6 m C13 to C14 power cords, horizontal and vertical mounting brackets, and six screws.

How do I decide between the listed input voltages and the 10 A rating for my rack?

The unit auto-senses 200–240 V and is limited to 10 A total, giving 2.0–2.4 kW depending on the supply voltage you connect.

What does the 2.4 kW headline figure mean once the PDU is installed in my cabinet?

At 240 V the ten C13 outlets share a 10 A budget, so you can draw up to 2.4 kW combined; at lower voltages the maximum drops to 2.0 kW at 200 V.
