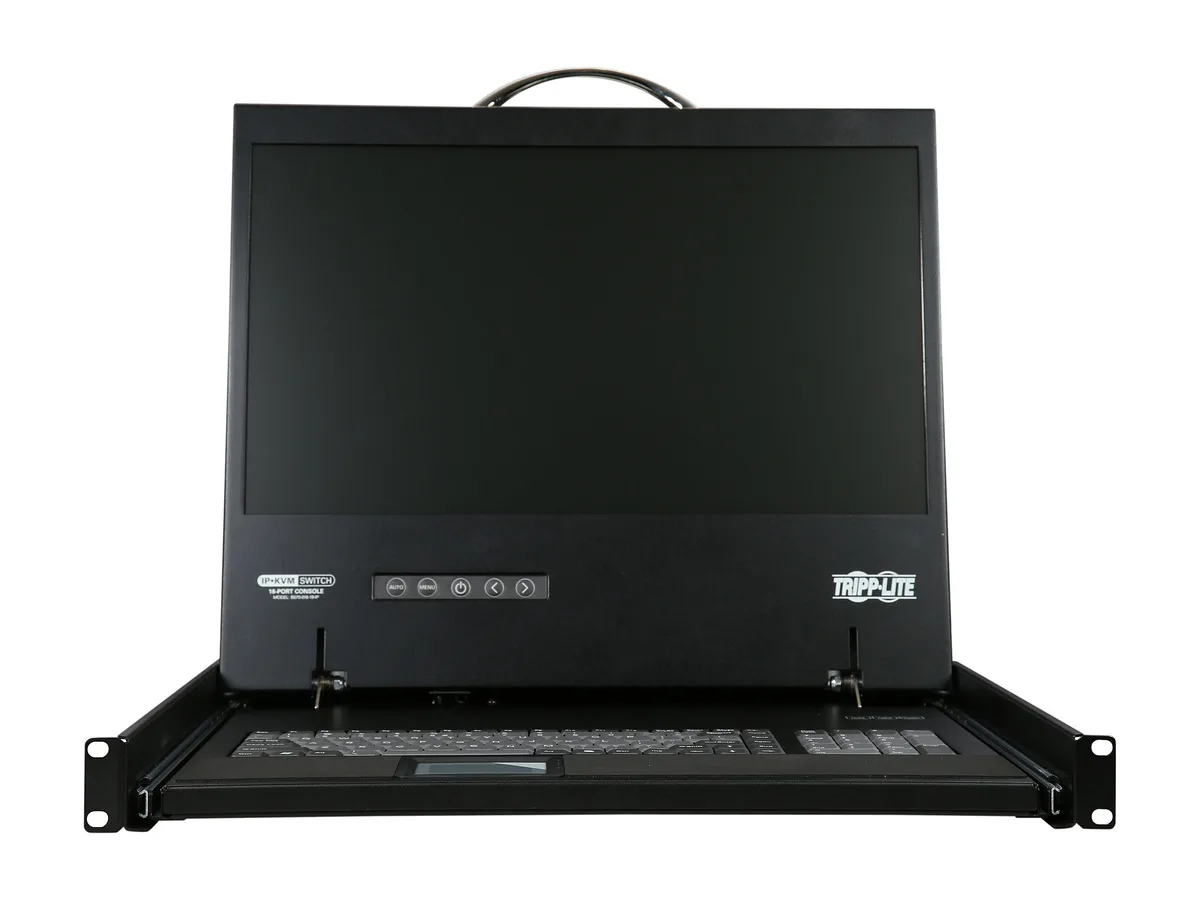

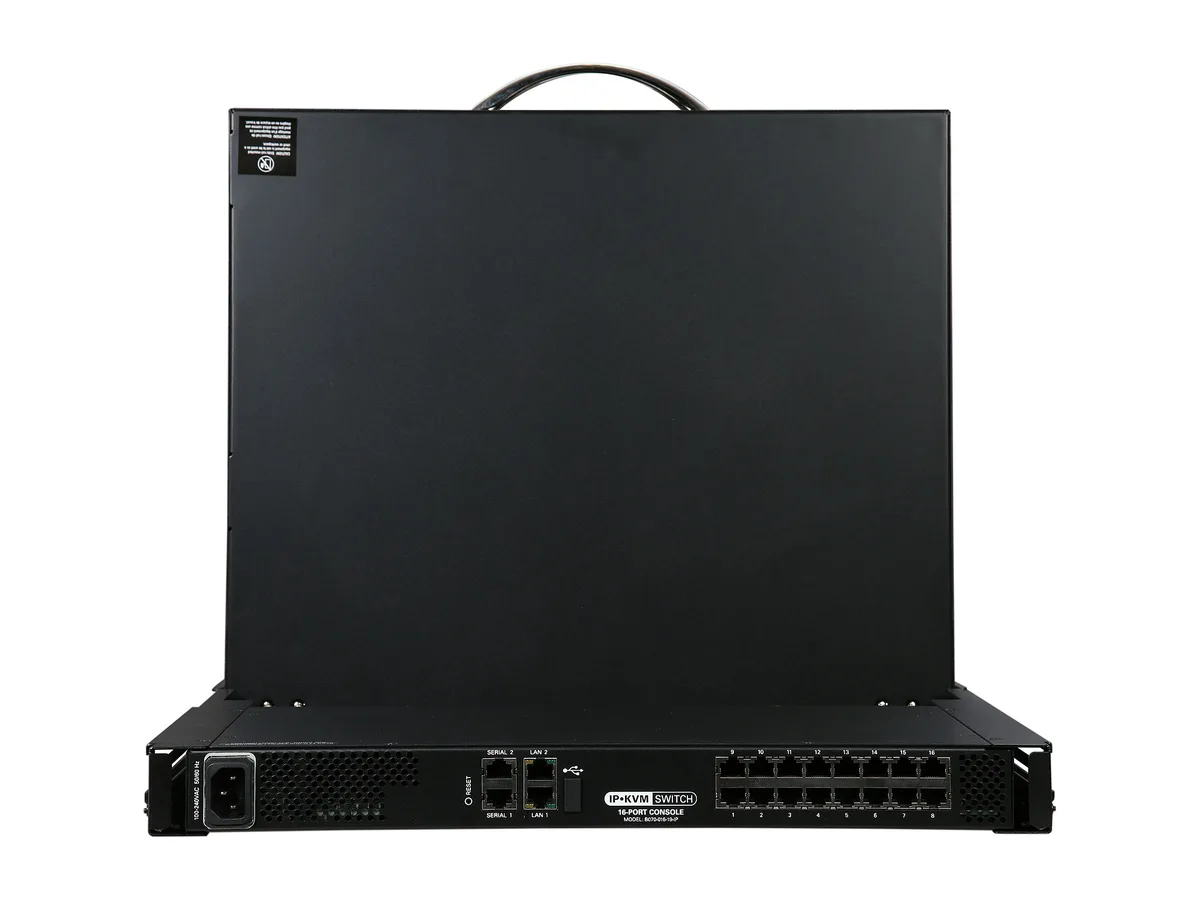

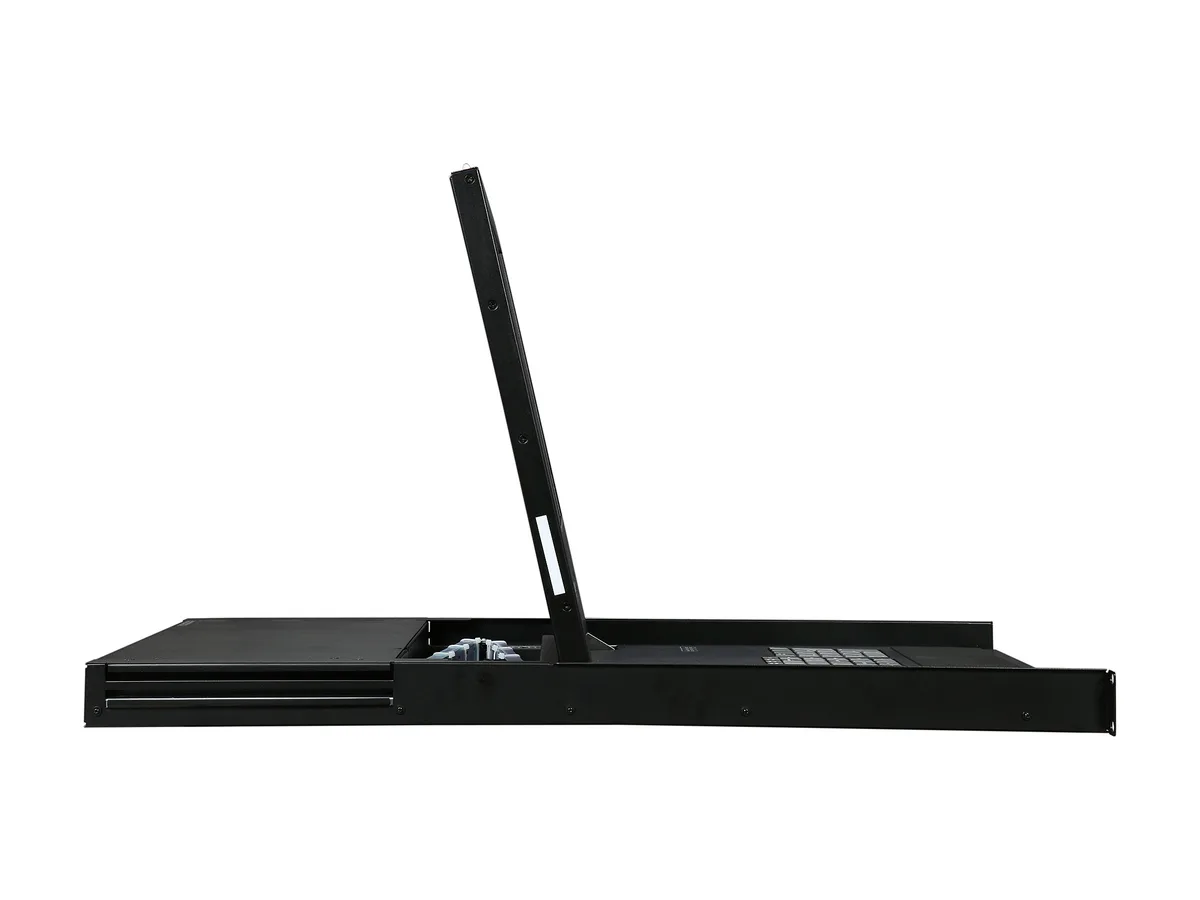

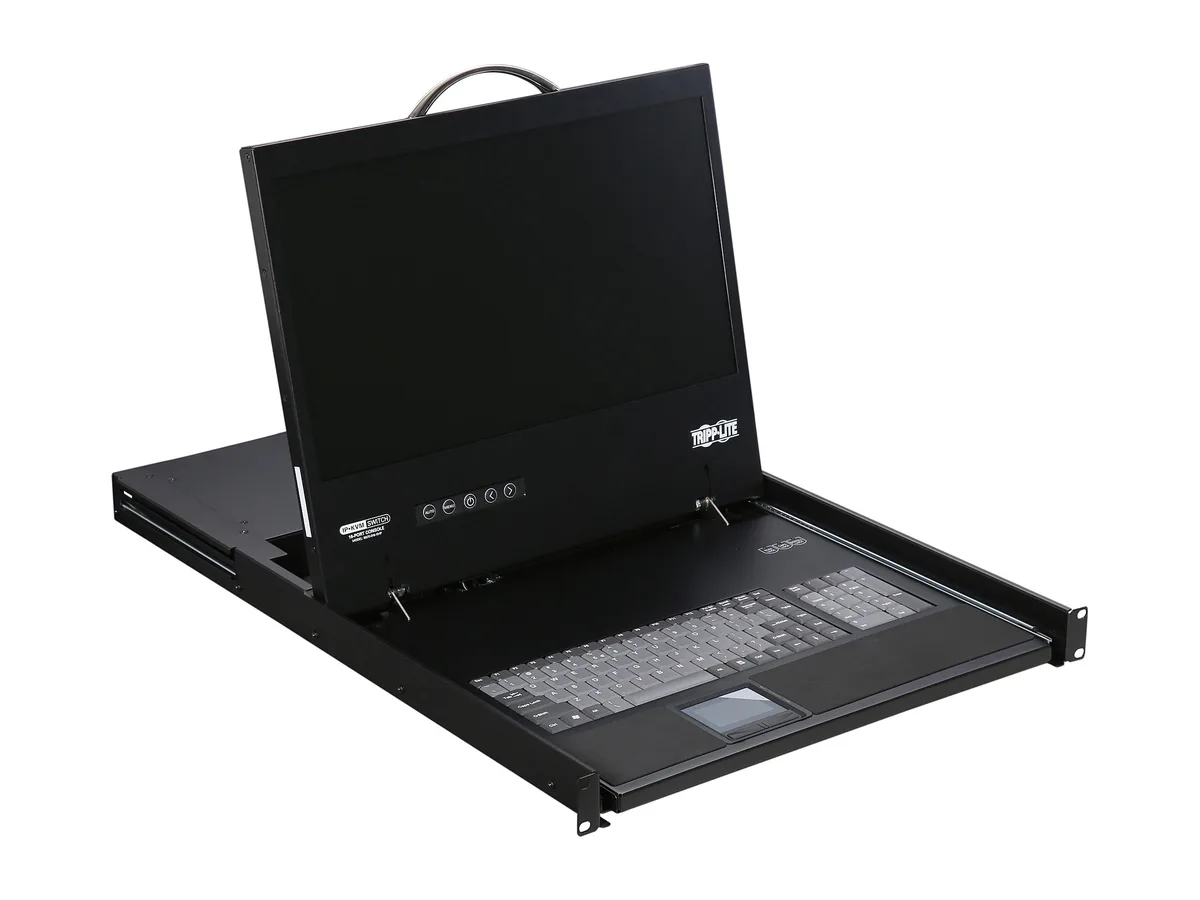

1U rack drawer with 19 inch LCD, keyboard and touchpad

Tripp Lite

Tripp Lite B070-016-19-IP 16-Port 1U 19" LCD KVM Switch

SKU CH-N2CE-RZVP0 MPN B070-016-19-IP

Rack-mountable 1U drawer combines a 16-port KVM switch, 19-inch LCD, keyboard and touchpad with IP remote access for local or network server control

  • TypeUSB, PS/2
  • Computer Connections16-Port Remote
  • Video Resolution1600 x 1200
  • TemperatureOperating: 32F to 104F Storage: -40F to 158F
  • Humidity0% to 80%,Non-Condensing
  • Power FeaturesNominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V A

Computer Connections 16-Port Remote

  • Control 16 servers locally or remotely via IP access
  • 19-inch LCD supports up to 1366 x 768 resolution
  • Single 1U drawer combines KVM, screen, keyboard and touchpad
  • Cat5e/6/6a cabling allows server placement up to 100 ft away
  • Simultaneous local and remote user operation supported

16-Port KVM with Integrated LCD

The Tripp Lite B070-016-19-IP combines a 16-port KVM switch, a 19-inch LCD screen, keyboard and touchpad in a single 1U rack-mountable drawer. It is built for administrators who need local console access to multiple servers inside a standard rack.

IP Remote Access and Cat5 Cabling

IP remote access allows a second user to control attached computers over LAN, WAN or the Internet while a local user works at the drawer. Cat5e, Cat6 or Cat6a patch cables replace bulky KVM cables and let servers sit up to 100 ft from the switch, reducing cable clutter in dense racks.

1U Steel Drawer for 29-to-42-Inch Deep Racks

The unit occupies 1U of rack space and fits four-post racks from 29 to 42 inches deep; a separate kit enables two-post mounting. All mounting hardware is included for one-person installation, and the drawer slides on rails for quick access to the 19-inch LCD, keyboard and touchpad.

Highlights

  • Control 16 servers locally or remotely via IP access
  • 19-inch LCD supports up to 1366 x 768 resolution
  • Single 1U drawer combines KVM, screen, keyboard and touchpad
  • Cat5e/6/6a cabling allows server placement up to 100 ft away
  • Simultaneous local and remote user operation supported

Specifications

BrandTRIPP LITE
ModelB070-016-19-IP
TypeUSB, PS/2
Computer Connections16-Port Remote
Video Resolution1600 x 1200
TemperatureOperating: 32F to 104F
Storage: -40F to 158F
Humidity0% to 80%,Non-Condensing
Power FeaturesNominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Electrical Consumption: (Line Mode) 30W / (Standby Mode) 5W
Nominal Input Voltage Description: Internal Switching 100-240 VAC 50/60Hz
Input Frequency: 50/60Hz
Input Current: 120V (1.2A) / 230V (0.7A)
FeaturesControl computers/servers locally or via LAN, WAN or Internet
Occupies just 1U of space in a rack-mountable drawer
Low-cost Cat5 cabling allows longer distances, reduces cable clutter
19” LCD screen supports video resolutions up to 1366 x 768
Simultaneous support for 2 users – 1 local, 1 remote
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Free Management Software available to Access and Control all of your Tripp Lite NetCommander IP KVM's (B070 and B072 IP series) from a single interface
Fast Virtual Media KVM System patented under Pat. No. US 9,41
Dimensions1.70" x 19.00" x 26.80"
Weight37.50 lbs.
Shipping weight17.92 kg
Package size843 × 602 × 163 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often does the LCD backlight need replacement when the console runs continuously?

The 19-inch LCD is rated for typical continuous operation within the 32F to 104F range; no user-serviceable backlight interval is published, so plan on the display lasting the unit's service life.

What limits the number of servers I can manage before adding another KVM?

The built-in switch handles 16 direct Cat5 connections and cascades with compatible units to reach 256 total servers.

How much heat does the drawer add to a closed rack when powered on all day?

Line-mode draw is 30 watts and standby is 5 watts, so the thermal load matches those figures during normal use.
