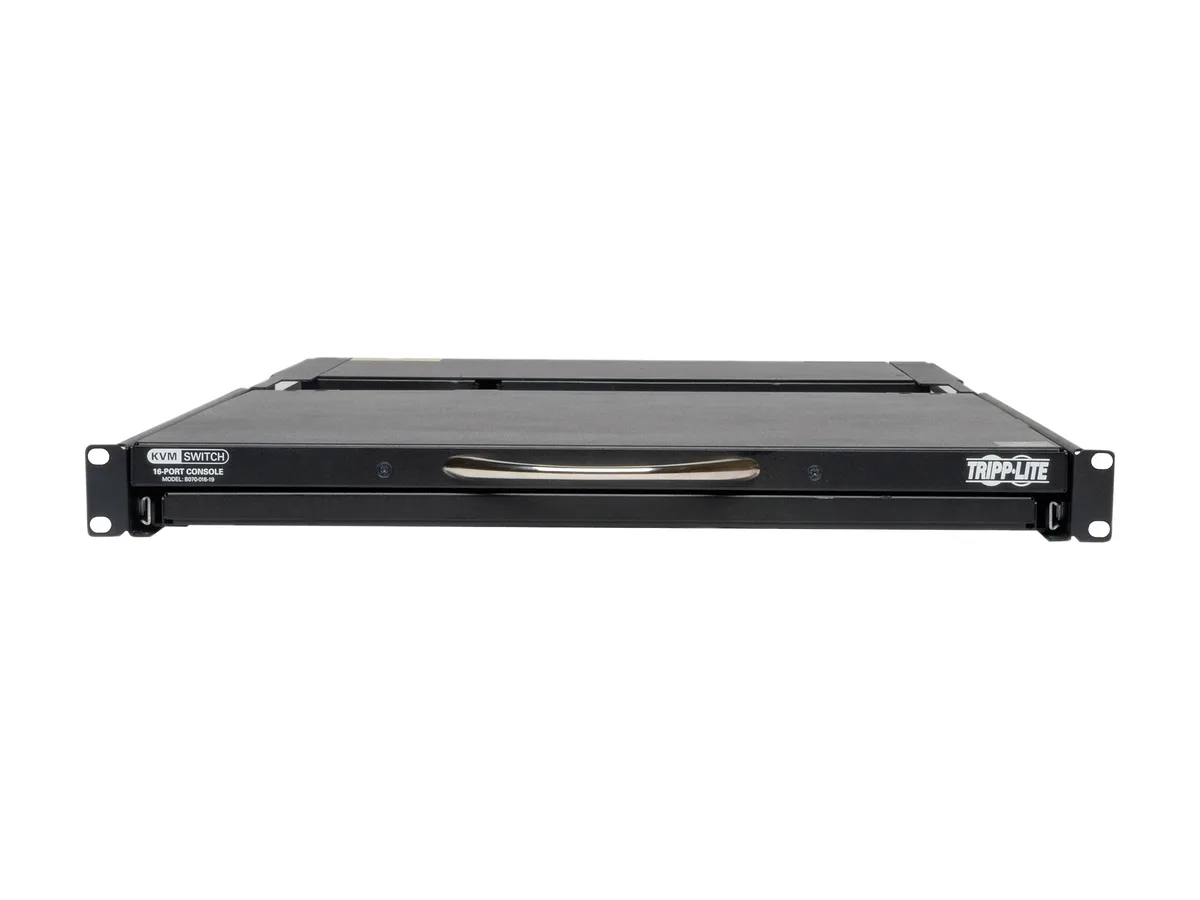

Tripp Lite 16-port Cat5 KVM switch with 19-inch LCD in 1U rackmount drawer

Tripp Lite

Tripp Lite B070-016-19 16-Port Cat5 1U Rackmount Console KVM Switch with 19-in LCD

SKU CH-PP7N-ZYYWZ MPN B070-016-19

Rackmount 1U console switch controls 16 servers via Cat5 with integrated 19-inch LCD at 1366 x 768 resolution

  • TypeUSB, PS/2
  • Computer Connections16-Port Local
  • Video Resolution1280 x 1024
  • PC SelectionOn Screen Display menu, Hot-Key
  • TemperatureOperating: 32F to 104F Storage: -40F to 158F
  • Humidity0% to 80%,Non-Condensing

Computer Connections 16-Port Local

  • Control 16 servers from one console with integrated 19-inch LCD

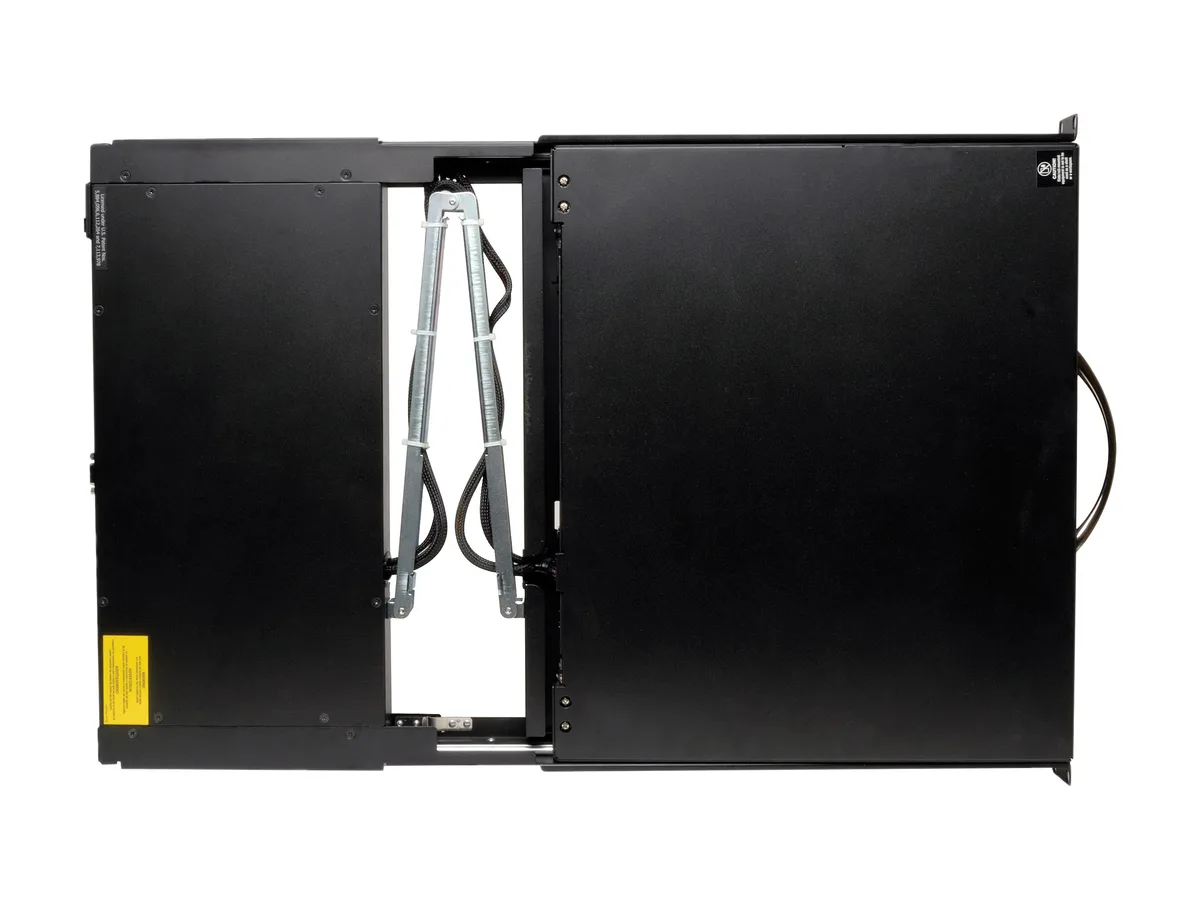

  • Save rack space with 1U drawer design that fits standard cabinets
  • Extend server connections up to 100 feet using low-cost Cat5 cabling
  • Expand management to 256 computers by cascading additional KVM switches
  • TAA compliant for government and GSA Schedule purchasing requirements

16-Port Cat5 KVM with 19-in LCD

The Tripp Lite B070-016-19 combines a 16-port Cat5 KVM switch and a 19-inch LCD console in a single 1U rackmount drawer. It supports USB and PS/2 server connections and allows control of up to 16 computers locally. The integrated display provides a maximum resolution of 1366 x 768. Server switching is managed through an on-screen display menu or hot-key commands.

Suited for dense rack environments needing local

This unit fits administrators who want a compact, self-contained console for up to 16 servers within one rack unit. It also supports cascading with compatible Tripp Lite B072 series switches to expand control up to 256 servers. Buyers who require remote IP access or a higher native LCD resolution should consider other models. The console depth requires a four-post rack between 29 and 42 inches deep.

Steady 30 W draw under continuous operation

In line mode the switch draws a consistent 30 W while the LCD and KVM electronics remain active. Standby consumption drops to 5 W when the console is idle. The unit operates reliably across a temperature range of 32 °F to 104 °F and humidity levels up to 80 % non-condensing. Wide AC input support from 100 V to 240 V ensures stable power in varied data-centre environments.

Highlights

  • Control 16 servers from one console with integrated 19-inch LCD
  • Save rack space with 1U drawer design that fits standard cabinets
  • Extend server connections up to 100 feet using low-cost Cat5 cabling
  • Expand management to 256 computers by cascading additional KVM switches
  • TAA compliant for government and GSA Schedule purchasing requirements

Specifications

BrandTRIPP LITE
ModelB070-016-19
TypeUSB, PS/2
Computer Connections16-Port Local
Video Resolution1280 x 1024
PC SelectionOn Screen Display menu, Hot-Key
TemperatureOperating: 32F to 104F
Storage: -40F to 158F
Humidity0% to 80%,Non-Condensing
Power FeaturesNominal Input Voltage(s) Supported: 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Electrical Consumption: (Line Mode) 30W / (Standby Mode) 5W
Nominal Input Voltage Description: Internal Switching 100-240 VAC 50/60Hz
Input Frequency: 50/60Hz
Input Current: 120V (1.4A) / 230V (0.8A)
FeaturesOccupies just 1U of space in a rack-mountable drawer
Low-cost Cat5 cabling allows longer distances, reduces cable clutter
19” LCD screen supports video resolution up to 1366 x 768
Simplifies IT tasks with easy switching between all 16 ports
TAA compliant for GSA Schedule purchases
Dimensions1.70" x 19.00" x 26.80"
Weight36.00 lbs.
Package ContentsB070-016-19 1U rackmount console KVM switch with 19” LCD
C13 to 5-15P power cord
Serial firmware upgrade cable

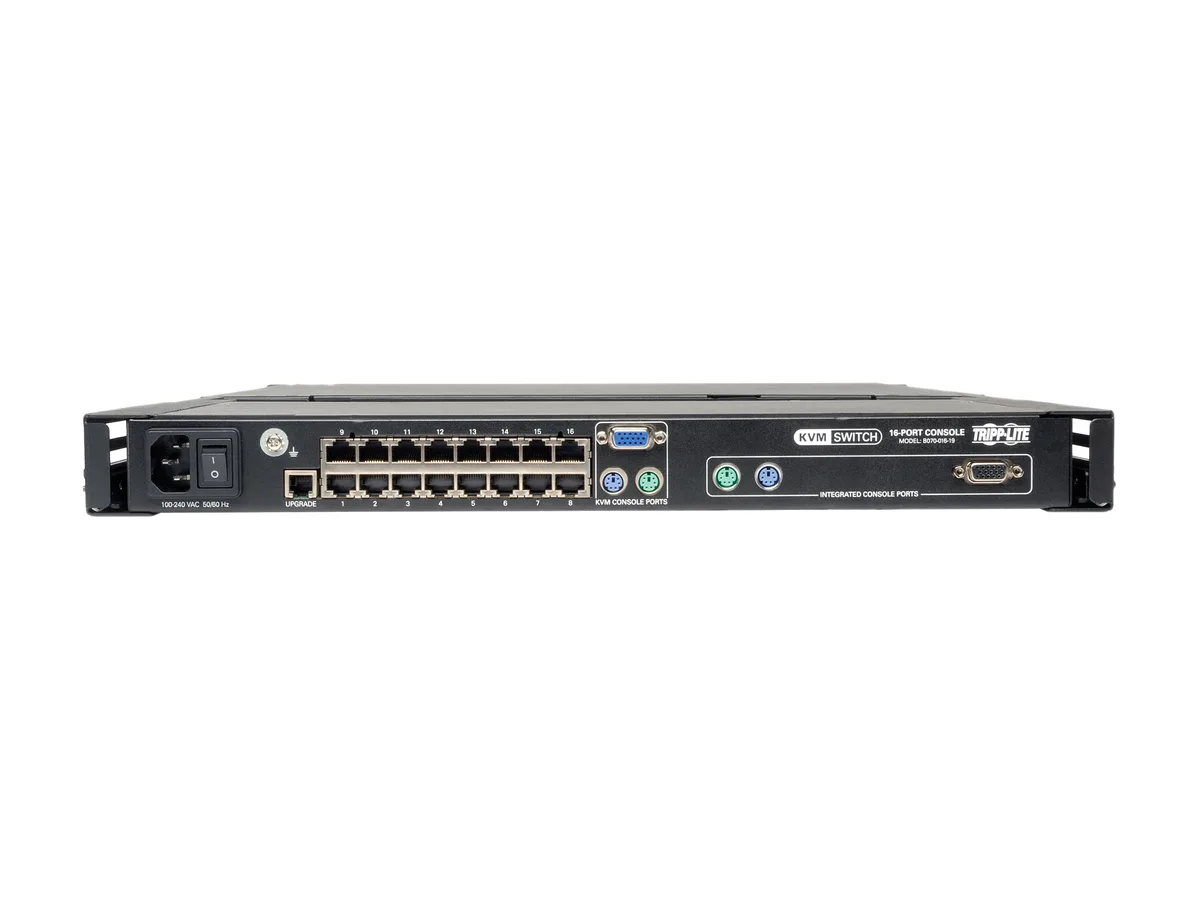

Jumper cable to connect KVM console ports to integrated console ports
Rackmount hardware
CD with owner's manual
Shipping weight17.78 kg
Package size823 × 599 × 155 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Do I need to buy separate server interface units to connect my 16 computers to this B070-016-19 KVM switch?

Yes, the switch requires Tripp Lite B078-101 series server interface units for each computer, which connect via Cat5 or Cat6 patch cables up to 100 ft away.

Can I cascade my existing B072 series KVM switches with this 16-port console to control more than 16 servers?

Yes, you can cascade a second level using B072-008-1, B072-008-1A, B072-016-1 or B072-016-1A switches to expand control up to 256 servers from this single station.

How do I confirm the integrated 19-inch LCD is displaying the correct resolution after I rack-mount and cable the switch?

Use the On Screen Display menu or hot-key switching to select a server; the LCD supports up to 1366 x 768 resolution, and the switch handles video up to 1280 x 1024.
