TRENDnet TI-PG62B industrial PoE+ switch DIN-rail wall mount metal case four PoE ports two SFP slots terminal block LED indicators

TRENDnet

TRENDnet TI-PG62B 6-port industrial PoE+ network switch

SKU CH-WA9Y-HGTH2 MPN TI-PG62B

Hardened 6-port industrial switch delivers four PoE+ ports, two SFP uplinks and 120 W power budget for harsh environments

  • FormatDIN-rail and wall mounts
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x
  • Network Management TypeUnmanaged
  • Uplink Interface4 x Gigabit PoE+ ports 2 x 100/1000 Mbps SFP slots 6-pin rem
  • Primary Ports4 x Gigabit PoE+ ports 2 x 100/1000 Mbps SFP slots
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast

Total Ports 6-Port

PoE PoE+

Style Industrial Black

Struck-through versions exist but are not stocked here.

  • Powers up to four PoE+ devices with a 120 W budget at 24, 48 or 56 VDC
  • Operates reliably from -40 °C to 75 °C in harsh industrial environments
  • Hardened against shock, vibration and freefall per EN 60068 standards
  • Flexible 12 / 24 / 48 VDC input with removable terminal block for easy wiring

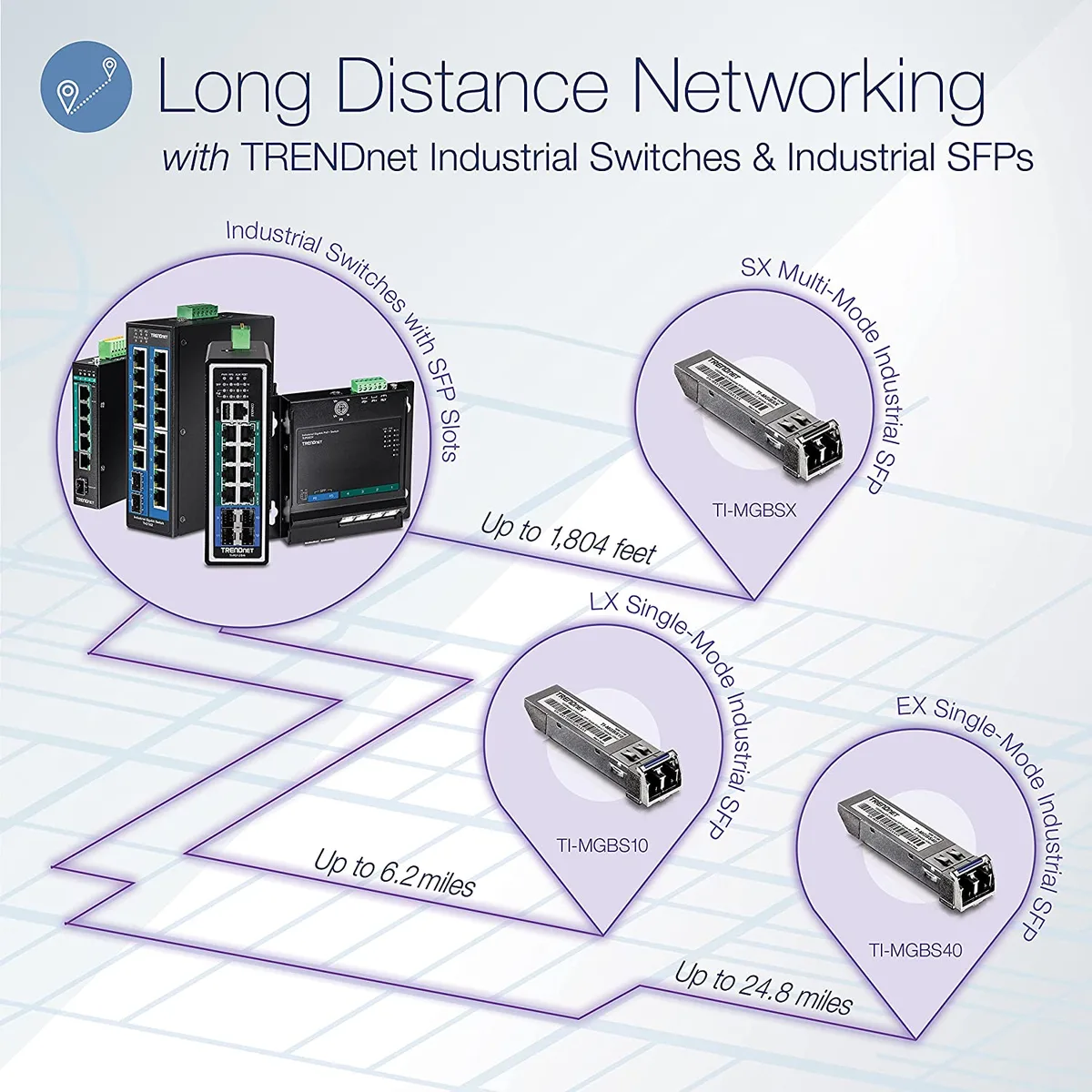

  • Two SFP slots enable fibre uplinks at 100 or 1000 Mbps

Hardened 6-port industrial PoE+ switch

The TRENDnet TI-PG62B is an unmanaged Gigabit switch built for harsh environments. It provides four PoE+ ports and two 100/1000 Mbps SFP slots for fibre uplinks. Mounting options include DIN-rail and wall fixtures. The unit operates from -40 to 75 °C and meets EN 60068-2-27, EN 60068-2-32 and EN 60068-2-6 for shock, freefall and vibration resistance. IP30 rating adds protection against solid objects.

Fanless operation with wide DC input range

The switch draws a maximum of 5.76 W when no PoE devices are attached. It accepts 12, 24 or 48 V DC through a 6-pin removable terminal block and includes a grounding point. No internal fan is present, so acoustic output is negligible. An optional TI-S12048 power supply can be used. PoE budget reaches 120 W at 24, 48 or 56 V DC and 60 W at 12 V DC, delivering up to 55 V DC output per port.

Sustained load across four PoE+ ports

With a 12 Gbps switching fabric and 1 MB buffer, the switch forwards jumbo frames up to 9 KB without blocking. The 120 W PoE budget supports four simultaneous PoE+ devices continuously at 24 V DC or higher input. At 12 V DC input the budget halves to 60 W, limiting the number of full-power ports. MAC address table holds 1K entries. The DIP switch allows basic port configuration for specialised deployments. Not suited for buyers who need managed features such as VLANs, QoS or remote monitoring.

Highlights

  • Powers up to four PoE+ devices with a 120 W budget at 24, 48 or 56 VDC
  • Operates reliably from -40 °C to 75 °C in harsh industrial environments
  • Hardened against shock, vibration and freefall per EN 60068 standards
  • Flexible 12 / 24 / 48 VDC input with removable terminal block for easy wiring
  • Two SFP slots enable fibre uplinks at 100 or 1000 Mbps

Specifications

BrandTRENDnet
Model6-Port Industrial Gigabit PoE+ DIN-Rail Switch
Part NumberTI-PG62B
FormatDIN-rail and wall mounts
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Network Management TypeUnmanaged
Uplink Interface4 x Gigabit PoE+ ports
2 x 100/1000 Mbps SFP slots
6-pin removable terminal block
LED indicators
DIP switch
DIN-Rail mount
Wall mount
Grounding point
Primary Ports4 x Gigabit PoE+ ports
2 x 100/1000 Mbps SFP slots
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
Primary Port Type4 x Gigabit PoE+ ports
2 x Dedicated SFP slots
MAC Address Table1K
Jumbo Frames9KB
Buffer Memory1MB
ProtocolsTCP/IP
PoEYes
LEDsLED indicators
PoE Ports4 x Gigabit PoE+ ports
PoE Power BudgetPoE budget: 120 W @ 24 VDC / 48 VDC / 56 VDC
PoE budget: 60 W @ 12 VDC
PowerInput: 12 / 24 / 48 V DC
Output: up to 55 V DC
Compatible power supply: TI-S12048 (sold separately)
Max Power ConsumptionMax. 5.76 Watts (no PoE)
Dimensions143 x 105 x 45 mm (5.6 x 4.1 x 1.8 in.)
Weight700 g (1.6 lb)
CertificationCE
FCC
Shock (EN 60068-2-27)
Freefall (EN 60068-2-32)
Vibration (EN 60068-2-6)
Temperature- 40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit)
HumidityMax. 95 % non-condensing
FeaturesPerformance
Data RAM Buffer: 1024 KB
Switching Fabric: 12 Gbps
MAC Address Table: 1 K entries
Jumbo Frame: 9 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Supports 12 / 24 / 48 power inputs
Voltage booster boost up to 55 V DC
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 6 KV support
Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG
Package ContentsTI-PG62B
Quick Installation Guide
Removable terminal block
DIN-rail and wall mount kit
Shipping weight0.99 kg
Package size221 × 170 × 66 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the TI-PG62B on a DIN rail and connect the 6-pin terminal block?

Clip the switch onto a standard DIN rail or use the wall-mount brackets; then insert wires into the 6-pin removable terminal block following the polarity markings on the case.

What maintenance will the TI-PG62B need over time?

The fanless, unmanaged design has no moving parts or firmware to update; periodic inspection of the terminal-block connections and SFP module seating is the only upkeep required.

At what ambient temperature will the TI-PG62B hit its thermal limit first during continuous PoE+ load?

The switch is rated to operate up to 75 °C; sustained full PoE+ output near that temperature will reach the thermal limit before the 120 W power budget is exhausted.
