Black metal DIN-rail switch with six Ethernet ports and status LEDs

TRENDnet

TRENDnet TI-PG62 6-port industrial Gigabit PoE+ network switch

SKU CH-S0GE-48CSH MPN TI-PG62

Hardened unmanaged Gigabit switch with four PoE+ ports, a shared RJ-45/SFP port and a dedicated SFP slot, 120 W PoE budget, dual DC inputs and IP30 enclosure rated for -40 °C to 75 °C

  • FormatIncludes wall and DIN-rail mounts
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x
  • Network Management TypeUnmanaged
  • Primary Ports4 x Gigabit PoE+ ports 1 x Shared Gigabit port 1 x Shared SF
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • MAC Address Table1K

Total Ports 6-Port

PoE PoE+

Style Industrial

Struck-through versions exist but are not stocked here.

  • Powers four PoE+ devices with 120 W budget
  • Operates reliably from -40 °C to 75 °C
  • Redundant dual power inputs protect against supply failure
  • 12 Gbps switching capacity handles heavy traffic
  • DIN-rail and wall mounts included for flexible installation

Six-port hardened industrial switch

The TRENDnet TI-PG62 is an unmanaged Gigabit PoE+ switch built for harsh environments. It operates across a wide temperature range of -40 to 75 °C and carries an IP30-rated metal enclosure. Four PoE+ ports supply up to 120 Watts total for cameras or access points. The unit includes integrated DIN-rail and wall-mount hardware.

Dual redundant power inputs and flexible uplinks

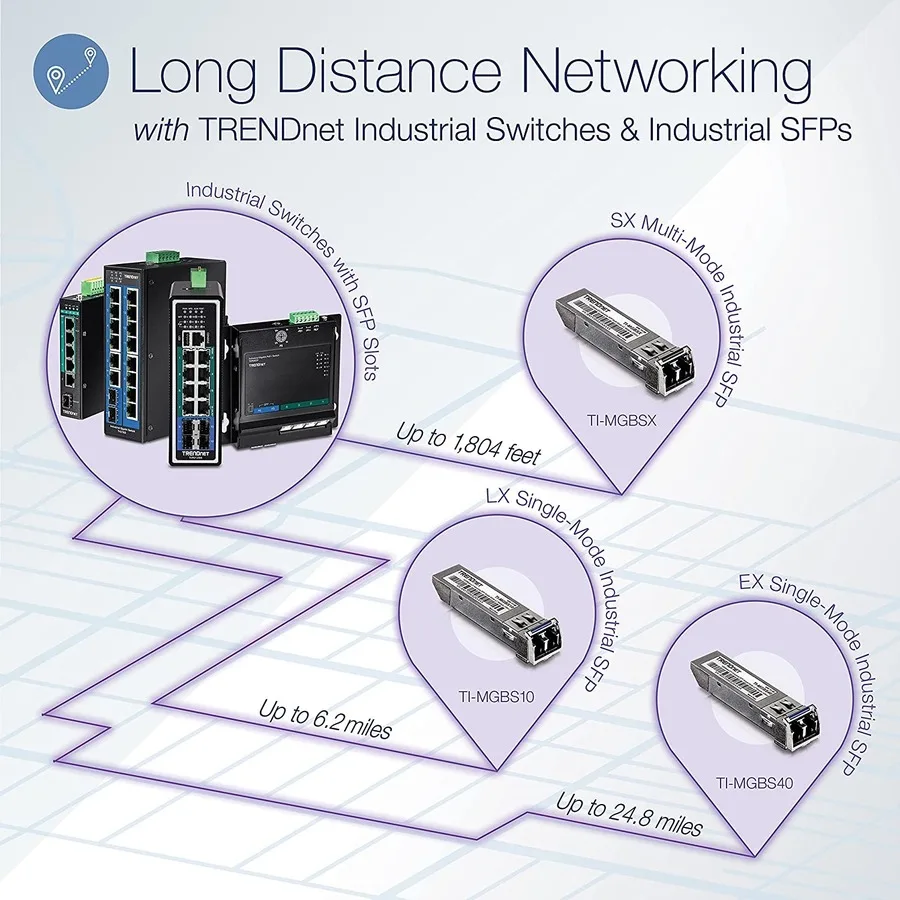

The switch accepts 48-56V DC or 100-240V AC through compatible power supplies sold separately. Dual inputs provide redundancy with overload current protection. Uplink options include one shared RJ-45/SFP port and one dedicated SFP slot for fibre connectivity. No software configuration is required for deployment.

12 Gbps switching capacity with 9KB jumbo frames

A 1K MAC address table and 1MB buffer support auto store-and-forward switching. Jumbo frames up to 9KB pass through without fragmentation. Maximum power draw without PoE is 5.76 Watts. The design withstands vibration, shock, ESD, EMI and surge for continuous industrial operation.

Highlights

  • Powers four PoE+ devices with 120 W budget
  • Operates reliably from -40 °C to 75 °C
  • Redundant dual power inputs protect against supply failure
  • 12 Gbps switching capacity handles heavy traffic
  • DIN-rail and wall mounts included for flexible installation

Specifications

BrandTRENDnet
Model6-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch
Part NumberTI-PG62
FormatIncludes wall and DIN-rail mounts
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at
Network Management TypeUnmanaged
Primary Ports4 x Gigabit PoE+ ports
1 x Shared Gigabit port
1 x Shared SFP slot
1 x Dedicated SFP slot
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
SX/LX: 2000 Mbps (full duplex)
MAC Address Table1K
Switching MethodAuto store and forward architecture
Jumbo Frames9KB
Buffer Memory1MB
PoEYes
LEDsLED indicators
PoE Ports4 x Gigabit PoE+ ports
PoE Power Budget120 Watts
PowerDC Power
Input: 48-56V DC
Compatible power supply: TI-S12048 (sold separately)
AC Power
Input: 100-240V AC, 50/60 Hz, 2A
Compatible power adapter: 48V DC3000 (sold separately)
Output: 48V DC, 3.34A 160W max.
Max Power ConsumptionMax. 5.76 Watts (no PoE)
Dimensions1.40" x 5.60" x 4.10"
Weight1.10 lbs.
Temperature- 40 to 75 degrees Celsius (- 40 to 167 degrees Fahrenheit)
HumidityMax. 95 % non-condensing
FeaturesPerformance
Data RAM Buffer: 1024 KB
Switching Fabric: 12 Gbps
MAC Address Table: 1 K entries
Jumbo Frame: 9 KB
Forwarding rate: 8.9 Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Dual redundant power inputs
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 8KV support
Terminal Block
Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm^2 to 2.5 mm^2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
Wire strip length:
Package ContentsTI-PG541i
Quick Installation Guide
CD-ROM (User’s Guide)
Shipping weight0.79 kg
Package size213 × 168 × 69 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many PoE+ devices can draw full 30 W simultaneously before the 120 W budget is exhausted?

Four ports share the 120 W budget, so four devices at 30 W each would reach the limit.

What is the maximum power the switch itself draws when no PoE loads are connected?

The switch consumes a maximum of 5.76 W with no PoE devices attached.

Which separate power supply must be purchased to deliver 48 V DC from an AC source?

The 48V DC3000 adapter (100-240 V AC input, 48 V DC 3.34 A output) is the compatible AC supply sold separately.
