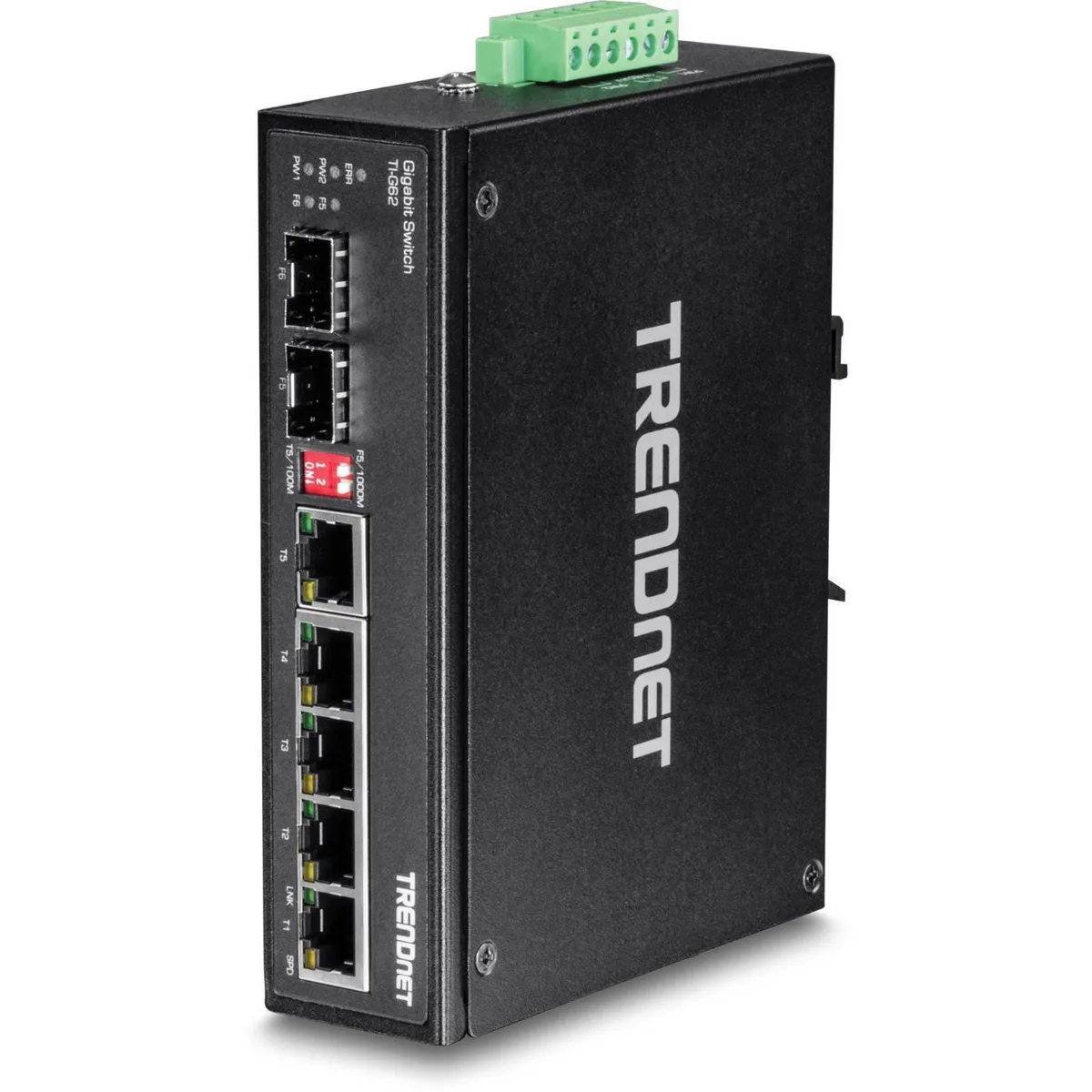

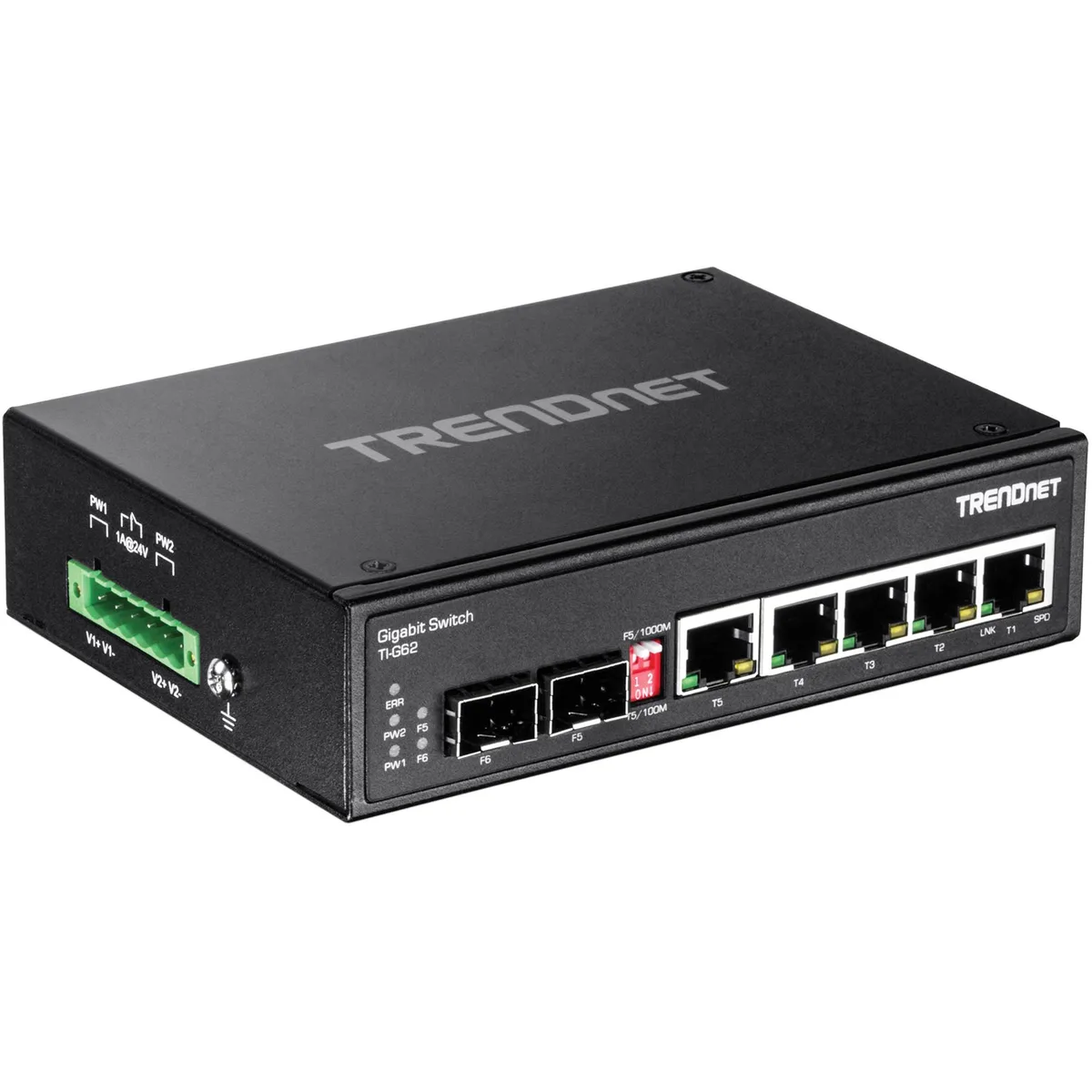

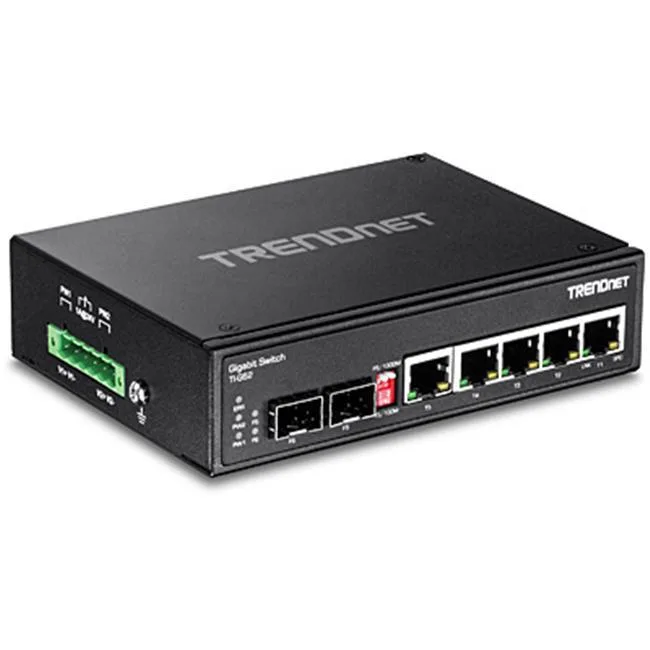

Compact metal industrial switch with DIN-rail clip and seven front ports

TRENDnet

TRENDnet TI-G62 7-port industrial Gigabit DIN-rail network switch

SKU CH-NKCP-KRNJ0 MPN TI-G62

Unmanaged 7-port Gigabit switch with five copper ports, two SFP slots, IP30 metal housing and dual 12-56 V DC inputs for -40 to 75 °C industrial use

  • FormatIncludes DIN-rail and wall mounts Wall Mountable
  • StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x
  • Network Management TypeUnmanaged
  • Primary Ports5 x Gigabit ports 1 x Shared SFP slot (port F5) 1 x Gigabit
  • Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast
  • MAC Address Table2K

Total Ports 7-Port

PoE Non-PoE

Style Industrial

Struck-through versions exist but are not stocked here.

  • Reliable connectivity in harsh environments with IP30-rated metal housing
  • Flexible fibre uplinks via one shared and one dedicated SFP slot
  • Continuous operation assured by dual redundant 12–56 V DC power inputs
  • Silent fanless performance across extreme -40 to 75 °C temperatures
  • Space-saving DIN-rail and wall mounting included for industrial cabinets

Industrial DIN-rail switch for harsh environments

The TRENDnet TI-G62 is an unmanaged Gigabit switch built for industrial cabinets. It provides five copper ports and two SFP slots for fibre uplinks in a hardened metal housing rated IP30. Operating range spans -40 to 75 Celsius with 95 percent non-condensing humidity tolerance.

Verify power and mounting before ordering

The unit requires a 12 to 56 V DC source and ships without a supply; the compatible TI-M6024 is sold separately. Dual redundant inputs with overload protection are provided, so plan for two feeds if redundancy is needed. DIN-rail and wall-mount brackets are included; confirm cabinet depth against the 1.40 by 5.60 by 4.10 inch footprint.

Metal chassis and alarm output aid daily reliability

The IP30 enclosure resists dust ingress without active cooling, suiting vibration-prone sites. An alarm relay triggers on power failure, enabling remote monitoring without software. Shared SFP slot on port F5 means copper and fibre cannot both occupy that position simultaneously.

Highlights

  • Reliable connectivity in harsh environments with IP30-rated metal housing
  • Flexible fibre uplinks via one shared and one dedicated SFP slot
  • Continuous operation assured by dual redundant 12–56 V DC power inputs
  • Silent fanless performance across extreme -40 to 75 °C temperatures
  • Space-saving DIN-rail and wall mounting included for industrial cabinets

Specifications

BrandTRENDnet
ModelTI-G62
FormatIncludes DIN-rail and wall mounts
Wall Mountable
StandardsIEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
Network Management TypeUnmanaged
Primary Ports5 x Gigabit ports
1 x Shared SFP slot (port F5)
1 x Gigabit SFP slot (port F6)
Primary Port SpeedEthernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex)
MAC Address Table2K
Jumbo Frames9KB
Buffer Memory1MB
ProtocolsTCP/IP
LEDsLED indicators
PowerInput: 12 - 56 V DC
Compatible power supply: TI-M6024 (sold separately)
Consumption: Max. 3.84 Watts
Features5 x Gigabit Ethernet ports
1 x shared SFP slot and 1 x dedicated SFP slot
12 Gbps switching capacity
Hardened IP30 rated metal switch
Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (model TI-M6024)
Dimensions1.40" x 5.60" x 4.10"
Weight1.10 lbs.
Temperature- 40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit)
HumidityMax. 95 % non-condensing
Shipping weight0.78 kg
Package size218 × 168 × 69 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the TI-G62 come with a power supply or do I need to buy the TI-M6024 separately?

The switch is sold without a power supply; you must purchase the compatible TI-M6024 unit separately.

The spec sheet lists a shared SFP slot on port F5 and a dedicated SFP slot on port F6 — which one should I use for a fibre uplink?

Use the dedicated SFP slot on port F6 for a permanent fibre uplink; the shared slot on port F5 is an alternative that disables the corresponding copper port when populated.

What does the 12 Gbps switching capacity mean for actual throughput on the seven Gigabit ports?

The 12 Gbps figure is the total non-blocking fabric bandwidth; each of the seven ports can still run at full 2000 Mbps full-duplex Gigabit speed simultaneously.
