White desktop wireless access point with three fixed antennas

TP-Link

TP-Link TL-WA901N 450Mbps 2.4GHz access point

SKU CH-QFGZ-GJ3CW MPN TL-WA901N

2.4 GHz wireless N access point with 450 Mbps speed, three fixed antennas, and passive PoE injector included

  • StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Wireless Data RatesUp to 450Mbps
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
  • Frequency Band2.4 GHz
  • Antenna3 Fixed Omni-Directional Antennas
  • Transmitted Power< 30dBm

Options TL-WA901N

  • Up to 450 Mbps wireless N speed for fast downloads
  • Three fixed omni-directional antennas extend 2.4 GHz coverage
  • AP, client, multi-SSID and range extender modes suit many setups
  • Passive PoE injector included for flexible placement up to 30 metres
  • WPS button enables WPA-PSK/WPA2-PSK security at a push

Wireless N access point for network expansion

The TL-WA901N is a 2.4 GHz IEEE 802.11n access point rated at up to 450 Mbps. It creates or extends a wireless network and can link wired devices such as printers, media players or network-attached storage to Wi-Fi. Three fixed omni-directional antennas provide coverage across the 2.4 GHz band. A passive PoE injector is included for flexible placement up to 30 metres from a power outlet.

Suited for basic Wi-Fi extension

This unit fits users who need a simple 2.4 GHz N network or want to connect an Ethernet-only device to an existing wireless LAN. It supports AP, Client, Multi-SSID and Range Extender modes for versatile deployment. Buyers requiring 5 GHz operation, dual-band support or gigabit Ethernet ports should consider other options.

Single 10/100 Ethernet port with passive PoE

The only wired interface is one Fast Ethernet RJ-45 port that also accepts power from the supplied passive PoE injector. No gigabit port is present, so throughput is limited to Fast Ethernet speeds. Ensure your cabling and switch infrastructure match this constraint before purchase.

Highlights

  • Up to 450 Mbps wireless N speed for fast downloads
  • Three fixed omni-directional antennas extend 2.4 GHz coverage
  • AP, client, multi-SSID and range extender modes suit many setups
  • Passive PoE injector included for flexible placement up to 30 metres
  • WPS button enables WPA-PSK/WPA2-PSK security at a push

Specifications

BrandTP-Link
ModelTL-WA901N
StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Data RatesUp to 450Mbps
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
Frequency Band2.4 GHz
Antenna3 Fixed Omni-Directional Antennas
Transmitted Power< 30dBm
Receiver Sensitivity11g 54M: -76dBm
11n 20Mbps: -73dBm
11n 40Mbps: -70dBm

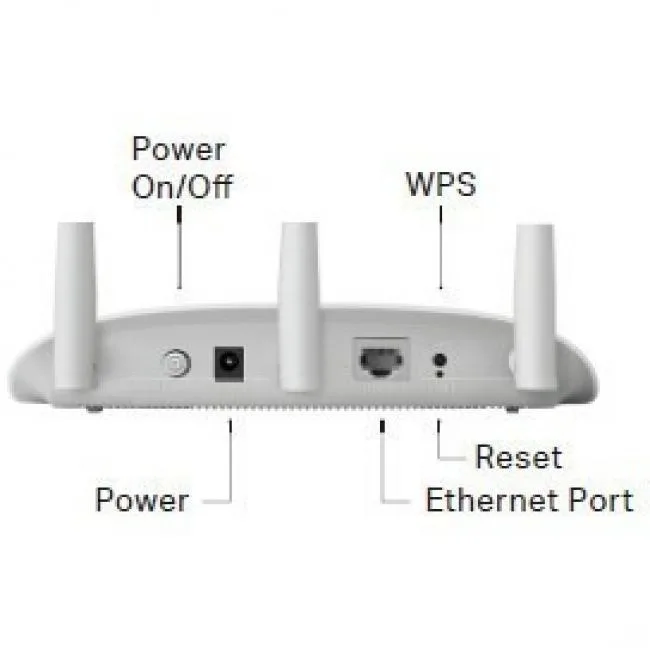

ButtonsPower On/O? Button, Reset Button, WPS Button
Power Supply9VDC / 0.9A
TemperatureOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions7.70" x 5.30" x 1.40"

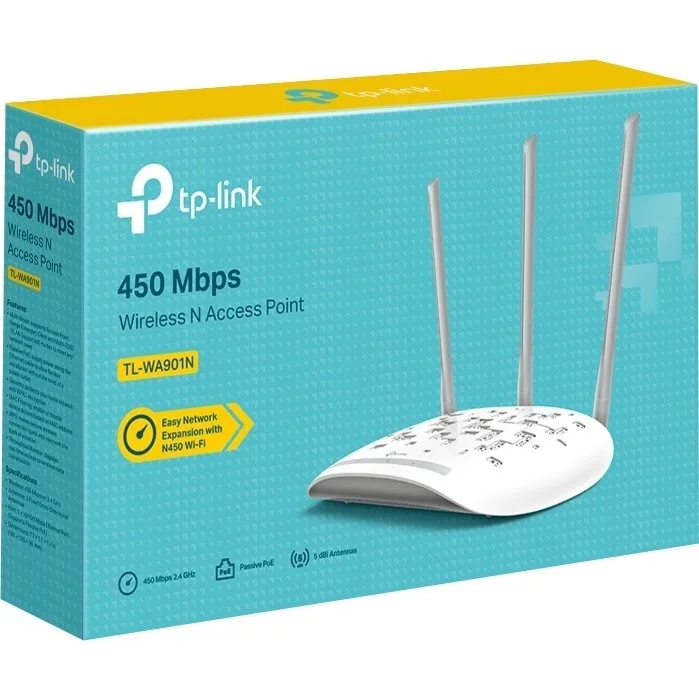

Package ContentsWireless N Access Point TL-WA901N
Power Adapter
Passive PoE Power Injector
RJ45 Ethernet Cable
Quick Installation Guide
Shipping weight0.64 kg
Package size311 × 229 × 71 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much desk or ceiling space do the 7.70" x 5.30" x 1.40" dimensions and three fixed antennas need?

The unit measures 7.70 by 5.30 by 1.40 inches and has three fixed omni-directional antennas, so allow at least that footprint on a desk or ceiling mount with clearance for the antennas to radiate freely.

Which Ethernet port and PoE injector combination powers the AP without a nearby mains socket?

Connect the single RJ-45 port to the included passive PoE injector using the supplied Ethernet cable; the injector plugs into mains and delivers both data and power up to 100 feet.

When should the 9VDC 0.9A power adapter or the passive PoE injector be replaced?

Replace either power source if the AP becomes unstable, fails to power on, or shows intermittent connectivity, as both the 9VDC adapter and the PoE injector are the only field-replaceable power components.
