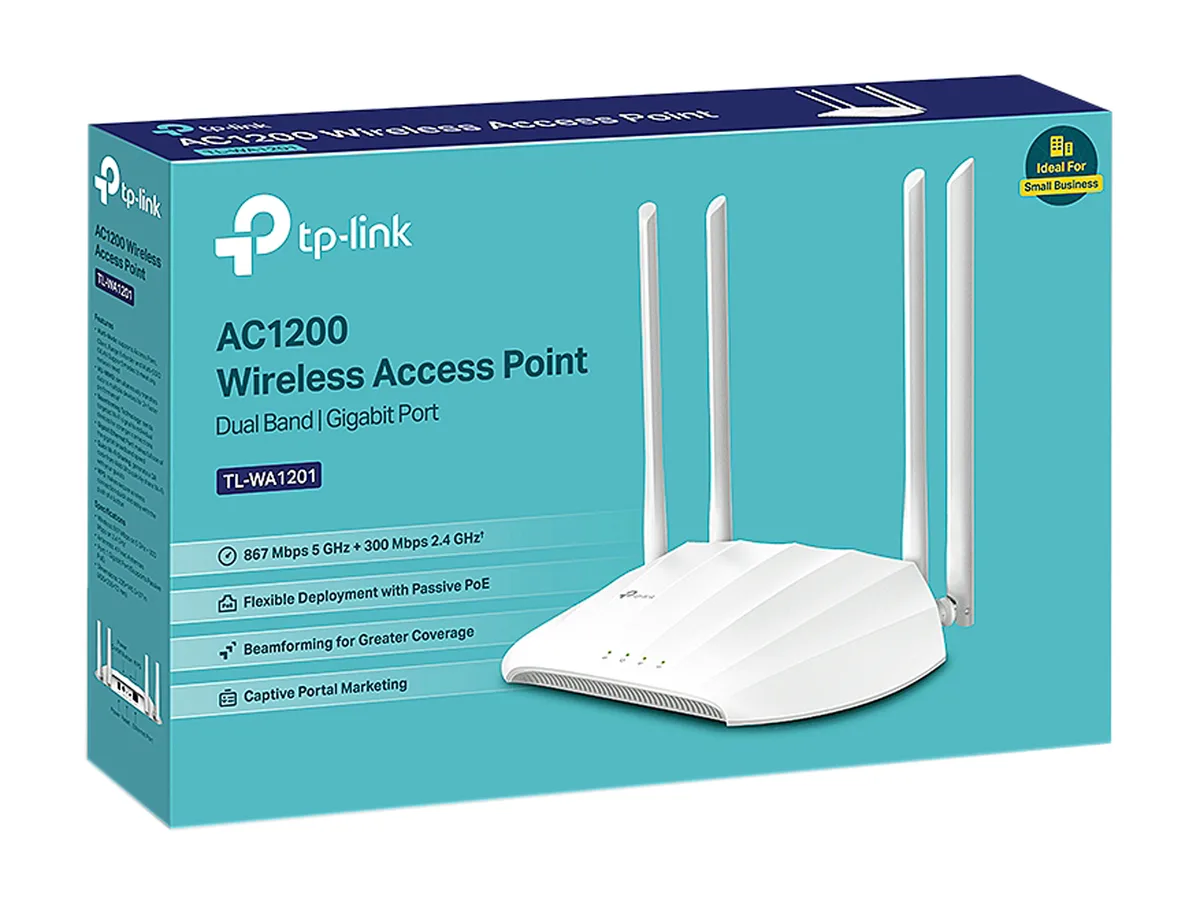

White rectangular desktop access point with four fixed antennas and front indicator lights

TP-Link

TP-Link TL-WA1201 AC1200 Wireless Access Point

SKU CH-QKQ6-JHJN5 MPN TL-WA1201

Dual-band wireless access point delivers 1.2 Gbps with four antennas, MU-MIMO, Beamforming and passive PoE for flexible mounting

  • StandardsIEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
  • Wireless Data RatesAC1200 / Up to 1.2Gbps
  • Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
  • Frequency Band2.4 GHz / 5 GHz
  • Antenna4 x Fixed High Performance Antennas
  • Transmitted Power< 30dBm

Options TL-WA1201

  • Dual-band speeds up to 1.2 Gbps with 802.11ac Wave 2 MU-MIMO
  • Four fixed high-performance antennas with Beamforming extend reliable coverage
  • Passive PoE support plus included injector enables flexible placement up to 100 feet
  • Four operation modes — AP, Client, Range Extender, Multi-SSID with VLAN — fit diverse deployments
  • Captive Portal feature creates branded guest Wi-Fi pages for small-business marketing

Desktop Wireless Access Point

The TP-Link TL-WA1201 is a dual-band wireless access point designed for desktop placement. It delivers AC1200 speeds using 802.11ac Wave 2 MU-MIMO technology and includes a Passive PoE injector for flexible power options. Four fixed high-performance antennas with Beamforming extend coverage across homes or small offices.

Suited for multi-mode deployments

This unit operates in Access Point, Client, Range Extender and Multi-SSID modes, making it adaptable for varied network topologies. Captive Portal support adds value for guest-facing businesses such as cafes. Buyers who require active PoE negotiation or ceiling-mount brackets should consider other solutions.

Gigabit Ethernet with Passive PoE

The single 10/100/1000 Mbps port accepts power from the supplied injector over Ethernet cable up to 100 feet. This port speed and power method determine whether the TL-WA1201 fits your existing cabling and switch infrastructure.

Highlights

  • Dual-band speeds up to 1.2 Gbps with 802.11ac Wave 2 MU-MIMO
  • Four fixed high-performance antennas with Beamforming extend reliable coverage
  • Passive PoE support plus included injector enables flexible placement up to 100 feet
  • Four operation modes — AP, Client, Range Extender, Multi-SSID with VLAN — fit diverse deployments
  • Captive Portal feature creates branded guest Wi-Fi pages for small-business marketing

Specifications

BrandTP-Link
ModelTL-WA1201
StandardsIEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Wireless Data RatesAC1200 / Up to 1.2Gbps
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
Frequency Band2.4 GHz / 5 GHz
Antenna4 x Fixed High Performance Antennas
Transmitted Power< 30dBm
Receiver Sensitivity5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
Interface1 x 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
ButtonsPower On/Off Button, WPS Button, Reset Button
Power Supply12V / 1.5A
TemperatureOperating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
HumidityOperating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions8.90" x 5.70" x 1.50"
Package ContentsWireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector
Shipping weight0.86 kg
Package size399 × 258 × 71 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power does the TL-WA1201 produce when running 24/7?

The unit draws 12V at 1.5A from the supplied adapter or the bundled Passive PoE injector and is rated for 0°C to 40°C operating temperature.

What cabling and power gear must I already have to install this access point?

A Gigabit Ethernet cable is included; the box also contains a 12V/1.5A power adapter and a Passive PoE injector, so no extra PoE switch is required.

Will the TL-WA1201 work with my older 2.4 GHz 802.11b/g/n devices?

Yes — it supports IEEE802.11b/g/n on 2.4 GHz and 802.11a/n/ac on 5 GHz, so legacy clients connect at up to 300 Mbps on 2.4 GHz and newer ones at up to 867 Mbps on 5 GHz.
