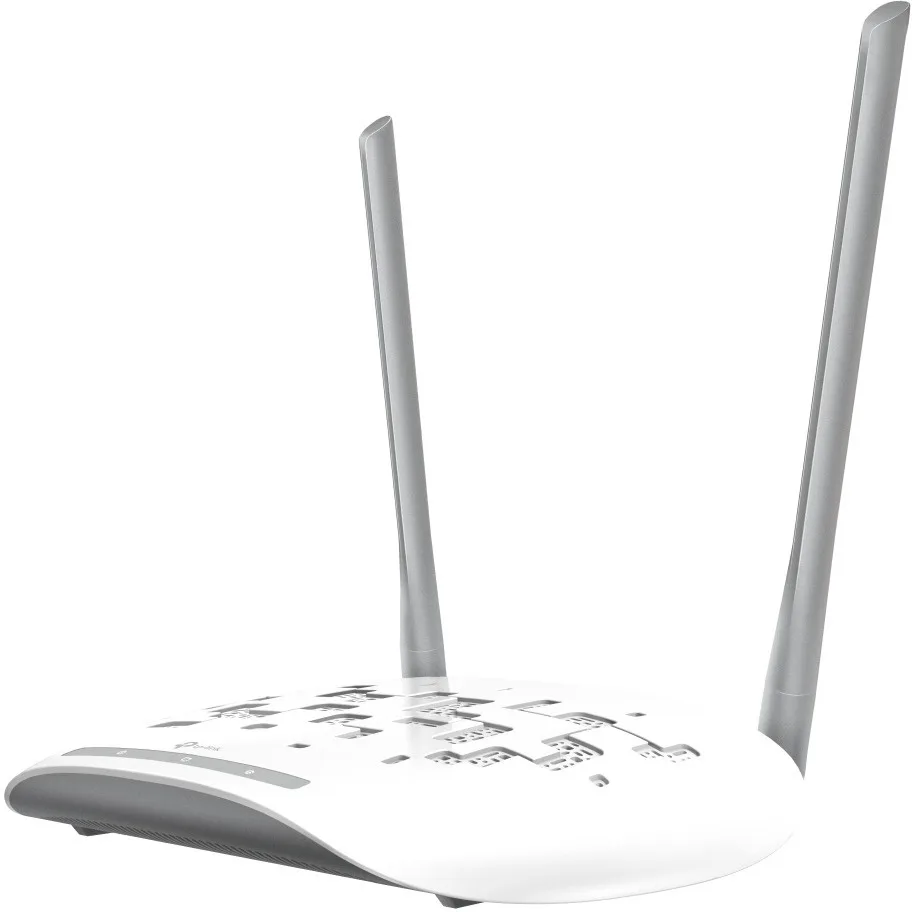

White rectangular wireless access point with two fixed antennas on top

TP-Link

TP-Link TL-WA801N 2.4 GHz 300 Mbps Wireless Access Point

SKU CH-XKP7-19CKX MPN TL-WA801N

Adds 300 Mbps wireless N coverage with multiple operating modes and a passive PoE injector for flexible placement

  • ColorWhite
  • StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Wireless Data RatesUp to 300Mbps
  • SecurityWEP, WPA/WPA2, WPA/WPA2-PSK encryptions
  • Antenna2 x Fixed Omni-Directional Antennas
  • Transmitted Power< 20dBm

Options TL-WA801N

  • 300 Mbps wireless speed for smooth HD streaming
  • Passive PoE injector included for up to 30 m flexible placement
  • Four operating modes cover access point, extender, bridge and client needs
  • Two fixed omni-directional antennas with MIMO improve signal through walls
  • WPA/WPA2 encryption plus WPS button secure the network with one press

300 Mbps Wireless N Access Point

The TP-Link TL-WA801N creates or extends a 2.4 GHz wireless network using IEEE 802.11n MIMO technology. It suits homes or small offices needing to connect wired devices like printers or game consoles to Wi-Fi. Multiple operating modes include Access Point, Range Extender, Bridge, Multi-SSID and Client for flexible deployment.

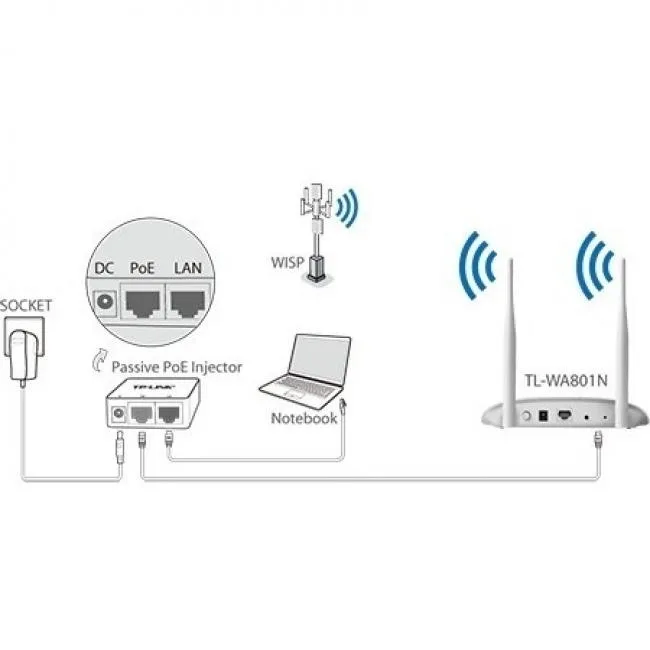

Simple Setup with Passive PoE

A single 10/100 M Ethernet port connects data and power through the included Passive PoE injector, allowing placement up to 30 meters from the power source. Fixed omni-directional antennas require no alignment. The reset button restores factory defaults if configuration errors occur.

2.4 GHz Band and 100 Mbps Wired Limit

Wireless throughput reaches 300 Mbps on the 2.4 GHz band only, shared with Bluetooth and microwave interference. The sole LAN port caps wired backhaul at 100 Mbps, so gigabit upstream devices will bottleneck. No 5 GHz radio or modern WPA3 encryption is present.

Highlights

  • 300 Mbps wireless speed for smooth HD streaming
  • Passive PoE injector included for up to 30 m flexible placement
  • Four operating modes cover access point, extender, bridge and client needs
  • Two fixed omni-directional antennas with MIMO improve signal through walls
  • WPA/WPA2 encryption plus WPS button secure the network with one press

Specifications

BrandTP-Link
ModelTL-WA801N
Part NumberTL-WA801N
ColorWhite
StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Data RatesUp to 300Mbps
SecurityWEP, WPA/WPA2, WPA/WPA2-PSK encryptions
Antenna2 x Fixed Omni-Directional Antennas
Transmitted Power< 20dBm
Receiver Sensitivity11g 6Mbps: -90dBm
11g 54Mbps: -77dBm
11n HT20 MC7: -73dBm
11n HT40 MC7: -70dBm
Interface1 x 10/100 M Ethernet Port(RJ45)
ButtonsPower On/O? Button, WPS Button, Reset Button
LAN Ports1
MIMOWPS
Power Supply9VDC / 0.6A
ComplianceTE7WA801NV6
TemperatureOperating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
HumidityOperating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH
Dimensions7.10" x 5.10" x 1.40"
Weight0.37 lb
FeaturesWPS
Package ContentsWireless Access Point TL-WA801N
Power Adapter
Passive PoE Power Injector
RJ45 Ethernet Cable
Quick Installation Guide
Shipping weight0.64 kg
Package size311 × 229 × 71 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the TL-WA801N is working after setup?

Connect a device to the new SSID, run a speed test and confirm throughput approaches 300 Mbps; the WPS LED should stay solid and the LAN port LED should blink with traffic.

What comes in the box and what must I buy separately?

The package includes the TL-WA801N unit, a passive PoE injector, a 9 V / 0.6 A power adapter and mounting hardware; an Ethernet patch cable for the 10/100 M RJ45 port is not included.

Which version or capacity of this access point should I choose?

The TL-WA801N is a single 2.4 GHz model rated at 300 Mbps with two fixed antennas; no alternative capacities or radio configurations exist for this part number.
