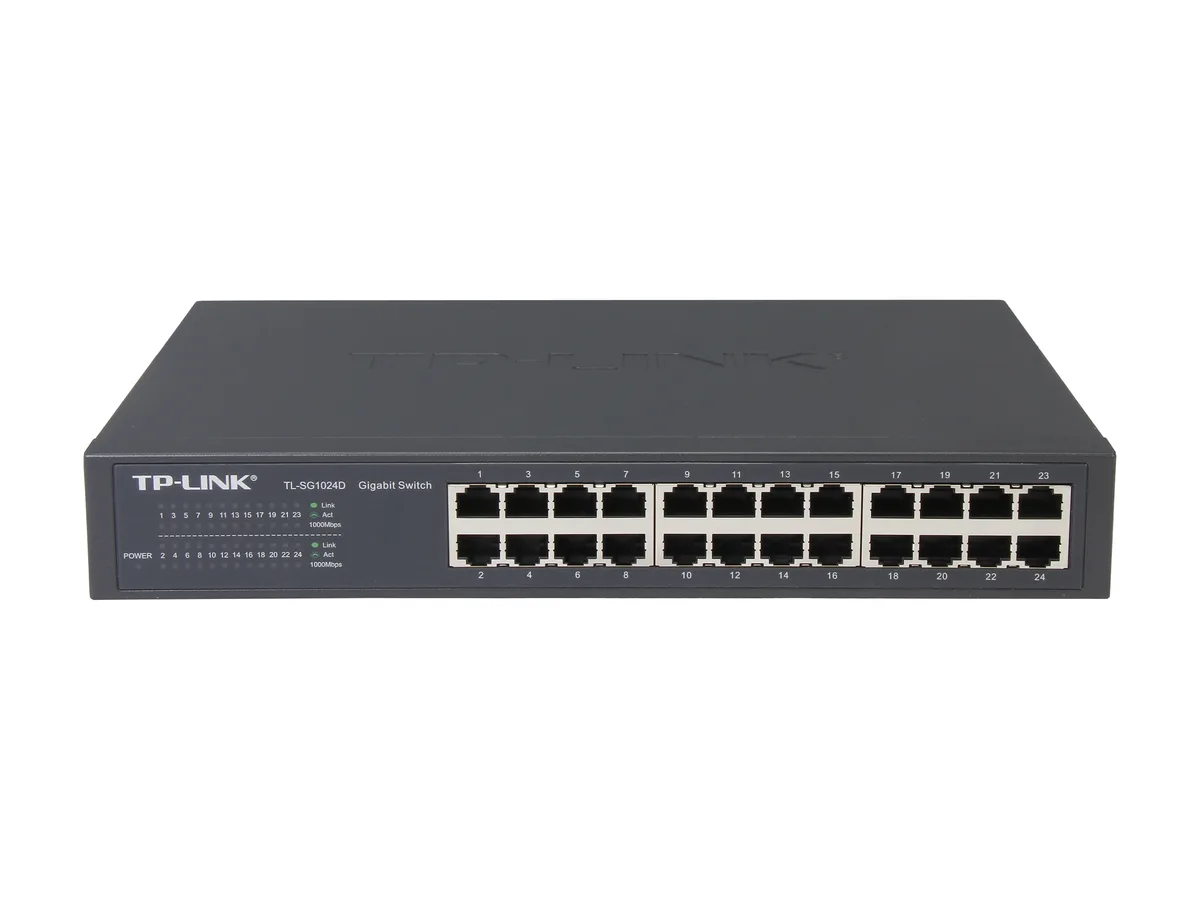

Metal desktop rackmount switch with 24 front RJ45 ports

TP-Link

TP-Link TL-SG1024D 24-port Gigabit network switch

SKU CH-ZTEC-P4WY4 MPN TL-SG1024D

A 24-port Gigabit unmanaged switch with a fanless metal case, desktop or rackmount format and 48Gbps switching capacity

  • FormatDesktop/Rackmount
  • StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
  • Network Management TypeUnmanaged
  • Uplink PortsNone
  • Primary Ports24 x RJ45
  • Primary Port Speed10/100/1000Mbps

Class 24 port Gigabit Desktop

  • 24 Gigabit ports connect every device at full wire-speed
  • 48Gbps switching capacity handles heavy traffic without bottlenecks

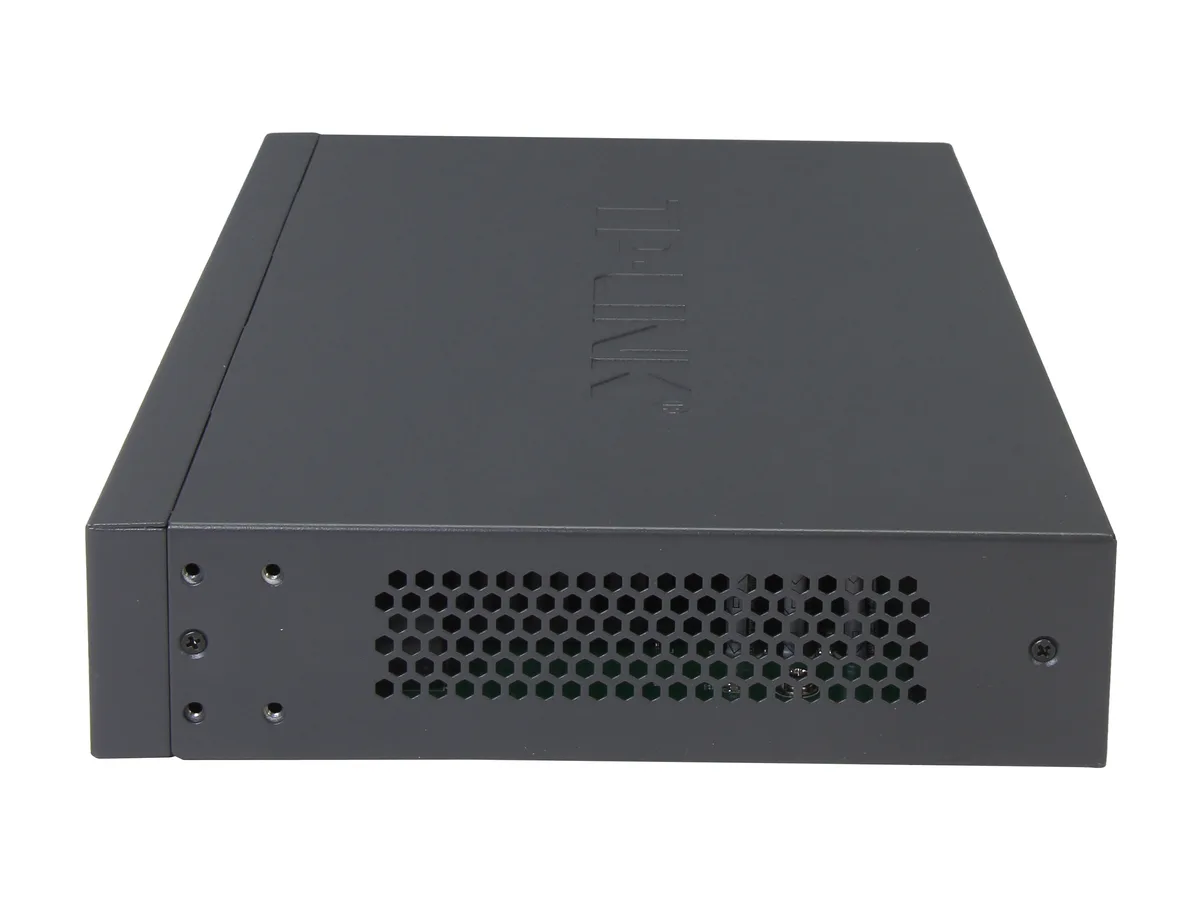

  • Fanless metal chassis runs silently in office or rack
  • Energy-efficient design cuts power use by up to 20%
  • Plug-and-play setup needs no configuration or management

24-Port Gigabit Unmanaged Switch

The TP-Link TL-SG1024D provides 24 RJ45 ports operating at 10/100/1000Mbps for wired network expansion. It uses a non-blocking architecture with 48Gbps switching capacity and store-and-forward switching. The metal chassis supports desktop or rackmount installation and runs without a fan.

Suits Small Offices Needing Simple Expansion

This switch suits small offices or workgroups that need many Gigabit connections without configuration. It does not suit networks requiring VLANs, link aggregation, PoE power delivery or any managed features. Buyers who need uplink ports beyond the 24 primary ports should look at a different model.

Plug-and-Play Integration Into Existing LAN

The unit connects to a standard 100-240VAC supply and links to routers, servers or access points using standard Ethernet cables. Auto MDI/MDIX and auto-negotiation remove the need for crossover cables or manual speed settings. Its fanless design adds no noise to the environment.

Highlights

  • 24 Gigabit ports connect every device at full wire-speed
  • 48Gbps switching capacity handles heavy traffic without bottlenecks
  • Fanless metal chassis runs silently in office or rack
  • Energy-efficient design cuts power use by up to 20%
  • Plug-and-play setup needs no configuration or management

Specifications

BrandTP-Link
ModelTL-SG1024D
FormatDesktop/Rackmount
StandardsIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Network Management TypeUnmanaged
Uplink PortsNone
Primary Ports24 x RJ45
Primary Port Speed10/100/1000Mbps
Switching MethodStore and Forward
Jumbo FramesYes
ProtocolsTCP/IP
PoENo
LayerLayer 2 Only
Power100~240VAC, 50/60Hz
Dimensions11.6" x 7.1" x 1.7"
Weight5.1
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
FeaturesInnovative energy-efficient technology saves power up to 40%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
48Gbps Switching Capacity
10K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Store and forward Switching scheme
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
D

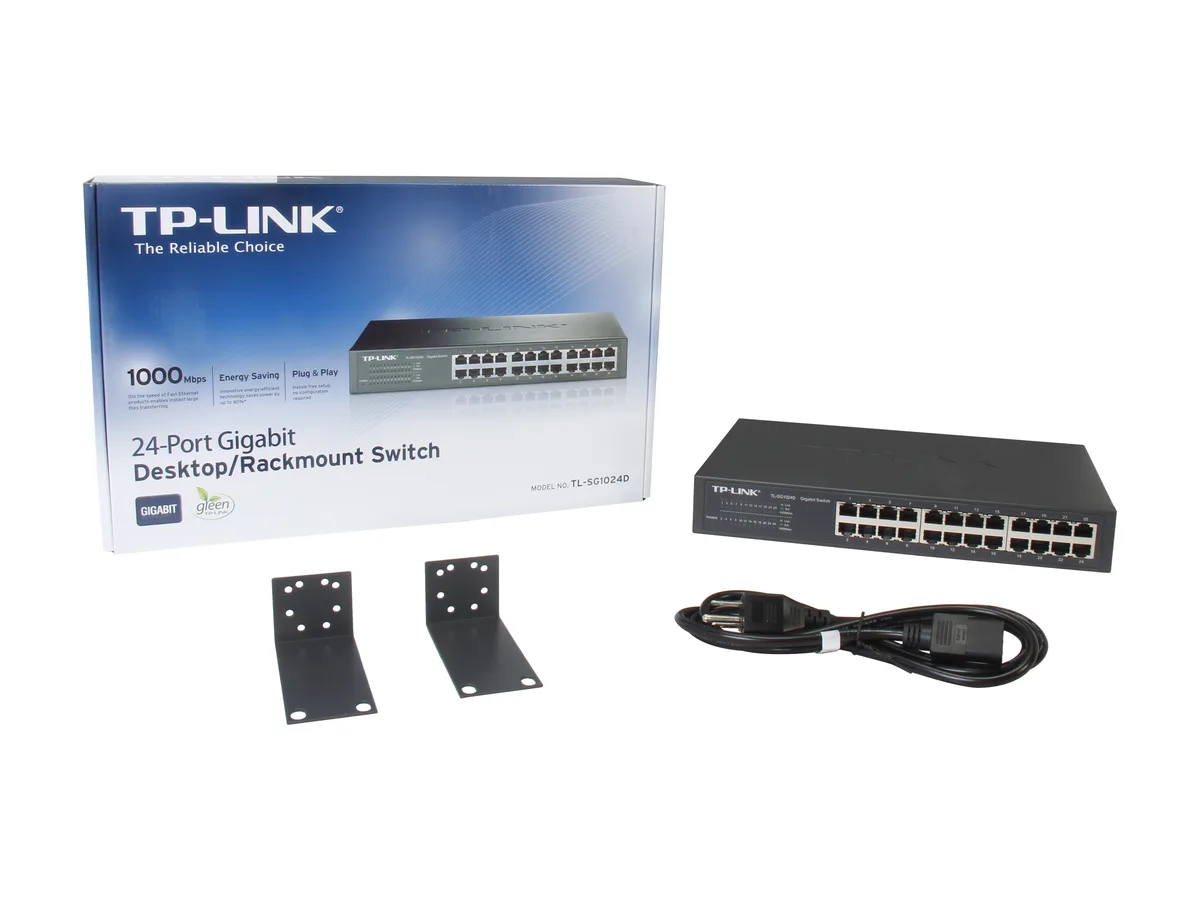

Package Contents24-Port Gigabit Desktop/Rackmount Switch
Power Cord
User Guide
Shipping weight2.38 kg
Package size401 × 251 × 79 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables do I need to connect devices to the 24 RJ45 ports?

Standard Cat5e or Cat6 Ethernet cables with RJ45 plugs will connect computers, printers or access points to each 10/100/1000Mbps port.

Will my older 10/100Mbps equipment work with this 1000Mbps switch?

Yes, each port auto-negotiates so legacy 10/100Mbps devices link at their rated speed while Gigabit devices run at 1000Mbps.

How can I confirm the switch is forwarding traffic at wire-speed after installation?

The front-panel LEDs show link and activity per port; steady green means a 1000Mbps link, blinking indicates data passing through the non-blocking 48Gbps fabric.
