White plastic desktop network switch with 16 RJ45 ports on the front face

TP-Link

TP-Link TL-SF1016D 16-port 10/100Mbps network switch

SKU CH-ZXFA-ETVBW MPN TL-SF1016D

16-port 10/100Mbps unmanaged switch with fanless design, plug-and-play setup and energy-efficient Green Technology saving up to 70% power

  • FormatDesktop
  • Network Management TypeSmart
  • Primary Ports16 x RJ45
  • Primary Port Speed10/100Mbps
  • MAC Address Table1K
  • Switching MethodStore and Forward

Class 16 port 10/100 Desktop

  • Saves up to 70% power with Green Technology
  • Silent fanless operation for quiet environments
  • 16 auto-negotiation ports need no configuration
  • 2 Gbps switching capacity handles full wire-speed traffic
  • 9K jumbo frames boost large data transfer performance

16-Port Fast Ethernet Switch

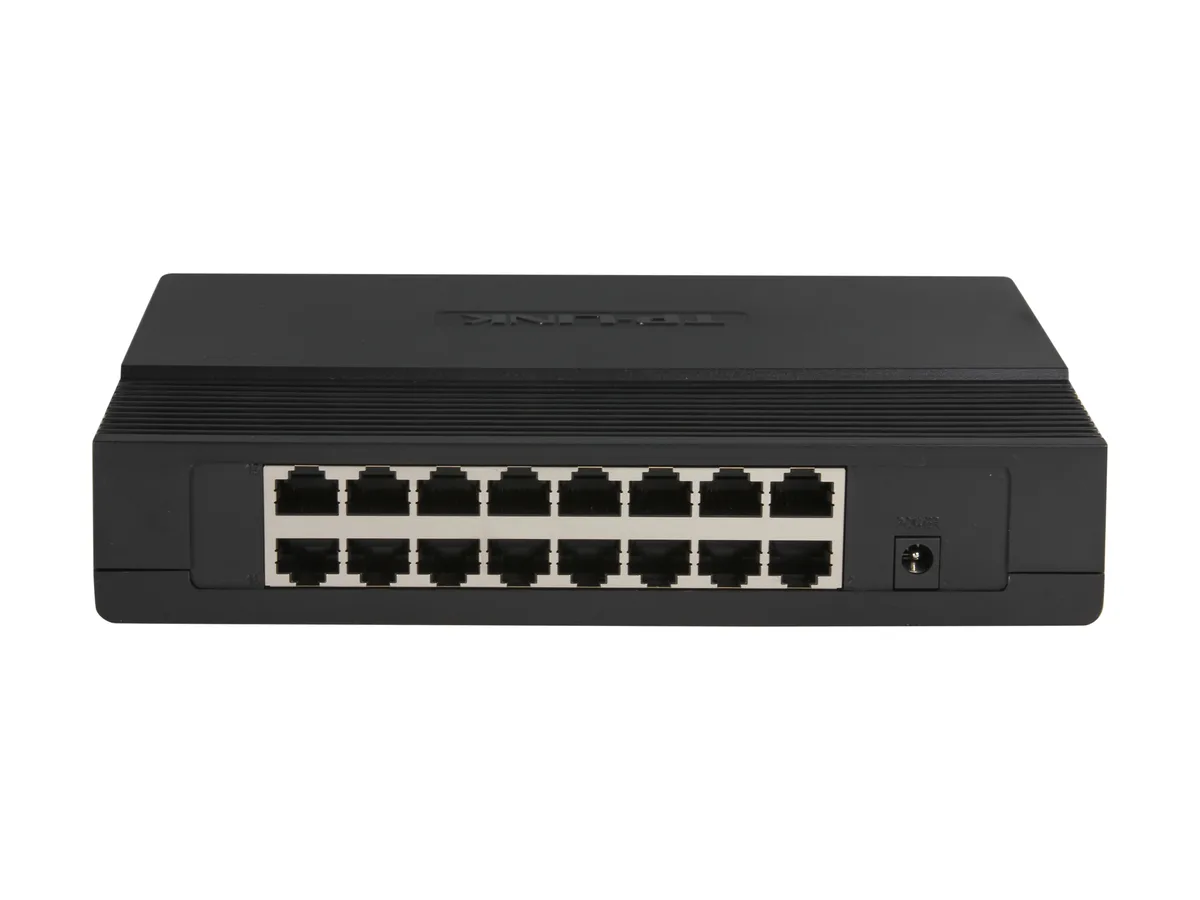

The TP-Link TL-SF1016D is a 16-port 10/100Mbps Fast Ethernet switch built for desktop or wall-mounted use. It supplies sixteen RJ45 ports with auto-negotiation and Auto MDI/MDIX, removing the need for crossover cables. A fanless plastic chassis ensures silent operation. The unit runs on 100~240VAC power and includes a power adapter.

Home and Small Office Networks

This switch suits users expanding a wired network where 100Mbps bandwidth meets the demand, such as connecting PCs, printers, and access points in a home or small office. The unmanaged, plug-and-play design requires no configuration. Buyers who need Gigabit speeds, Power over Ethernet, or managed features such as VLANs and QoS should look at a different class of switch.

10/100Mbps Port Speed

The single specification that decides fit is the 10/100Mbps port rate. Every one of the sixteen ports negotiates at 10Mbps or 100Mbps only, delivering a total switching capacity of 3.2Gbps. If the network plan calls for 1Gbps or faster links on any port, this model will not meet that requirement.

Highlights

  • Saves up to 70% power with Green Technology
  • Silent fanless operation for quiet environments
  • 16 auto-negotiation ports need no configuration
  • 2 Gbps switching capacity handles full wire-speed traffic
  • 9K jumbo frames boost large data transfer performance

Specifications

BrandTP-Link
ModelTL-SF1016D
FormatDesktop
Network Management TypeSmart
Primary Ports16 x RJ45
Primary Port Speed10/100Mbps
MAC Address Table1K
Switching MethodStore and Forward
Jumbo Frames9K
ProtocolsTCP/IP
PoENo
StackableNo
LayerLayer 3 Light
Power100~240VAC, 50/60Hz
FeaturesAdvanced Functions:
Green Technology, saving power up to70%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port
Innovative energy-efficient technology saves power up to 70%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
3.2Gbps Switching Capacity
9K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiati
Dimensions7.90" x 5.60" x 1.60"
Weight1.35

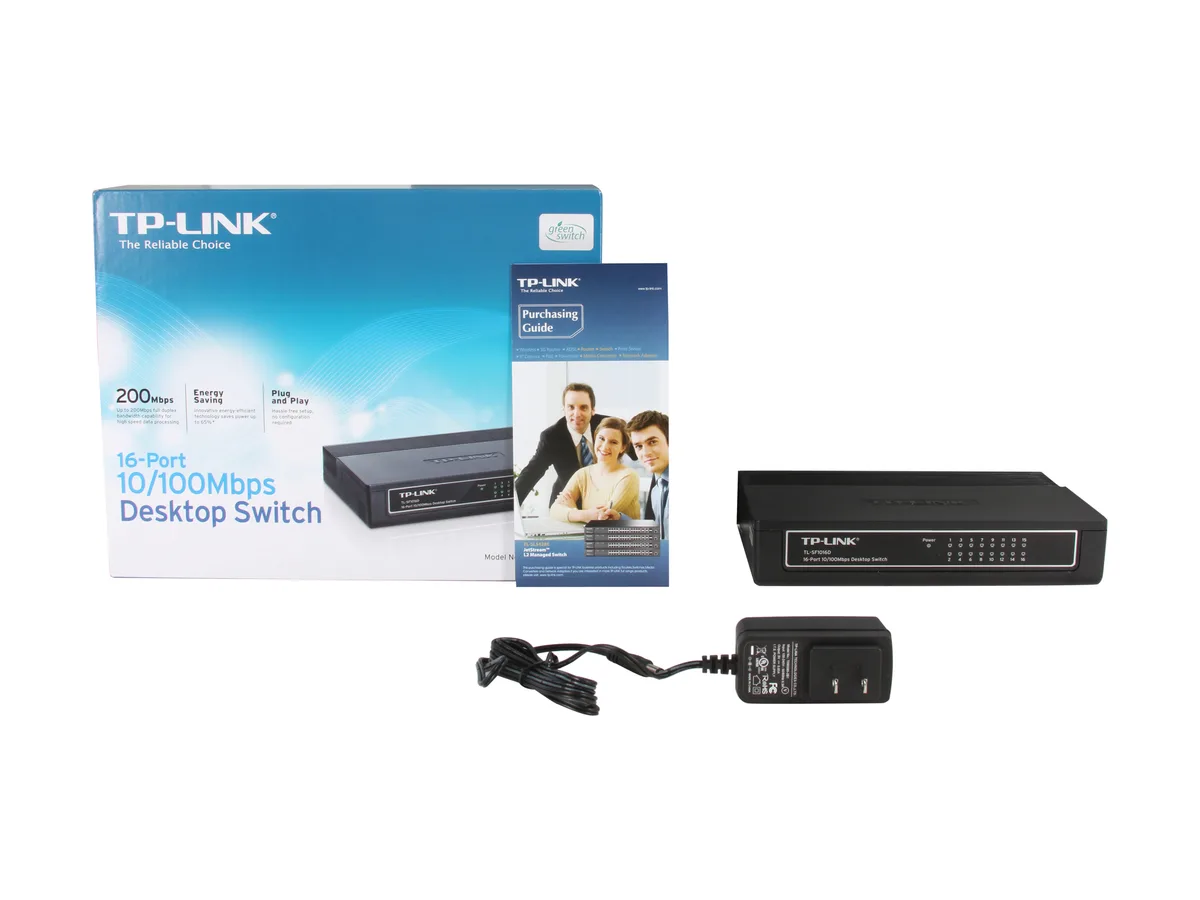

Package Contents16-Port 10/10Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide
Shipping weight0.67 kg
Package size281 × 227 × 70 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the switch is operating correctly after plugging in the power adapter?

Connect the power adapter to a 100-240VAC 50/60Hz outlet, link devices to the 16 RJ45 ports and verify each port LED shows link and activity; the fanless design runs silently so LED status is the primary indicator.

What ships with the unit and what must I source separately?

The package contains the TL-SF1016D switch, its power adapter and a user guide; Ethernet cables for the 16 RJ45 ports are not included and must be purchased separately.

Which version should I choose for a small office needing 16 Fast Ethernet ports with low power draw?

This single model provides 16 10/100Mbps RJ45 ports, 3.2Gbps switching capacity, 9K jumbo frame support and green technology rated up to 70% power saving in a fanless desktop or wall-mount plastic case.
