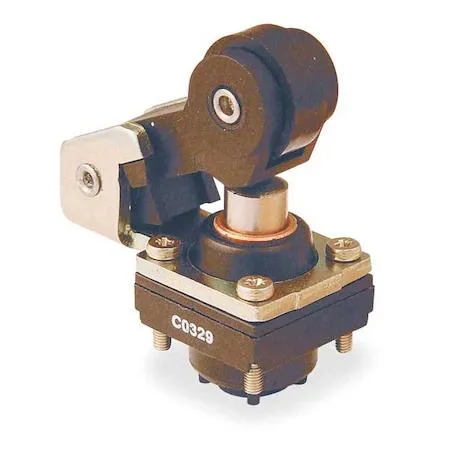

Telemecanique Sensors ZCKD21 limit switch head with roller lever plunger actuator

Telemecanique Sensors

Telemecanique Sensors ZCKD21 limit switch head roller lever plunger momentary

SKU CH-CF55-A8HRE

A roller-lever plunger head provides momentary switching with 1.37 in lever travel and 0.47 in actuation, operating from -25 to 70 °F at 3 A or 0.27 A, NEMA 1, 2, 3, 4.

  • Roller lever plunger enables precise position detection
  • 37 in actuator length suits compact machine layouts
  • 47 in travel provides responsive switching action
  • CW and CCW movement supports bidirectional operation
  • Operates from -25 to 70 °F for harsh environments

Limit Switch Head ZCKD21

The Telemecanique Sensors ZCKD21 is a limit switch head designed for industrial machinery control. It features a roller lever plunger actuator mounted on the top with a 1.37 in actuator length. The unit provides momentary contact operation suitable for position sensing applications.

Suits XCKL and XCKM assemblies

This head fits manufacturers' XCKL and XCKM series bodies for automated equipment. It operates in both clockwise and counter-clockwise directions with a 1.8 in-lb operating force. Buyers needing a maintained contact switch or a different actuator style should look at alternative heads.

Simple top-mount installation

The head mounts directly onto compatible switch bodies without special tools. Travel is 0.47 in with CW and CCW movement allowed. Ensure the operating temperature stays within -25 to 70 Degrees F and that the NEMA 1, 2, 3, 4, 12 rating matches the enclosure requirements.

Highlights

  • Roller lever plunger enables precise position detection
  • 37 in actuator length suits compact machine layouts
  • 47 in travel provides responsive switching action
  • CW and CCW movement supports bidirectional operation
  • Operates from -25 to 70 °F for harsh environments

Specifications

BrandTELEMECANIQUE SENSORS

Questions about this item

What contact block do I need to pair with the ZCKD21 head for a complete limit switch?

The ZCKD21 is a head assembly designed for use with XCKL or XCKM series bodies; select the matching body and contact block from those families to complete the switch.

Can I reuse my existing XCKL or XCKM body with this new ZCKD21 head?

Yes, the ZCKD21 head is made for XCKL and XCKM bodies, so it mounts directly on those existing assemblies without modification.

How do I verify the ZCKD21 head is operating correctly after installation?

Actuate the roller lever through its 0.47 in travel in both CW and CCW directions; the lever should move smoothly with 1.8 in-lb operating force and return freely when released.
