TeKit
TeKit OJ328 Double Control Switch 2 Pack
A two-pack of double-control push-button switches for floor or table lamps, rated 3 A at 110–250 V AC and under 100 W, with nickel-plated brass inserts in a black PC housing
- Changer TypeLamp Double Control Switch CE Floor Light Table Lamp Push Bu
- ColorBlack
- SpecificationsLamp Double Control Switch CE Floor Light Table Lamp Push Bu
- Connector PlatingLamp Double Control Switch CE Floor Light Table Lamp Push Bu
- Connector StyleStandard
- FeaturesLamp Double Control Switch CE Floor Light Table Lamp Push Bu
- Controls two lights independently with one switch
- Rated for 110-250V AC at 3A max
- PC housing passes 850°C glow-wire test
- Fits cables up to 3.5mm diameter
- Pack includes two switches weighing 18g each
Two-way switch for dual lighting control

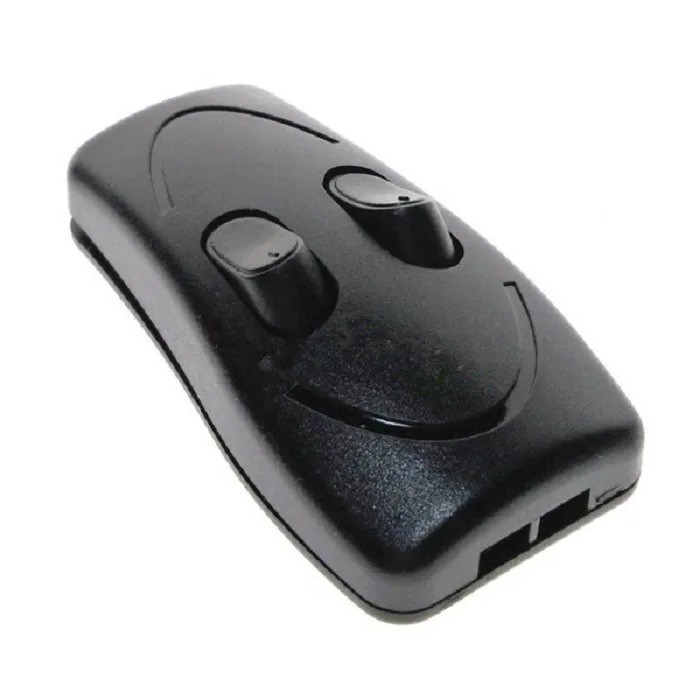

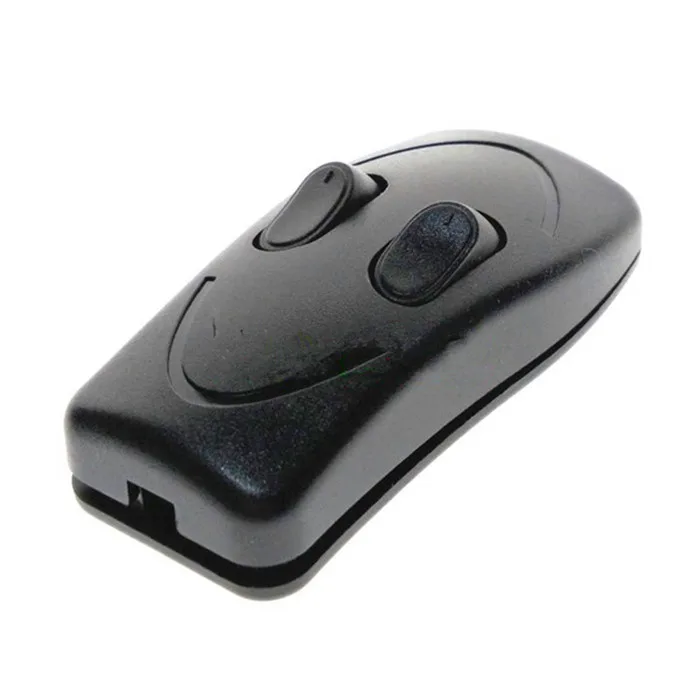

The TeKit OJ328 is a push-button switch that lets one circuit control two separate lamps or power supplies from a single housing. It is rated for AC 110 to 250 V at 3 A with a maximum load of 100 W, making it suitable for standard table and floor lighting in homes or offices.
Two switches in one compact housing
The pack contains two identical units, each measuring 68 by 33 by 12 mm and weighing 18 g. The black PC housing meets glow-wire testing at 850 °C and complies with RoHS, PAHs and SVHC requirements. Nickel-plated brass inserts accept H03VVH2-F 2 × 0.75 mm² cable with a diameter under 3.5 mm.
Simple screw-terminal wiring

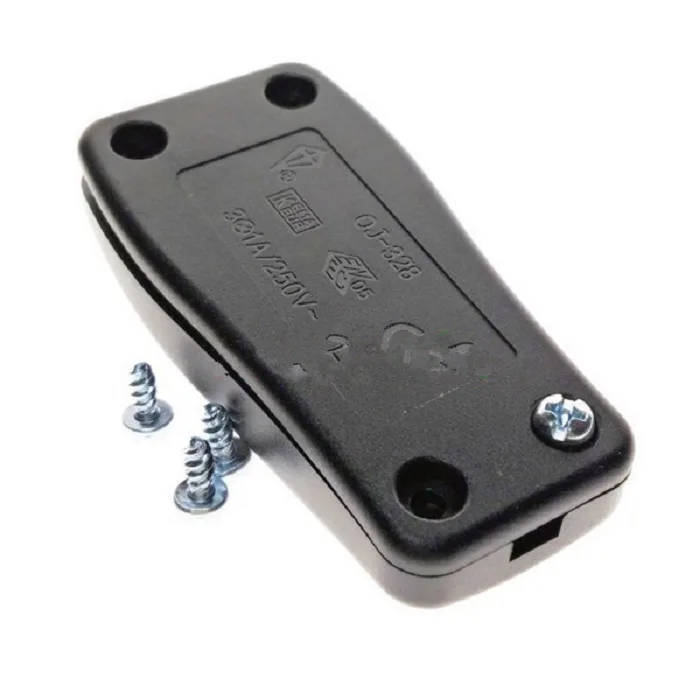

Installation uses standard screw terminals for the common, live and two switched outputs; no special tools are needed beyond a small screwdriver. The narrow 12 mm depth fits tight lamp bases, but the 3.5 mm cable-entry limit means thicker flex will not seat properly — check the cord diameter before starting.
Highlights
- Controls two lights independently with one switch
- Rated for 110-250V AC at 3A max
- PC housing passes 850°C glow-wire test
- Fits cables up to 3.5mm diameter
- Pack includes two switches weighing 18g each
Specifications
| Brand | Tekit |
|---|---|
| Model | OJ328 |
| Changer Type | Lamp Double Control Switch CE Floor Light Table Lamp Push Button Switches |
| Color | Black |
| Specifications | Lamp Double Control Switch CE Floor Light Table Lamp Push Button Switches |
| Connector Plating | Lamp Double Control Switch CE Floor Light Table Lamp Push Button Switches |
| Connector Style | Standard |
| Features | Lamp Double Control Switch CE Floor Light Table Lamp Push Button Switches |
| Weight | 60G |
| Package Quantity | 2PCS |
| Package Contents | 2PCS |
Questions about this item
Will the nickel-plated brass contacts or the PC housing need replacing after long-term use?
The nickel-plated brass insert and PC housing are rated for glow-wire testing at 850 °C, indicating durability under normal switching conditions.
What is the maximum load the switch can handle continuously without overheating?
The switch is rated for a maximum of 3 A at 250 V AC, with a power limit of less than 100 W for sustained operation.
Does the switch generate noticeable heat or noise when controlling two lamps all day?
As a passive mechanical switch with no active electronics, it produces no audible noise and negligible heat during continuous use.
