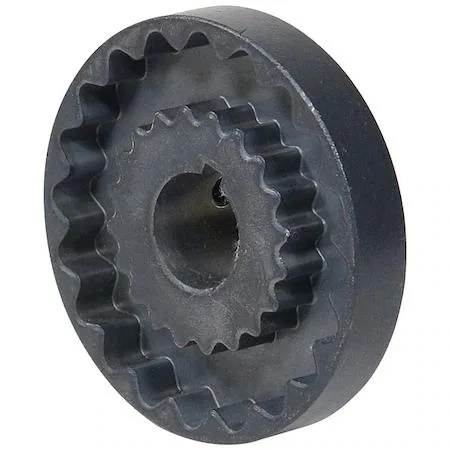

Tb Wood'S 5J58 Sure-Flex Sleeve Coupling Flange 5J Bore 5/8 in
A Sure-Flex sleeve coupling flange with a 5/8 in bore for compressors, conveyors, motors and pumps
- Fits 5/8 in shafts with tight +0.0005/+0.0015 in bore tolerance
- Handles up to 312 in-lb torque for demanding power transmission
- Runs at 7,600 RPM maximum speed on compressors, conveyors, motors, pumps
- Carbon steel flange hub with 1 7/8 in diameter ensures strength
- 29/64 in hub body length suits compact coupling assemblies
Coupling Flange for 5/8 in Shafts
This TB Wood's Sure-Flex sleeve coupling flange fits a 5/8 inch round keyed bore. It is rated for 312 in-lb of torque and speeds up to 7,600 RPM. The carbon steel hub measures 1 7/8 in diameter and 29/64 in body length. It serves compressors, conveyors, motors and pumps in inch-system drives.
Verify Shaft Diameter and Keyway
Confirm the driven shaft measures 5/8 in with a tolerance of +0.0005 in to +0.0015 in. Ensure the keyway width matches the coupling's keyed bore specification. Check that the operating speed stays below 7,600 RPM and torque does not exceed 312 in-lb. The flange hub length through bore is 1 3/64 in, so allow that axial space on the shaft.
Carbon Steel Hub with Flange Mount
The carbon steel hub provides rigid torque transmission for industrial machinery. Its flange hub design bolts to a mating sleeve or flange on the adjacent shaft. The 1 7/8 in hub diameter and 29/64 in body length keep the assembly compact. Round keyed bore prevents rotational slip under reversing loads.
Highlights
- Fits 5/8 in shafts with tight +0.0005/+0.0015 in bore tolerance
- Handles up to 312 in-lb torque for demanding power transmission
- Runs at 7,600 RPM maximum speed on compressors, conveyors, motors, pumps
- Carbon steel flange hub with 1 7/8 in diameter ensures strength
- 29/64 in hub body length suits compact coupling assemblies
Specifications
No published specifications for this item yet.
Questions about this item
Does the 5/8 in bore flange ship with the matching sleeve, or must the sleeve be ordered separately?
The listing covers the flange hub only; the flexible sleeve for the 5J coupling is sold separately.
When should the 5J size be chosen over other Sure-Flex sizes?
Select the 5J when the application requires a 3 1/4 in outside diameter, 312 in-lb torque capacity and 7,600 RPM maximum speed.
What does the 7,600 RPM rating mean once the flange is mounted on a motor shaft?
It is the highest rotational speed the flange can safely handle when correctly keyed and aligned on the shaft.
