Supermicro

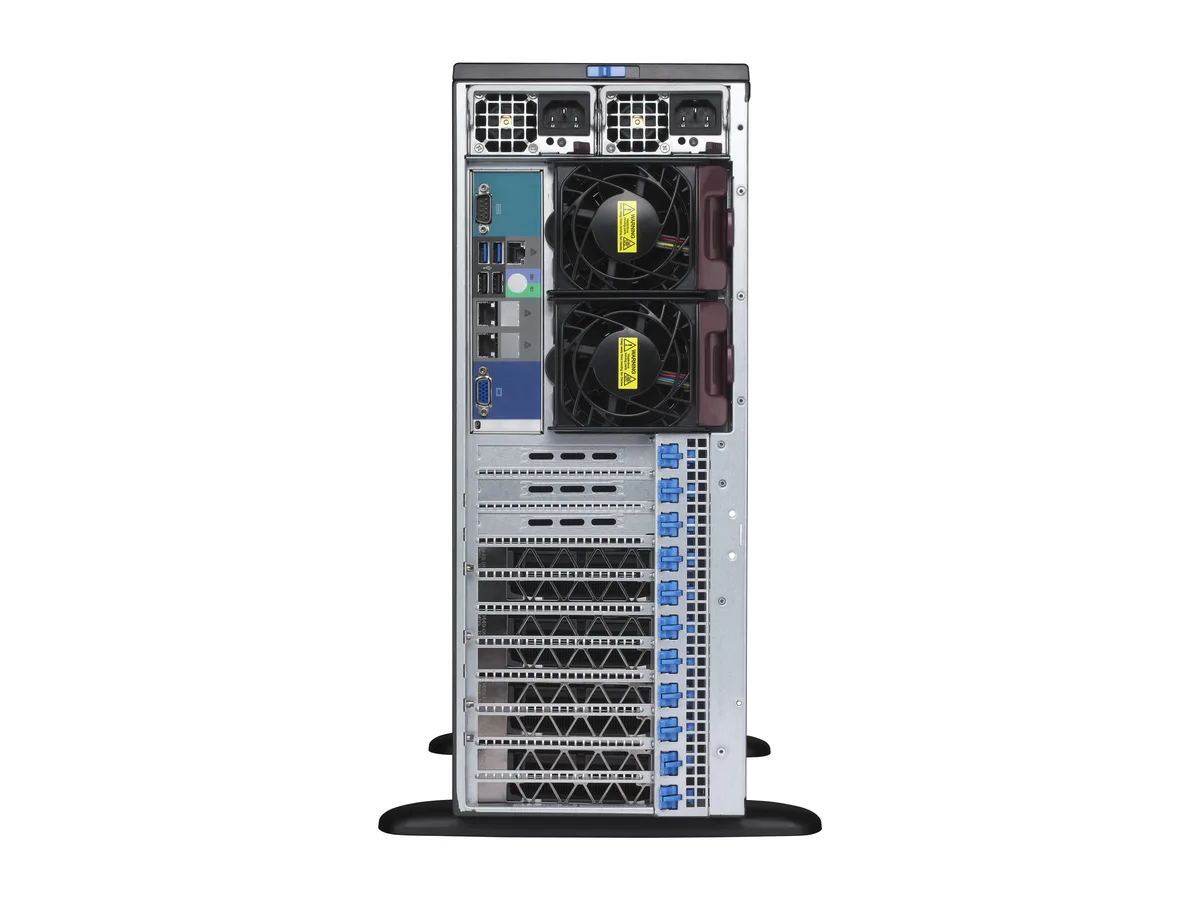

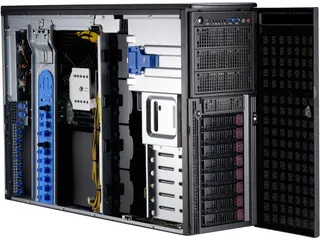

Supermicro SYS-7049GP-TRT barebone server dual LGA3647 16 DIMM 4U
A 4U rackmountable barebone server supporting dual LGA3647 Xeon processors, 16 DDR4 DIMM slots, four double-width PCIe x16 GPU slots and dual 10GBase-T networking
- CPU TypeDual Socket P (LGA 3647) Intel Xeon Scalable Processors, 3 U
- CPU SocketDual LGA 3647
- North BridgeIntel C621
- Max Memory SupportedUp to 2TB 3DS ECC L/RDIMM, up to DDR4-2666 MHz
- Memory Type Supported2666 / 2400 / 2133 MHz ECC DDR4 RDIMM / LRDIMM
- Serial ATA10 x SATA 600
- Dual LGA 3647 sockets support 2nd Gen Intel Xeon Scalable processors
- 16 DIMM slots accept up to 2 TB DDR4-2666 ECC memory
- Four double-width PCIe 3.0 x16 slots enable quad-GPU configurations
- Dual Intel X550 10GBase-T ports deliver high-speed networking
- Redundant 2200 W or 2000 W power supplies with PMBus maximize uptime
Dual-socket 4U barebone for GPU clusters
The Supermicro SYS-7049GP-TRT is a 4U rack-mountable barebone server built around two LGA 3647 sockets for Intel Xeon scalable processors. It provides sixteen DDR4 DIMM slots supporting up to 2 TB of ECC registered or load-reduced memory at speeds up to 2666 MHz. The chassis includes redundant 2200 W or 2000 W power supplies with PMBus monitoring.
Ideal for multi-GPU compute and simulation
This platform suits teams deploying up to four double-width PCIe 3.0 x16 accelerators for HPC, AI training, or scientific simulation workloads. The dual-port Intel X550 10 GbE controller handles high-throughput data movement. Organisations that require only single-socket performance, fewer than eight 3.5-inch hot-swap drive bays, or a smaller form factor should evaluate alternative chassis.
Four double-width PCIe 3.0 x16 slots
The decisive specification is the quartet of full-length, double-width PCI Express 3.0 x16 slots, which determines the maximum number of large GPUs or compute cards the system can host simultaneously.
Highlights
- Dual LGA 3647 sockets support 2nd Gen Intel Xeon Scalable processors
- 16 DIMM slots accept up to 2 TB DDR4-2666 ECC memory
- Four double-width PCIe 3.0 x16 slots enable quad-GPU configurations
- Dual Intel X550 10GBase-T ports deliver high-speed networking
- Redundant 2200 W or 2000 W power supplies with PMBus maximize uptime
Specifications
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-7049GP-TRT |
| CPU Type | Dual Socket P (LGA 3647) Intel Xeon Scalable Processors, 3 UPI up to 10.4GT/s Support CPU TDP 70-205W |
| CPU Socket | Dual LGA 3647 |
| North Bridge | Intel C621 |
| Max Memory Supported | Up to 2TB 3DS ECC L/RDIMM, up to DDR4-2666 MHz |
| Memory Type Supported | 2666 / 2400 / 2133 MHz ECC DDR4 RDIMM / LRDIMM |
| Serial ATA | 10 x SATA 600 |
| GPU/VPU | Aspeed AST2500 BMC |
| PCI Express | 4 x PCI-E 3.0 x16 (double-width) slots 2 x PCI-E 3.0 x16 (single-width) slots 1 PCI-E 3.0 x4 (in x8 slot) |
| Number of LAN | Intel X550 Dual Port 10GBase-T |
| First LAN | Intel X550 |
| Second LAN | Intel X550 |
| Max. LAN Speed | Dual 10 Gigabit |
| COM | 1 |
| Rear USB | 2 x USB 3.0 ports 2 x USB 2.0 ports |
| RJ45 | 2 x RJ45 10GBase-T ports 1 x RJ45 Dedicated IPMI LAN port |
| Max. Power | 2200W or 2000W Redundant Power Supplies with PMBus |
| Features | Dual Socket P (LGA 3647) support Intel Xeon Scalable Processors Up to 2TB 3DS ECC LRDIMM, up to DDR4-2666 MHz; 16 x DIMM slots 4 x PCI-E 3.0 x16 (double-width) slots, 2 x PCI-E 3.0 x16 (single-width) slots, 1 x PCI-E 3.0 x4 (in x8) slot 8 x Hot-swap 3.5" drive bays 2 x 10GBase-T LAN ports via Intel X550 1 x VGA, 2 x COM, 5 x USB 3.0 4 x Heavy duty fans, 4 x exhaust fans, and 2 x active heatsink with optimal fan speed control 2200W Redundant Power Supplies Titanium Level (96%) GPU Kit for passive GPU / Coprocessor support (MCP-320-74702-0N-KIT) |
| Form Factor | 4U Rackmountable / Tower Optional Rackmount Kit |
| Dimensions | 18.20" x 7.00" x 26.50" |
| Weight | 46.00 lbs. |
| Shipping weight | 35.04 kg |
| Package size | 975 × 691 × 323 mm |
Questions about this item
Will the dual LGA 3647 sockets accept my existing Xeon Scalable processors with a TDP up to 205 W?
Yes, the board supports dual LGA 3647 sockets and CPUs from 70 W to 205 W TDP, so your current Xeon Scalable processors will fit and run within the supported power range.
How can I verify the system is operating correctly after I install the processors, memory and GPUs?
The Aspeed AST2500 BMC provides a dedicated IPMI LAN port for remote monitoring; you can watch POST codes, sensor readings and system health through the IPMI web interface once power is applied.
Which items are included in the barebone and which must I purchase separately?
The chassis, motherboard with dual LGA 3647 sockets, 16 DIMM slots, 10 SATA 600 ports, 8 hot-swap 3.5″ bays, dual 10GBase-T LAN, redundant 2200 W power supplies and PCIe slots are included; you must buy Xeon CPUs, DDR4 ECC RDIMM or LRDIMM modules, storage drives, GPU cards and an OS separately.
