Supermicro SYS-6019P-WTR 1U barebone server dual LGA 3647
1U dual-socket barebone with four hot-swap 3.5" SATA bays, 12 DDR4 DIMM slots up to 2666 MHz, two PCIe 3.0 x16 and one x8 slot plus M.2, dual Gigabit LAN and IPMI, redundant 700 W or 750 W supplies
- Form Factor1U Rackmount
- WorkloadGeneral Purpose Server
- CPU TypeIntel Xeon Scalable Processors Dual UPI up to 10.4GT/s Suppo
- CPU SocketDual LGA 3647
- North BridgeIntel C621
- Max Memory SupportedUp to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666
- Dual LGA 3647 sockets scale compute with two Xeon processors
- 12 DDR4 slots support up to 1.5 TB ECC memory at 2666 MHz

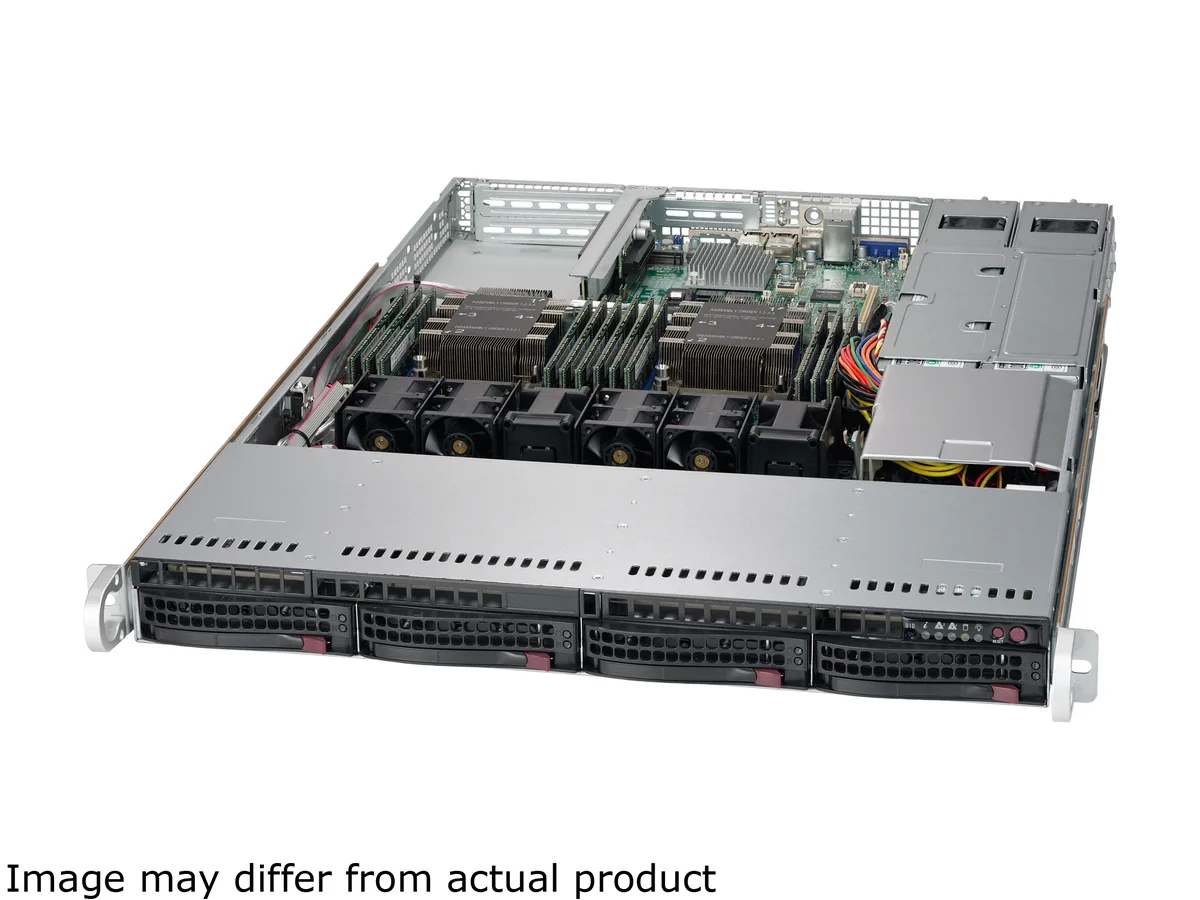

- Four hot-swap 3.5″ SATA3 bays with RAID 0/1/5/10 for flexible storage
- 700 W / 750 W redundant power supplies with PMBus keep the system running
- 2× PCI-E 3.0 x16 FHHL, 1× x8 LP, 1× AOM and 1× M.2 slot expand I/O
Purpose-built 1U barebone
This 1U rackmount barebone accepts dual Intel Xeon Scalable processors in LGA 3647 sockets and is aimed at system integrators building web servers, firewalls, DNS appliances or compact cloud nodes. It ships without CPUs, memory or drives so the builder chooses exact specifications for each workload.
Dual LGA 3647 socket decision

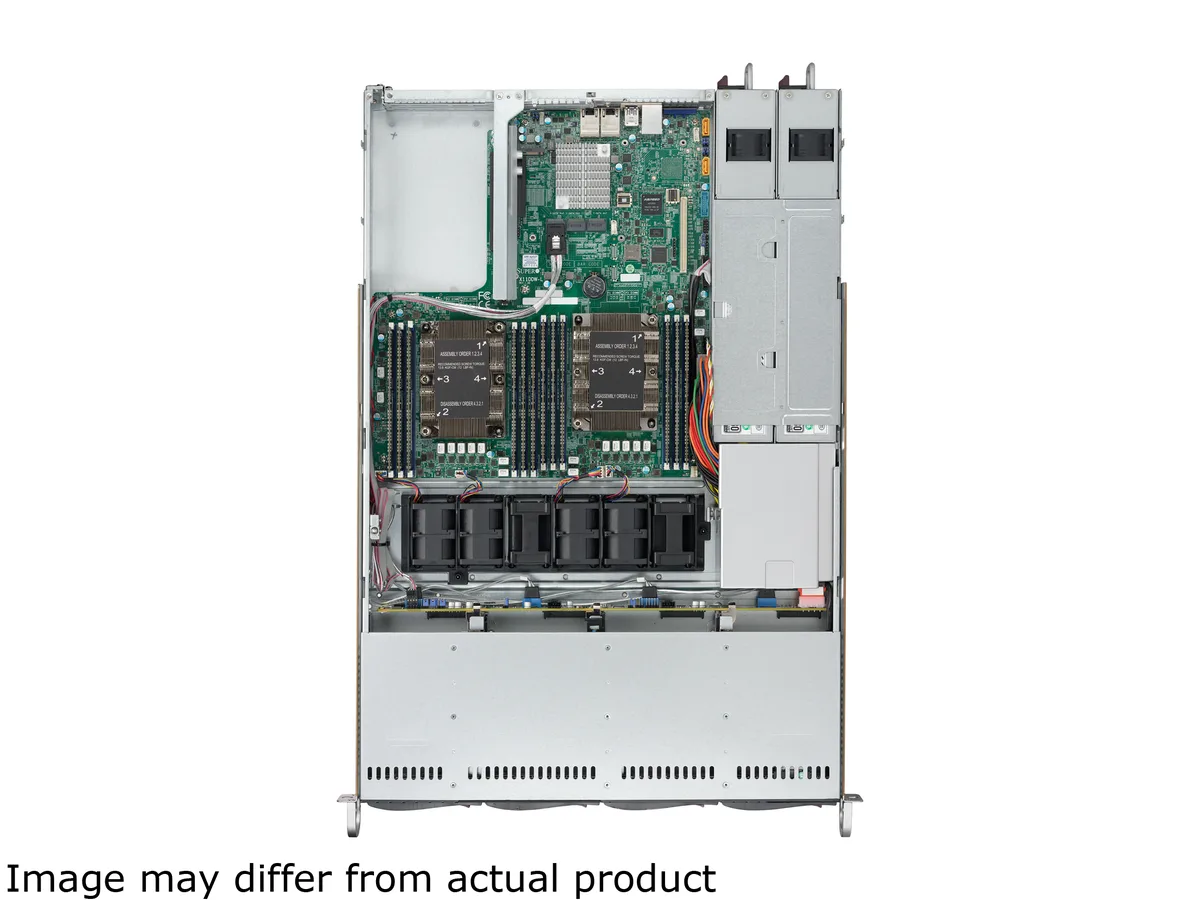

The defining specification is the dual LGA 3647 layout with Intel C621 chipset supporting processors up to 165 W TDP each and memory speeds of 2666, 2400 or 2133 MHz DDR4 ECC across twelve DIMM slots. Both sockets must be populated to unlock all PCIe lanes and onboard controllers.
Redundant power and thermal design
Dual 700 W or 750 W redundant power supplies with PMBus monitoring feed the system while four hot-swap 3.5-inch drive bays sit in the direct airflow path. The 1U height constrains cooler height so high-TDP chips rely on the chassis fans for sustained operation.
Highlights
- Dual LGA 3647 sockets scale compute with two Xeon processors
- 12 DDR4 slots support up to 1.5 TB ECC memory at 2666 MHz
- Four hot-swap 3.5″ SATA3 bays with RAID 0/1/5/10 for flexible storage
- 700 W / 750 W redundant power supplies with PMBus keep the system running
- 2× PCI-E 3.0 x16 FHHL, 1× x8 LP, 1× AOM and 1× M.2 slot expand I/O
Specifications
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-6019P-WTR |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Intel Xeon Scalable Processors Dual UPI up to 10.4GT/s Support CPU TDP 70-165W |
| CPU Socket | Dual LGA 3647 |
| North Bridge | Intel C621 |
| Max Memory Supported | Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666 MHz |
| Memory Type Supported | 2666 / 2400 / 2133 MHz ECC DDR4 SDRAM |
| Serial ATA | 4 x SATA 600 |
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Aspeed AST2500 BMC |
| PCI Express | 2 x PCI-E 3.0 x16 (FHHL) slots 1 x PCI-E 3.0 x8 (LP) slot 1 x PCI-E 3.0 x16 for Add-on-Module (AOM) 1 x PCI-E M.2 SSD slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
| Number of LAN | Dual LAN with Gigabit Ethernet from C621 |
| Hot-Swap Bays | 4 x Hot-swap 3.5" SATA3 drive bays |
| Rear USB | 4 x USB 3.0 ports |

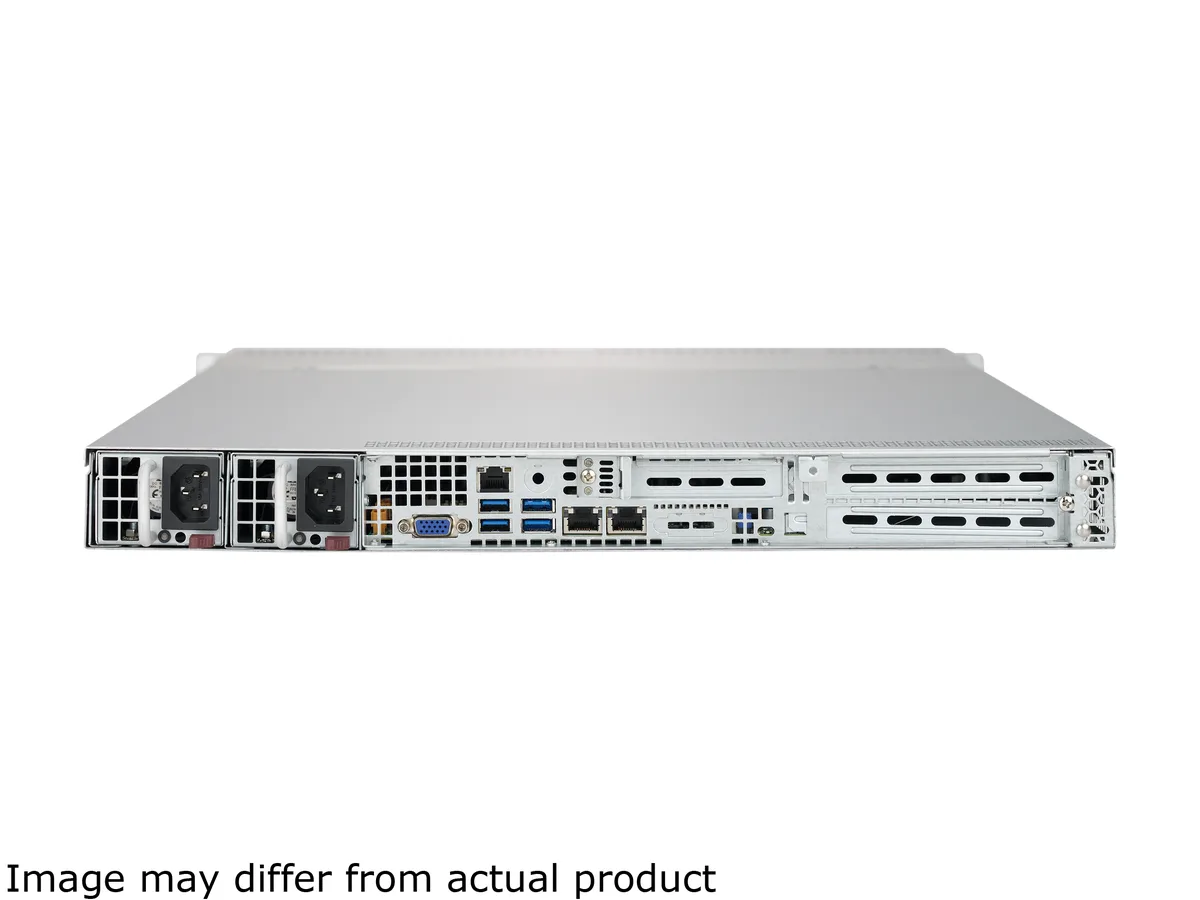

| RJ45 | 2 x RJ45 Gigabit Ethernet ports 1 x RJ45 Dedicated IPMI LAN port |
| Max. Power | 700W / 750W Redundant Power Supplies with PMBus |
| Features | Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666 MHz; 12 x DIMM slots 2 x PCI-E 3.0 x16 (FHHL) slots, 1 x PCI-E 3.0 x8 (LP) slot, 1 x PCI-E 3.0 x16 for Add-on-Module, 1 x PCI-E M.2 SSD slot 4 x Hot-swap 3.5" SAS3 / SATA3 drive bays 2 x 1 GbE LAN ports via Intel X722 1 x VGA, 4 x USB 3.0 (rear) 750W Redundant Power Supplies Platinum Level High-efficiency |
| Dimensions | 1.70" x 17.20" x 23.50" |
| Shipping weight | 20.87 kg |
| Package size | 1016 × 635 × 254 mm |
Questions about this item
How much DDR4 memory can the system address once both CPUs are installed?
With two CPUs the board supports up to 1.5 TB of ECC 3DS LRDIMM or 768 GB of ECC RDIMM running at 2666 MHz.
What PCI Express generation do the expansion slots use and what bandwidth does the M.2 slot provide?
All PCIe slots are 3.0; the M.2 slot delivers PCIe 3.0 x4 bandwidth of 32 Gb/s.
What are the chassis dimensions and how many 3.5-inch drive bays does the front panel hold?
The 1U enclosure measures 1.70 by 17.20 by 23.50 inches and provides four hot-swap 3.5-inch SATA bays.
