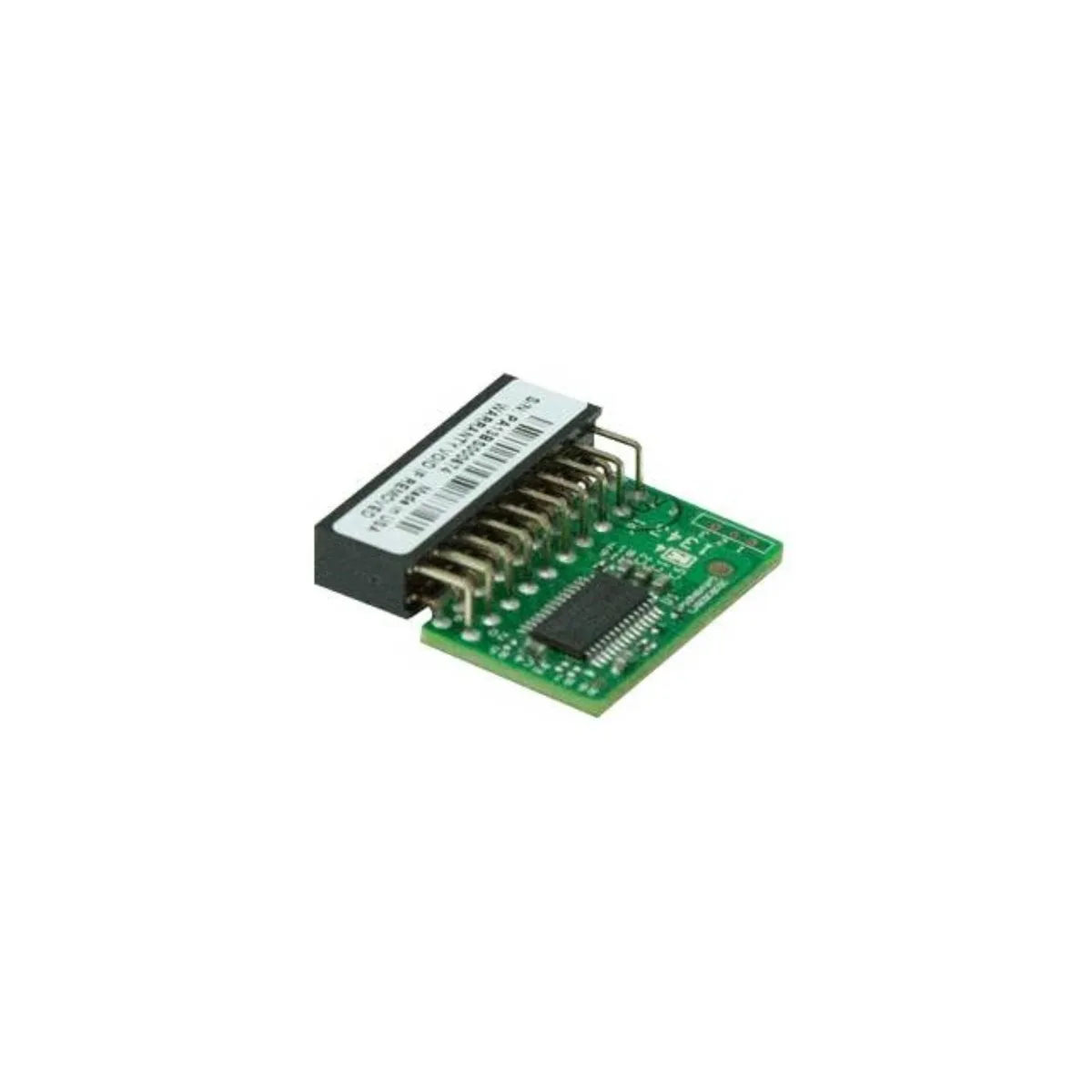

Small vertical circuit board with 20-pin header, black components on green PCB

Supermicro

Supermicro AOM-TPM-9665V vertical TPM 2.0 module server accessory

SKU CH-FW0M-CYXVK MPN AOM-TPM-9665V

Adds TCG 2.0 trusted platform security to X10 motherboards via 20-pin header

  • TypeServer Accessories
  • SpecificationsPhysical Dimensions (W x L x H): Vertical Design / 8mm x 26m
  • FeaturesTCG 2.0 compliant trusted platform module (TPM) Compliant em
  • Adds hardware-based security with TCG 2.0 compliant TPM module
  • Accelerates cryptographic operations using SHA-1 and SHA-256 hardware accelerator
  • Protects keys with true random number generator and tamper detection
  • Fits X10 motherboards via 20-pin TPM header in vertical form factor
  • Enables Intel TXT support with full EK personalisation and power-saving sleep mode

Vertical TPM 2.0 module for X10 servers

The Supermicro AOM-TPM-9665V is a vertical trusted platform module that plugs into a 20-pin header on compatible X10 motherboards. It delivers TCG 2.0 compliance with an Infineon 9665 controller and 3.3 V power draw.

Upgrade from software-only trust or missing TPM

This module replaces firmware-only security or an absent TPM header population, adding a hardware accelerator for SHA-1 and SHA-256, a true random number generator and tamper-detection tick counter. The jump is worth it when workloads demand measured boot, sealed storage or Intel TXT support.

Suits admins securing X10 platforms

Builders fitting the 8 mm by 26 mm by 25 mm vertical form factor into dense server chassis will find it a direct fit. Buyers needing horizontal orientation, a different pin count or support for non-X10 platforms should look elsewhere.

Highlights

  • Adds hardware-based security with TCG 2.0 compliant TPM module
  • Accelerates cryptographic operations using SHA-1 and SHA-256 hardware accelerator
  • Protects keys with true random number generator and tamper detection
  • Fits X10 motherboards via 20-pin TPM header in vertical form factor
  • Enables Intel TXT support with full EK personalisation and power-saving sleep mode

Specifications

BrandSUPERMICRO
ModelAOM-TPM-9665V
TypeServer Accessories
SpecificationsPhysical Dimensions (W x L x H):
Vertical Design / 8mm x 26mm x 25mm
Supported Platforms:
X10 motherboards with 20-pin TPM header
FeaturesTCG 2.0 compliant trusted platform module (TPM)
Compliant embedded software
EEPROM for TCG firmware enhancements and for user data and keys
Hardware accelerator for SHA-1 and SHA-256 hash algorithm
True Random Number Generator (TRNG)
Tick counter with tamper detection
Protection against Dictionary Attack
General Purpose Input/output
Intel Trusted Execution Technology (TXT) Support
Full personalization with Endorsement Key (EK) and EK certificate
Power saving sleep mode
3.3V power supply
Shipping weight0.91 kg
Package size229 × 165 × 46 mm

Questions about this item

Will the 8 mm by 26 mm vertical module clear the 20-pin TPM header on my X10 motherboard?

Yes, the vertical form factor measures 8 mm wide by 26 mm long by 25 mm high and is designed for X10 boards with a 20-pin TPM header.

Do I need to enable anything in BIOS after plugging the module into the 20-pin header?

Install the module with the system powered off, then enable TPM 2.0 in the BIOS security menu; the step often missed is saving the BIOS change before rebooting.

Does the Infineon 9665 chip require firmware updates or battery replacement over time?

The module stores firmware in onboard EEPROM and draws 3.3 V from the header; no battery is used and firmware updates are applied via the platform management tools when released.
