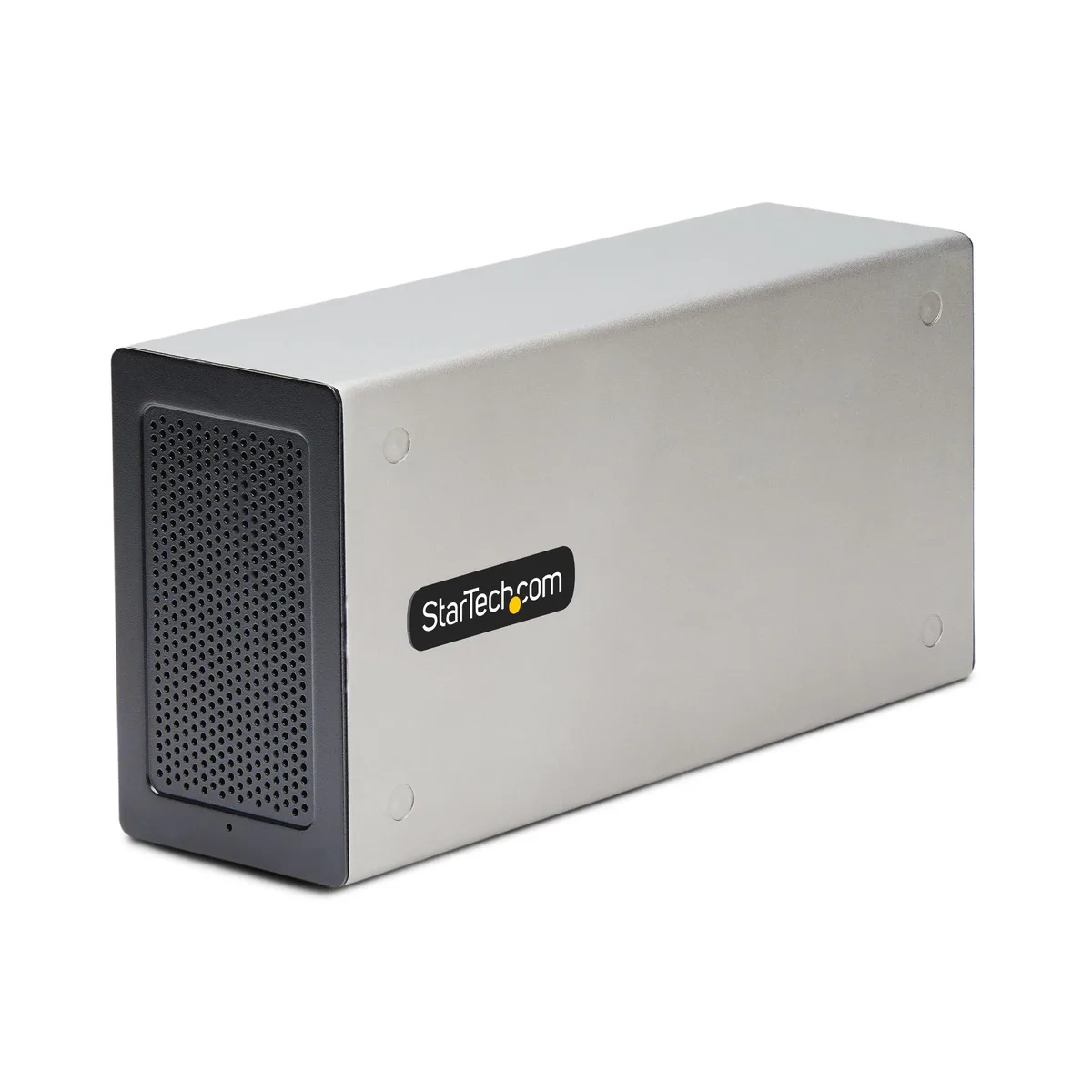

Silver aluminium Thunderbolt PCIe expansion chassis with dual card slots

STARTECH

STARTECH Thunderbolt PCIe Expansion Chassis adapter

SKU CH-NBY8-BJF6K GTIN 065030895002

Adds dual PCIe 3.0 x16 slots with 32Gbps combined bandwidth via Thunderbolt 3/4 for 8K or dual 4K 60Hz display support

  • Add PCIe cards to Thunderbolt laptops with dual x16 slots
  • 32Gbps combined bandwidth delivers 21.6Gbps per slot
  • Toolless aluminum chassis fits video capture, NVMe and Ethernet cards
  • Drive 8K 60Hz or dual 4K 60Hz displays via DP 1.4
  • Each slot supplies 25W plus 40W SATA power from 120W adapter

Thunderbolt PCIe Expansion Chassis

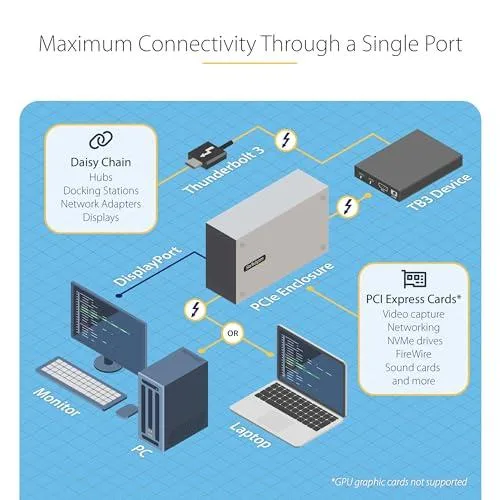

The StarTech.com 065030895002 adds two external PCIe 3.0 x16 slots to any Thunderbolt 3 or Thunderbolt 4 laptop or desktop. It delivers a combined 32Gbps bandwidth with up to 21.6Gbps per slot for high-speed add-in cards. The toolless aluminium enclosure supports video capture, high-speed networking, NVMe storage and FireWire expansion.

Host port and power budget

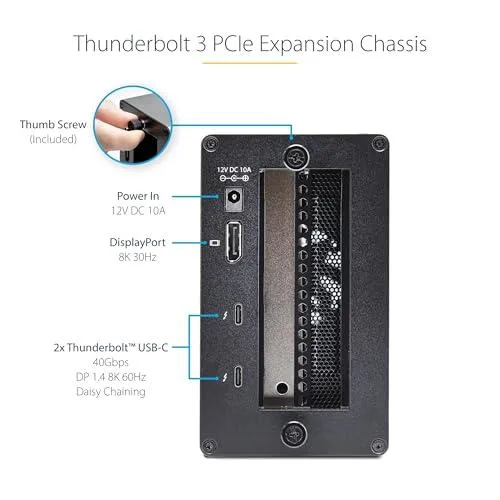

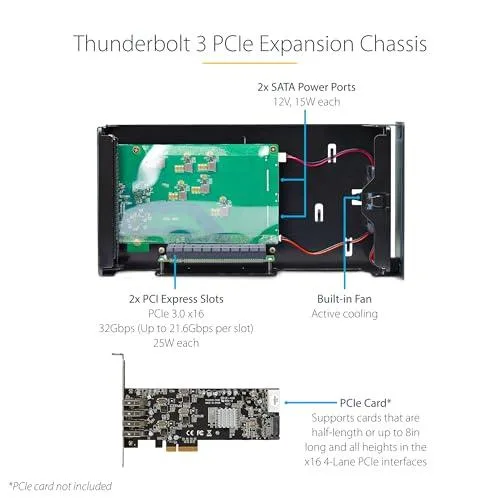

Verify that your system provides a Thunderbolt 3 or Thunderbolt 4 port able to supply the required upstream bandwidth. Each slot delivers 25W and the dual internal 12V 15W SATA connectors allow up to 40W per card. The included 120W universal power adapter must be connected for the chassis to operate.

Aluminium build and daily use

The sturdy aluminium chassis dissipates heat without fans and fits single-width cards in a toolless layout. A DisplayPort 1.4 connection on the enclosure enables 8K or 5K at 60Hz and dual 4K at 60Hz video output. Buyers needing double-width cards or more than two slots cannot use this chassis.

Highlights

  • Add PCIe cards to Thunderbolt laptops with dual x16 slots
  • 32Gbps combined bandwidth delivers 21.6Gbps per slot
  • Toolless aluminum chassis fits video capture, NVMe and Ethernet cards
  • Drive 8K 60Hz or dual 4K 60Hz displays via DP 1.4
  • Each slot supplies 25W plus 40W SATA power from 120W adapter

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the box with the Thunderbolt PCIe Expansion Chassis and what must I buy separately?

The chassis includes a 120W universal power adapter. You must purchase PCIe cards such as video capture, high-speed fiber or Ethernet, NVMe drives, or FireWire cards separately.

Which version of the chassis should I choose for dual-slot expansion?

This model provides dual external PCIe 3.0 x16 slots with a combined 32Gbps bandwidth, up to 21.6Gbps or 2700Mbps per slot, and each slot delivers 25W of power.

What does the 32Gbps combined bandwidth mean when the chassis is connected to my laptop?

The Thunderbolt 3/4 link carries up to 32Gbps total, giving each of the two PCIe 3.0 x16 slots up to 21.6Gbps or 2700Mbps for installed cards.
