Compact black metal box with front push buttons and LED lights, rear DisplayPort, USB and audio ports

STARTECH

STARTECH SV231DPU34K 2-Port DisplayPort KVM Switch 4K 60Hz

SKU CH-ZY50-SM29E MPN SV231DPU34K

Controls two DisplayPort computers from one 4K 60 Hz workstation with USB 3.0 hub and stereo audio switching

  • TypeDisplayPort, USB
  • PC Connectors2 x DisplayPort Female Output 2 x 3.5 mm Mini-Jack (3 Positi
  • Console Connectors4 x USB Type-A (4 pin; HID Port) USB 1.1 Female 2 x USB Type
  • Computer Connections2 Ports
  • Video Resolution1024x768 1280x720 (High-definition 720p) 1920x1080 (High-def
  • LED Indicators2 - Green 2 - Red

Computer Connections 2 Ports

Style Single Monitor (4K60)

  • Control two computers from one DisplayPort workstation
  • Supports Ultra HD 4K resolution at 60Hz
  • Integrated USB 3.0 hub with two ports for peripherals
  • 5 mm stereo audio and microphone switching
  • TAA compliant for government GSA schedule purchases

Two-Computer DisplayPort KVM Switch

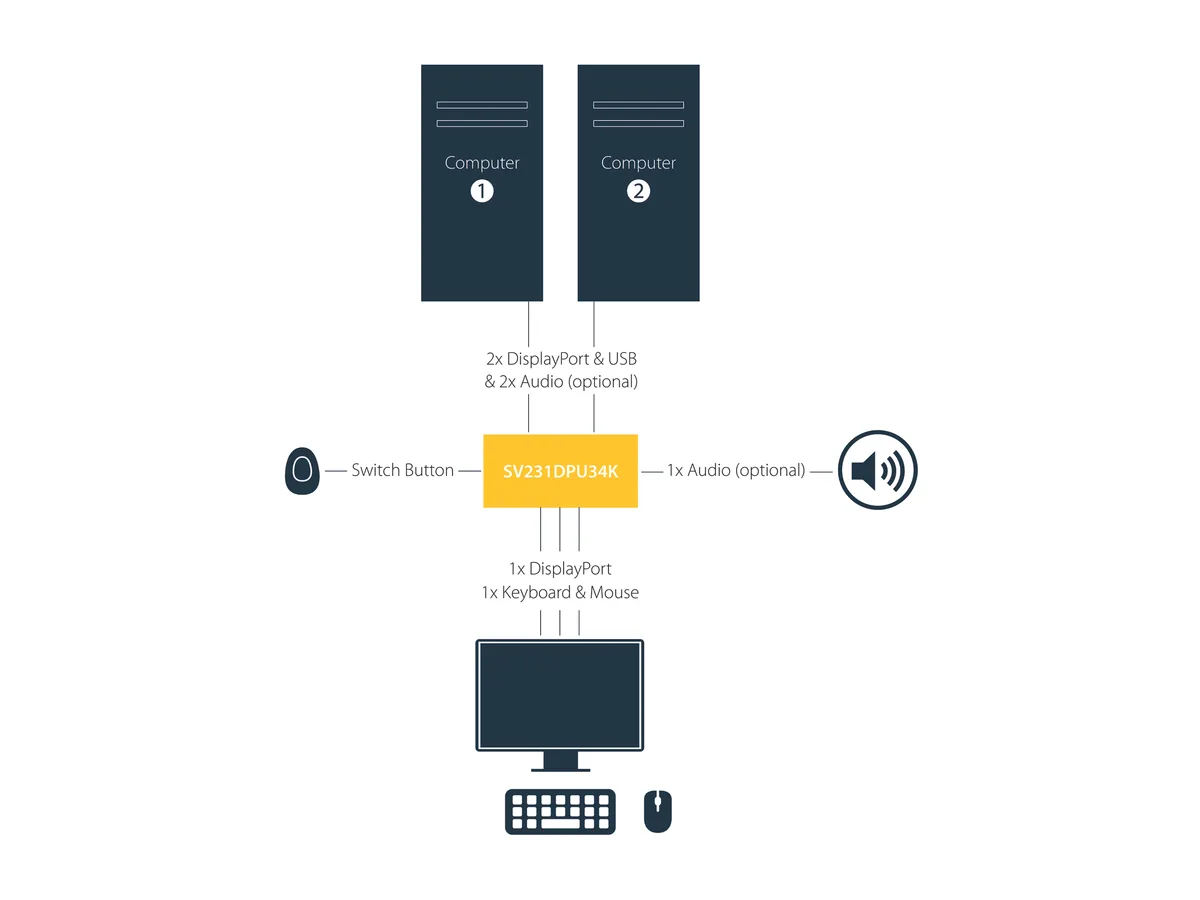

The SV231DPU34K lets one DisplayPort monitor, keyboard, mouse and stereo audio devices control two multimedia computers. It is aimed at operators who need to manage a pair of workstations from a single desk without swapping cables. TAA compliance makes it eligible for government procurement schedules. The integrated USB 3.0 hub adds high-speed peripheral sharing to the core switching function.

DisplayPort 1.2 Interface Limits

Video passes through a DisplayPort 1.2 link, so the highest supported timing is 3840x2160 at 60 Hz. Lower resolutions such as 2560x1600, 2560x1440 and 1920x1200 are also available. The console USB ports operate at USB 1.1 speeds for keyboard and mouse, while the two transparent USB 3.0 ports handle storage or other high-bandwidth devices. Audio is restricted to two-channel stereo over 3.5 mm connections.

Dual-Computer Constraint

The switch only accommodates two computer connections, so any environment requiring three or more sources must look elsewhere. Each attached system needs a DisplayPort output, a USB Type-B 3.0 link and 3.5 mm audio cables to use every feature. Buyers who need to control more than two machines from one console cannot use this model.

Highlights

  • Control two computers from one DisplayPort workstation
  • Supports Ultra HD 4K resolution at 60Hz
  • Integrated USB 3.0 hub with two ports for peripherals
  • 5 mm stereo audio and microphone switching
  • TAA compliant for government GSA schedule purchases

Specifications

BrandStarTech.com
ModelSV231DPU34K
TypeDisplayPort, USB

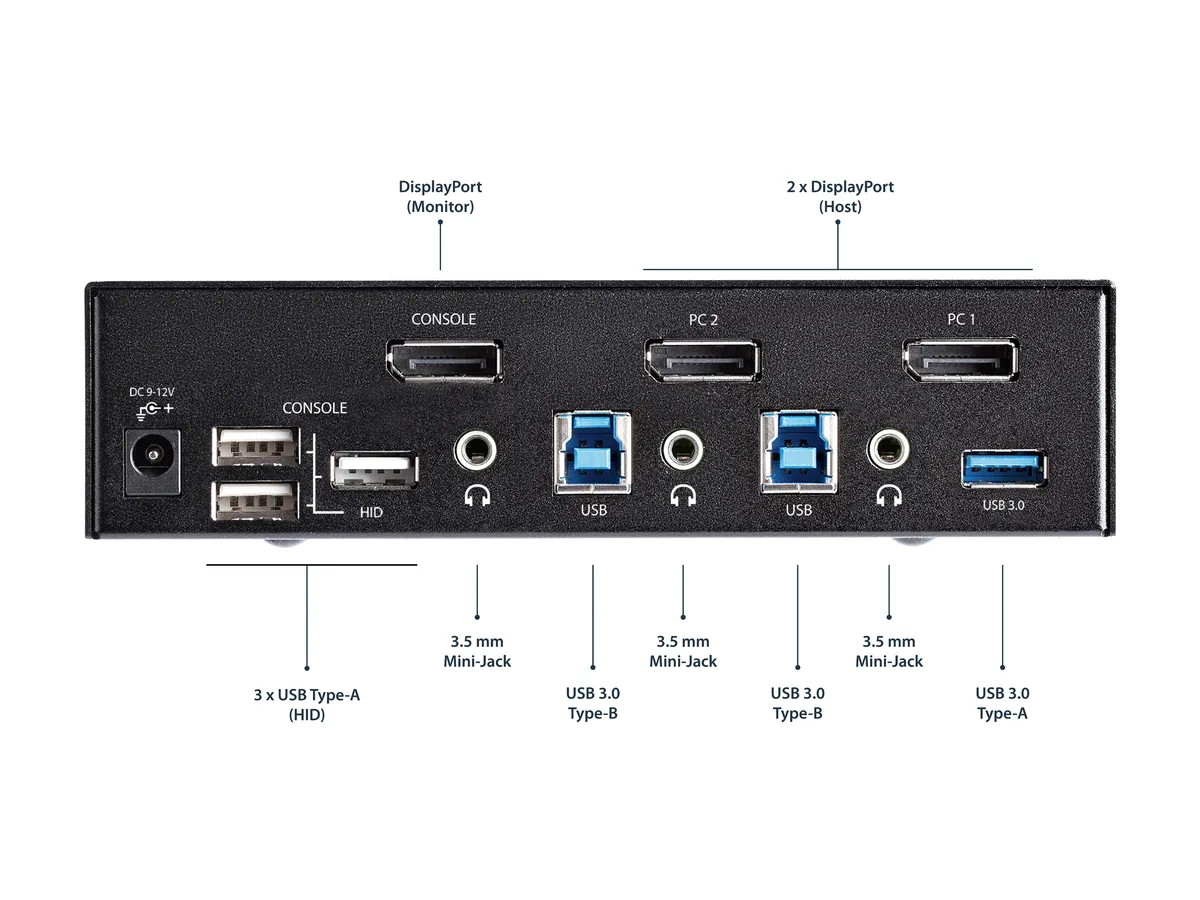

PC Connectors2 x DisplayPort Female Output
2 x 3.5 mm Mini-Jack (3 Position) Female Input
2 x USB Type-B (9 pin) USB 3.0 Female
Console Connectors4 x USB Type-A (4 pin; HID Port) USB 1.1 Female
2 x USB Type-A (9 pin) USB 3.0 Female
1 x DisplayPort Female Output
1 x 3.5 mm Mini-Jack (3 Position) Female Output
Computer Connections2 Ports
Video Resolution1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
LED Indicators2 - Green
2 - Red
Temperature0ºC to 40ºC(32ºF to 104ºF)
Humidity0% to 80%,Non-Condensing
Audio Features2-Channel Stereo
Power FeaturesCenter Tip Polarity: Positive
Input Current: 0.6A
Input Voltage: 100 ~ 240 AC
Output Current: 1.5A
Output Voltage: 12 DC
Plug Type: M
Power Consumption (In Watts): 18 W
Power Source: AC Adapter Included
FeaturesTAA compliant for government GSA schedule purchases
Increases productivity with ports to connect up to 2 HD multimedia computers
Achieves high picture quality with 4K resolutions @ 60Hz
Eliminates the need to purchase extra equipment with built-in 2-port USB 3.0 hub
Ensures full audio compatibility with digital and separate 3.5 mm audio support

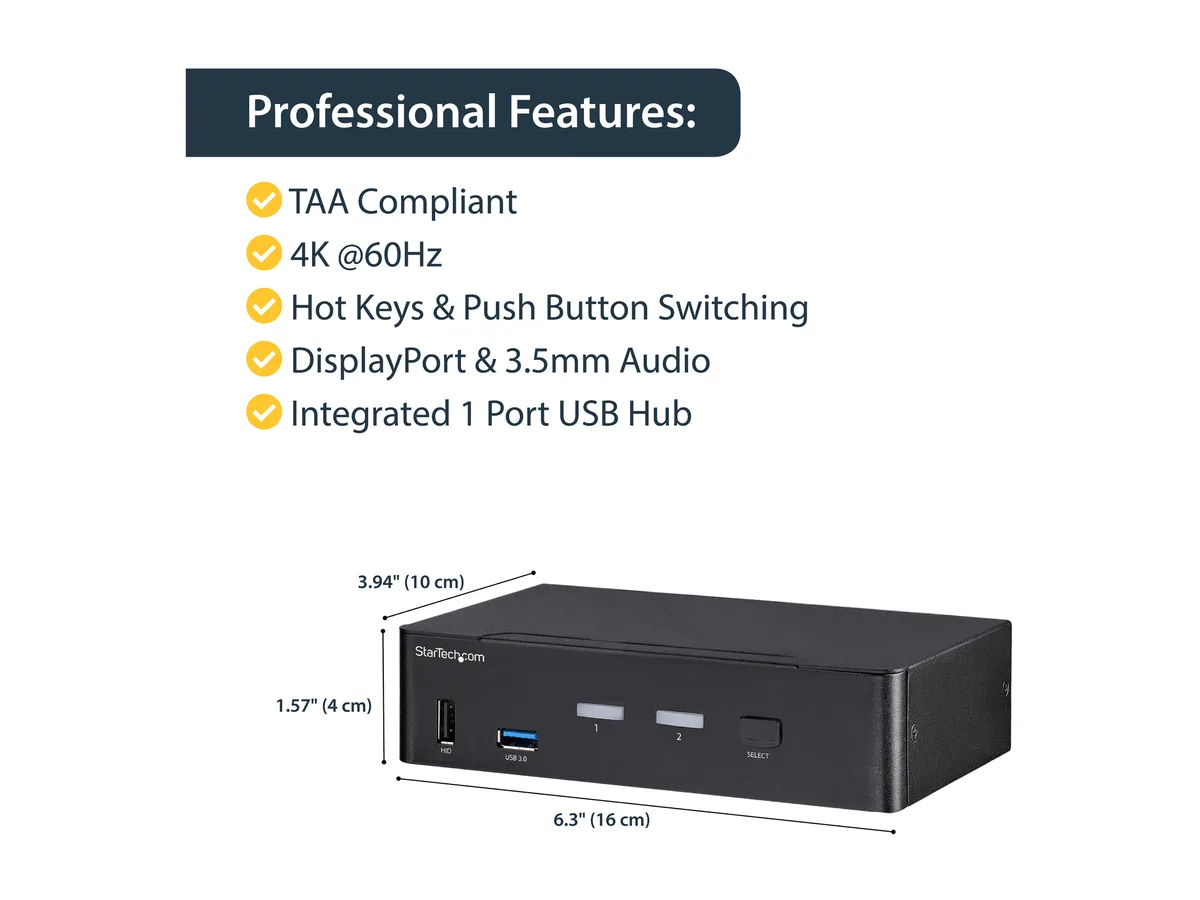

Dimensions1.60" x 6.30" x 3.90"
Weight1.38 lbs.
Package Contents1 x KVM Switch
1 x Universal Power Adapter (NA/JP, EU, UK, ANZ)
4 x Rubber Foot Pads
1 x Quick-Start Guide
Shipping weight1.05 kg
Package size241 × 188 × 91 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 2-port model or a larger KVM for my two-computer setup?

This unit is the 2-port model and controls exactly two computers from one DisplayPort workstation.

Will the 4K 60 Hz claim hold up when I plug in my 3840 x 2160 monitor?

The switch supports 3840 x 2160 at 60 Hz over DisplayPort 1.2, so a 4K 60 Hz monitor will run at its native resolution and refresh rate.

Does the USB 3.0 hub run at full 5 Gbps or drop to USB 2.0 speeds?

The console side provides two USB 3.0 Type-A ports operating at USB 3.0 speeds, while the dedicated HID ports use USB 1.1 for keyboard and mouse.
