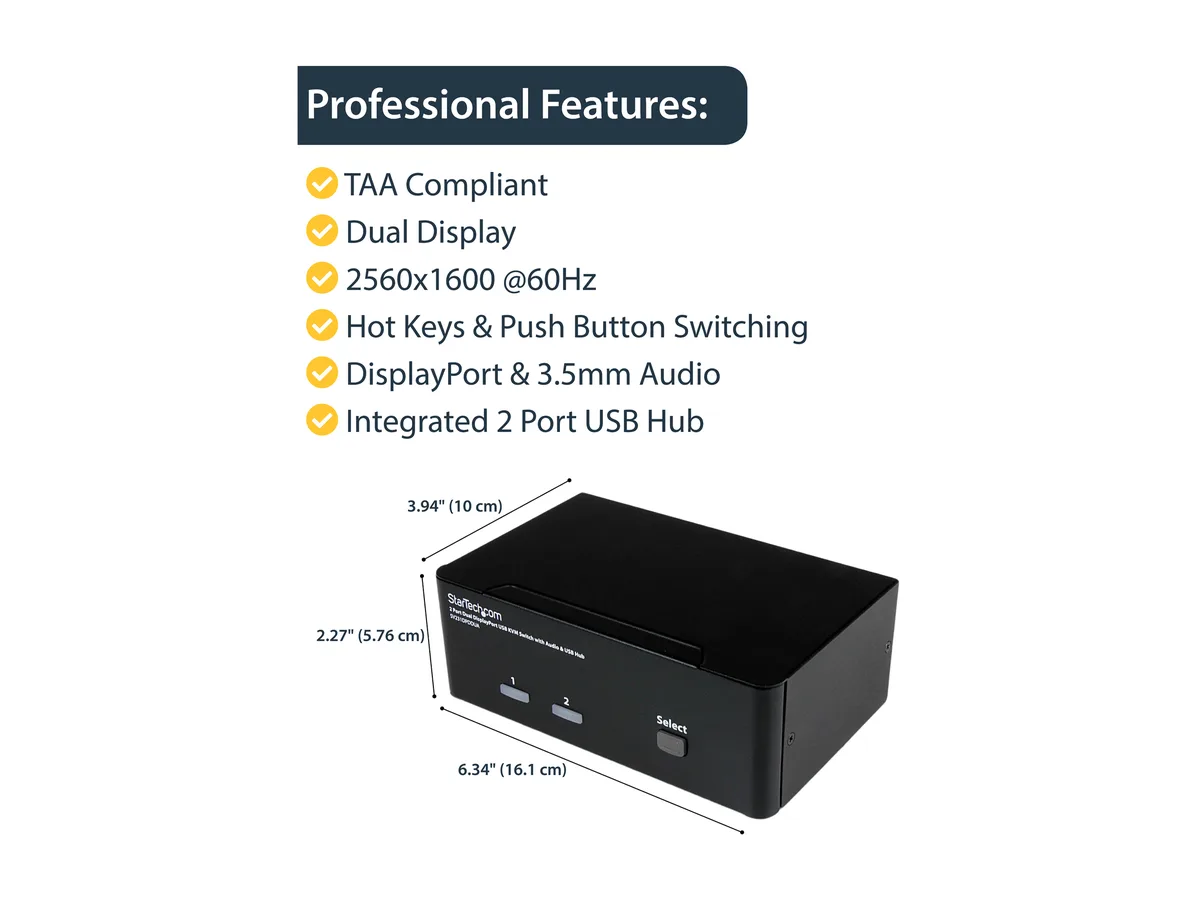

Compact black metal box with dual DisplayPort, audio and USB ports on the front, LED indicators above

STARTECH

STARTECH SV231DPDDUA 2-port dual DisplayPort KVM switch with audio and USB 2.0 hub

SKU CH-K2V8-7ET0F MPN SV231DPDDUA

Control two dual-DisplayPort computers from one keyboard, mouse and monitor set at up to 2560 x 1600 resolution with integrated audio and USB 2.0 hub

  • TypeUSB
  • PC Connectors2 - USB B Female 4 - 20 pin DisplayPort Female 4 - 3.5 mm Au
  • Console Connectors2 - 20 pin DisplayPort Female 2 - 3.5 mm Audio Female 4 - US
  • Computer Connections2 Ports
  • Video Resolution2560 x 1600
  • LED Indicators2 - Green - On-Line 2 - Red - Selected PC

Computer Connections 2 Ports

Style Dual Monitor

  • Control 2 dual-DisplayPort computers from one keyboard, mouse and dual-monitor console
  • Native 2560 x 1600 at 60 Hz on each connected display
  • USB 2.0 hub adds four peripheral ports for flash drives, printers or webcams
  • Integrated 3.5 mm audio switching routes speakers and microphone with the active PC
  • Hot-key and front-panel switching keep workflow uninterrupted across Mac and PC systems

Dual DisplayPort KVM Switch

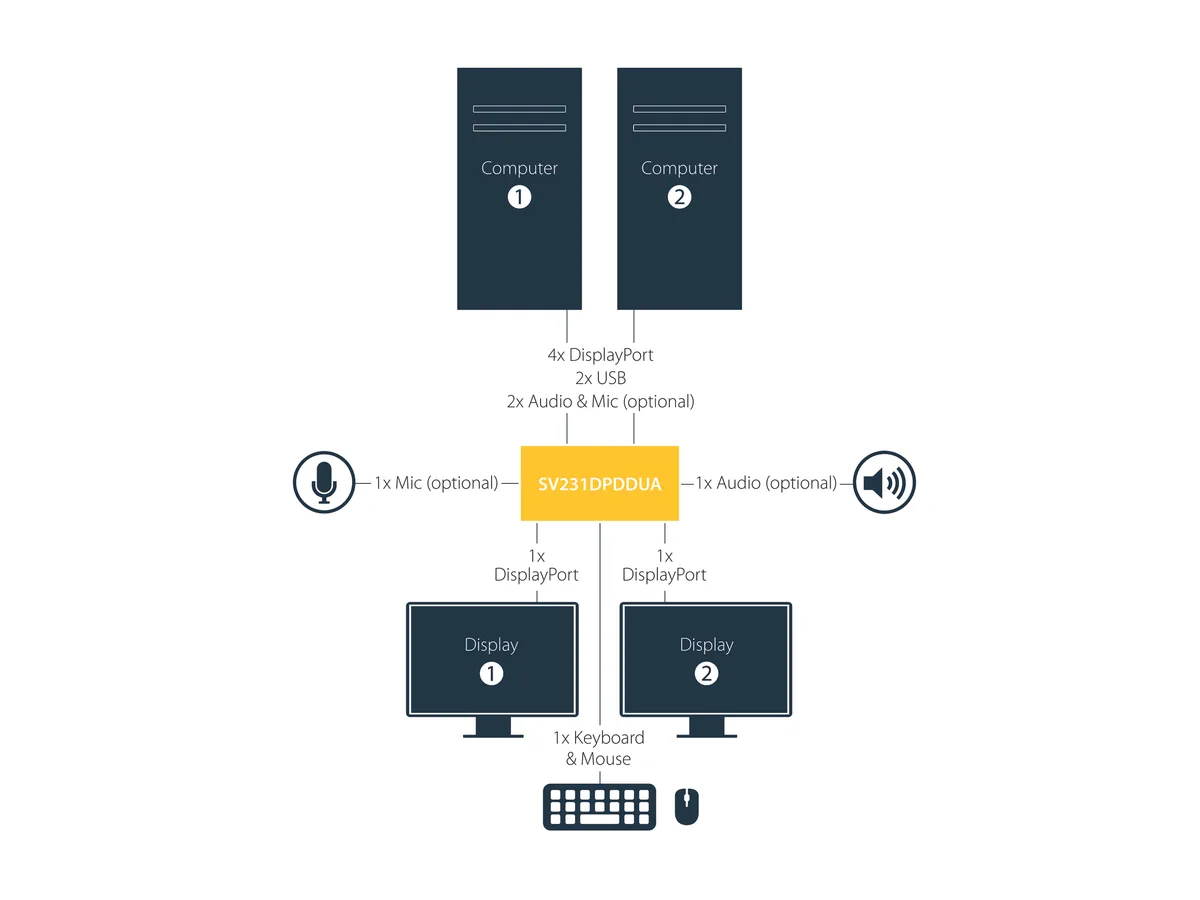

The StarTech.com SV231DPDDUA lets one keyboard, mouse and dual-monitor console control two DisplayPort computers. It supports native resolutions up to 2560 x 1600 at 60 Hz on each display and can reach 3840 x 2400 at lower refresh rates. Audio and a USB 2.0 hub are integrated for speakers and peripherals.

Multi-system workstations vs.

Video editors, designers and post-production teams who switch between two workstations gain a single dual-monitor desk without re-plugging cables. Mac and PC compatibility covers mixed-OS environments. Users who need USB 3.0 or higher peripheral bandwidth should consider a different switch because the hub is limited to USB 2.0 speeds.

2560 x 1600 dual-head resolution

The deciding specification is the maximum native resolution of 2560 x 1600 at 60 Hz per monitor across both connected computers. If your workflow demands higher native refresh rates or 4K at 60 Hz on two screens, this unit will not meet that requirement.

Highlights

  • Control 2 dual-DisplayPort computers from one keyboard, mouse and dual-monitor console
  • Native 2560 x 1600 at 60 Hz on each connected display
  • USB 2.0 hub adds four peripheral ports for flash drives, printers or webcams
  • Integrated 3.5 mm audio switching routes speakers and microphone with the active PC
  • Hot-key and front-panel switching keep workflow uninterrupted across Mac and PC systems

Specifications

BrandStarTech.com
ModelSV231DPDDUA
TypeUSB

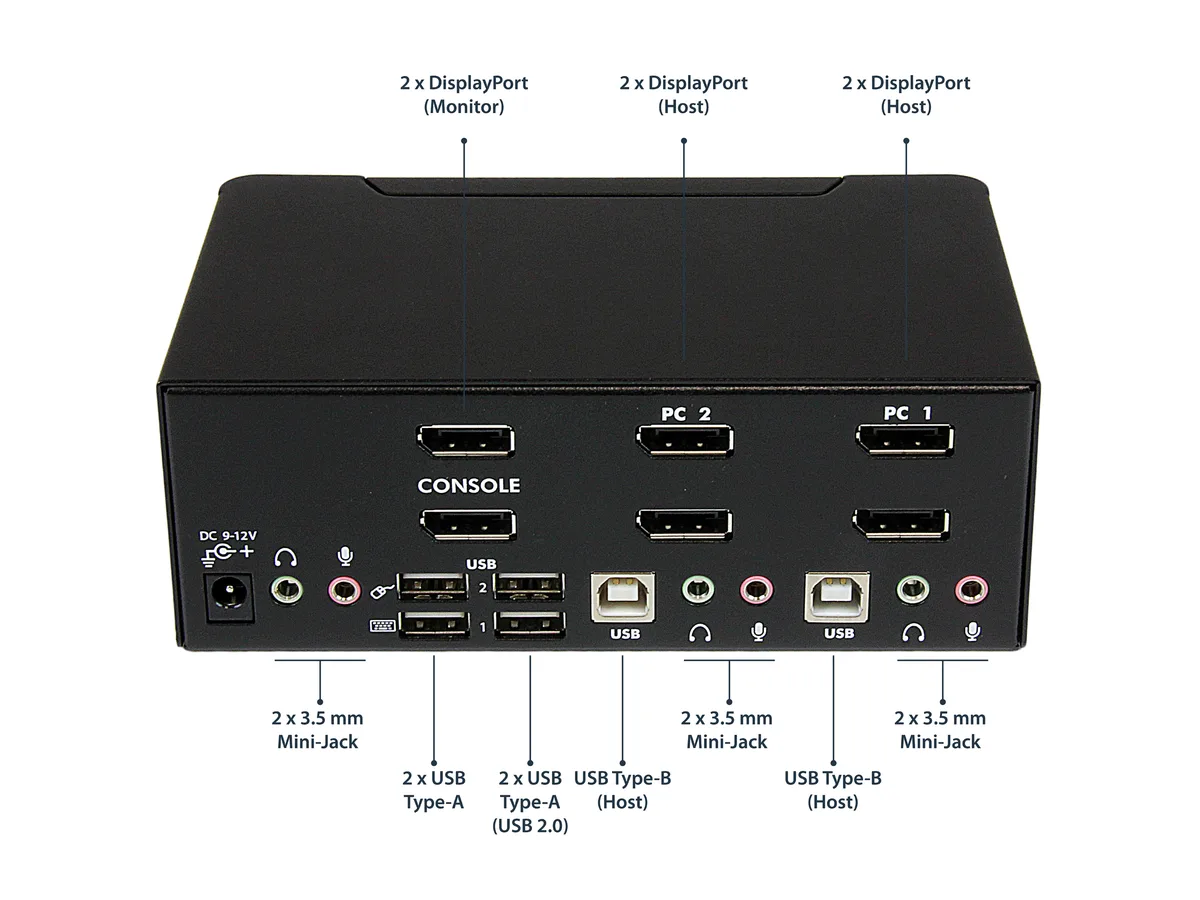

PC Connectors2 - USB B Female
4 - 20 pin DisplayPort Female
4 - 3.5 mm Audio Female
Console Connectors2 - 20 pin DisplayPort Female
2 - 3.5 mm Audio Female
4 - USB A Female
Computer Connections2 Ports
Video Resolution2560 x 1600
LED Indicators2 - Green - On-Line
2 - Red - Selected PC
TemperatureOperating Temperature: 0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)
Storage Temperature: 20 Degree C to 60 Degree C (-4 Degree F to 140 Degree F)
Humidity0~80% RH
FeaturesDual Native resolutions: 2560 x 1600 @ 60Hz, beyond 1080p on each monitor
Mac and PC Compatible
Supports a maximum resolution of 3840 x 2400 at lower refresh rates on each monitor
Supports native DisplayPort computer connections - no adapter required
USB 2.0 peripheral sharing
Analog 2-channel audio and microphone supported with 3.5mm connections; 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
No driver or software installation required
Hotkey and push-button switching
Full plug-and-play support with USB keyboards, mice, and connected peripherals
Us
Weight2.55 lbs.
Shipping weight1.17 kg
Package size246 × 188 × 99 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What maximum resolution does the dual DisplayPort interface support at 60 Hz?

Each monitor can run at 2560 x 1600 at 60 Hz, and the switch will also pass 3840 x 2400 at lower refresh rates.

What connectors must my console monitors and peripherals provide to fit this KVM?

The console side needs two DisplayPort inputs, two 3.5 mm audio jacks and four USB Type-A ports for keyboard, mouse and other devices.

How do I switch between the two connected computers, and what is the common mistake?

Press the front-panel push button to change the active PC; the common mistake is trying to switch with a keyboard hot-key, which this model does not support.
