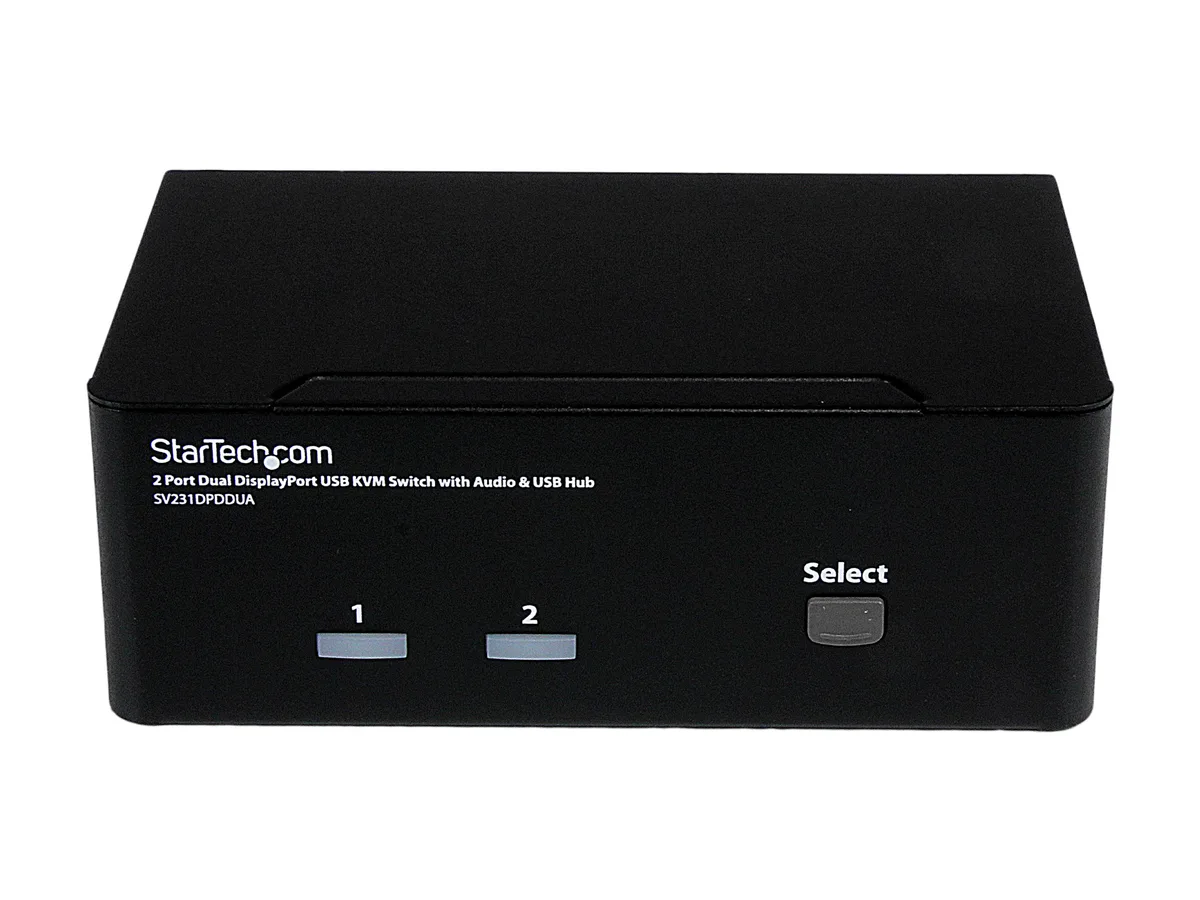

Compact black metal box with front push buttons and rear DisplayPort, USB and audio ports

STARTECH

STARTECH SV231DPDDUA2 2-Port Dual-Display KVM Switch 4K 60Hz

SKU CH-64SM-9J4BC MPN SV231DPDDUA2

Connect two dual-monitor computers and shared USB peripherals from one workstation with 4K 60Hz DisplayPort video and audio switching

  • TypeDisplayPort, USB
  • PC Connectors2 x USB B (4 pin) Female 4 x 3.5 mm Mini-Jack (3 Position) F
  • Console Connectors2 x 3.5 mm Mini-Jack (3 Position) Female 2 x DisplayPort (20
  • Computer Connections2 Ports
  • Video Resolution1024 x 768, 1280 x 720 (High-definition 720p), 1920 x 1080 (
  • PC SelectionPush Buttons/Hot Keys

Computer Connections 2 Ports

Style Dual Monitor (4K60)

  • Control two dual-monitor PCs from one keyboard and mouse
  • Enjoy crisp 4K visuals at 60 Hz on both screens
  • Share two USB 2.0 peripherals between both computers
  • Switch instantly via front-panel buttons or hotkeys
  • Operates reliably from 0 °C to 40 °C

Dual-Display KVM Switch

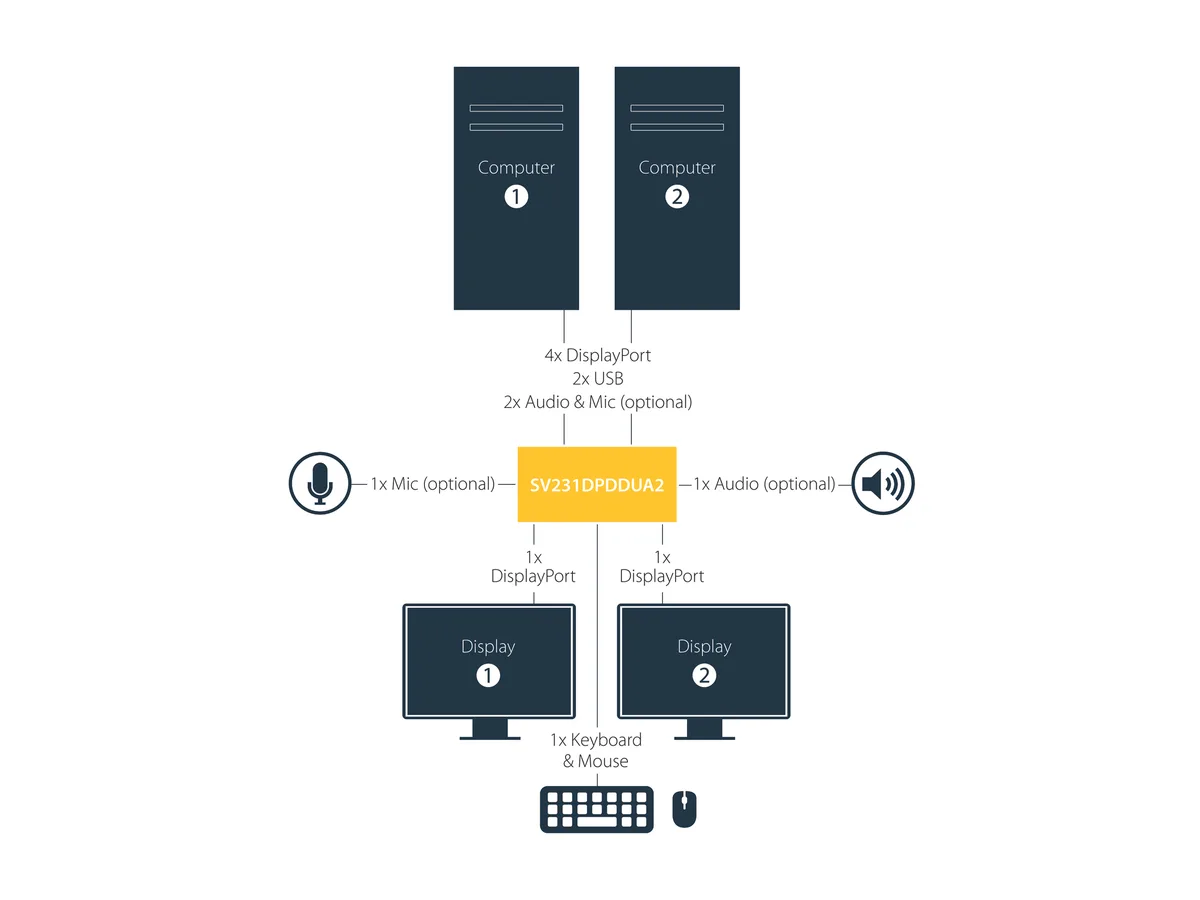

The StarTech SV231DPDDUA2 lets you control two dual-monitor computers from one keyboard, mouse and dual-display console. It supports 4K 60 Hz video on each DisplayPort output and shares four USB 2.0 peripherals plus stereo audio and microphone jacks. Two front-panel buttons and hot-key commands switch the active system instantly.

Verify Cables and Ports

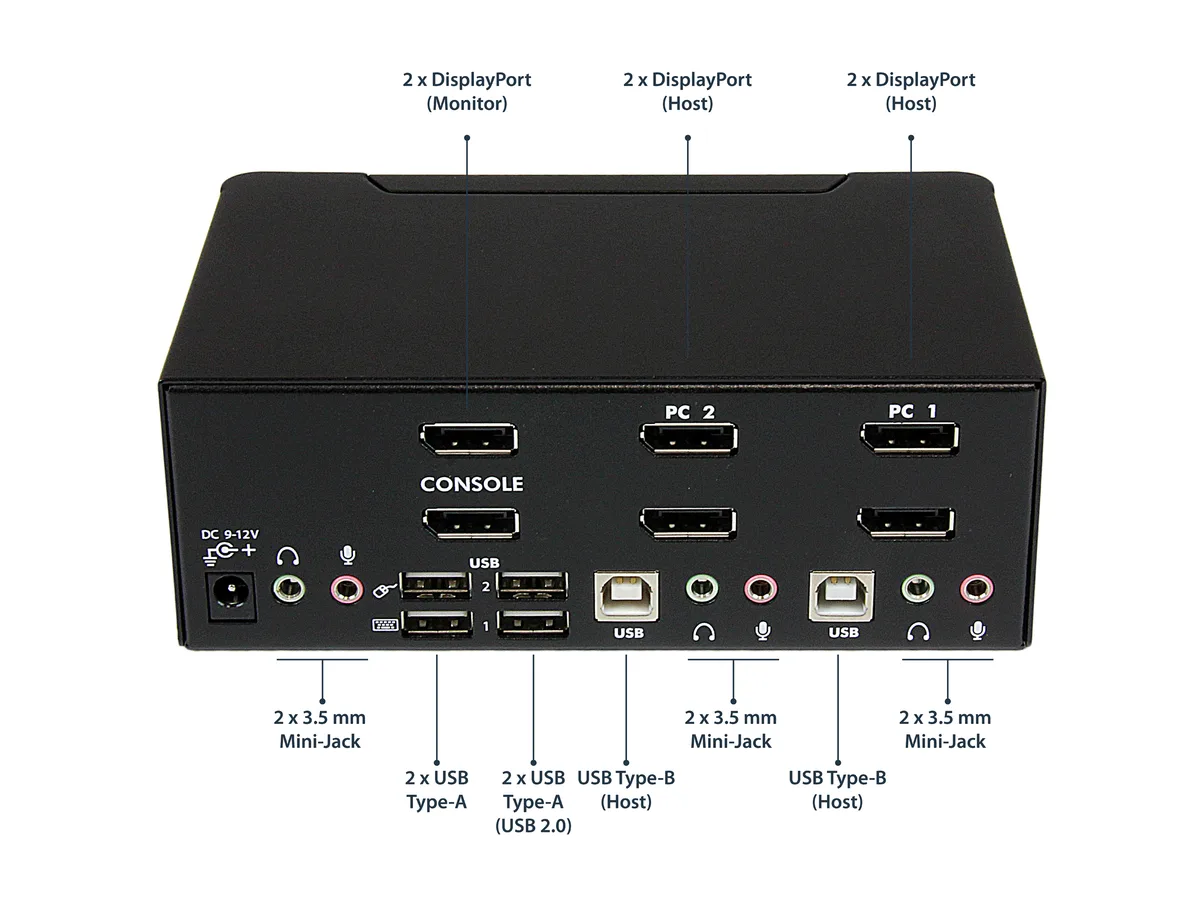

Each computer needs two DisplayPort outputs, one USB-B link and two 3.5 mm audio cables for full functionality. Your monitors must accept DisplayPort input at the desired resolution up to 3840 x 2160 at 60 Hz. The included universal AC adapter supplies 12 V DC at 1.5 A, so confirm a nearby mains socket is available for the 100-240 V input.

Replaces Separate Peripherals

This unit replaces duplicate keyboards, mice, headsets and USB hubs when you run two workstations side by side. The jump is worth it if you regularly toggle between dual-monitor PCs and want a single console without unplugging cables. It does not suit setups that require more than two computer ports or DisplayPort 1.4 bandwidth beyond 4K 60 Hz.

Highlights

  • Control two dual-monitor PCs from one keyboard and mouse
  • Enjoy crisp 4K visuals at 60 Hz on both screens
  • Share two USB 2.0 peripherals between both computers
  • Switch instantly via front-panel buttons or hotkeys
  • Operates reliably from 0 °C to 40 °C

Specifications

BrandStarTech.com
ModelSV231DPDDUA2
TypeDisplayPort, USB
PC Connectors2 x USB B (4 pin) Female
4 x 3.5 mm Mini-Jack (3 Position) Female
4 x DisplayPort (20 pin) Female
Console Connectors2 x 3.5 mm Mini-Jack (3 Position) Female
2 x DisplayPort (20 pin) Female
4 x USB Type-A (4 pin) USB 2.0 Female
Computer Connections2 Ports
Video Resolution1024 x 768, 1280 x 720 (High-definition 720p), 1920 x 1080 (High-definition 1080p), 1920 x 1200, 2560 x 1600, 3840 x 2160 (4K)@ 60hz
PC SelectionPush Buttons/Hot Keys
LED Indicators2 x computer LEDs
TemperatureOperating: 0 to 40 Degree C (32 to 104 Degree F)
Storage: 20 to 60 Degree C (-4 to 140 Degree F)
Humidity0% to 80%,Non-Condensing
Audio Featureswith Audio
Power FeaturesCenter Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 1.5 A
Output Voltage: 12 DC
Power Source: AC Adapter Included
FeaturesMaximum productivity with dual-display, multi-computer access
Full multimedia control with separate 3.5 mm auxiliary support
Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
Share your USB peripheral devices with built-in 2-port USB hub

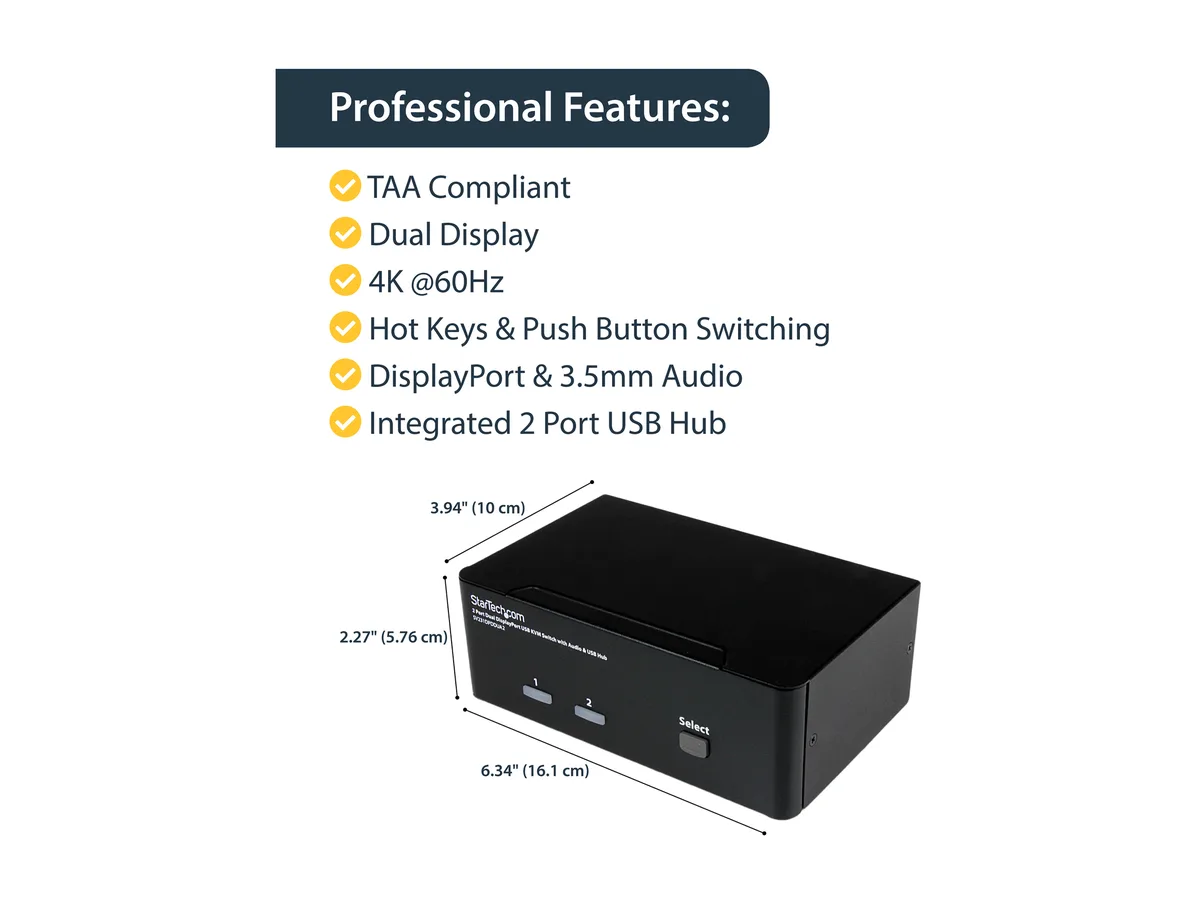

Dimensions2.30" x 6.30" x 3.90"
Weight42.40 oz.

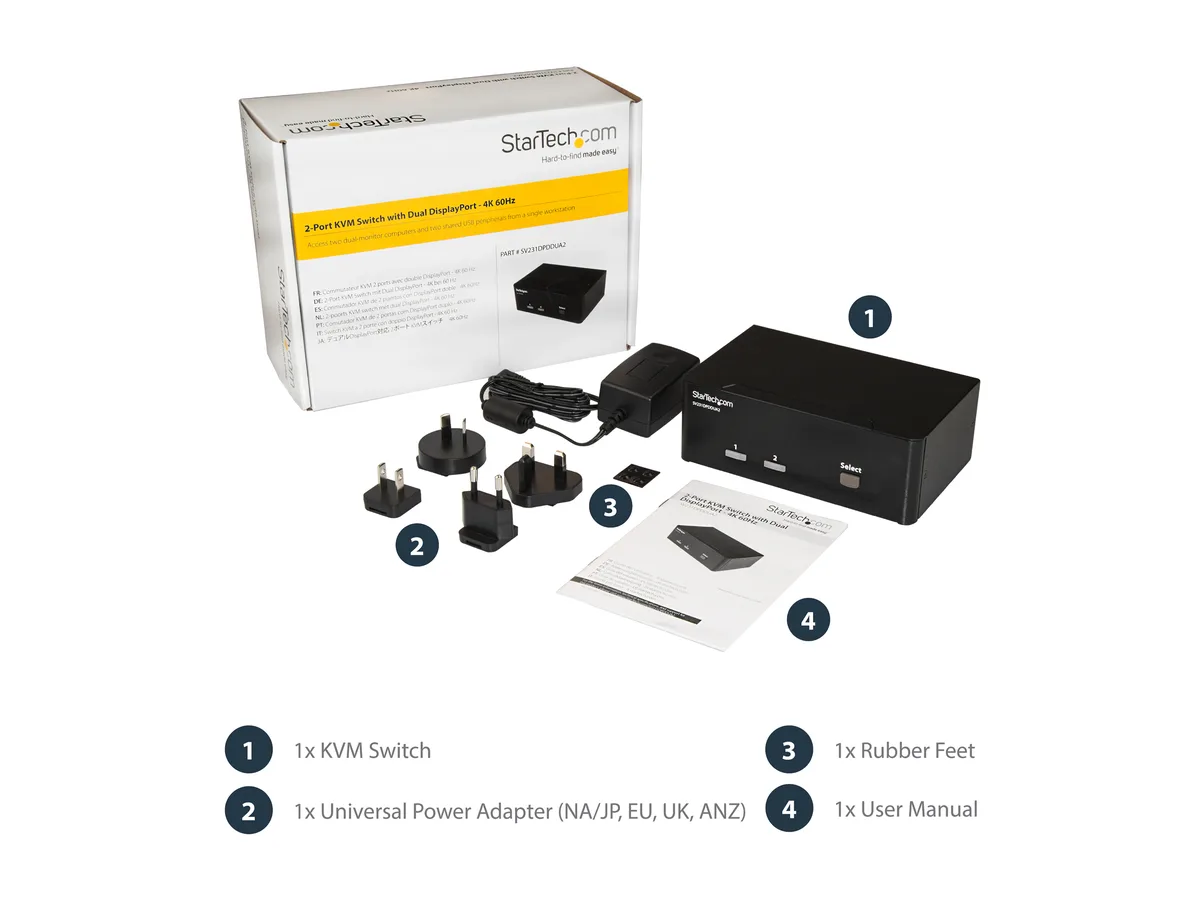

Package Contents1 x KVM switch
1 x universal power adapter (NA / JP, EU, UK, ANZ)
4 x rubber feet
1 x instruction manual
Shipping weight1.20 kg
Package size238 × 189 × 91 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables come in the box and which ones do I need to buy separately for two computers and dual monitors?

The box includes the KVM switch, a universal power adapter with NA/JP, EU, UK and ANZ plugs, four rubber feet and an instruction manual. You must supply four DisplayPort cables for the video links and two USB-B to USB-A cables for the computer connections.

My two PCs only have single DisplayPort outputs; can I still use this switch or do I need the dual-head version?

This model requires each computer to provide two DisplayPort outputs for dual-monitor operation. If your PCs have only one video output each, you would need a single-display KVM instead.

Will 3840 x 2160 at 60 Hz work on both monitors simultaneously through this switch?

Yes. The switch supports 3840 x 2160 at 60 Hz on each of the two console DisplayPort ports, so both monitors can run at that resolution and refresh rate at the same time.
