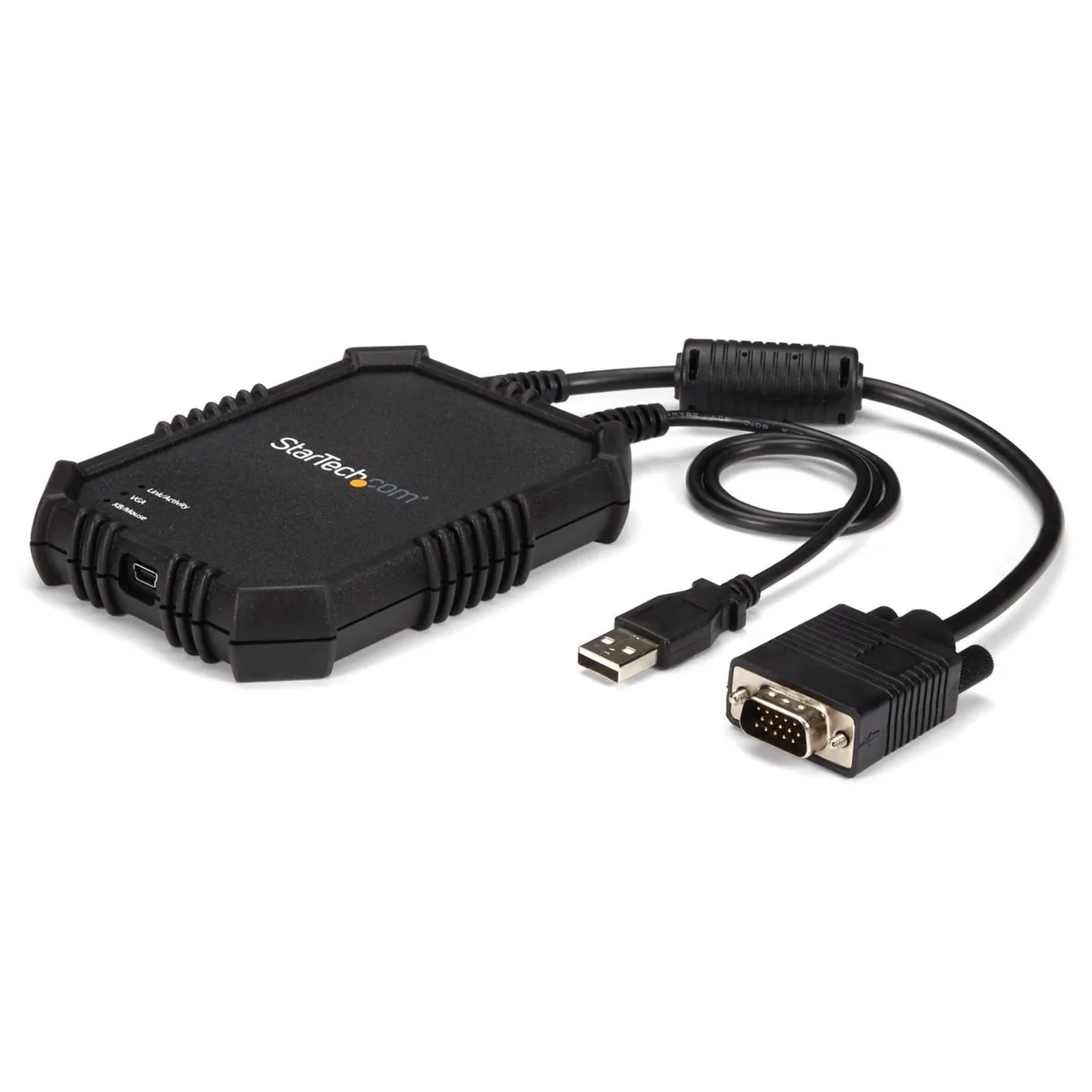

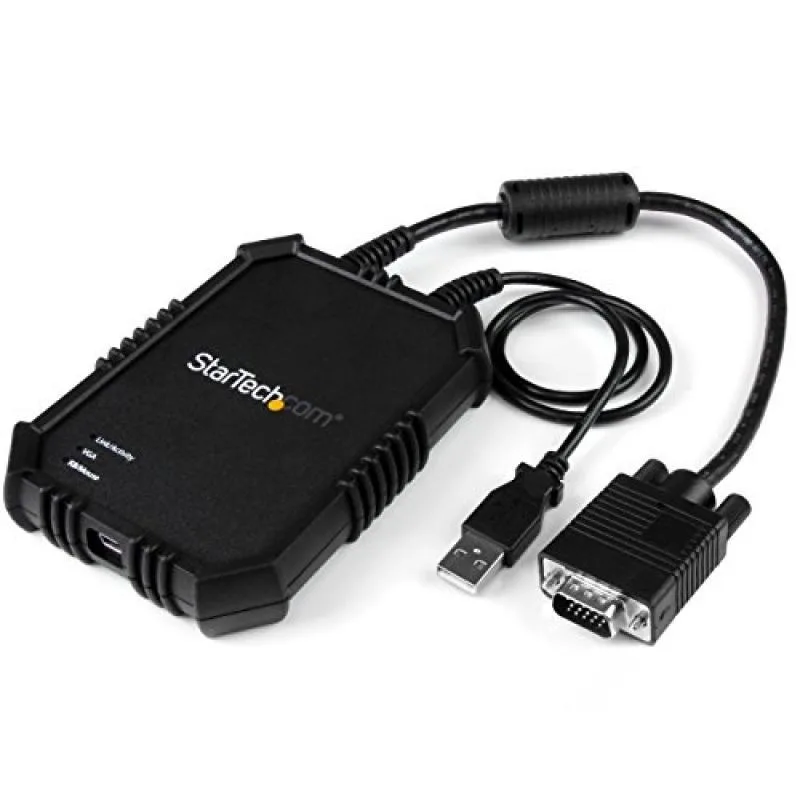

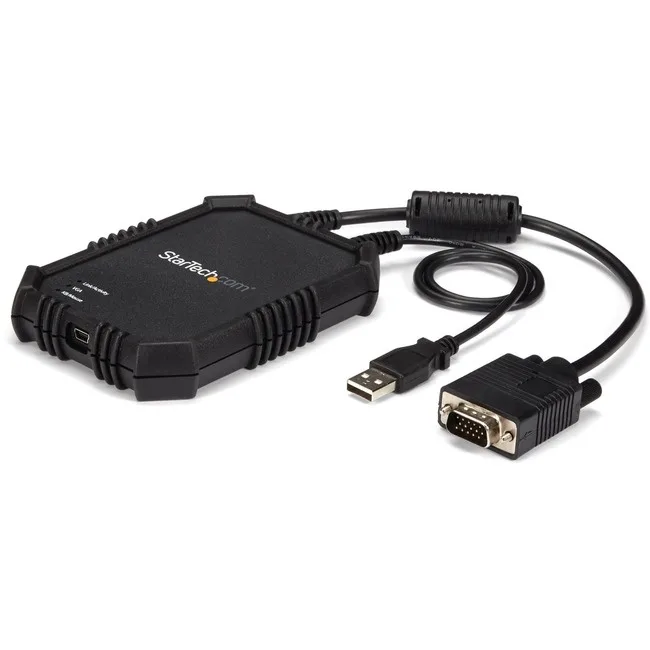

Compact rectangular USB crash-cart adapter with integrated VGA and USB cables, matte black rugged housing, LED status lights

STARTECH

STARTECH NOTECONS02X KVM Switch 1920x1200 USB VGA

SKU CH-45M9-E9NYA MPN NOTECONS02X

Turns a laptop into a portable KVM console for servers, ATMs and kiosks with file transfer and video capture up to 1920x1200

  • PC Connectors1 - USB A (4 pin) Male 1 - VGA (15 pin; High Density D-Sub)
  • Console Connectors1 - USB Mini-B (5 pin) Female Input
  • LED Indicators1 - Host/Server Keyboard/Mouse USB Link 1 - Host/Server Vide
  • Power FeaturesUSB-Powered
  • FeaturesTurn your laptop into a portable KVM console for accessing s
  • Dimensions0.90" x 3.50" x 4.90"

Style USB 2.0 File Transfer Rugged

  • Turn your laptop into a portable KVM console for servers and kiosks
  • Transfer files between laptop and connected PC with included software key
  • Capture and record video of on-screen activity at 1920x1200 resolution
  • Rugged crash cart adapter with integrated cables for mobile administrators
  • USB-powered operation requires no external power supply

Portable Server Access

The StarTech NOTECONS02X is a rugged USB crash-cart adapter that converts a laptop into a portable KVM console for servers, ATMs and kiosks. It integrates VGA and USB cables so administrators can control a target machine directly from their laptop screen and keyboard. The device draws power from the host USB port and includes software for file transfer and video capture. Mobile technicians travelling between data centres will find it fits easily in a tool bag.

VGA Resolution Limit

Video output is limited to a maximum of 1920x1200, so modern displays running higher native resolutions will be scaled down or require manual adjustment. The single VGA male connector on the server side and USB Mini-B console input restrict the adapter to one target system at a time with no support for digital video interfaces. Users needing multi-server switching or HDMI and DisplayPort connectivity must choose a different KVM solution.

Plug-and-Play Setup

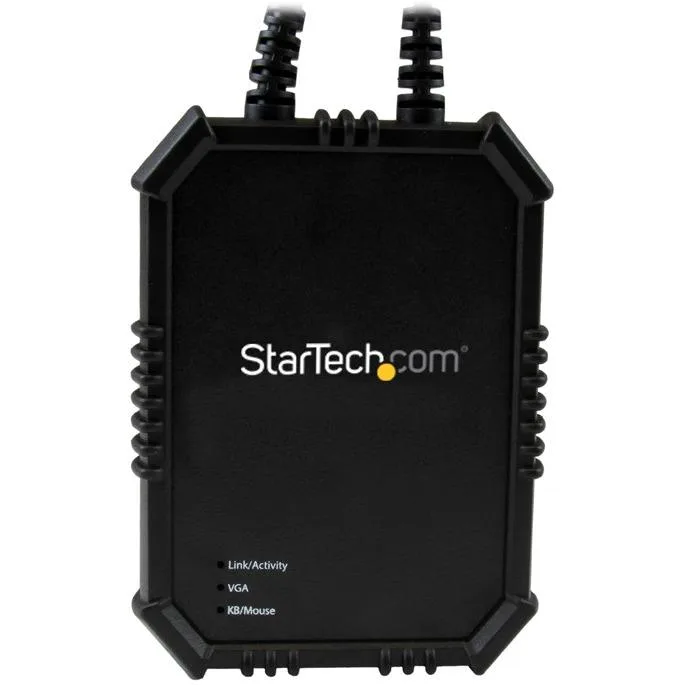

Installation is driver-based: run the included software key on the laptop, connect the integrated USB A and VGA cables to the server, then link the Mini-B console cable to the adapter. The three LED indicators confirm active keyboard, mouse and video links for quick troubleshooting. The most common issue is missing administrator rights for the initial driver install, which prevents the console from detecting the target server.

Highlights

  • Turn your laptop into a portable KVM console for servers and kiosks
  • Transfer files between laptop and connected PC with included software key
  • Capture and record video of on-screen activity at 1920x1200 resolution
  • Rugged crash cart adapter with integrated cables for mobile administrators
  • USB-powered operation requires no external power supply

Specifications

BrandStarTech.com
ModelNOTECONS02X
PC Connectors1 - USB A (4 pin) Male
1 - VGA (15 pin; High Density D-Sub) Male
Console Connectors1 - USB Mini-B (5 pin) Female Input
LED Indicators1 - Host/Server Keyboard/Mouse USB Link
1 - Host/Server Video (VGA) Link
1 - User Console/USB Link
Power FeaturesUSB-Powered
FeaturesTurn your laptop into a portable KVM console for accessing servers, ATMs and kiosks with file transfer and video capture
Compatible with the Dell PowerEdge R series Rack Server
Portable USB Crash Cart Adapter / Portable KVM Console
Record video of on-screen activity
Transfer files from laptop to the connected PC
Supports resolutions up to 1920x1200
Integrated KVM Cables
Perfect for mobile administrators travelling between data centers or server rooms
Rugged for maximum durability
Dimensions0.90" x 3.50" x 4.90"
Weight0.54 lb.
Package Contents1 - Rugged crash cart adapter
1 - USB A to Mini-B cable
1 - USB software key
1 - Quick start guide
Shipping weight0.43 kg
Package size305 × 170 × 51 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose this adapter or a multi-port KVM switch for my rack servers?

This is a single-port crash-cart adapter that connects one laptop to one server via USB and VGA; choose it when you need a portable, USB-powered console for occasional access rather than a permanent multi-server KVM switch.

What does the 1920x1200 resolution support mean when I am controlling a server from my laptop?

It means the adapter can capture and display the server's VGA output at up to 1920x1200 on your laptop screen, so you see the server's desktop at its native resolution without scaling artefacts.

How does the USB Mini-B console connection limit what I can do with file transfer and video capture?

The USB Mini-B link carries keyboard, mouse, file-transfer and video-capture data to the laptop; it is USB-powered so it needs no external supply, but bandwidth is limited to USB 2.0 speeds for file copies and capture frame rates.
