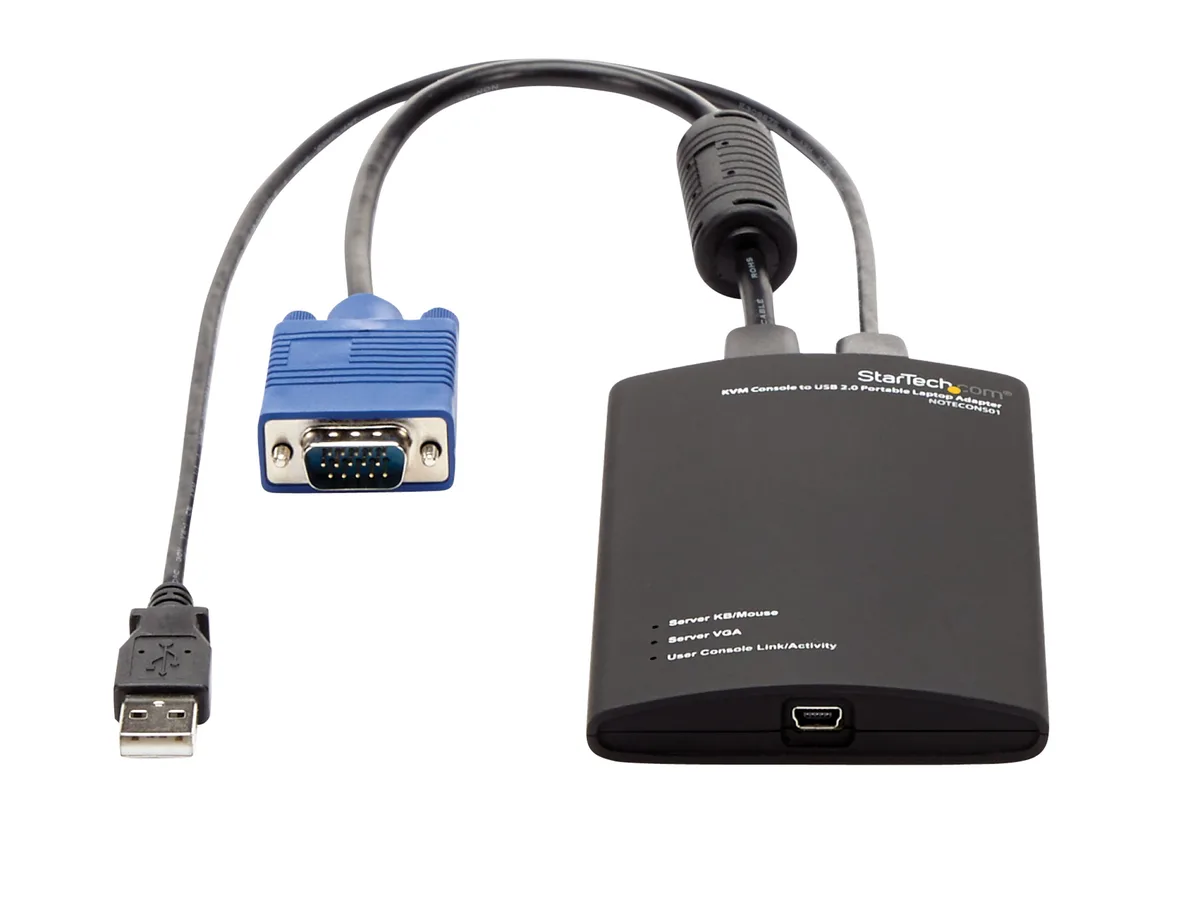

Small black box with attached VGA and USB cables, LED lights on top

STARTECH

STARTECH NOTECONS01 KVM Switch 1 Port USB 2.0 VGA 1920x1600 60Hz

SKU CH-NJQZ-2YKP9 MPN NOTECONS01

A portable USB 2.0 KVM adapter that turns a laptop into a VGA console for headless servers at 1920 x 1600 resolution

  • TypeD-Sub, USB
  • PC Connectors1 - High Density DB15 (VGA) Male 1 - USB A Male
  • Console Connectors1 - USB A Male
  • Computer Connections1 Port
  • Monitor Connections1 Port
  • Video Resolution1920 x 1600 @ 60Hz

Style USB 2.0

  • Turn any laptop into a server console via USB 2.0 and VGA
  • Supports video resolutions up to 1920 x 1600 at 60Hz
  • Integrated cables connect directly with one DB15 and two USB A plugs
  • LED indicators show console link, host video and keyboard/mouse status
  • Compact 2.91 x 4.53 x 0.59 inch design weighs 0.38 lb for travel

Portable KVM adapter for headless servers

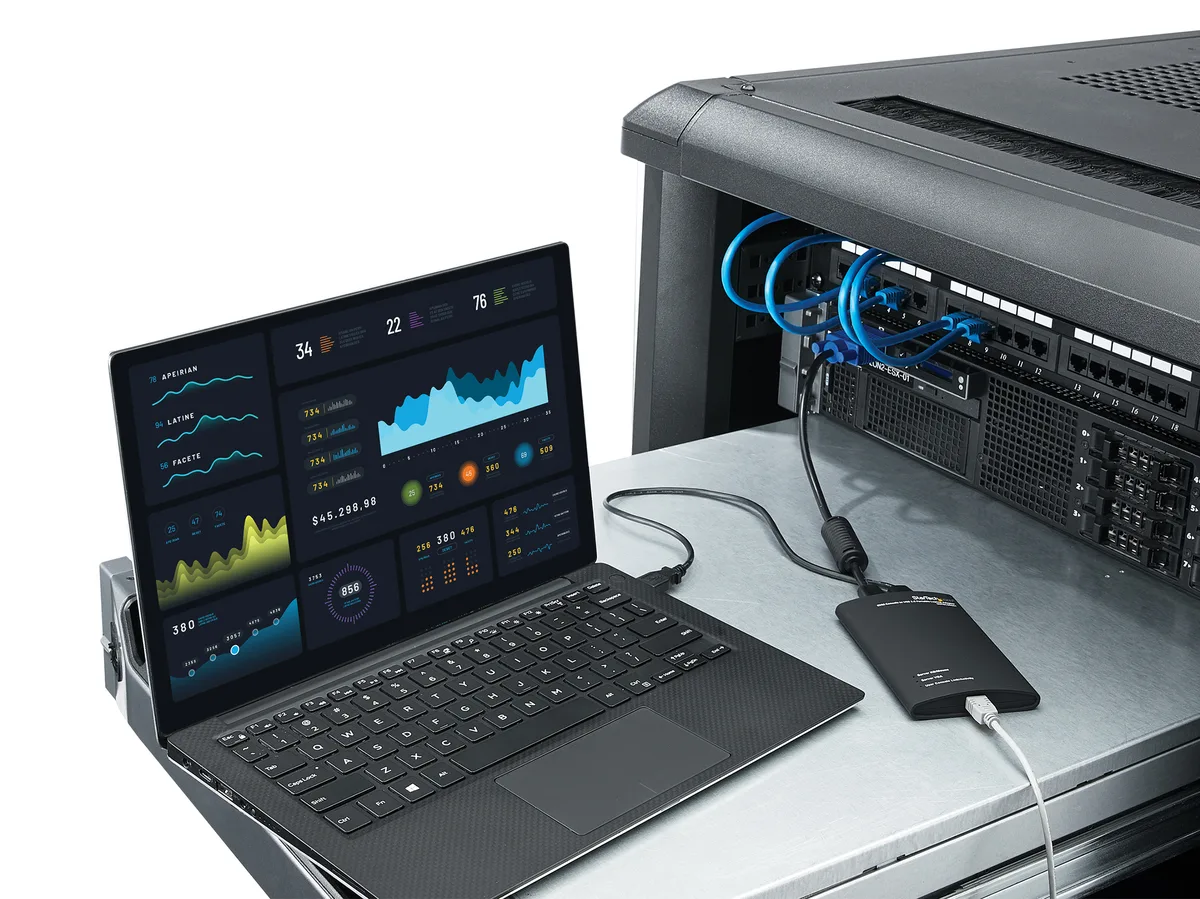

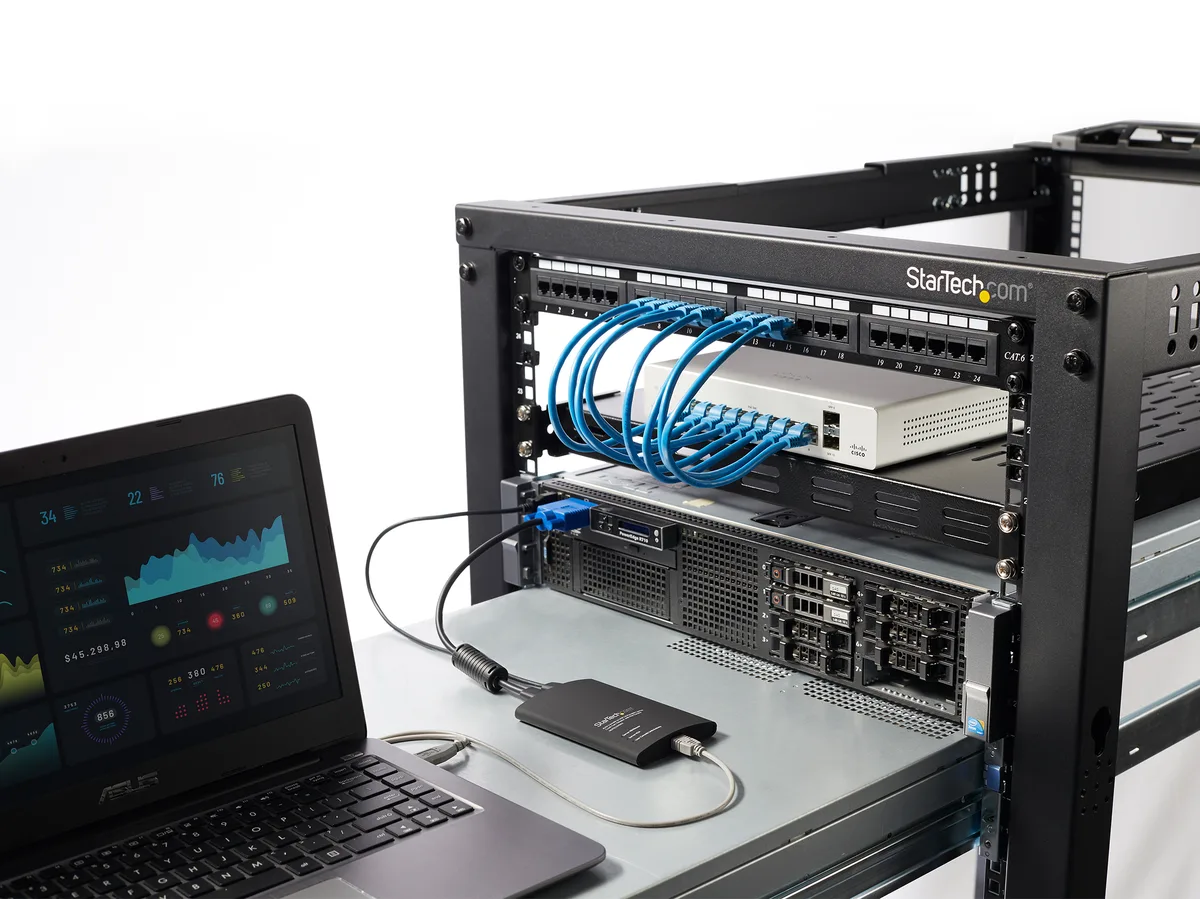

The StarTech NOTECONS01 turns a laptop into a direct console for headless servers, PCs, ATMs and kiosks. It connects through a single USB 2.0 port and a VGA DB15 connector. The adapter is designed for administrators who travel between data centres and server rooms. No external power supply is required for operation.

Plug-and-play with integrated cables

Integrated cables eliminate loose parts and simplify connection to the target system. Auto image centering adjusts 4:3 output on widescreen laptop displays. LED indicators confirm USB link, host video and host keyboard or mouse activity. Keyboard emulation supports USB, PS/2 and SUN systems for broad compatibility.

VGA resolution limited to 1920x1600 at 60Hz

The analog VGA interface caps maximum resolution at 1920x1600 at 60Hz. USB 2.0 bandwidth restricts peripheral throughput compared with newer standards. Single-port design serves only one computer at a time. Buyers needing multi-server switching or digital video input should consider a different class of KVM.

Highlights

  • Turn any laptop into a server console via USB 2.0 and VGA
  • Supports video resolutions up to 1920 x 1600 at 60Hz
  • Integrated cables connect directly with one DB15 and two USB A plugs
  • LED indicators show console link, host video and keyboard/mouse status
  • Compact 2.91 x 4.53 x 0.59 inch design weighs 0.38 lb for travel

Specifications

BrandStarTech.com
ModelNOTECONS01
TypeD-Sub, USB
PC Connectors1 - High Density DB15 (VGA) Male
1 - USB A Male
Console Connectors1 - USB A Male
Computer Connections1 Port
Monitor Connections1 Port
Video Resolution1920 x 1600 @ 60Hz
LED Indicators1- User Console/USB Link
1-Host/Server Video (VGA) Link
1-Host/Server Keyboard/Mouse (USB,PS/2) Link
FeaturesAuto image centering adjustment for 4x3 images on a wide screen display
Keyboard emulation support for USB, PS/S and SUN systems
LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link
Manual video adjustments allow you to control the picture position, sharpness and image noise. This helps to manage performance
Multi platform support USB and PS/2 to the server or KVM (PS/2 - Keyboard Only)
Pre-loaded special key commands
Self powered
Snapshot feature allows you to capture screen shots of your server, error messages, and activity
Upgradable Firmware
Very small footp
Dimensions2.91" x 4.53" x 0.59"
Weight0.38 lb
Shipping weight0.41 kg
Package size310 × 170 × 51 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I confirm the laptop crash cart adapter is working after connecting it to a server?

The three LED indicators show the status: User Console/USB Link, Host/Server Video (VGA) Link, and Host/Server Keyboard/Mouse Link. When all are lit, the 1920 x 1600 @ 60Hz video and USB 2.0 connections are active.

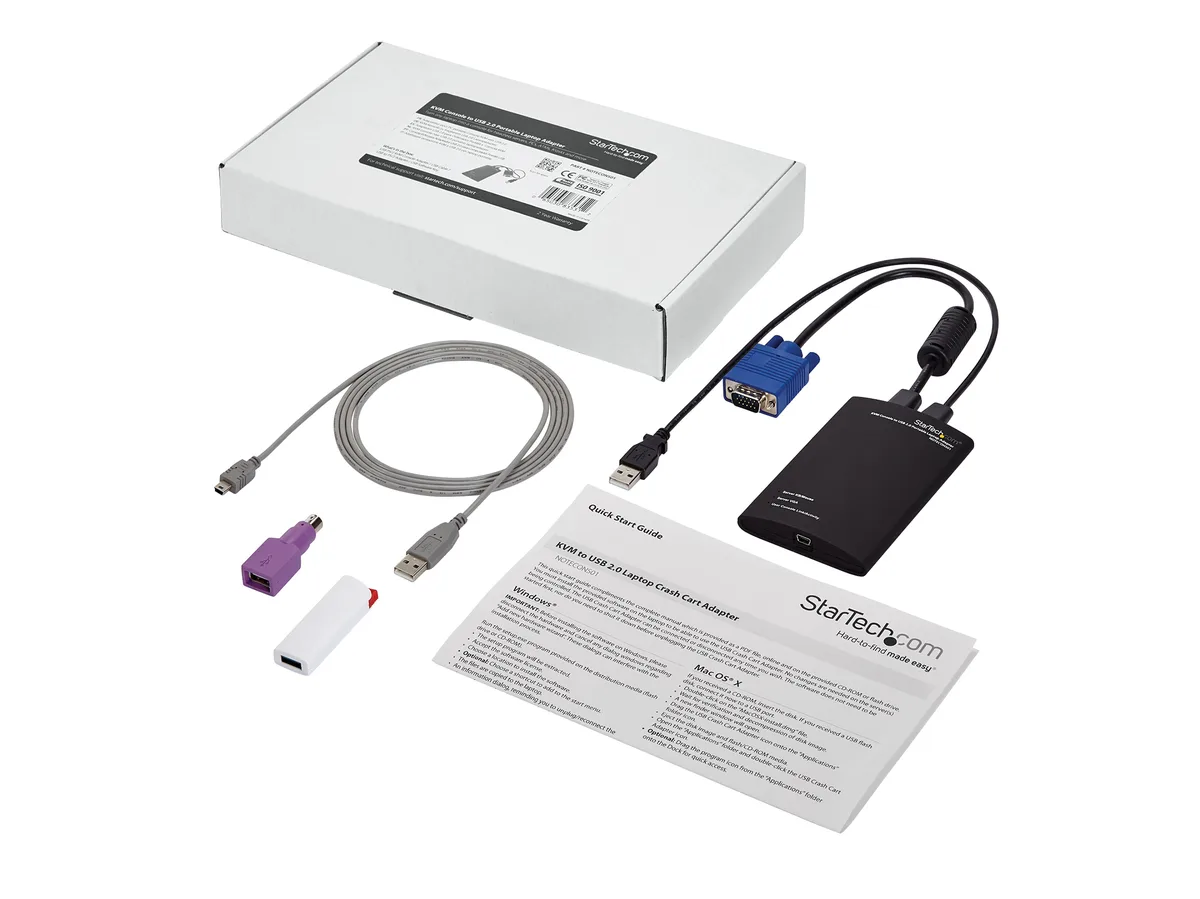

What cables come in the box and is anything extra needed to start using the NOTECONS01?

The adapter has integrated KVM cables with a High Density DB15 (VGA) Male and a USB A Male for the server side, plus a USB A Male for the laptop console. No separate cables are required for basic operation.

Which resolution setting should I choose for the best image on a widescreen monitor?

The device supports up to 1920 x 1600 at 60 Hz and includes auto image centring adjustment for 4:3 images on a wide screen display. Set the server output to 1920 x 1200 or 1920 x 1600 for a centred picture.
