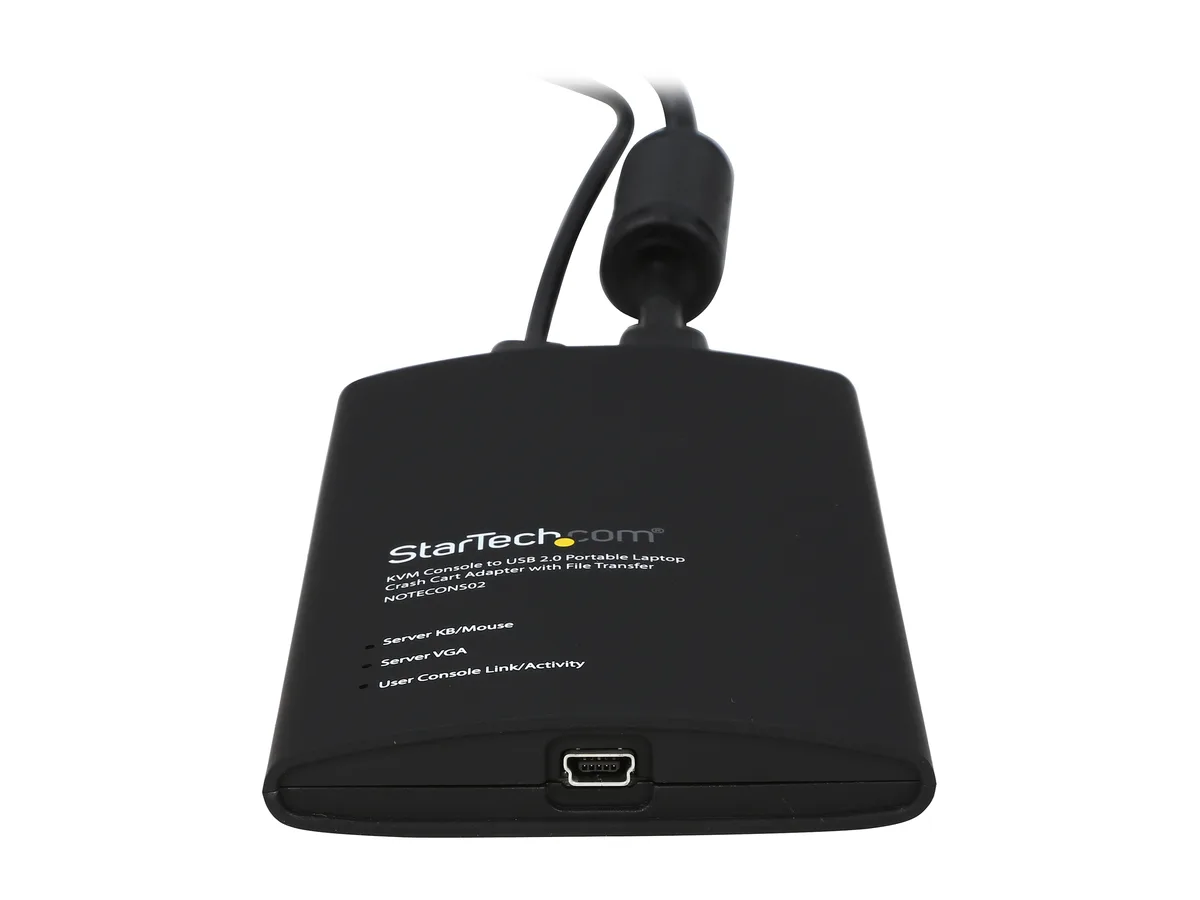

Compact black USB KVM adapter with integrated VGA and USB cables

STARTECH

STARTECH NOTECONS02 KVM Switch USB 2.0 1920x1200 60Hz VGA

SKU CH-SC12-31YKG MPN NOTECONS02

Turns a laptop into a portable crash cart with integrated KVM cables for VGA servers up to 1920x1200 at 60 Hz and enables file transfer plus video capture

  • TypeUSB
  • PC ConnectorsUSB
  • Computer Connections1 x USB Mini-B (5 pin) Female
  • Monitor Connections1 x USB A (4 pin) Male 1 - VGA (15 pin; High Density D-Sub)
  • Video Resolution1920 x 1200
  • Monitors SupportedVGA

Style USB 2.0 File Transfer

  • Turns your laptop into an instant crash cart with integrated cables
  • Instant BIOS-level control without additional software or drivers
  • Capture screenshots and video at up to 1920x1200 60 Hz
  • Transfer files between laptop and connected server directly
  • Compact 0.60 x 2.90 x 4.50 in design weighs only 0.38 lb

Portable crash-cart adapter

The StarTech NOTECONS02 turns a laptop into an instant KVM console for servers, PCs, ATMs and kiosks. It connects through a single USB 2.0 Mini-B port on the laptop and provides a VGA male connector plus a USB-A male connector for the target machine. The adapter draws power from the server USB port so no external supply is required.

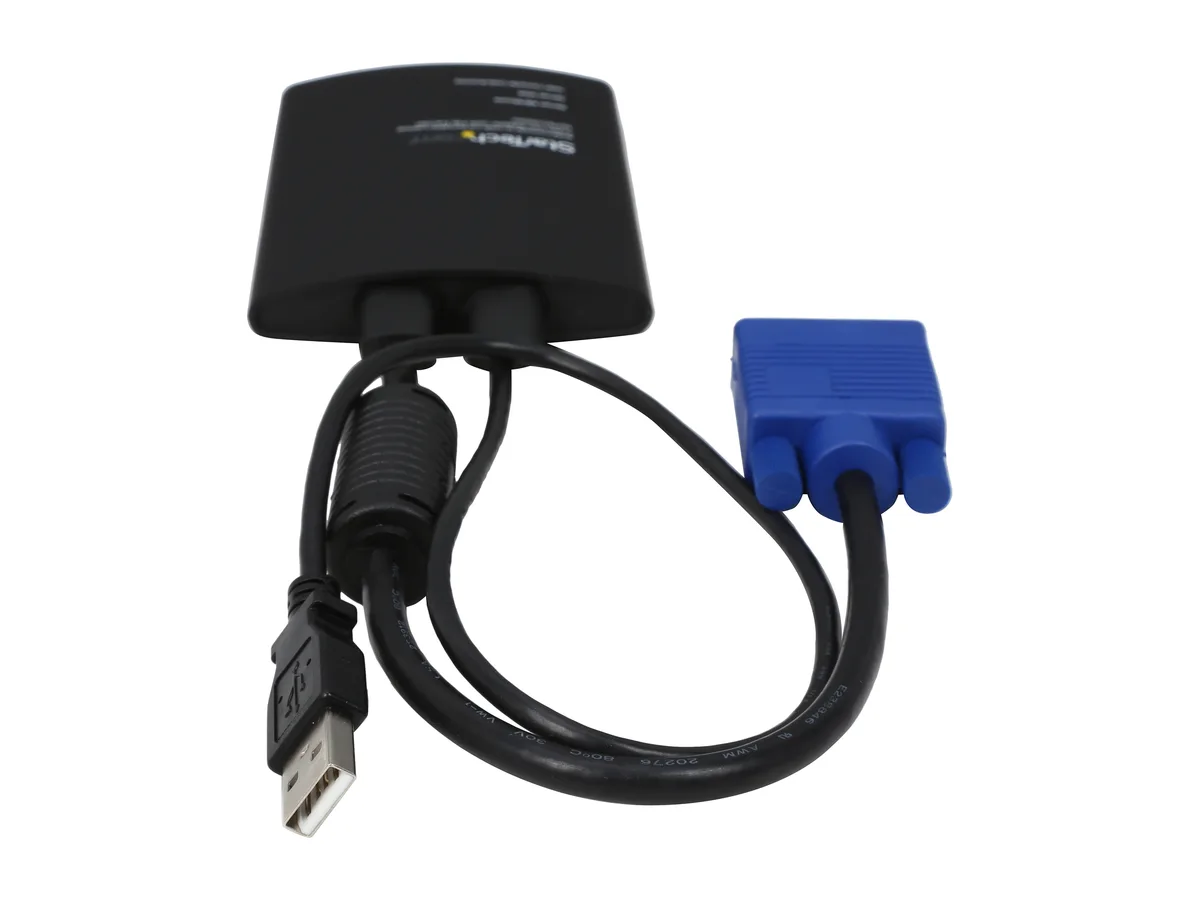

Integrated cables and compact build

The unit measures 0.60" x 2.90" x 4.50" and weighs 0.38 lb, with all KVM cables built into the housing. This eliminates loose cables when moving between racks and keeps the footprint small enough for a laptop bag. The VGA link supports 1920 x 1200 resolution at 60 Hz with auto scaling and centering for 4:3 sources on widescreen displays.

Replaces a dedicated crash cart

Administrators who currently wheel a separate monitor, keyboard and mouse between racks can carry this adapter instead. The jump is worth it when you need BIOS-level access, screenshot or video capture up to 1920x1200, and file transfer between the laptop and the connected system without extra hardware. Buyers who require multi-port switching or support for digital video inputs such as HDMI or DisplayPort will need a different solution.

Highlights

  • Turns your laptop into an instant crash cart with integrated cables
  • Instant BIOS-level control without additional software or drivers
  • Capture screenshots and video at up to 1920x1200 60 Hz
  • Transfer files between laptop and connected server directly
  • Compact 0.60 x 2.90 x 4.50 in design weighs only 0.38 lb

Specifications

BrandStarTech.com
ModelNOTECONS02
TypeUSB
PC ConnectorsUSB
Computer Connections1 x USB Mini-B (5 pin) Female
Monitor Connections1 x USB A (4 pin) Male
1 - VGA (15 pin; High Density D-Sub) Male
Video Resolution1920 x 1200
Monitors SupportedVGA
FeaturesCompact footprint with integrated KVM cables
Supports file sharing between your laptop and the connected server
Instant BIOS-Level control
Supports resolutions up to 1920x1200
Self-powered – Draws from the server USB connection
LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link
Automatic video scaling when re-sizing the viewing pane - no scroll bars
Snapshot feature allows you to capture screen shots
Manual video adjustments to control the picture position, sharpness and image noise for optimal performance
Pre-loaded special key commands
Auto image centering a
Dimensions0.60" x 2.90" x 4.50" (H x W x D)
Weight0.38 lb
Shipping weight0.50 kg
Package size302 × 163 × 46 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What video resolution and refresh rate does the USB 2.0 KVM adapter actually deliver to my laptop screen?

The adapter captures and scales the server's VGA output up to 1920x1200 at 60 Hz, so the console view on your laptop matches that resolution and frame rate.

What physical space and connectors does the integrated cable assembly need on the server side?

It plugs into one USB Mini-B 5-pin port and one VGA 15-pin high-density D-Sub port on the target machine, and the dongle itself measures 0.60" high by 2.90" wide by 4.50" deep.

How do I get the laptop console running, and which step do people usually miss?

Connect the USB Mini-B and VGA plugs to the server, plug the USB-A end into the laptop, launch the console application, then enable file-transfer and video-capture features in the software — skipping that software enable step is the common oversight.
