STARTECH
STARTECH N6LPATCH6GR 6 ft Cat6 network ethernet cable
A 6 ft Cat6 patch cable with LSZH jacket, 100% copper conductors and 10 GbE support up to 55 m
- TypeNetwork Ethernet Cables
- Cat6
- Connector ARJ45
- Connector BRJ45
- Length6 ft.
- ColorGray
- Supports 10 GbE multi-gigabit speeds up to 55 m
- Low-smoke zero-halogen jacket reduces toxic fumes in fire
- 24 AWG stranded copper conductors ensure reliable signal integrity
- 50-micron gold-plated RJ45 pins resist corrosion for lasting connections
- Snagless strain-relief boots protect the cable during repeated plugging
6 ft Cat6 LSZH patch cord

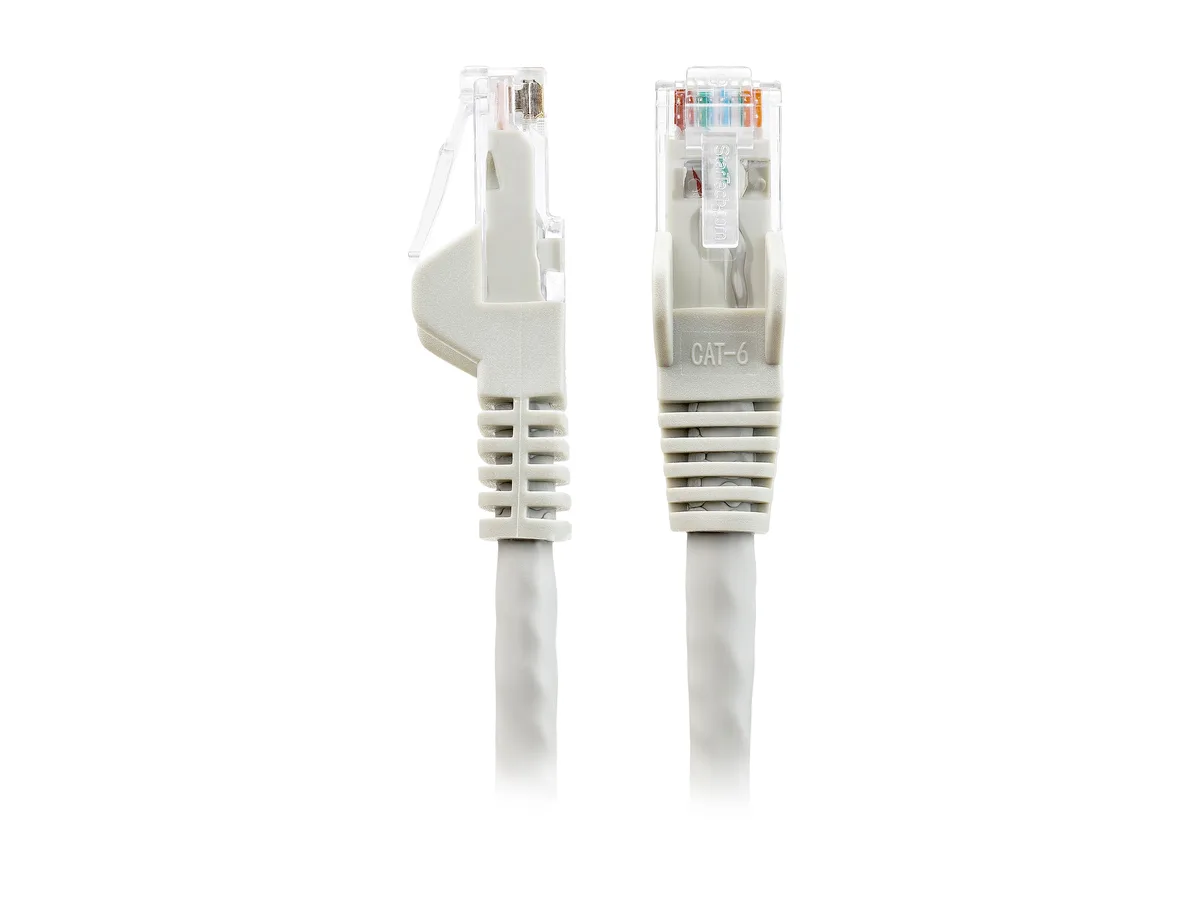

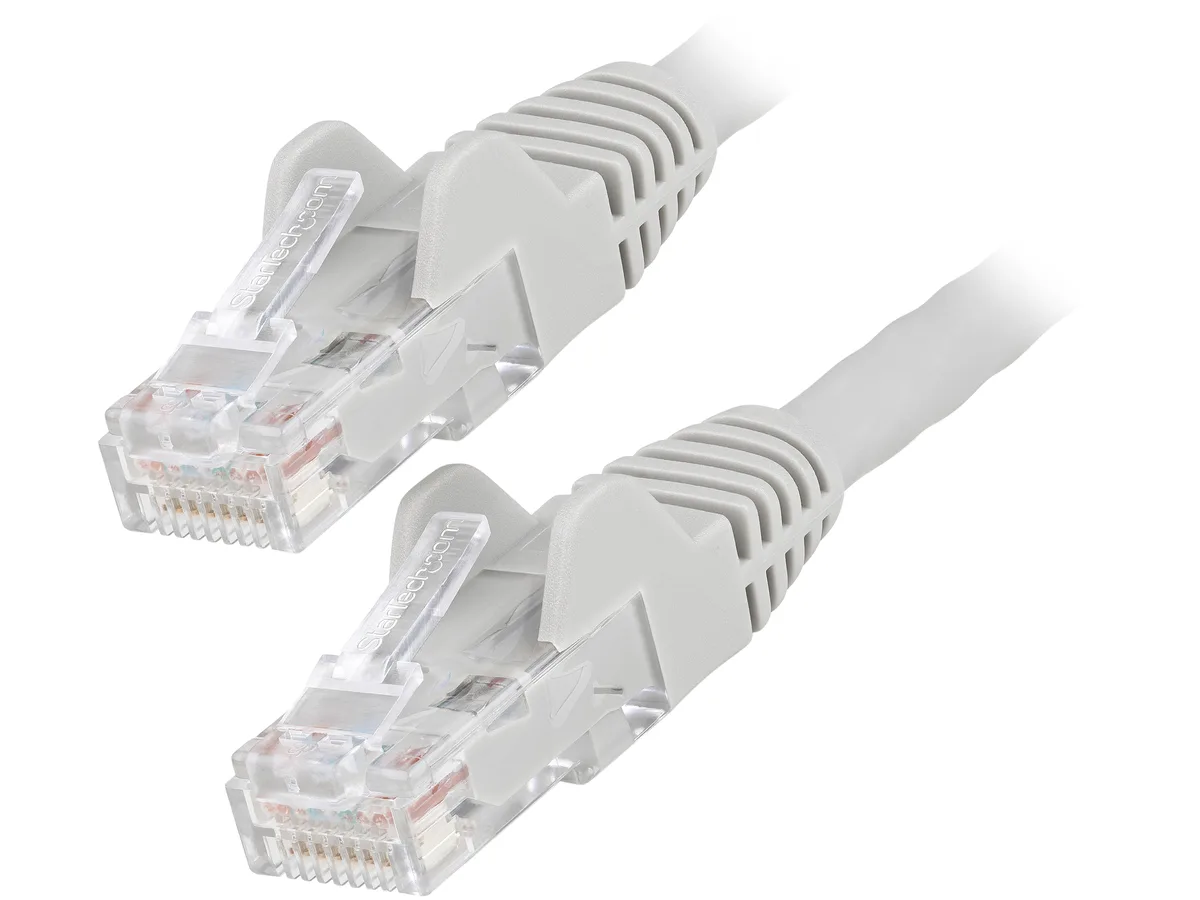

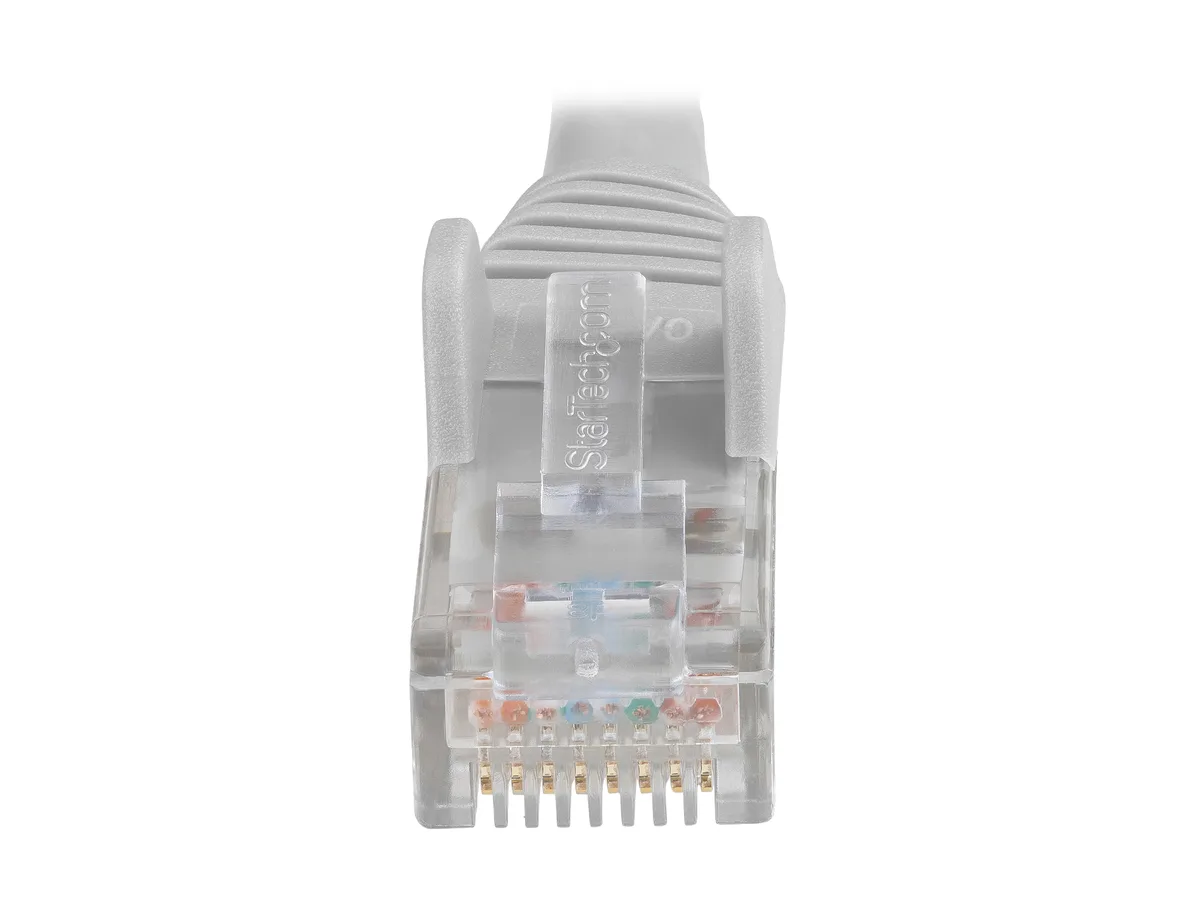

This StarTech.com N6LPATCH6GR is a six-foot Category 6 network cable with RJ45 connectors on both ends. It uses 24 AWG stranded copper conductors and a low-smoke zero-halogen jacket for safer indoor routing. The cord supports multi-gigabit speeds up to 10 Gbps at distances up to 55 metres. It is rated for 650 MHz bandwidth and complies with ANSI/TIA-568-2.D.
Replaces older Cat5e or damaged Cat6 runs
Upgrade when existing cables limit throughput to one gigabit or when jacket material must meet low-smoke requirements. The 100 W PoE++ rating also makes the jump worthwhile for high-power access points or cameras. Snagless boots and 50-micron gold-plated pins improve durability over basic patch cords.
Check connector spacing and cable path length
Verify that six feet reaches between your switch, router, or wall jack and the target device without tension. Ensure the equipment ports accept standard RJ45 plugs and that the LSZH jacket meets any local building-code requirements for plenum or riser spaces.
Highlights
- Supports 10 GbE multi-gigabit speeds up to 55 m
- Low-smoke zero-halogen jacket reduces toxic fumes in fire
- 24 AWG stranded copper conductors ensure reliable signal integrity
- 50-micron gold-plated RJ45 pins resist corrosion for lasting connections
- Snagless strain-relief boots protect the cable during repeated plugging
Specifications
| Brand | StarTech.com |
|---|---|
| Model | N6LPATCH6GR |
| Type | Network Ethernet Cables |
| Cat | 6 |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 6 ft. |
| Color | Gray |
| Features | 6ft (1.8m) Gray LSZH CAT6 Ethernet cable w/100% copper 10GbE Multi Gigabit 1/2.5/5Gbps/10Gbps up to 55m Complies with ANSI/TIA-568-2.D Category 6 Low Smoke Zero Halogen RJ45 Network Patch Cord w/24 AWG Ethernet wire and stranded copper conductors 100W PoE++ PVC-free/EVA jacket Eco-friendly/lower toxic fumes 650Mhz Rated ANSI/TIA-568-B Wiring 4 pair U/UTP Snagless cable w/Strain Relief ETL Verified 50-micron gold-plated pins |
| Shipping weight | 0.09 kg |
| Package size | 220 × 200 × 15 mm |
Questions about this item
What clearance does the 6 ft LSZH Cat6 cable with snagless strain relief need at the RJ45 ends?
The snagless boots add a few millimetres beyond the RJ45 body, so allow roughly 25 mm straight back from the port for the strain-relief moulding to sit without bending the 24 AWG conductors.
Which wiring scheme should I follow when punching this cable into a keystone or patch panel?
The cable is built to ANSI/TIA-568-B wiring; terminate each end to the T568-B colour code so the 4-pair U/UTP pairs stay in spec for 10 GbE up to 55 m.
When should I replace this PVC-free EVA-jacketed patch cord in a PoE++ deployment?
Inspect the 50-micron gold-plated pins and LSZH jacket annually; replace the cord if the contacts show corrosion, the jacket cracks, or the cable fails a 650 MHz certification test.
