Compact silver metal media converter with SC fiber and RJ45 copper ports, status LEDs and power jack

STARTECH

STARTECH MCMGBSCMM055 1000BASE-SX SFP transceiver 550m multi-mode

SKU CH-FCC6-RRMGP MPN MCMGBSCMM055

Converts Gigabit Ethernet to multimode SC fiber at 850nm for 550m links with included power adapter

  • Device TypeConverter
  • StandardsIEEE 802.3z 1000BASE-SX IEEE 802.3ab 1000BASE-T IEEE 802.3u
  • Wavelength850nm
  • Fiber CableMulti-mode Optical Fiber
  • ProtocolsTCP/IP
  • Ports1000Base-SX

Type Multi Mode SC - Gigabit

  • Extends Gigabit Ethernet up to 550m over multimode SC fiber
  • Cost-effective copper-to-fiber or fiber-to-copper media conversion
  • LFP mode on both fiber and copper ports for link fault detection
  • Compact wall-mountable design with simple installation
  • SC fiber and RJ45 copper ports with universal AC power adapter included

Compact Gigabit fiber converter

The StarTech MCMGBSCMM055 converts a Gigabit Ethernet link to multimode SC fiber and back, reaching 550m at 850nm wavelength. It supports IEEE 802.3z 1000BASE-SX and 1000BASE-T standards with full-duplex flow control. The unit includes a universal AC adapter and ships new with a quick-start guide.

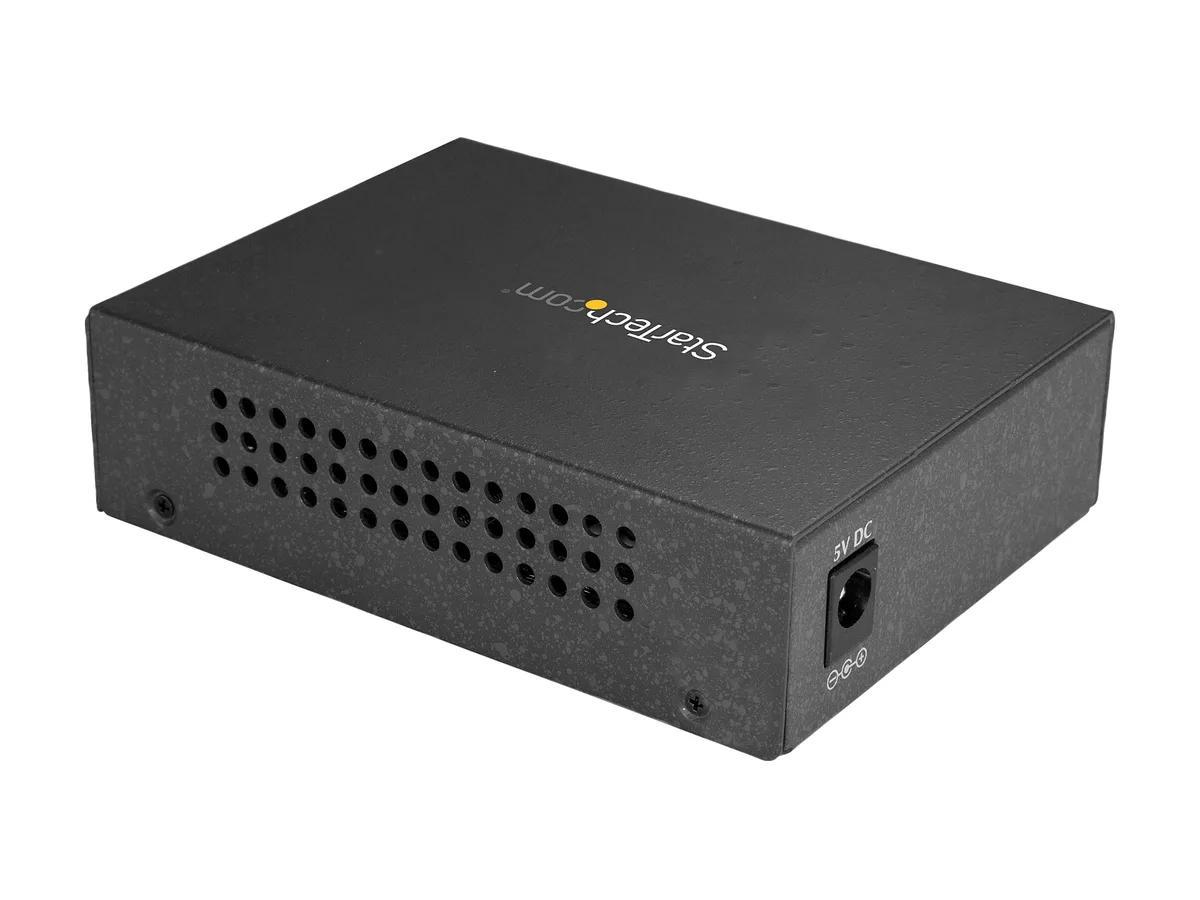

Wall-mountable metal enclosure

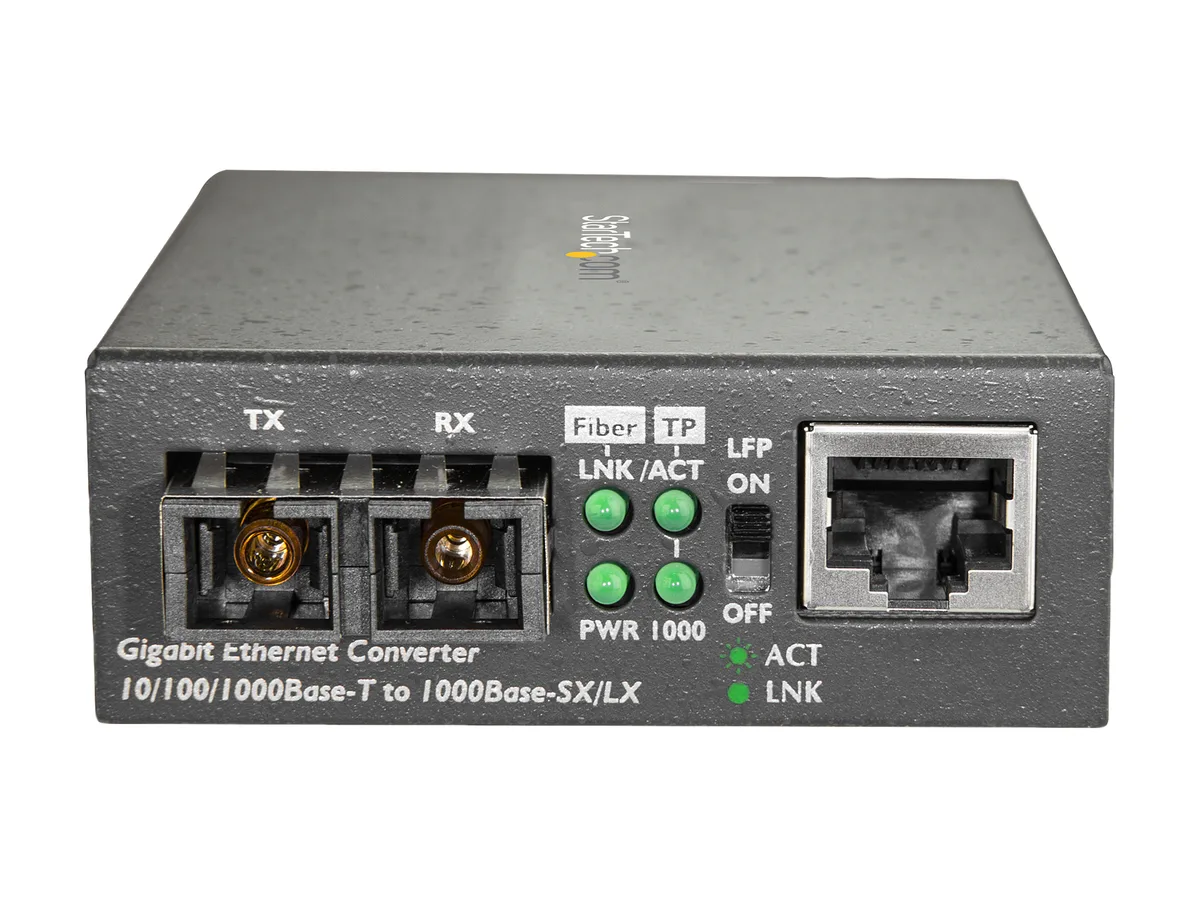

The converter measures 1.00" x 3.80" x 2.80" and weighs .44 lb, fitting tight cabinet spaces while the metal chassis aids heat dissipation. A single SC duplex port handles fiber and an RJ-45 port handles copper, each with dedicated link and activity LEDs. Power draw is 5 W from the supplied 100-240 VAC adapter, and operating temperature spans 0 to 50°C.

Extends copper runs beyond 100m

This device replaces a direct copper patch when the link exceeds the standard twisted-pair distance limit, letting you bridge buildings or floors over existing multimode fiber. It adds VLAN pass-through and link-fault-pass-through so upstream switches see the true link state. The jump is worth it when you need a powered, managed media conversion point rather than a passive patch panel.

Highlights

  • Extends Gigabit Ethernet up to 550m over multimode SC fiber
  • Cost-effective copper-to-fiber or fiber-to-copper media conversion
  • LFP mode on both fiber and copper ports for link fault detection
  • Compact wall-mountable design with simple installation
  • SC fiber and RJ45 copper ports with universal AC power adapter included

Specifications

BrandStarTech.com
ModelMCMGBSCMM055
Device TypeConverter
StandardsIEEE 802.3z 1000BASE-SX
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x full-duplex flow control
IEEE 802.3 10BASE-T
IEEE 802.1q VLAN pass through
Wavelength850nm
Fiber CableMulti-mode Optical Fiber
ProtocolsTCP/IP
Ports1000Base-SX
Max Distance550m
Transfer Rate1 Gbps
LEDs1 x 1000 Link: ON - Valid Gigabit Link
1 x FX Link / Activity
1 x Power
1 x TP Link / Activity

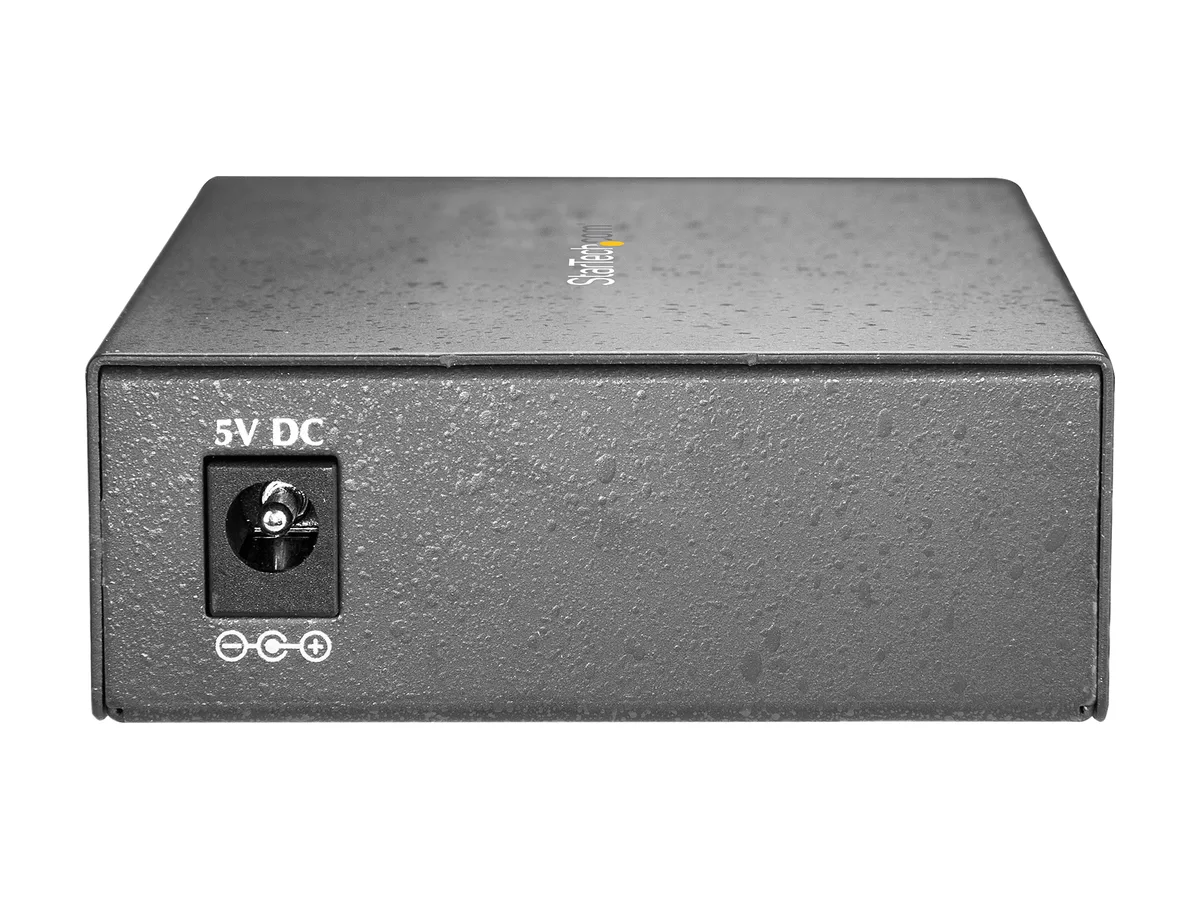

Power AdapterCenter Tip Polarity: Positive
Input Current: 0.5A
Input Voltage: 100 ~ 240 AC
Output Current: 2.6A
Output Voltage: 5 DC
Plug Type: N
Power Consumption (In Watts): 5
Power Source: AC Adapter Included
TemperatureOperating Temperature: 0 ~ 50 degree Celsius (32 ~ 122 degree Fahrenheit)
Storage Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit)
Humidity5% ~ 90% RH
FeatureConverts and extends a Gigabit Ethernet fiber (1000 Mbps) network over multimode fiber on 1000BASE-SX networks
Provides a cost-effective Ethernet to fiber / copper to fiber link
Supports a maximum distance of 550m over multimode fiber-optic cable (SC connection)
Compact design and wall mountable
Non-blocking full wire-speed forwarding rate
Provides DIP switch supporting Link Fault Pass-through function
LED Indicators for simple Ethernet / fiber network link monitoring
850nm wavelength
Supports IEEE 802.1q Tag VLAN pass-through
Dimensions1.00" x 3.80" x 2.80"
Weight0.44 lb.

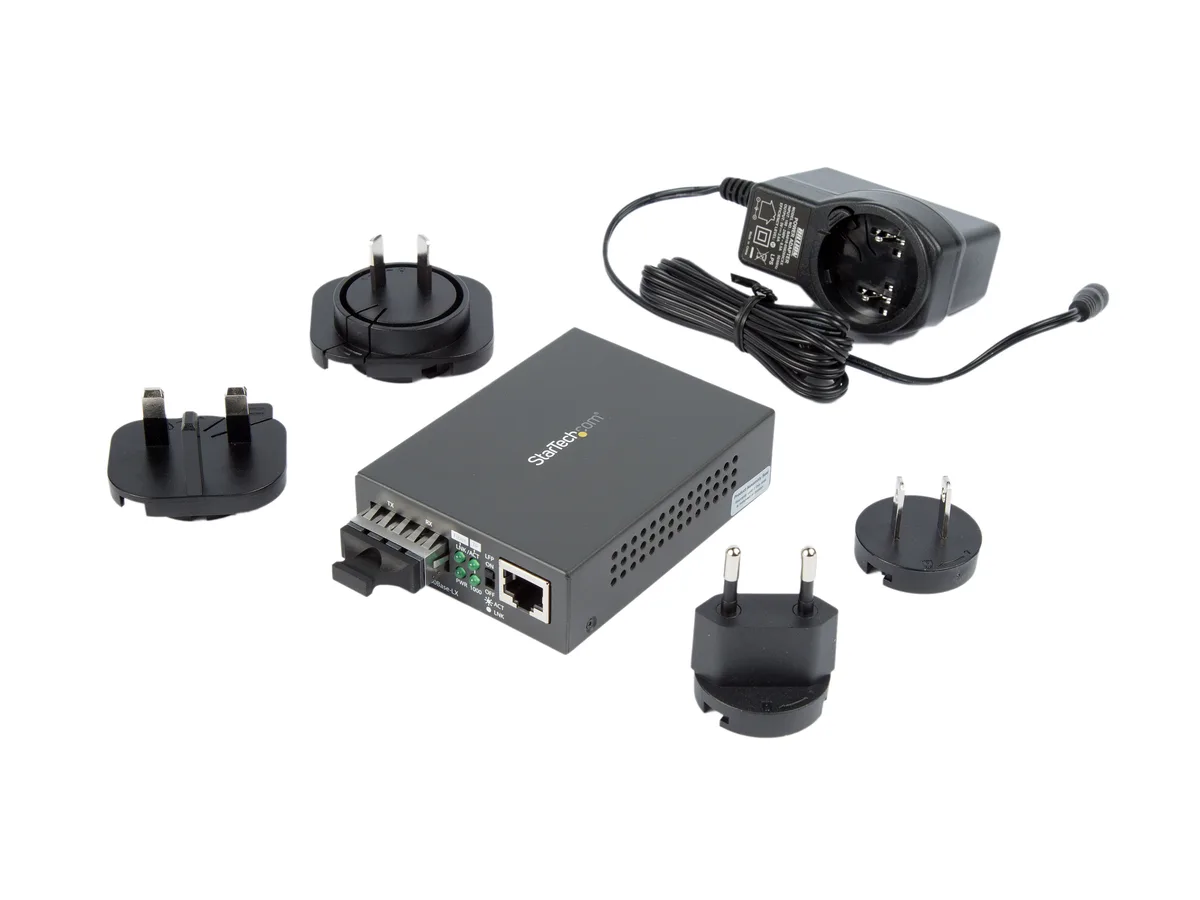

Package Contents1 x media converter
1 x universal power adapter (NA / JP, UK, EU, ANZ)
1 x quick-start guide
Shipping weight0.56 kg
Package size284 × 137 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What distance does the 1000BASE-SX interface support over multi-mode fiber?

The 1000BASE-SX standard on this converter reaches 550m over multi-mode fiber at 850nm wavelength.

What physical space and mounting options does the converter need?

It measures 1.00" x 3.80" x 2.80", weighs .44 lb, and includes a wall-mountable compact design.

How do I power and connect the unit, and what step is often missed?

Plug the included universal AC adapter (100-240V AC in, 5V DC 2.6A out) into the center-positive jack, connect SC fiber and RJ45 copper, then verify the 1000 Link LED lights solid for a valid gigabit link.
