Small metal box with RJ45 port and open SFP slot

STARTECH

STARTECH MCM1110SFP Gigabit SFP transceiver

SKU CH-T0M1-ZB0XR MPN MCM1110SFP

Converts RJ45 copper Ethernet to fiber via an open SFP slot for Gigabit network extension

  • StandardsIEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000
  • ProtocolsTCP/IP
  • Ports1 x RJ-45 Female 1 x SFP Slot Female
  • Transfer Rate1 Gbps
  • LEDs1 x Power 1 x Fiber Port Link / Act 1 x Copper Port Link / A
  • Power AdapterCenter Tip Polarity: Positive Input Current: 1A Input Voltag

Type Open SFP - Gigabit

  • Convert copper Ethernet to fiber with an open SFP slot for flexible distance
  • Gigabit RJ-45 port auto-negotiates 10/100/1000 speeds for mixed networks
  • Compact metal housing operates from 0 to 50 °C for reliable deployment
  • Wall-mount design and included universal power adapter simplify installation
  • Link Fault Pass through and 802.1q VLAN tag support maintain network integrity

Gigabit Media Converter with Open SFP Slot

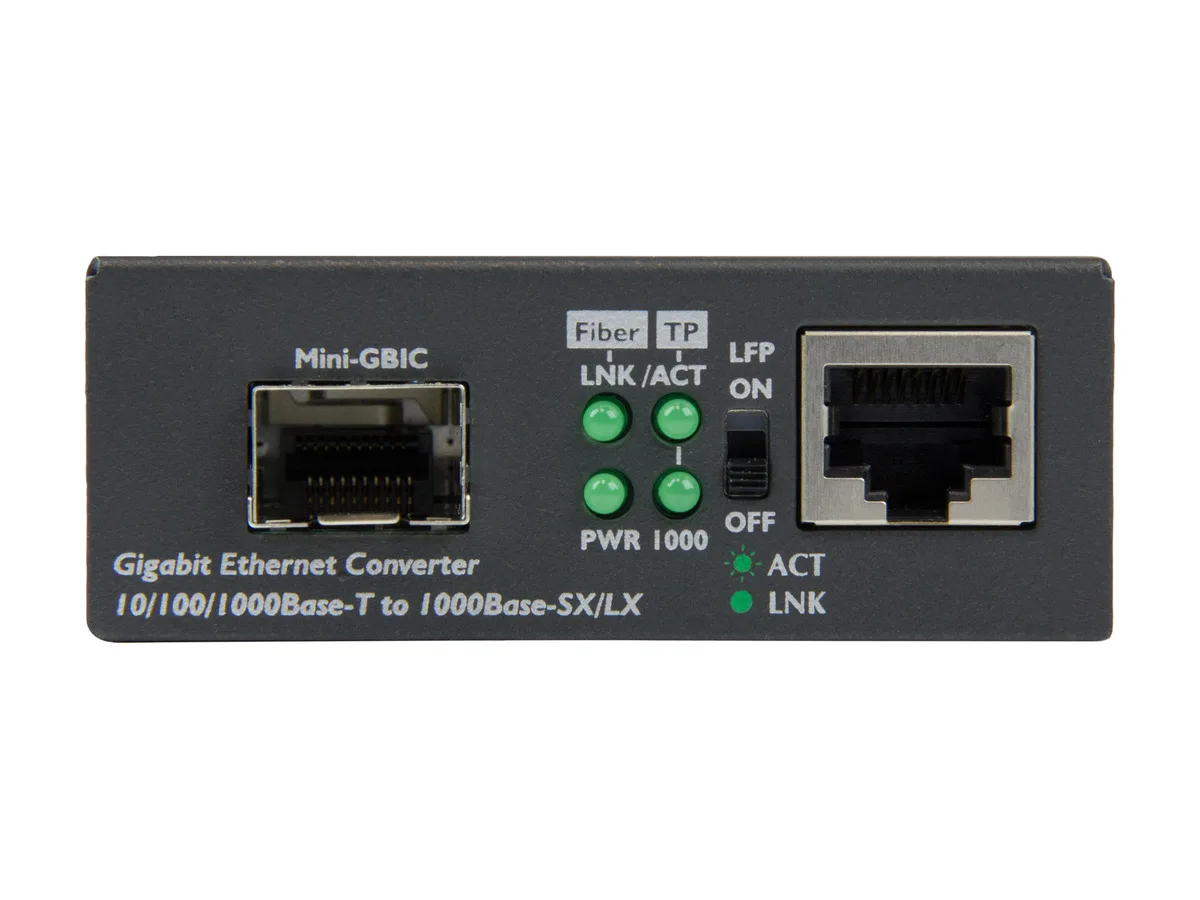

The StarTech.com MCM1110SFP converts a copper RJ45 Ethernet link into a fiber optic connection at Gigabit speeds. It is built for network administrators and installers who need to extend a local area network beyond the reach of standard copper cabling.

Universal Power Adapter and MSA-Compatible Slot

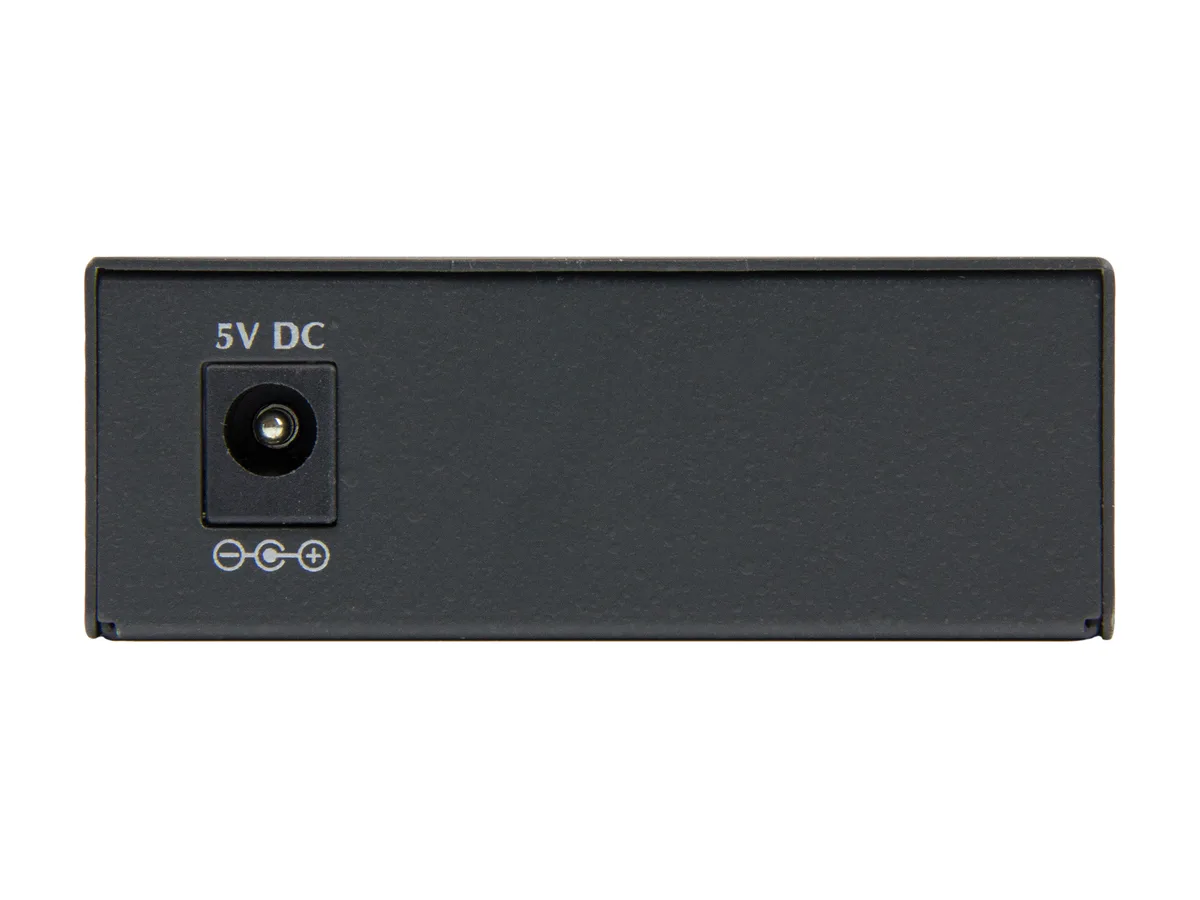

The bundled universal power adapter supplies 5V DC from 100–240V AC inputs using NA, EU, UK and AU plug types. The open SFP slot accepts virtually any MSA-compliant multi-mode or single-mode transceiver so the link distance can be matched to the installation.

Operating Temperature Range 0 to 50 Celsius

The unit is rated for continuous operation from 0°C to 50°C and storage from –10°C to 70°C. Installations in environments that exceed this range will require a different converter.

Highlights

  • Convert copper Ethernet to fiber with an open SFP slot for flexible distance
  • Gigabit RJ-45 port auto-negotiates 10/100/1000 speeds for mixed networks
  • Compact metal housing operates from 0 to 50 °C for reliable deployment
  • Wall-mount design and included universal power adapter simplify installation
  • Link Fault Pass through and 802.1q VLAN tag support maintain network integrity

Specifications

BrandStarTech.com
ModelMCM1110SFP
StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-SX
IEEE 802.3z 1000BASE-LX
ProtocolsTCP/IP
Ports1 x RJ-45 Female
1 x SFP Slot Female
Transfer Rate1 Gbps
LEDs1 x Power
1 x Fiber Port Link / Act
1 x Copper Port Link / Act
1 x 1000 Mbps
Power AdapterCenter Tip Polarity: Positive
Input Current: 1A
Input Voltage: 100~240 AC
Output Current: 2A
Output Voltage: 5DC
Plug Type: N
Power Consumption (In Watts): 5
Power Source: AC Adapter Included
TemperatureOperating Temperature: 0 ~ 50 degree Celsius (32 ~ 122 degree Fahrenheit)
Storage Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit)
Humidity5 ~ 95% RH (Non-condensing)
FeatureConvert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
Compact standalone design and wall mounting option for easy and convenient installation
Link Fault Pass (LFP) supported
Durable metal housing
Auto MDIX
9K Jumbo Frame supported
Dimensions1.02" x 3.74" x 2.76"
Weight0.41 lb.

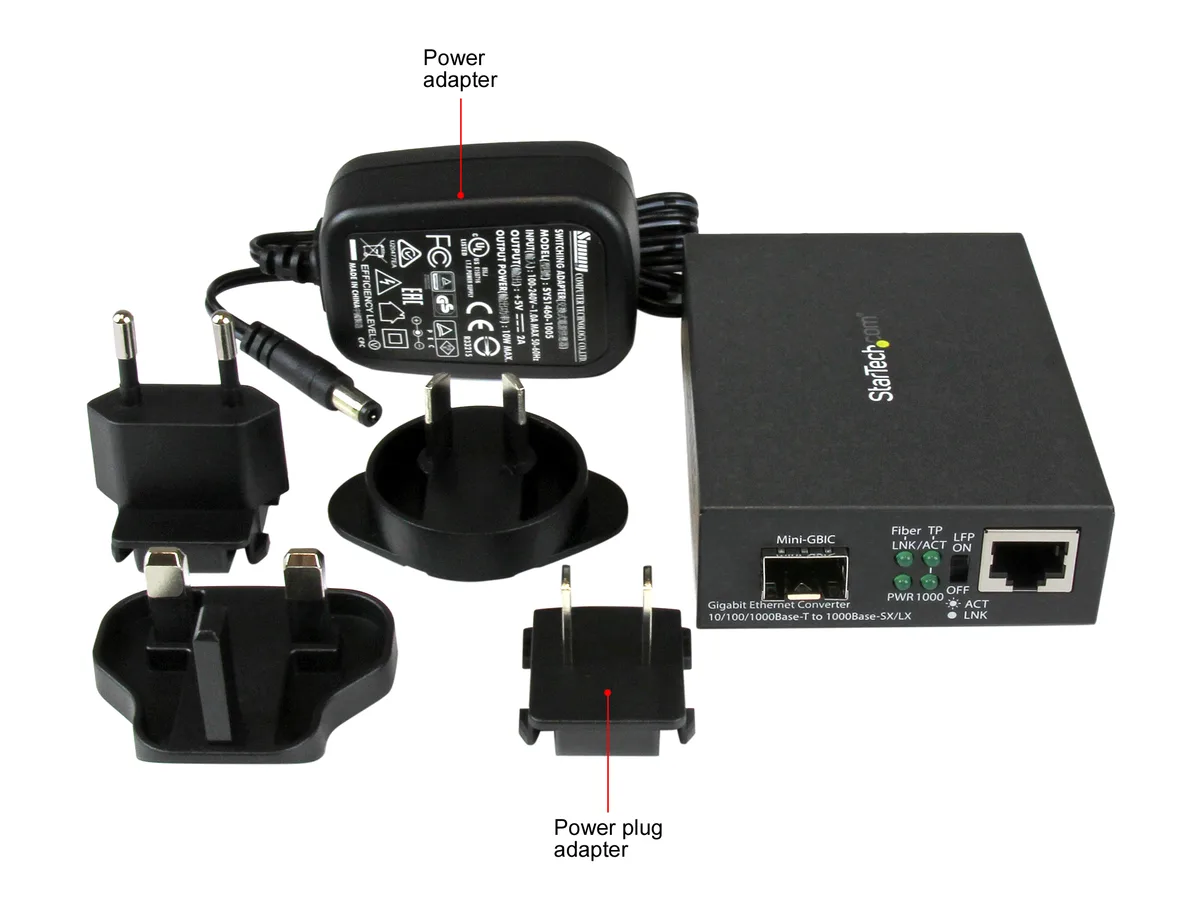

Package Contents1 x Gigabit Ethernet fiber media converter w/ open SFP slot
1 x universal power adapter (NA / EU / UK / AU)
Shipping weight0.54 kg
Package size284 × 140 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the SFP module need to be replaced when the network distance changes?

The open SFP slot accepts any MSA-compliant transceiver, so you can swap modules for different fiber distances without replacing the converter.

What limits continuous throughput on the RJ-45 port?

The copper port negotiates at 10, 100 or 1000 Mbps and is capped at the 1 Gbps line rate of the converter.

How much heat does the unit produce when running 24/7?

Power draw is 5 watts from the included AC adapter, with an operating range of 0 to 50 °C and no fan required.
