Compact beige metal box with RJ45 and SC fiber ports, status LEDs and power jack

STARTECH

STARTECH MCM110SC2 10/100 Mbps Media Converter Multi Mode SC 2 km SFP Transceiver

SKU CH-C517-9FNHJ MPN MCM110SC2

Converts 10/100 Mbps Ethernet to multi-mode fiber up to 2 km with SC duplex connector

  • Device TypeConverter
  • StandardsIEEE 802.3 10BASE-T IEEE 802.3u 100BASE-FX IEEE 802.3u 100BA
  • Wavelength1310nm
  • Fiber CableMulti-mode Optical Fiber
  • Ports1 x RJ-45 Female 1 x Fiber Optic SC Duplex Female
  • Max Distance2 km

Type Multi Mode SC - 10/100 Mbps

  • Extends Ethernet up to 2 km over multi-mode fiber
  • 10/100 Mbps transfer rate suits legacy and modern networks
  • Link Fault Pass Through detects remote failures instantly
  • Compact 0.80" x 3.70" x 3.00" design fits tight enclosures
  • IEEE 802.1q VLAN and Q-in-Q tags pass transparently

Media Converter 10/100 Multi-Mode SC 2 km

The StarTech MCM110SC2 converts a 10/100 Mbps copper Ethernet link to multi-mode fibre with an SC duplex connector. It extends the segment up to two kilometres at 1310 nm wavelength. An included AC adapter supplies 12 V DC at 0.2 A for 2.4 W total consumption.

Installers extending legacy 10/100 links over fibre

Network technicians who need to bridge copper to multi-mode fibre on older 10/100 infrastructure will find the SC duplex port and 2 km reach a direct fit. It is not suited for gigabit or 10 GbE uplinks, nor for single-mode fibre runs beyond the multi-mode distance budget.

10/100 Mbps transfer rate over multi-mode fibre

The converter operates at 10/100 Mbps half or full duplex on the FX port, compliant with IEEE 802.3u 100BASE-FX. That fixed rate decides whether the unit matches the bandwidth requirement of the link you are extending.

Highlights

  • Extends Ethernet up to 2 km over multi-mode fiber
  • 10/100 Mbps transfer rate suits legacy and modern networks
  • Link Fault Pass Through detects remote failures instantly
  • Compact 0.80" x 3.70" x 3.00" design fits tight enclosures
  • IEEE 802.1q VLAN and Q-in-Q tags pass transparently

Specifications

BrandStarTech.com
ModelMCM110SC2
Device TypeConverter
StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-FX
IEEE 802.3u 100BASE-TX
Wavelength1310nm
Fiber CableMulti-mode Optical Fiber
Ports1 x RJ-45 Female
1 x Fiber Optic SC Duplex Female
Max Distance2 km
Transfer Rate10/100 Mbps
LEDs1 x Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link)
1 x FEF [Far End Fault](On - Fault Detected, Off - No Fault
1 x Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link)
1 x Full ( Full duplex / Half duplex)
1 x Power
1 x Speed (Off - 10 Mbps, On - 100 Mbps)
Power AdapterCenter Tip Polarity: Positive
Input Voltage: 115V AC
Output Current: 0.2A
Output Voltage: 12 DC
Plug Type: M
Power Consumption (In Watts): 2.4
Power Source: AC Adapter Included
TemperatureOperating Temperature: 0 ~ 50 degree Celsius (32 ~ 122 degree Fahrenheit)
Storage Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit)
Humidity10% ~ 90%
FeatureSupports a maximum multi mode fiber optic cable distance of 2 km
Compatible with most 3COM, Cisco, Lucent and Nortel networks
Compact design
Supports transparent Q-in-Q double tagged frames
Supports Link Fault Pass through (LFP)
Supports IEEE 802.1q Tag VLAN pass thru
Supports flow control (Pause)
Provides switch configuration of half / full duplex transfer mode for FX port
LED Indicators for simple Ethernet / Fiber network link monitoring
Forward 9K jumbo packets in converter mode
Auto negotiation or Force 10/100 Mbps and MDI / MDI-X (Crossover for TX port)
Auto detects half / full
Dimensions0.80" x 3.70" x 3.00"
Weight0.19 lb.

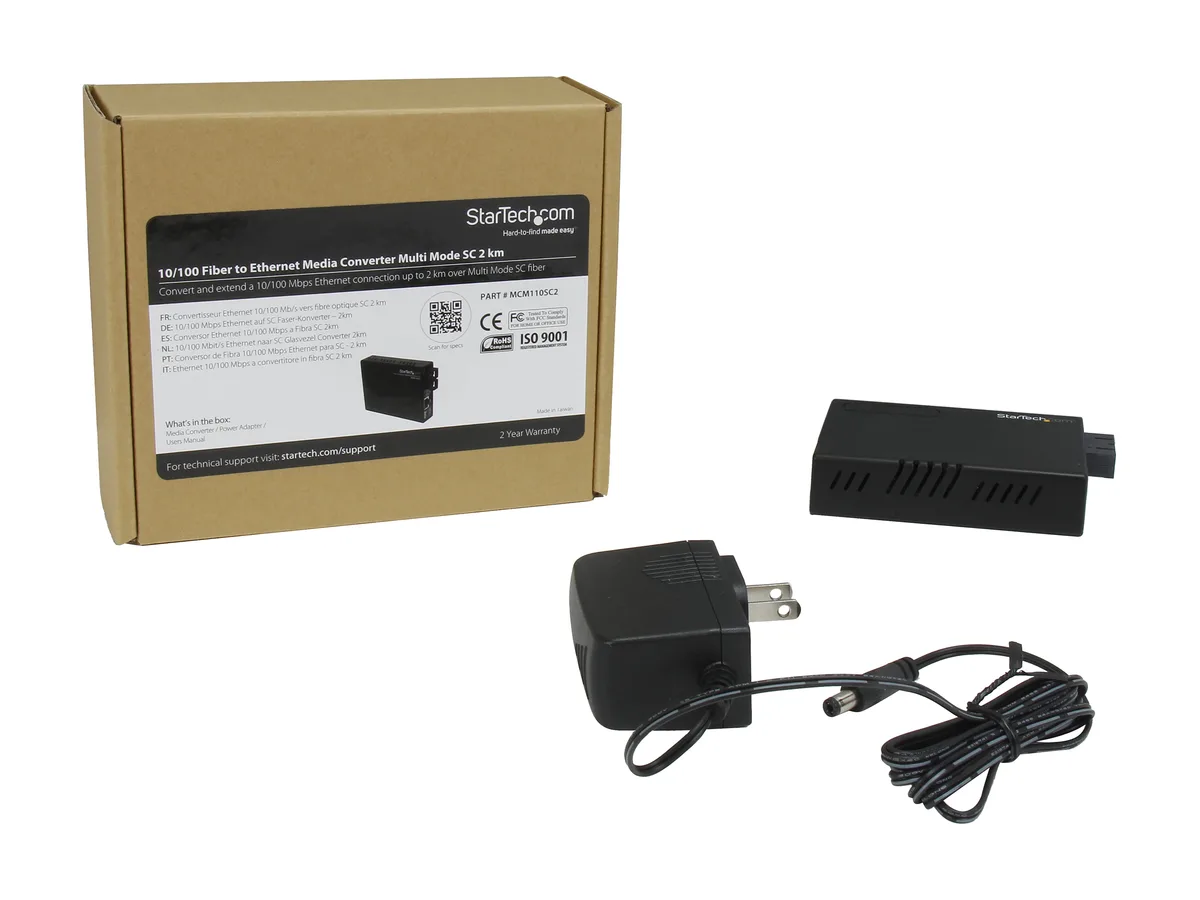

Package Contents1 x Media Converter
1 x Power Adapter
1 x User's Manual
Shipping weight0.29 kg
Package size231 × 175 × 64 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the MCM110SC2 work with my existing 10BASE-T network equipment?

Yes, the converter supports IEEE 802.3 10BASE-T and 100BASE-TX on the RJ-45 port, so it connects directly to older 10 Mbps Ethernet switches or NICs without configuration changes.

How do I verify the fiber link is healthy after I install the MCM110SC2?

Check the front LEDs: a steady Fiber Link & Activity light means the 1310 nm multi-mode link is up, blinking shows traffic, and the FEF LED stays off when no far-end fault is detected.

Does the MCM110SC2 ship with the SC duplex patch cable I need for the fiber run?

The box contains the media converter, a 12 V DC power adapter with positive centre tip, and a user manual; multi-mode SC duplex fiber cable must be purchased separately.
