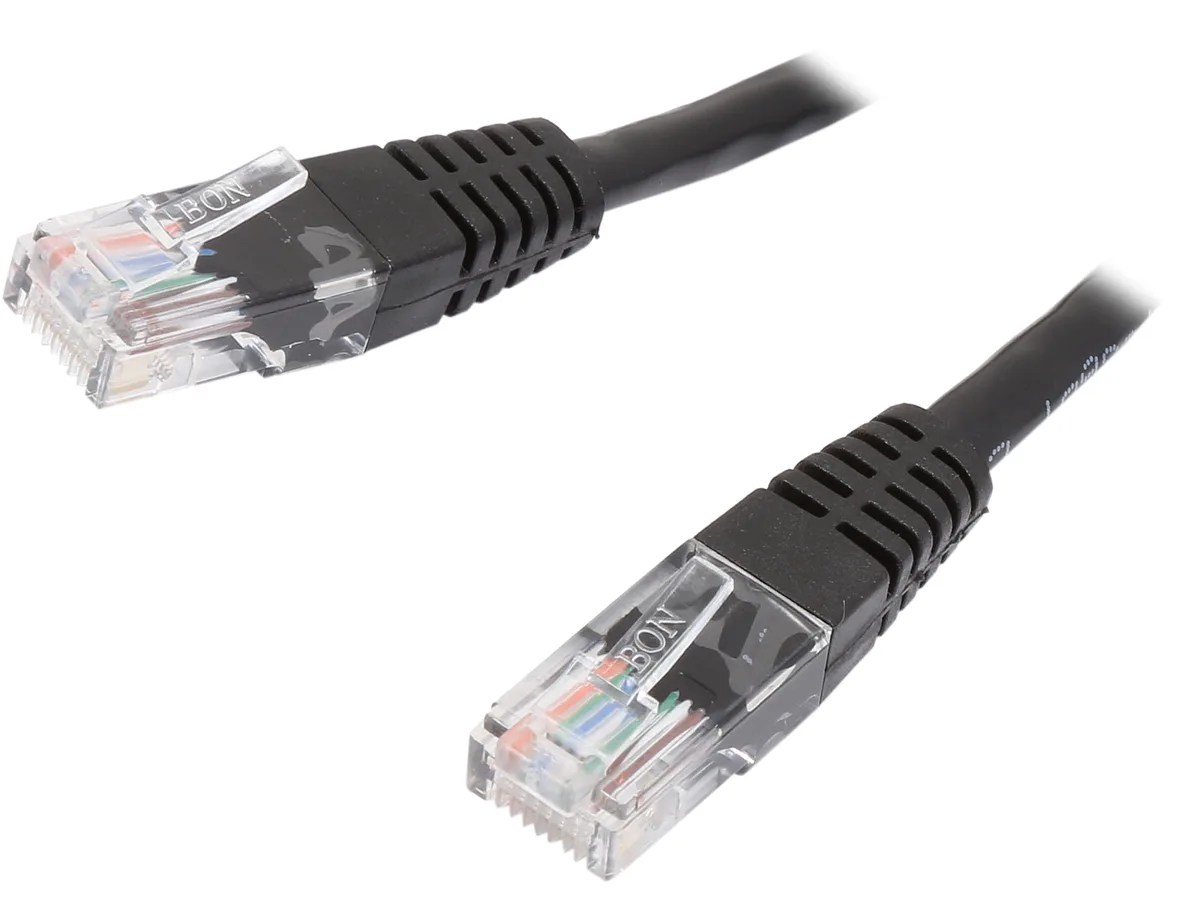

Black 25 ft Cat5e UTP patch cable with molded RJ45 connectors

STARTECH

STARTECH M45PATCH25BK 25 ft Cat5e UTP network ethernet cable

SKU CH-2C4B-ETX63 MPN M45PATCH25BK

25 ft Cat5e UTP patch cable with moulded RJ45 connectors, 350 MHz bandwidth and CMG fire rating for general-purpose networking

  • Typeothers
  • Cat5E
  • Connector ARJ45
  • Connector BRJ45
  • Length25 ft.
  • ColorBlack
  • Reliable 350 MHz bandwidth supports fast Ethernet networks
  • 25 ft length reaches across rooms without extra couplers
  • 24 AWG conductors with 4 pair UTP reduce signal loss
  • CMG fire rating meets general-purpose building codes
  • Molded RJ45 connectors with T568B wiring ensure durable connections

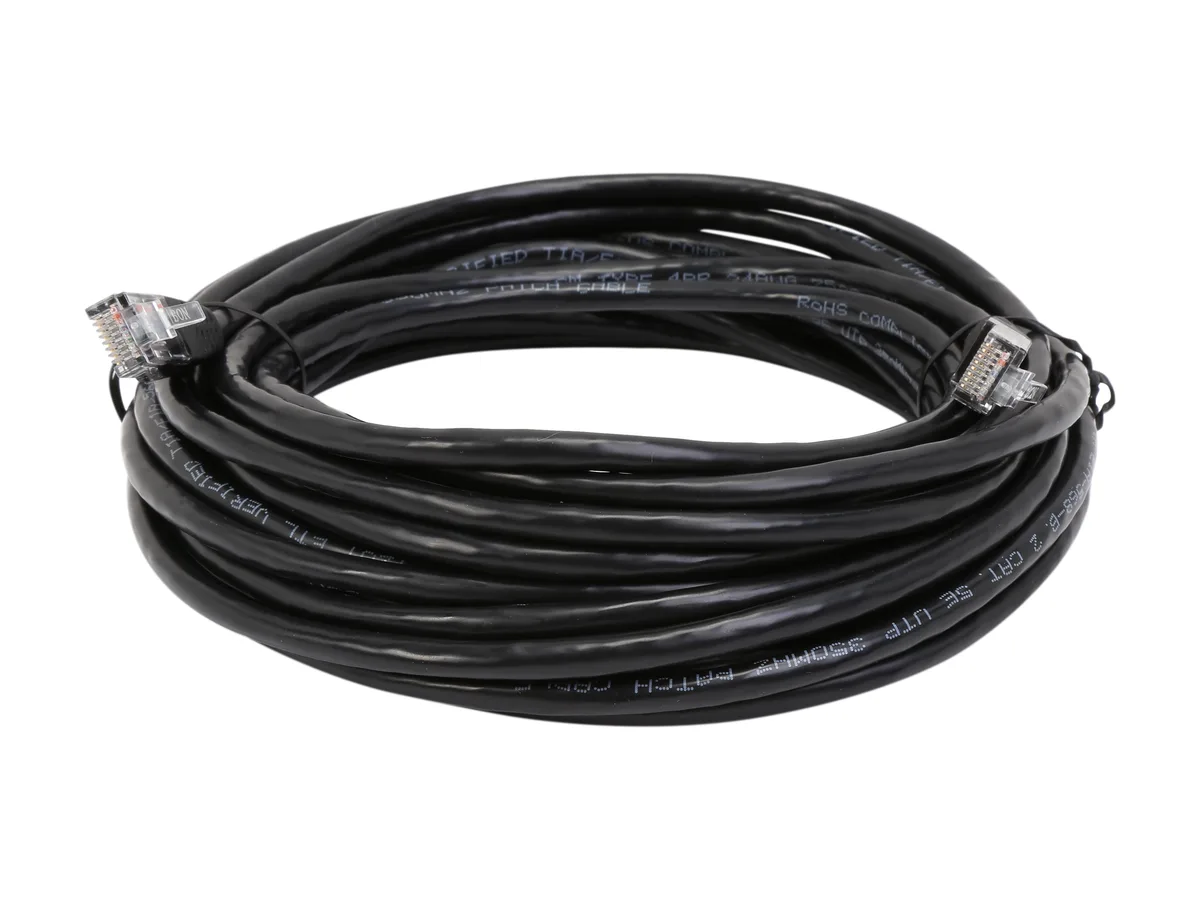

25 ft Cat5e UTP patch cable

This 25 ft Cat5e UTP patch cable provides a wired Ethernet link between two RJ45 ports. It uses 24 AWG conductors arranged in four twisted pairs and is rated for 350 MHz bandwidth. The black jacket is CMG rated for general-purpose indoor runs. Molded strain relief protects each connector during repeated insertion.

Replaces shorter or lower-category links

Swapping a shorter cable for this 25 ft length lets you bridge greater distances without adding couplers that can degrade signal integrity. Moving up from Cat5 to Cat5e raises the rated bandwidth to 350 MHz and reduces crosstalk, which is worthwhile when Gigabit Ethernet is required. The TIA/EIA-568-B.1-2001 T568B wiring ensures compatibility with standard patch panels and switches.

Sustained throughput on long runs

At the full 25 ft length the cable maintains its 350 MHz rating, so Gigabit traffic stays stable during extended transfers. The CMG fire rating means the jacket resists flame spread in typical building pathways, supporting continuous operation in walls or ceilings. Molded boots prevent connector fatigue when cables remain plugged in for months.

Highlights

  • Reliable 350 MHz bandwidth supports fast Ethernet networks
  • 25 ft length reaches across rooms without extra couplers
  • 24 AWG conductors with 4 pair UTP reduce signal loss
  • CMG fire rating meets general-purpose building codes
  • Molded RJ45 connectors with T568B wiring ensure durable connections

Specifications

BrandStarTech.com
ModelM45PATCH25BK
Typeothers
Cat5E
Connector ARJ45
Connector BRJ45
Length25 ft.
ColorBlack
FeaturesNetwork Cable Type: Molded
Number of Conductors: 4 pair UTP
Wire Gauge: 24 AWG
Cable Rating: CAT5e - 350 MHz
Fire Rating: CMG Rated (General Purpose)
Wiring Standard: TIA/EIA-568-B.1-2001 T568B
Shipping weight0.27 kg
Package size254 × 192 × 3 mm

Questions about this item

What clearance does the molded RJ45 boot need at the jack?

The molded boot adds roughly 25 mm beyond the plug body, so allow that depth behind the patch panel or wall plate.

Which wiring standard must the punch-down or keystone follow?

Both ends are pinned to TIA/EIA-568-B.1-2001 T568B; terminating the other side to T568A would create a crossover link.

How often should the CMG-rated jacket be inspected in a plenum return path?

CMG is general-purpose only; if the cable ever passes through a plenum space, replace it with a CMP-rated run at the next maintenance window.
