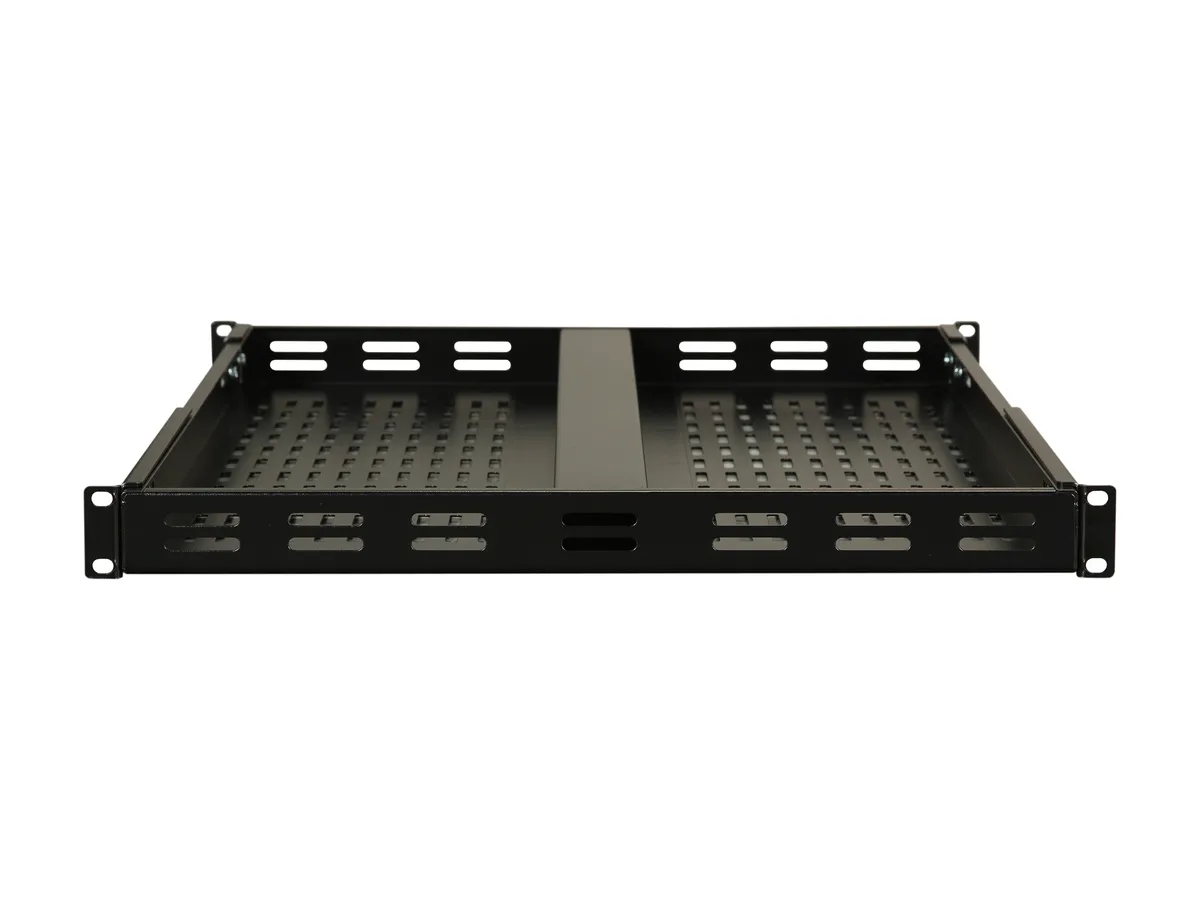

Black 1U vented rack shelf with adjustable mounting depth

STARTECH

STARTECH ADJSHELF 1U Adjustable Rack Shelf 175 lbs 80 kg server accessory

SKU CH-Q4FV-4AX79

A 1U vented rack shelf with adjustable mounting depth from 495 mm to 974 mm, supporting 80 kg for servers and networking gear

  • TypeRack Shelf
  • ColorBlack
  • SpecificationsU Height: 1U Weight Capacity: 176.80 lbs. [80 kg] Color: Bla
  • FeaturesAdd a sturdy, adjustable mount depth shelf into almost any s

Size 175 lbs. - Vented

Style Adjustable Shelf

  • 1U rack shelf fits standard 19 in cabinets
  • Adjustable mounting depth from 19.5 to 38.3 in
  • 175 lbs weight capacity supports heavy equipment
  • 6 in deep shelf holds networking devices and tools
  • Vented 1.6 in high design aids airflow

Universal 19-inch rack shelf

The StarTech ADJSHELF is a 1U vented shelf that fits any standard 19-inch wide server rack or cabinet. It supports up to 175 lbs or 80 kg of equipment such as networking devices, KVM switches and tools. Mounting depth adjusts from 19.5 to 38.3 inches (495 to 974 mm) for flexible placement. The black steel construction adds sturdy storage without using extra rack height.

Compatibility check

Verify that your rack or cabinet accepts a 19-inch wide shelf with adjustable mounting rails spanning 495 to 974 mm. Ensure the 1U height allowance (1.6 inches or 40 mm) is available in your planned position. The internal shelf depth is 27.6 inches (700 mm) with an internal width of 17.6 inches (446 mm), so confirm your gear fits within those dimensions. No tools or proprietary brackets are required beyond the included hardware.

Upgrade path

This shelf replaces fixed-depth or non-vented trays that limit equipment placement or airflow. The adjustable depth makes the jump worthwhile when you need to mount deeper devices or align with existing rail positions in a mixed rack. It also upgrades basic wire shelves by providing a solid 175 lb surface for heavier appliances. Not suited for racks narrower than 19 inches or installations requiring more than 1U of vertical space.

Highlights

  • 1U rack shelf fits standard 19 in cabinets
  • Adjustable mounting depth from 19.5 to 38.3 in
  • 175 lbs weight capacity supports heavy equipment
  • 6 in deep shelf holds networking devices and tools
  • Vented 1.6 in high design aids airflow

Specifications

BrandStarTech.com
ModelADJSHELF
TypeRack Shelf
ColorBlack
SpecificationsU Height: 1U
Weight Capacity: 176.80 lbs. [80 kg]
Color: Black
Internal Width: 17.6 in [446 mm]
Internal Height: 1.6 in [40 mm]
Internal Depth: 27.6 in [700 mm]
External Width: 18.9 in [480 mm]
External Height: 1.6 in [40 mm]
Maximum Mounting Depth: 38.3 in [974 mm]
Minimum Mounting Depth: 19.5 in [495 mm]
Note: Depth adjustable from 19-38"

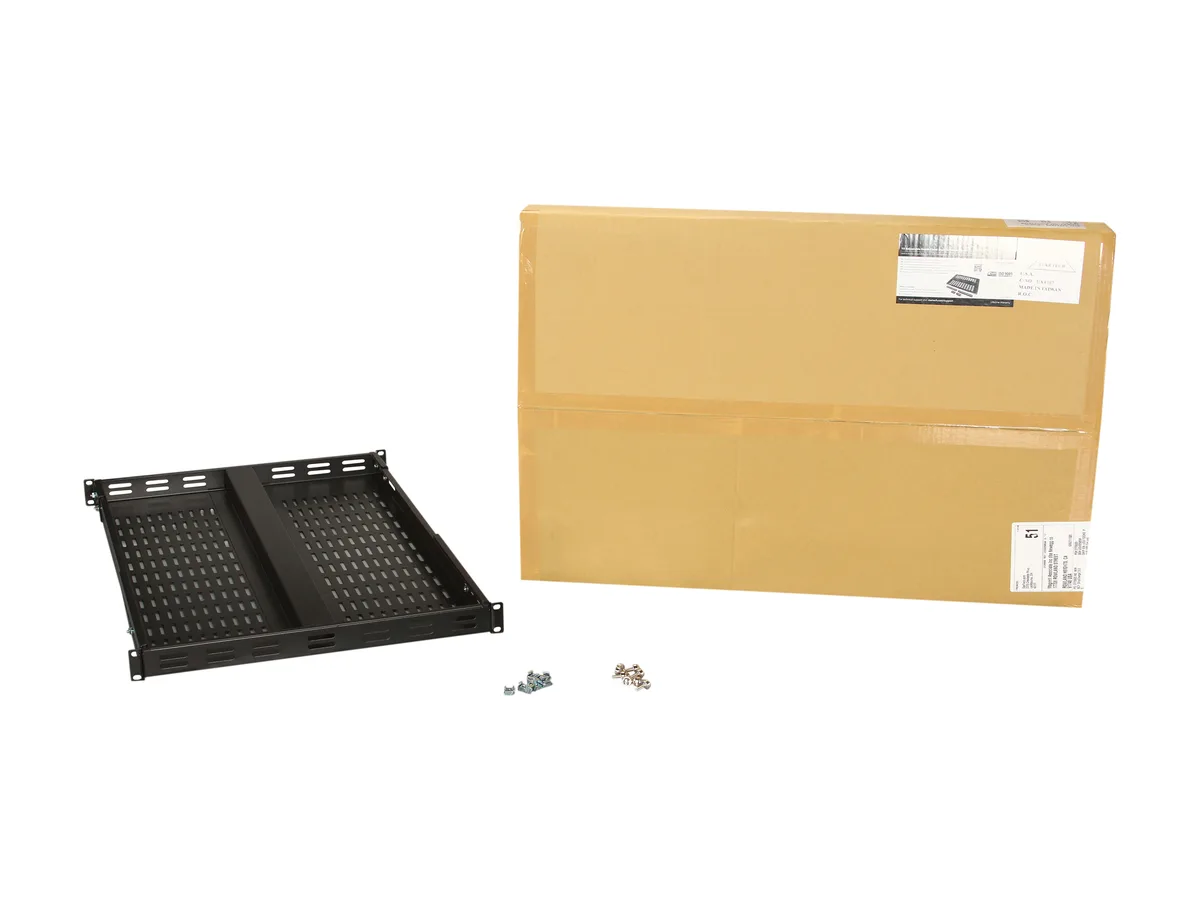

Included in Package:
1 - Slotted Fixed Shelf
2 - Front Mounting Bracket
2 - Rear Mounting Bracket
1 - Mounting Hardware
FeaturesAdd a sturdy, adjustable mount depth shelf into almost any server rack or cabinet
Compatible with StarTech.com 4POSTRACKBK
1U Server Rack Shelf / Adjustable Rack Mount Shelf
175 lbs. (80kg) Weight capacity
27.6 in (700mm) deep shelf
Mounting depth adjustable from 19.5-38.3 in (495-974mm)
Universal rack shelf fits all standard 19 in wide server racks or cabinets
High-capacity shelf for storing networking devices, KVM switches, tools and equipment in your server room or office
Shipping weight6.80 kg
Package size767 × 521 × 89 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box and do I need separate mounting hardware?

The shelf ships as a complete 1U vented unit with integrated adjustable brackets that slide onto standard 19 in rack rails. No extra brackets or rails are required for installation.

Should I choose a different depth version for a 700 mm deep rack?

This model covers mounting depths from 495 mm to 974 mm, so a single shelf fits racks shallower or deeper than 700 mm without needing another SKU.

Will the 175 lb rating hold a fully loaded UPS in a live rack?

The 80 kg capacity applies when the shelf is mounted across the full 19 in width with weight evenly distributed; concentrate heavy gear near the centre and verify your rack’s own load limit.
