1U rackmount firewall appliance, silver front panel with multiple RJ45 and SFP+ ports

Sophos

Sophos JG4E1CSUS XGS 4500 firewall appliance

SKU CH-KPZW-R7S7X MPN JG4E1CSUS

Mid-size firewall with 80 Gbps throughput, 10.6 Gbps TLS inspection, 32 GB DDR4 ECC, dual 240 GB SATA SSDs and 10 Gigabit copper and fiber ports

  • Firewall TypeFirewalls / Security Appliances
  • TypeWired
  • Wireless TechnologyNone
  • Ports4 x GE copper 4 x 2.5 GE copper 4 x SFP+ 10 GE Fiber 1 x RJ4
  • Wired Speed10/100/1000Base-T 2.5GBase-T 10GBase-X
  • FeaturesForm Factor: 1U Long CPU: AMD x86 CPU Memory: 32 GB (2666) D

Model XGS 4500

Option 1-Year Standard Protection

  • 32 GB DDR4 ECC memory powers high-throughput inspection
  • 80 Gbps firewall throughput handles heavy network loads
  • 6 Gbps TLS 1.3 inspection reveals encrypted threats
  • Dual CPU plus Marvell NPU accelerates security processing
  • 1U rackmount with modular Flexi Port bays adapts connectivity

Mid-sized network security appliance

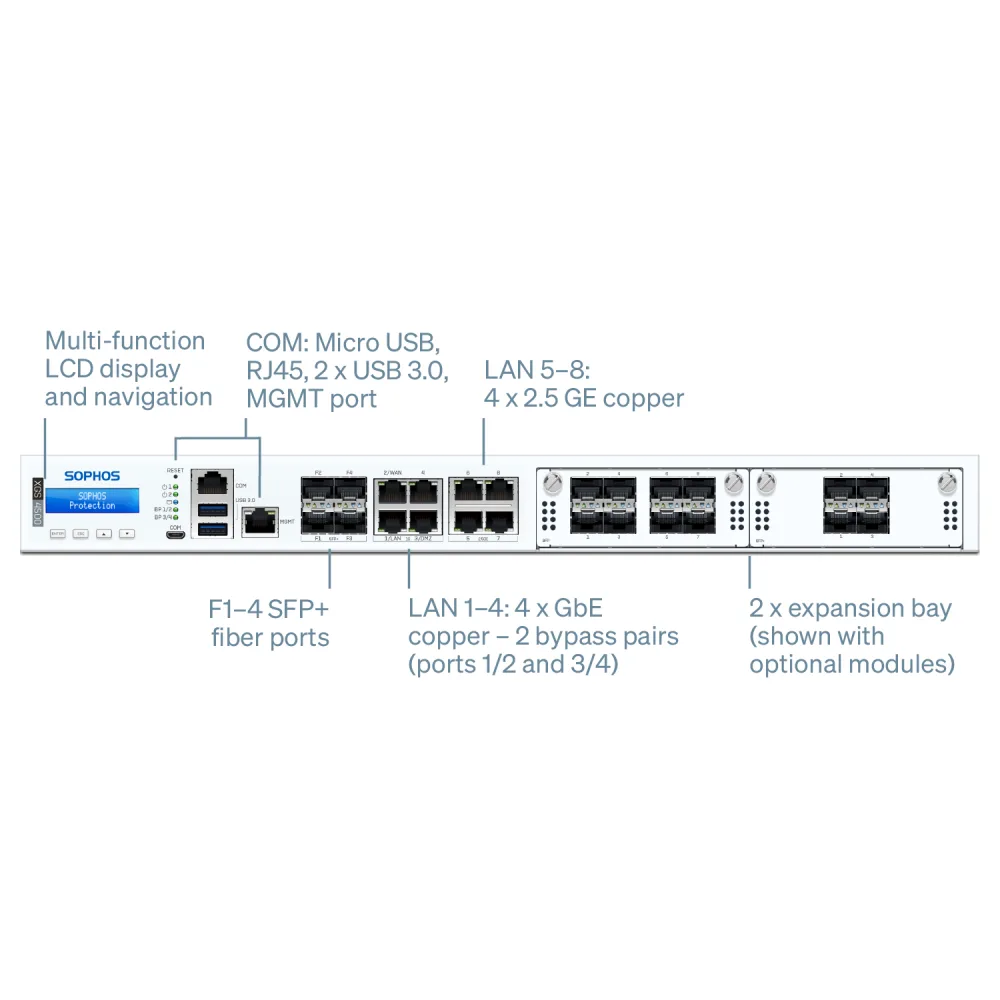

The Sophos XGS 4500 is a 1U rackmount firewall designed for mid-sized and distributed organisations. It combines an AMD x86 CPU with 32 GB DDR4 ECC memory and a Marvell NPU with 8 GB DDR4 ECC for dual-processor architecture. Eight copper ports at 10/100/1000Base-T and 2.5GBase-T sit alongside four SFP+ 10GBase-X fiber ports. Two 240 GB SATA SSDs in software RAID-1 provide resilient local storage.

Sustained throughput with inspection enabled

Firewall throughput reaches 80 Gbps while TLS 1.3 inspection runs at 10.6 Gbps. Real-world IMIX traffic is processed at 37 Gbps and IPS throughput holds at 36.5 Gbps. The dedicated Xstream Flow Processor offloads trusted application traffic through FastPath acceleration to maintain these rates under continuous load without degrading CPU resources for other security functions.

Rackmount build with modular expansion

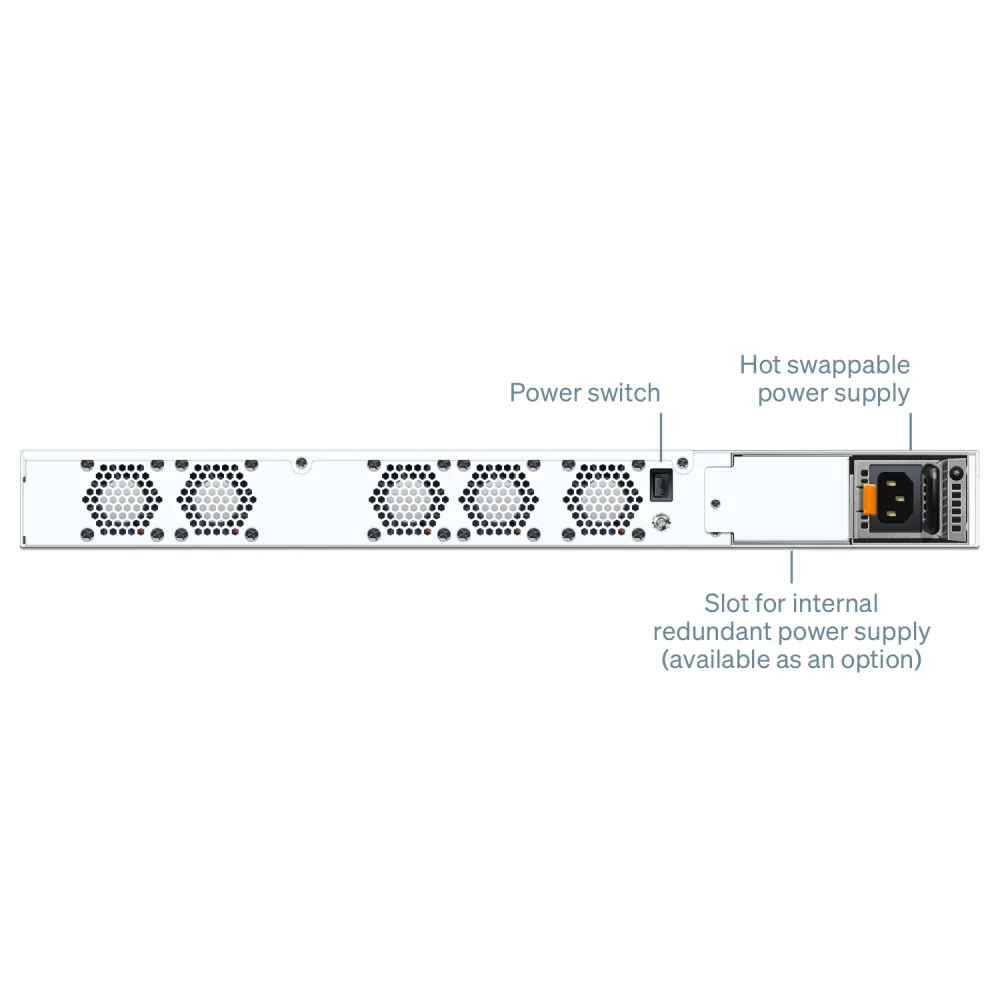

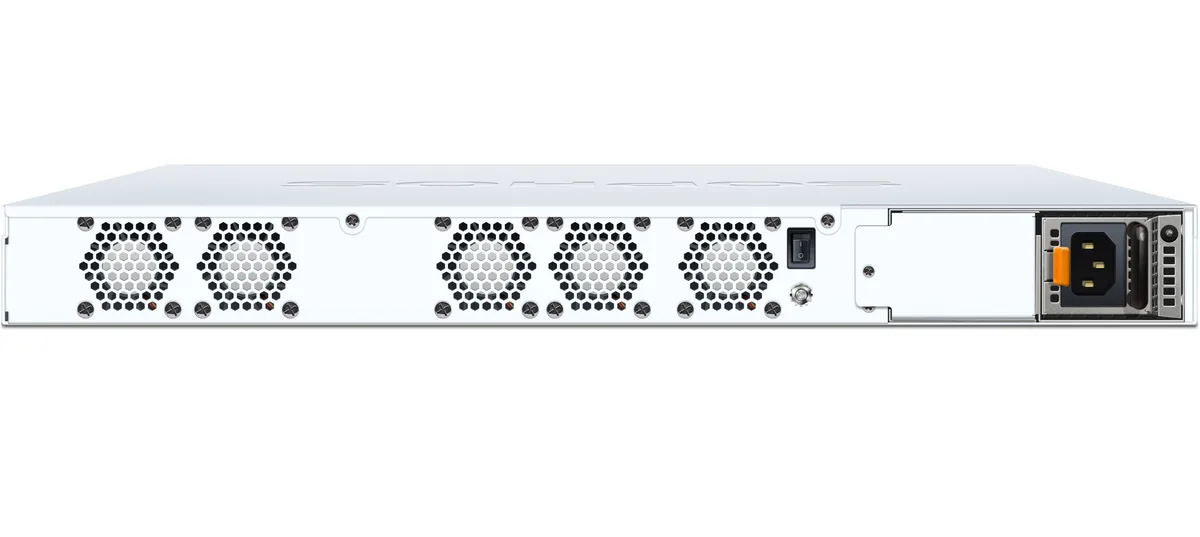

The 438 x 510 x 44 mm chassis weighs 9.7 kg and includes a rackmount kit. Six expansion slots allow optional Flexi Port modules for additional connectivity or PoE redundancy. A second power supply can be added for high-availability deployments. Front-facing USB 3.0 ports, a management RJ45, and dual console interfaces (RJ45 and Micro-USB) simplify daily administration and troubleshooting.

Highlights

  • 32 GB DDR4 ECC memory powers high-throughput inspection
  • 80 Gbps firewall throughput handles heavy network loads
  • 6 Gbps TLS 1.3 inspection reveals encrypted threats
  • Dual CPU plus Marvell NPU accelerates security processing
  • 1U rackmount with modular Flexi Port bays adapts connectivity

Specifications

BrandSophos
SeriesXGS
ModelXGS 4500 - 1Yr Standard Protection
Part NumberXG4ETCHUS
Firewall TypeFirewalls / Security Appliances
TypeWired
Wireless TechnologyNone
Ports4 x GE copper
4 x 2.5 GE copper
4 x SFP+ 10 GE Fiber
1 x RJ45 MGMT
1 x COM RJ45
1 x COM Micro-USB
2 x USB 3.0 (front)
Wired Speed10/100/1000Base-T
2.5GBase-T
10GBase-X
FeaturesForm Factor: 1U Long
CPU: AMD x86 CPU
Memory: 32 GB (2666) DDR4 ECC
Xstream Flow Processor (NPU): Marvell NPU
Memory: 8 GB DDR4 ECC
SSD/Storage size: 2x min. 240 GB SATA-III
RAID Support: SW RAID-1
Expansion Slots: None
MTBF (hours): 130,415
Features:
firewall protection
Web threat protection
Intrusion Prevention System (IPS)
Deep Packet Inspection (DPI)
Zero-Touch Deployment
firmware upgradable
SD-WAN support
VPN support
Dimensions438 x 510 x 44 mm
Weight9.7 kg / 21.38 lbs (unpacked)
15.9 kg / 35.05 lbs (packed)
Shipping weight14.97 kg
Package size686 × 572 × 178 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the XGS 4500 draw and how loud are the fans during continuous operation?

The supplier data does not publish power consumption or acoustic figures for the XGS 4500. The unit uses a dual-processor architecture with an AMD x86 CPU and Marvell NPU, and the 1U long chassis includes a second power supply option for redundancy.

What cabling and transceivers must I already have to use the four SFP+ 10 GE fiber ports on this appliance?

The four SFP+ ports accept 10GBase-X modules; you need compatible SFP+ transceivers and matching fiber patch cables for the link distance and connector type you are deploying.

Can the XGS 4500 connect directly to my existing 1 Gbps copper switches and 10 Gbps fiber uplinks without extra modules?

Yes. The appliance provides four 10/100/1000Base-T ports, four 2.5GBase-T ports and four SFP+ 10 GE fiber ports built in, so both copper and 10 Gbps fiber links are supported natively.
