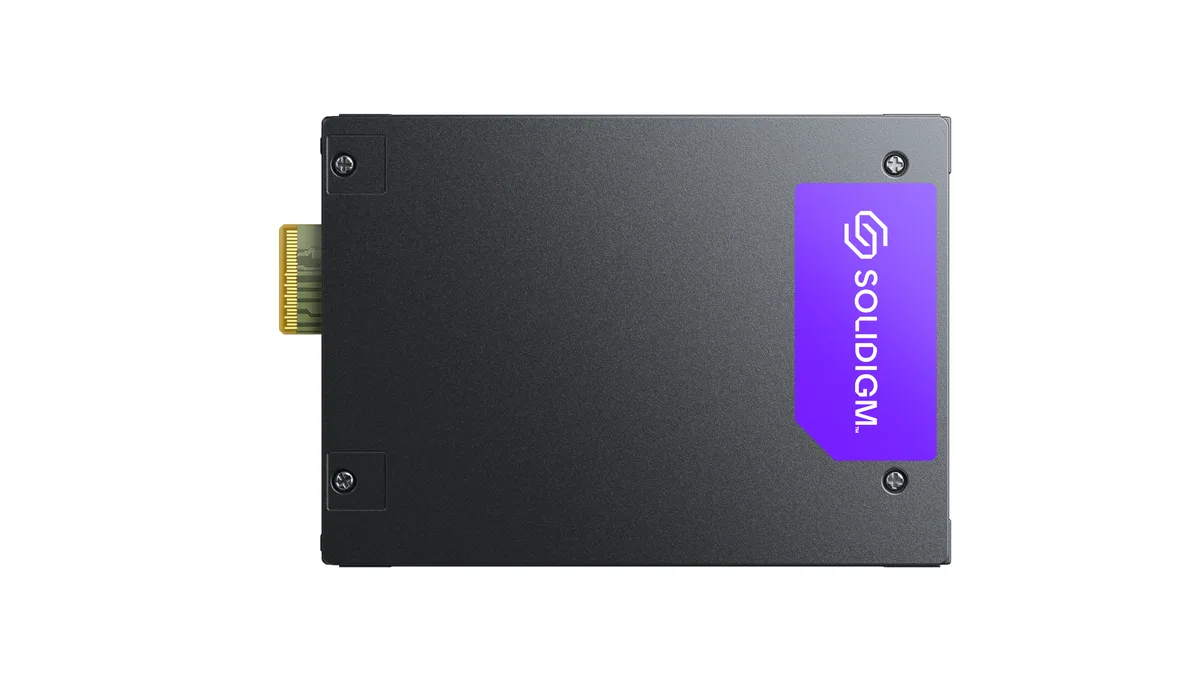

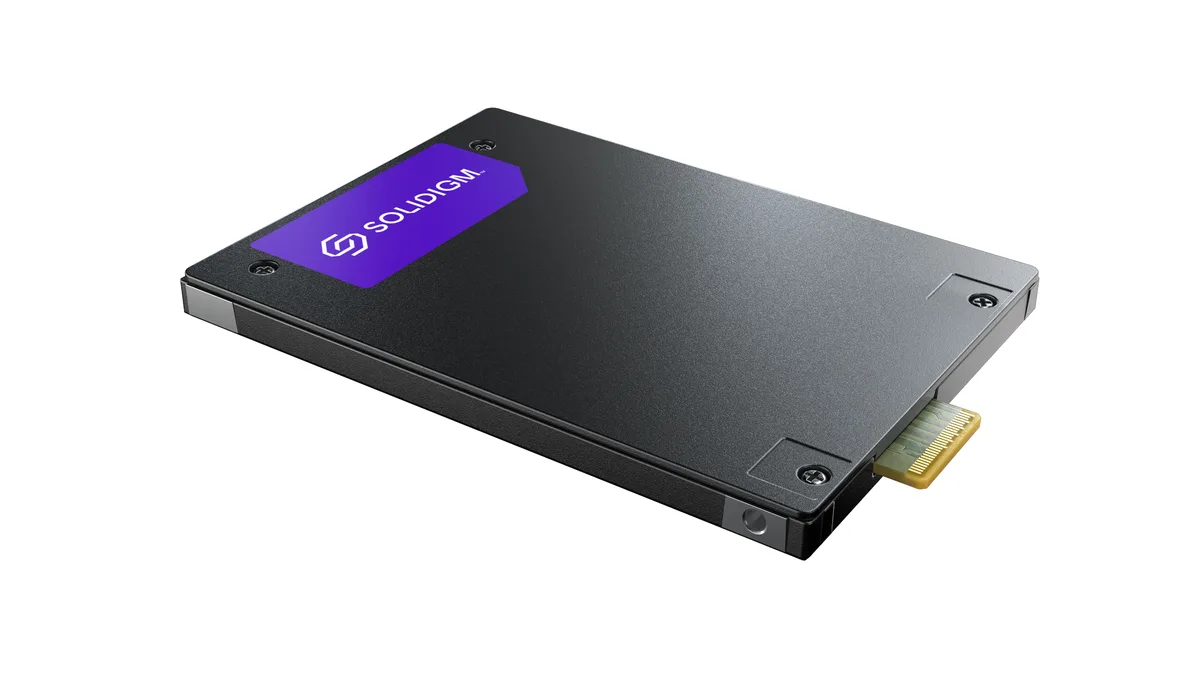

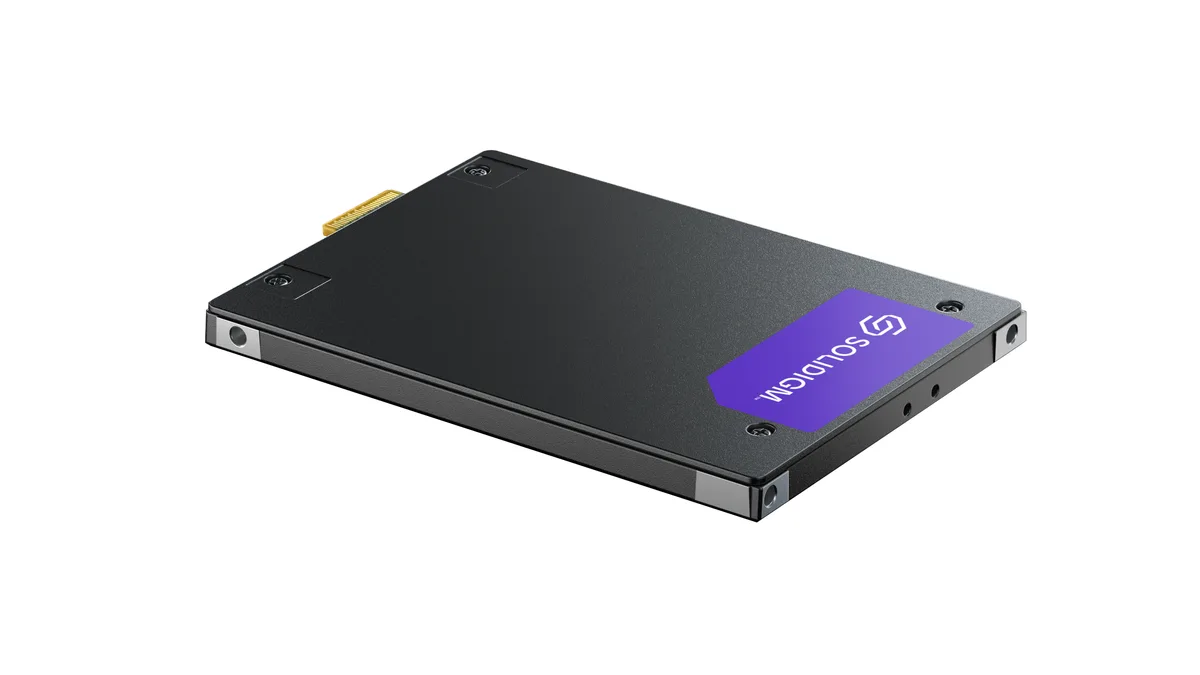

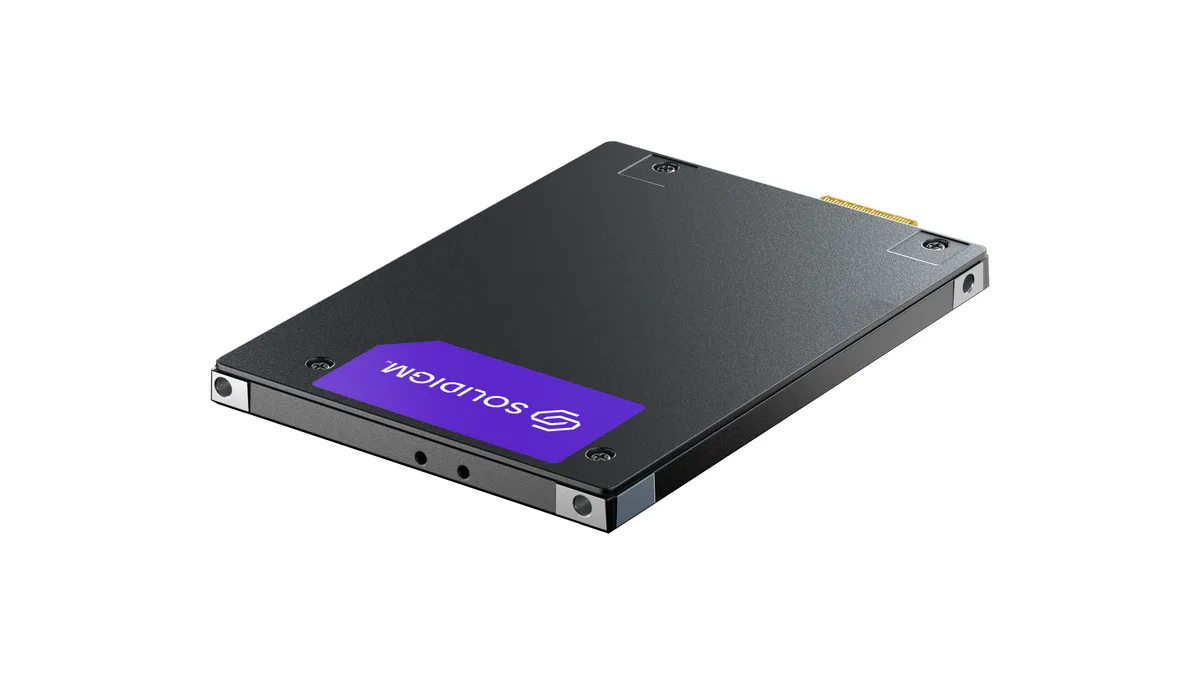

Rectangular E3.S 7.5mm SSD with silver label, gold edge connector, black controller chip visible

Solidigm

Solidigm SB5PHA7X076TOP1 enterprise SSD 7.68TB E3.S 7.5mm PCIe 5.0

SKU CH-JJWY-S73S7 MPN SB5PHA7X076TOP1

E3.S 7.5mm enterprise SSD with 7.68TB capacity, PCIe 5.0 interface, 14500 MBps read and 10000 MBps write speeds

  • Form FactorE3.S 7.5mm
  • Capacity7.68TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 10000 MBps

Option 7.68TB E3.S Opal

Show 20 more configurations
  • Handles heavy read workloads with 3000000 IOPS random read performance
  • Sustains fast sequential transfers up to 14500 MBps read speed
  • Fits dense E3.S 7.5mm bays for space-efficient server deployments
  • Protects sensitive data with Opal security encryption standard
  • Delivers 7.68TB capacity using 176L TLC 3D NAND technology

Enterprise storage for read-intensive workloads

The Solidigm D7-PS1010 is a 7.68TB enterprise SSD built on 176L TLC 3D NAND. It targets data-centre servers handling read-heavy applications such as content delivery, analytics or caching. The drive delivers up to 14500 MBps sequential read and 3000000 IOPS random read with 1 DWPD endurance.

Verify E3.S slot and PCIe 5.0 support

Confirm your server chassis accepts the E3.S 7.5mm form factor and that the backplane or riser provides a PCI-Express 5.0 x4 link. The drive uses Opal security; ensure your management stack can provision or disable it. Weight is 110g with a tolerance of 10g.

Thermals noise and power in normal use

Idle power sits at 5W while active consumption reaches 23W under load. The operating temperature range spans 0°C to 77°C with no acoustic output from the solid-state design. Vibration tolerance is rated at 2.17 GRMS operating and 3.13 GRMS non-operating. Shock resistance reaches 1000 G at 0.5 msec.

Highlights

  • Handles heavy read workloads with 3000000 IOPS random read performance
  • Sustains fast sequential transfers up to 14500 MBps read speed
  • Fits dense E3.S 7.5mm bays for space-efficient server deployments
  • Protects sensitive data with Opal security encryption standard
  • Delivers 7.68TB capacity using 176L TLC 3D NAND technology

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X076TOP1
Form FactorE3.S 7.5mm
Capacity7.68TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 10000 MBps
4KB Random Read3000000 IOPS (4K Blocks)
4KB Random Write400000 IOPS (4K Blocks)
Endurance1 DWPD / 14 PBW
MTBF2,500,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the single pack and are any brackets or cables needed?

The single pack contains the E3.S 7.5mm drive only; it mounts directly into a compatible E3.S bay with no extra cables or brackets required.

Is the 7.68TB capacity the only option in this D7-PS1010 line?

This MPN is the 7.68TB model; other capacities exist under different part numbers but are not covered by this listing.

What does the 14500 MBps sequential read mean for a server workload?

It delivers up to 14500 MBps sequential read and 3000000 IOPS random read, supporting high-throughput database and analytics workloads on a PCIe 5.0 x4 link.
