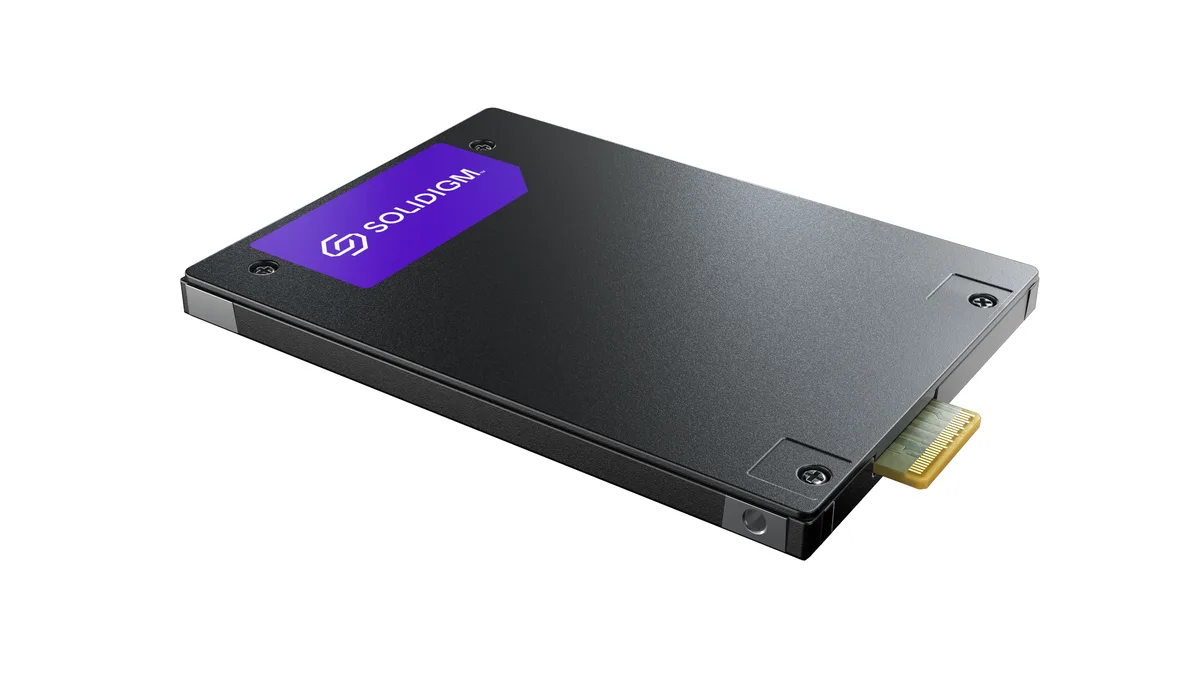

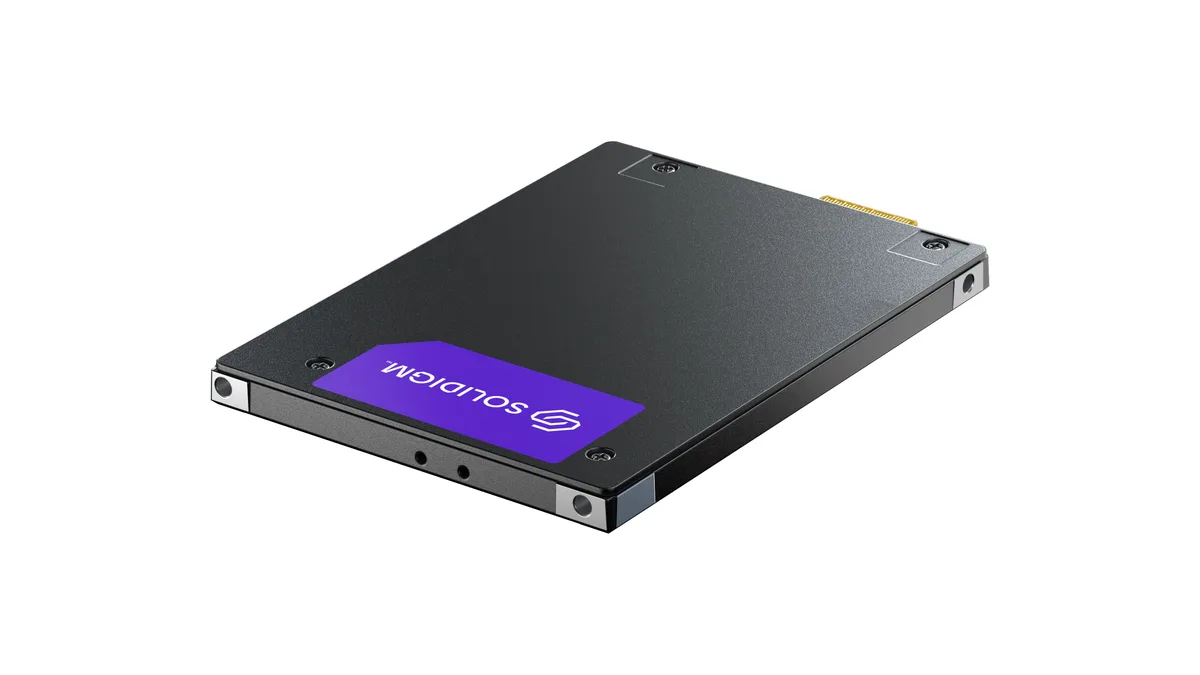

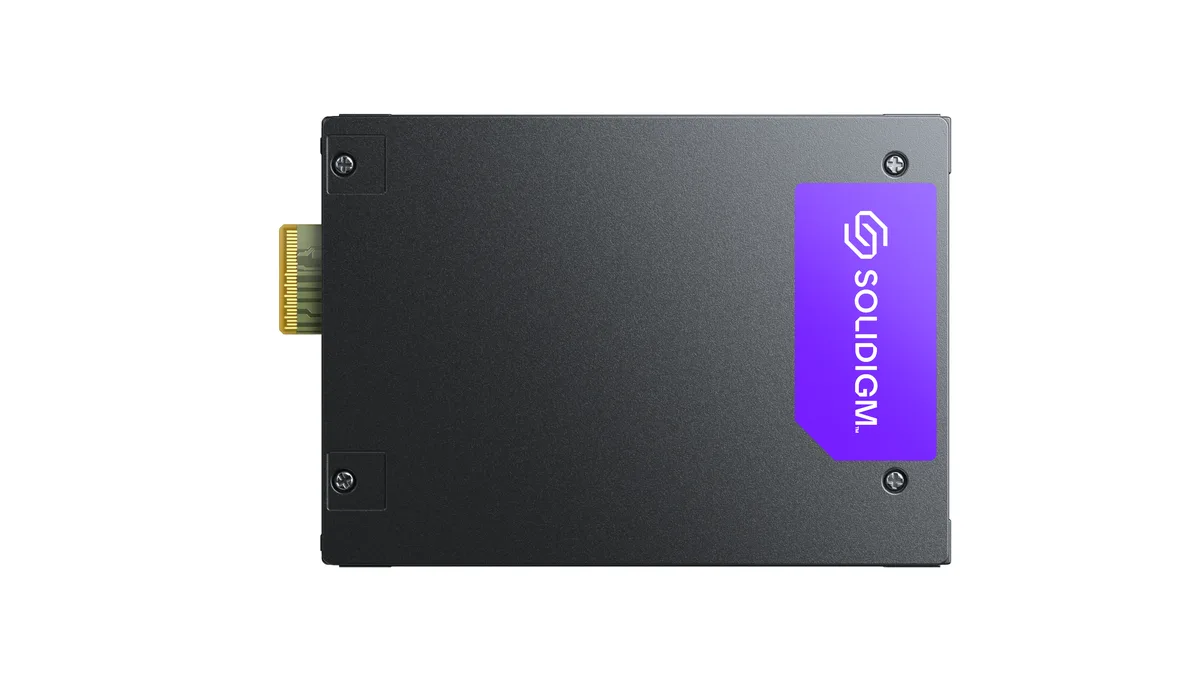

Rectangular silver E3.S 7.5mm enterprise SSD with gold edge connector and black label

Solidigm

Solidigm SB5PHA7X038TOP1 3.84TB E3.S 7.5mm PCIe 5.0 enterprise SSD

SKU CH-89F8-CBE3E MPN SB5PHA7X038TOP1

E3.S 7.5mm PCIe 5.0 enterprise SSD with 3.84TB 176L TLC NAND, 14500 MBps read, 8200 MBps write, 3.1M random read IOPS, 315K random write IOPS and 1 DWPD endurance

  • Form FactorE3.S 7.5mm
  • Capacity3.84TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 8200 MBps

Option 3.84TB E3.S Opal

Show 20 more configurations
  • Fast sequential reads up to 14500 MBps for demanding workloads
  • High random read IOPS of 3100000 for responsive data access
  • Enterprise endurance rated at 1 DWPD and 7 PBW for sustained writes
  • Opal security support protects sensitive data at rest
  • E3.S 7.5mm form factor fits dense server deployments

E3.S 7.5mm form factor

The Solidigm D7-PS1010 is a 3.84TB enterprise SSD built on 176L TLC 3D NAND and a PCI-Express 5.0 interface. It targets data-centre workloads that demand consistent throughput and endurance in a compact E3.S 7.5mm package. The Opal security feature supports encryption requirements for sensitive deployments.

Build integration

The drive slots into an E3.S 7.5mm bay and connects via a PCI-Express 5.0 x4 link, freeing traditional 2.5-inch or U.2 bays for other devices. Its 110g weight and 1010 model designation reflect a design optimised for dense server chassis. No additional mounting hardware is described in the specifications.

Thermals and power

Idle power draw is 5W and active consumption reaches 19W within the 0°C to 77°C operating range. The drive tolerates 1,000 G shock at 0.5 msec and vibration up to 2.17 GRMS operating and 3.13 GRMS non-operating. MTBF is rated at 2,500,000 hours.

Highlights

  • Fast sequential reads up to 14500 MBps for demanding workloads
  • High random read IOPS of 3100000 for responsive data access
  • Enterprise endurance rated at 1 DWPD and 7 PBW for sustained writes
  • Opal security support protects sensitive data at rest
  • E3.S 7.5mm form factor fits dense server deployments

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PHA7X038TOP1
Form FactorE3.S 7.5mm
Capacity3.84TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 8200 MBps
4KB Random Read3100000 IOPS (4K Blocks)
4KB Random Write315000 IOPS (4K Blocks)
Endurance1 DWPD / 7 PBW
MTBF2,500,000 hours
SecurityOpal
Power Consumption (Idle)5W
Power Consumption (Active)19W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight110g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much data can be written to this 3.84TB D7-PS1010 before the 1 DWPD endurance limit is reached?

The drive is rated for 7 PBW total bytes written, which equals the 1 DWPD endurance figure over its warranty period.

What is the active power draw and operating temperature range when this PCIe 5.0 E3.S drive runs continuously?

Active power consumption is 19W and the operating temperature range is 0°C to 77°C.

Which server chassis slot and PCIe generation are required to install this E3.S 7.5mm SSD?

It requires an E3.S 7.5mm drive bay and a PCI-Express 5.0 x4 interface.
