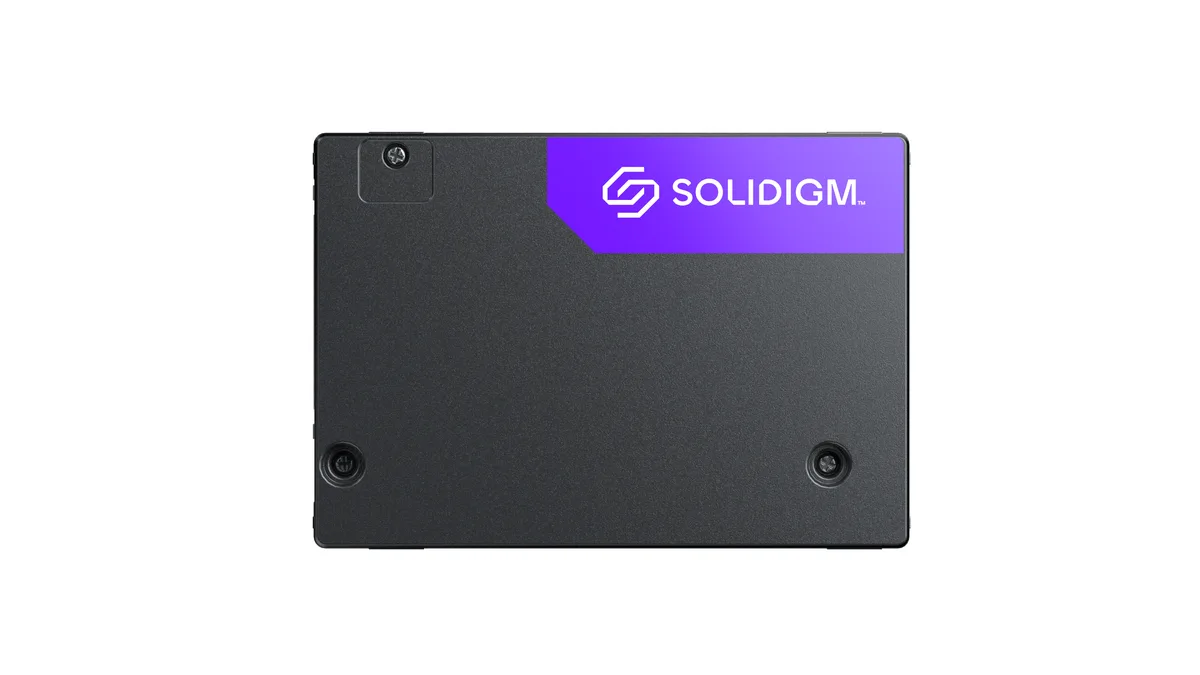

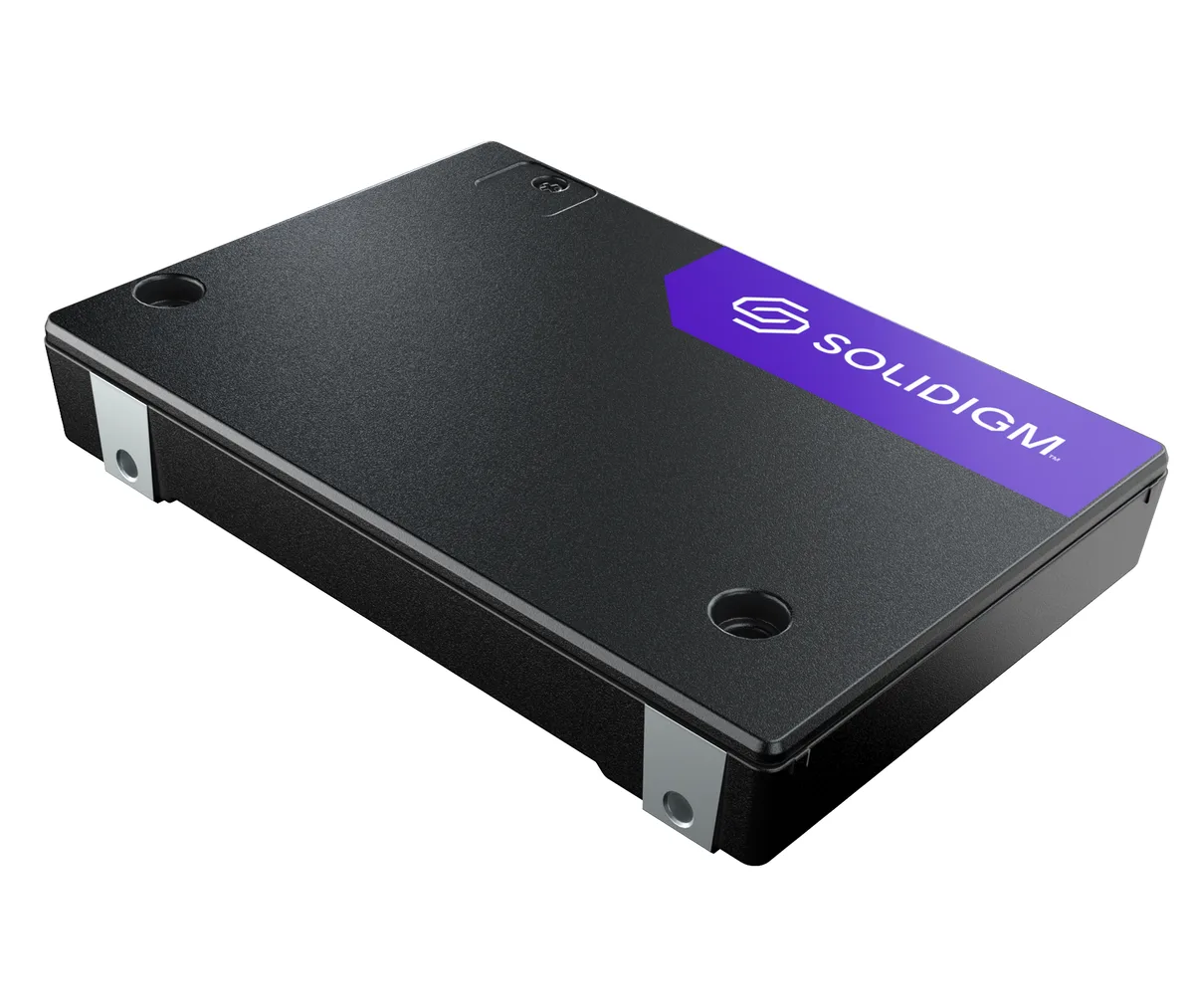

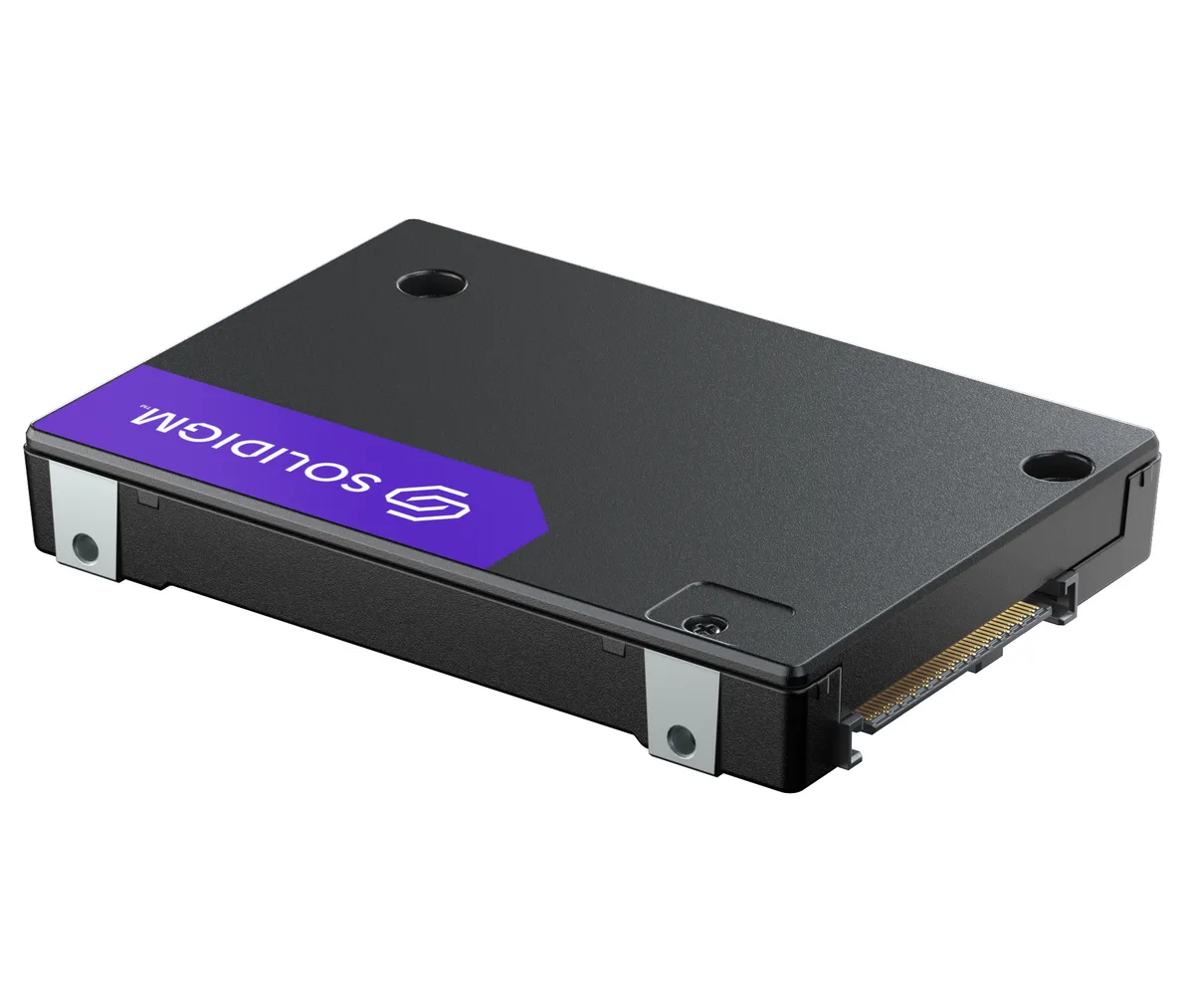

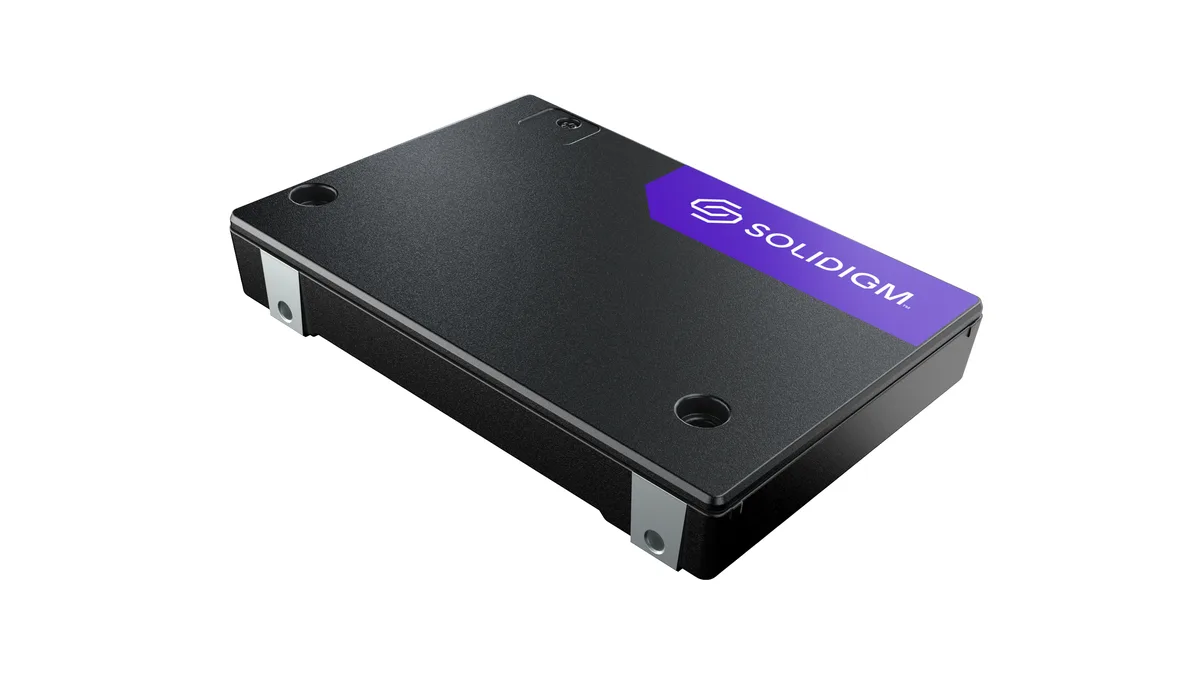

Solidigm D7-PS1010 U.2 15mm enterprise SSD, silver metal casing with label

Solidigm

Solidigm SB5PH27X153TOF1 enterprise SSD 15.36TB U.2 15mm PCIe 5.0

SKU CH-2QYP-S7YJ7 MPN SB5PH27X153TOF1

15.36 TB U.2 15 mm enterprise SSD with PCIe 5.0, 14500 MB/s read, 9300 MB/s write and FIPS security

  • Form FactorU.2 15mm
  • Capacity15.36TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 15.36TB U.2 FIPS

Show 20 more configurations
  • 36TB capacity stores massive datasets in a single U.2 15mm drive
  • PCIe 5.0 x4 interface delivers up to 14500 MBps sequential read speed
  • 2750000 random read IOPS accelerates latency-sensitive enterprise applications
  • FIPS-certified security protects data at rest in regulated environments
  • 2500000-hour MTBF and 1 DWPD endurance ensure long-term reliability

Enterprise capacity and interface

The Solidigm D7-PS1010 is a 15.36TB enterprise SSD built for data-centre workloads. It uses a U.2 15mm form factor and a PCI-Express 5.0 x4 interface. The drive targets servers that need high-density storage with consistent read and write performance.

Build integration and system impact

The U.2 15mm form factor requires a compatible backplane or drive bay with the matching connector and vertical clearance. A PCIe 5.0 capable CPU or switch is needed to reach the rated sequential speeds. The single-drive design frees multiple bays compared to lower-capacity alternatives.

Thermals noise and power draw

Active power draw reaches 23W while idle consumption sits at 5W. The operating temperature range spans 0°C to 77°C. With no moving parts the drive produces no acoustic noise. Shock resistance is rated at 1,000 G at 0.5 msec and vibration tolerance reaches 2.17 GRMS operating and 3.13 GRMS non-operating.

Highlights

  • 36TB capacity stores massive datasets in a single U.2 15mm drive
  • PCIe 5.0 x4 interface delivers up to 14500 MBps sequential read speed
  • 2750000 random read IOPS accelerates latency-sensitive enterprise applications
  • FIPS-certified security protects data at rest in regulated environments
  • 2500000-hour MTBF and 1 DWPD endurance ensure long-term reliability

Specifications

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PH27X153TOF1
Form FactorU.2 15mm
Capacity15.36TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write380000 IOPS (4K Blocks)
Endurance1 DWPD / 28 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight165g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much data can be written before the 1 DWPD endurance limit is reached?

The drive is rated for 28 PBW total bytes written over its warranty period at 1 DWPD.

What is the active power draw when the SSD runs continuously in a server?

Active power consumption is 23W while the drive operates at up to 77°C.

Which server backplane connector is required for the U.2 15mm form factor?

A U.2 backplane with PCIe 5.0 x4 electrical lanes accepts the 15mm drive.
