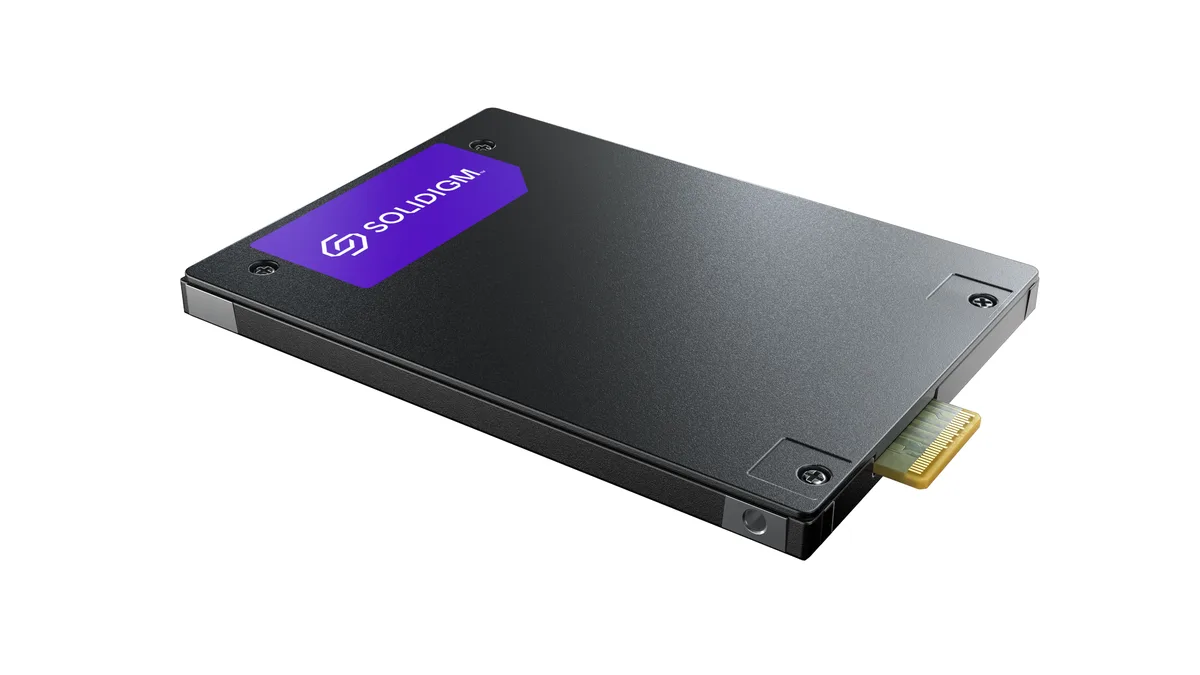

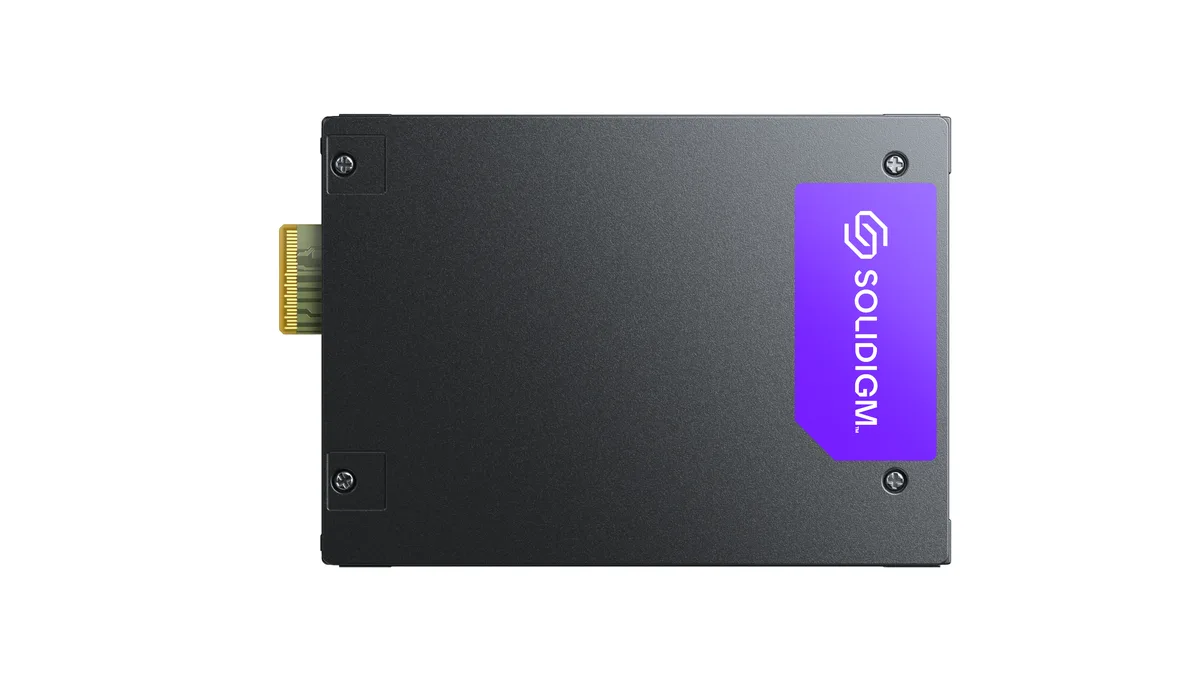

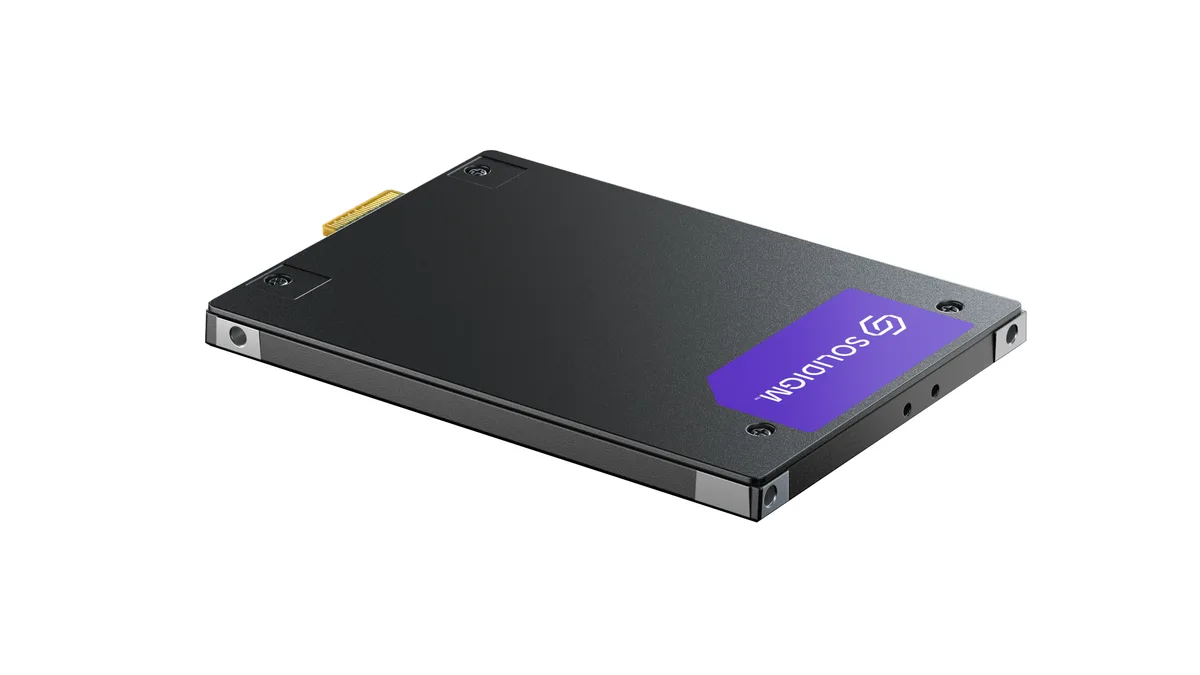

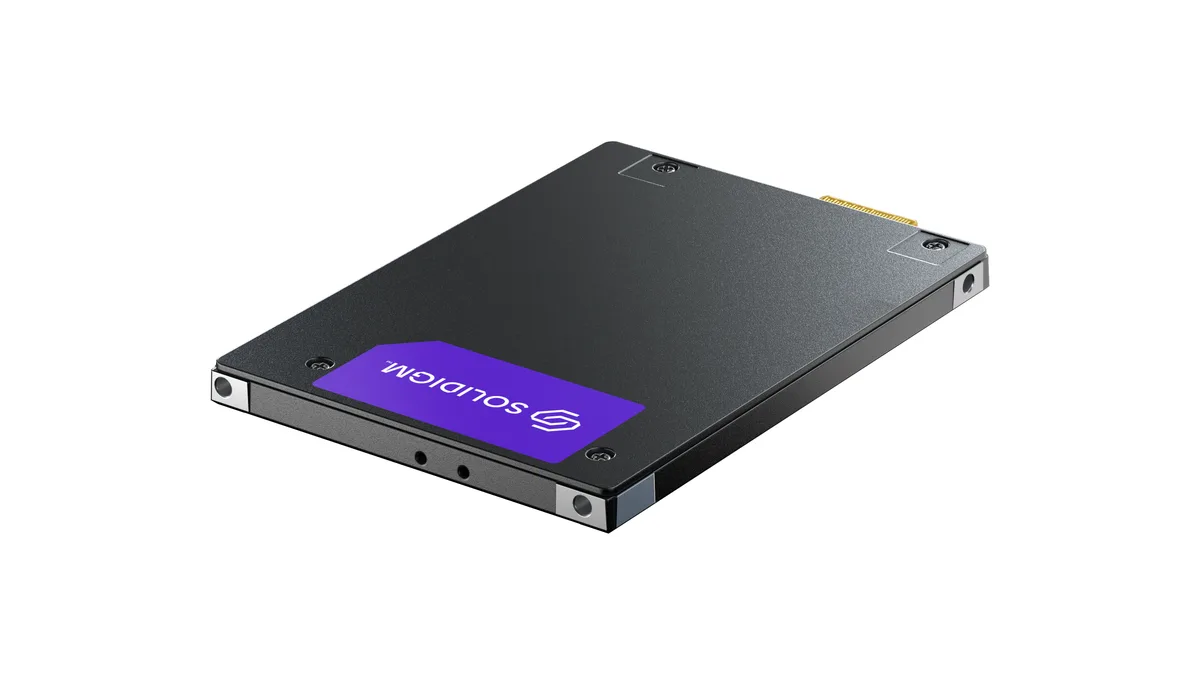

Rectangular E3.S 7.5mm SSD with label showing 12.8TB capacity

Solidigm

Solidigm SB5PHA7E128T001 D7-PS1030 12.8TB enterprise SSD

SKU CH-C8ZB-FC49W MPN SB5PHA7E128T001

12.8TB E3.S 7.5mm drive with 176L TLC 3D NAND and PCI-Express 5.0 delivers 14500 MBps reads, 9300 MBps writes, 2750000 random read IOPS and 3 DWPD endurance

  • Form FactorE3.S 7.5mm
  • Capacity12.8TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 9300 MBps

Option 12.8TB E3.S

Show 12 more configurations
  • Massive 12.8TB capacity consolidates datasets in a single E3.S 7.5mm drive
  • PCIe 5.0 x4 interface delivers up to 14500 MBps sequential read throughput
  • 2,750,000 4K random read IOPS accelerates latency-sensitive transaction workloads
  • 3 DWPD endurance with 70 PBW rating sustains heavy write-intensive applications
  • 5 million hour MTBF and 1,000 G shock resistance ensure reliability in dense server environments

12.8TB E3.S enterprise SSD for data centres

The Solidigm D7-PS1030 delivers 12.8TB in the E3.S 7.5mm form factor using 176L TLC 3D NAND. It connects through a PCI-Express 5.0 x4 link and is built for servers that need high-capacity flash storage in a dense layout.

Sustained performance under load

Sequential reads reach up to 14500 MBps and writes up to 9300 MBps. Random 4KB workloads sustain 2750000 read IOPS and 800000 write IOPS. Endurance is rated at 3 DWPD for 70 PBW with a 2,500,000-hour MTBF.

Thermals power and noise in normal use

The drive operates from 0°C to 77°C and draws 5W idle and 23W active. It tolerates 1,000 G shock at 0.5 msec, 2.17 GRMS operating vibration and 3.13 GRMS non-operating vibration. Weight is 120g.

Highlights

  • Massive 12.8TB capacity consolidates datasets in a single E3.S 7.5mm drive
  • PCIe 5.0 x4 interface delivers up to 14500 MBps sequential read throughput
  • 2,750,000 4K random read IOPS accelerates latency-sensitive transaction workloads
  • 3 DWPD endurance with 70 PBW rating sustains heavy write-intensive applications
  • 5 million hour MTBF and 1,000 G shock resistance ensure reliability in dense server environments

Specifications

BrandSolidigm
ModelD7-PS1030
Part NumberSB5PHA7E128T001
Form FactorE3.S 7.5mm
Capacity12.8TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 9300 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write800000 IOPS (4K Blocks)
Endurance3 DWPD / 70 PBW
MTBF2,500,000 hours
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight120g +/- 10g
Shipping weight0.17 kg
Package size140 × 110 × 17 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the D7-PS1030 draw when it runs at 23W active load all day?

The drive draws 23W under active load and 5W at idle, operating within a 0°C to 77°C range.

What server slot and bus does the E3.S 7.5mm SB5PHA7E128T001 need to operate?

It requires an E3.S 7.5mm bay with a PCI-Express 5.0 x4 connection.

Will the 12.8TB D7-PS1030 work in a PCIe 4.0 backplane I already have?

The PCI-Express 5.0 interface is backward compatible with PCIe 4.0 slots, running at the slower bus speed.
